4 Bed Acadian with Generous Outdoor Living Space

Plan 56408SM

  • 2,895

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Acadian style house plan features a split open floor plan with 4 bedrooms and 3 1/2 baths.
  • If you're looking for a floor plan that contains all spacious walk-in closets, and bedrooms , than you'll love this home plan.
  • The brick wall on the rear porch is set up for your outdoor kitchen.
  • Notice the garage is large enough for the work truck and the Sports Utility vehicle with plenty of walking area.
  • If you're planning for the future, the 4th bedroom & bath is set up nicely for your guests and provides the much needed privacy.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT:  Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn.  Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details.  Also included are wall sections, and any other necessary details for your framer or other subcontractors

Floor Plan

Plan details



4 Bed Acadian with Generous Outdoor Living Space

  • 2,895

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 6 Sets $1,025
  • PDF - single-use $1,125
  • 8 Sets $1,125
  • CAD $2,125
  • View all purchase option online

About This Plan

  • This Acadian style house plan features a split open floor plan with 4 bedrooms and 3 1/2 baths.
  • If you're looking for a floor plan that contains all spacious walk-in closets, and bedrooms , than you'll love this home plan.
  • The brick wall on the rear porch is set up for your outdoor kitchen.
  • Notice the garage is large enough for the work truck and the Sports Utility vehicle with plenty of walking area.
  • If you're planning for the future, the 4th bedroom & bath is set up nicely for your guests and provides the much needed privacy.

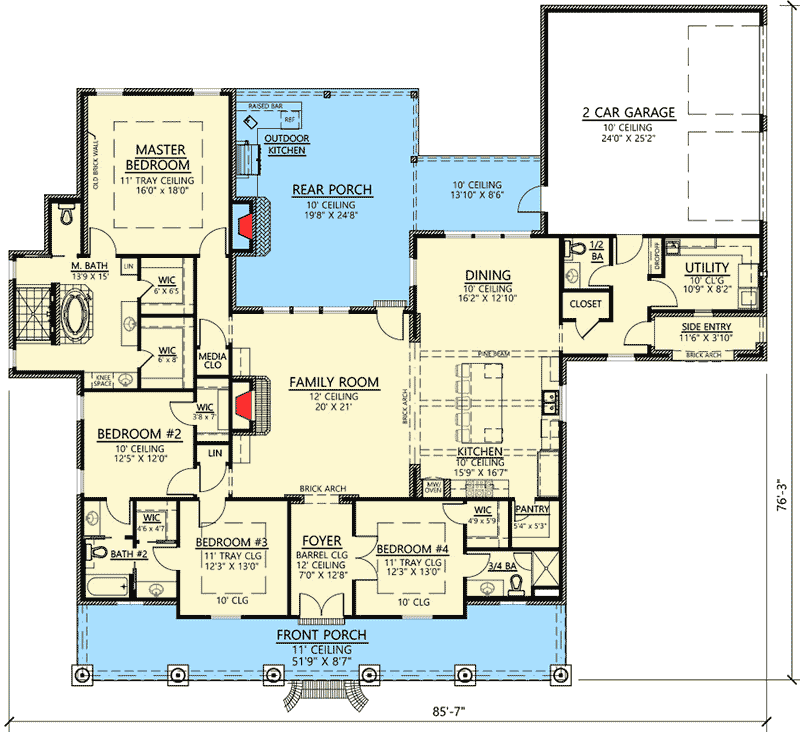

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,895 sq. ft.
  • 1st Floor: 2,895 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 85' 7"
  • Depth: 76' 3"

Garage

  • Type: Attached
  • Area: 600 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

  • Acadian
  • French Country
  • Southern

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Jack & Jill Bath
  • PDF
