Plan 46503LA 4 Bed Barndominium Style House Plan with Two Laundry Room and a Detached Garage

3,399 4 3.5 2 4
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4 Bed Barndominium Style House Plan with Two Laundry Room and a Detached Garage

Plan 46503LA

  • 3,399

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • This barndominium-style ("style", because it is designed with 2x6 exterior wall construction) gives you 4 beds, 3.5 baths and 3,399 square feet of heated living.
  • A 2-car side-entry garage and a separate and matching 2-car detached garage combine to give you 1,075 square feet of garage space.
  • The master suite is on the main floor and has sliding door access to the covered grilling deck in back with outdoor kitchen.
  • A second covered outdoor space is located on the left side of the home and is accessible from both the 2-story great room and the dining/living room. It has a fireplace - so does the inside - and is a great space for entertaining.
  • There is a large laundry room on the main floor and a second one upstairs.

This plan set has the following details:


  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

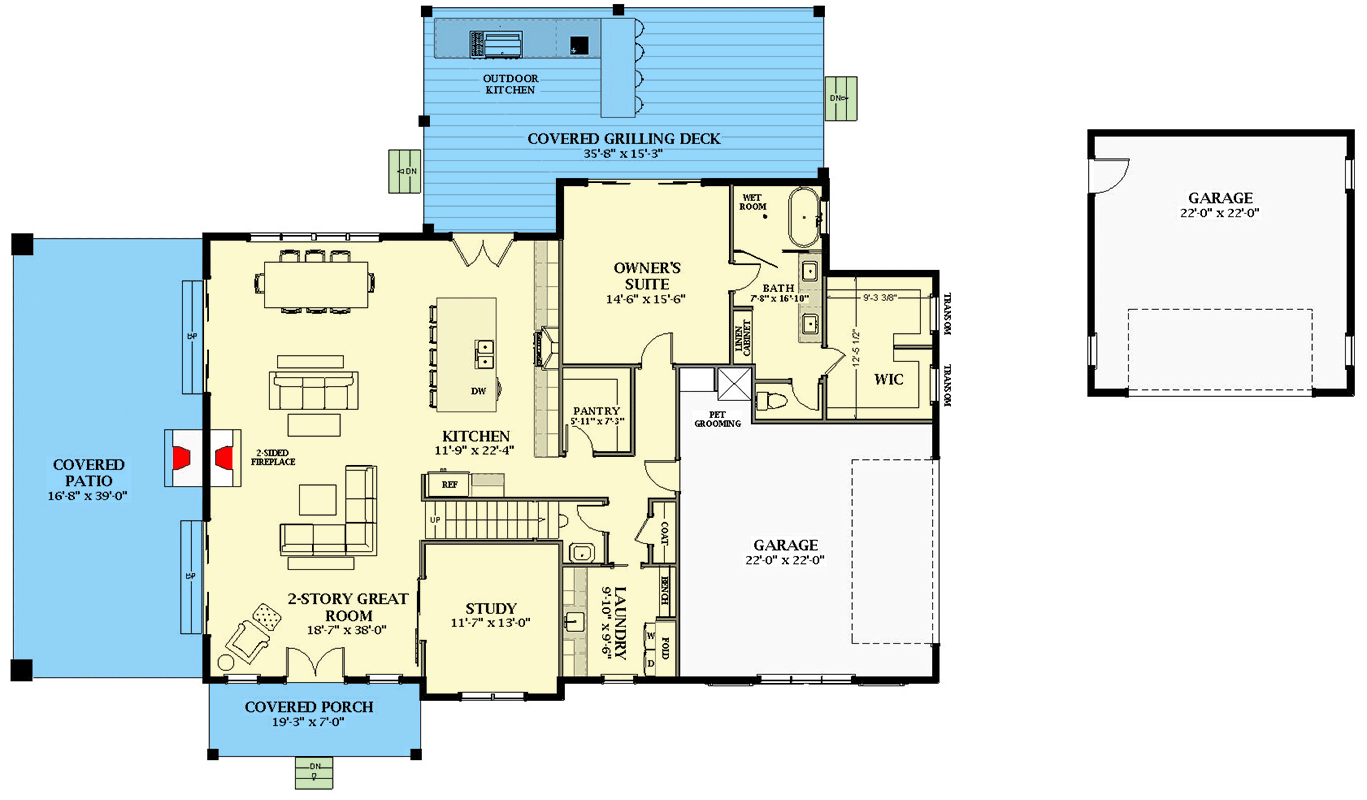

4 Bed Barndominium Style House Plan with Two Laundry Room and a Detached Garage - 46503LA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

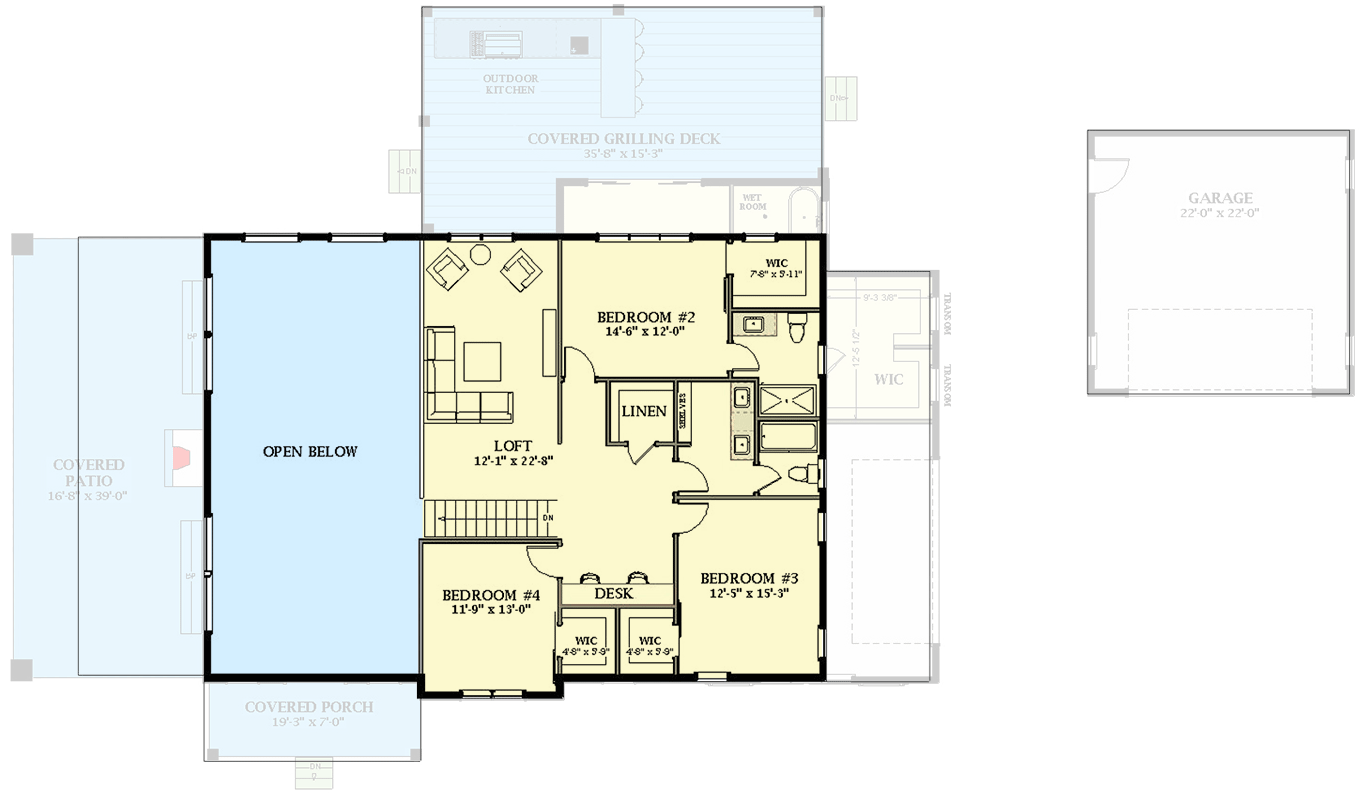

4 Bed Barndominium Style House Plan with Two Laundry Room and a Detached Garage - 46503LA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,399 sq. ft.
  • 1st Floor: 2,041 sq. ft.
  • 2nd Floor: 1,358 sq. ft.
  • Covered Patio: 655 sq. ft.
  • Deck: 605 sq. ft.
  • Porch, Combined: 1,397 sq. ft.
  • Porch, Front: 137 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Daylight, Crawl, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 117' 0"
  • Depth: 65' 6"

Garage

  • Type: Detached, Attached
  • Area: 1075 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

4 Bed Barndominium Style House Plan with Two Laundry Room and a Detached Garage

  • 3,399

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • 5 Sets $1,795
  • 5 Sets + PDF $1,945
  • CAD + PDF - Single Build $2,595
  • CAD + PDF - Unlimited Build $2,995
  • View all purchase option online

About This Plan

  • This barndominium-style ("style", because it is designed with 2x6 exterior wall construction) gives you 4 beds, 3.5 baths and 3,399 square feet of heated living.
  • A 2-car side-entry garage and a separate and matching 2-car detached garage combine to give you 1,075 square feet of garage space.
  • The master suite is on the main floor and has sliding door access to the covered grilling deck in back with outdoor kitchen.
  • A second covered outdoor space is located on the left side of the home and is accessible from both the 2-story great room and the dining/living room. It has a fireplace - so does the inside - and is a great space for entertaining.
  • There is a large laundry room on the main floor and a second one upstairs.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,399 sq. ft.
  • 1st Floor: 2,041 sq. ft.
  • 2nd Floor: 1,358 sq. ft.
  • Covered Patio: 655 sq. ft.
  • Deck: 605 sq. ft.
  • Porch, Combined: 1,397 sq. ft.
  • Porch, Front: 137 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Daylight, Crawl, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 117' 0"
  • Depth: 65' 6"

Garage

  • Type: Detached, Attached
  • Area: 1075 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
