4-Bed Beach House Plan

Plan 68567VR

This plan plants 3 trees

2,005
Heated s.f.
4
Beds
3.5
Baths
2
Stories
2
Cars

Get lots of square footage in a narrow footprint with this stylish beach house plan.
A vaulted ceiling unites the living room and dining room that are both open to each other.
Sight lines continue on to the kitchen that has an efficient peninsula eating bar.
Deck space close by is ideal for grilling those outdoor meals.
There are two large bedrooms on the main level, each with a walk-in closet.
Head upstairs for two more bedrooms, one with a built-in desk and one with a private bathroom.
Related Plans: Get alternate versions with house plans 68497VR (2,000 sq. ft.), 68588VR (2,118 sq. ft.) and 68560VR (2,360 sq. ft.). Eliminate the upper floor with house plans 68480VR (1,267 sq. ft.) and 68568VR (1,361 sq. ft.).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

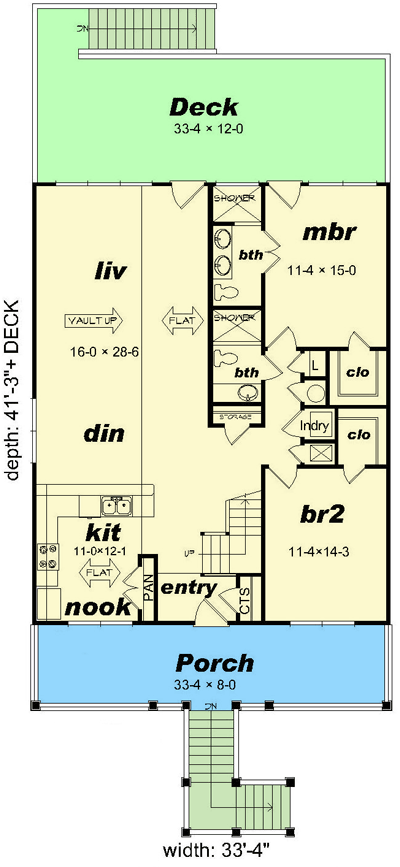

4-Bed Beach House Plan - 68567VR floor plan - Main Level

Upper Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

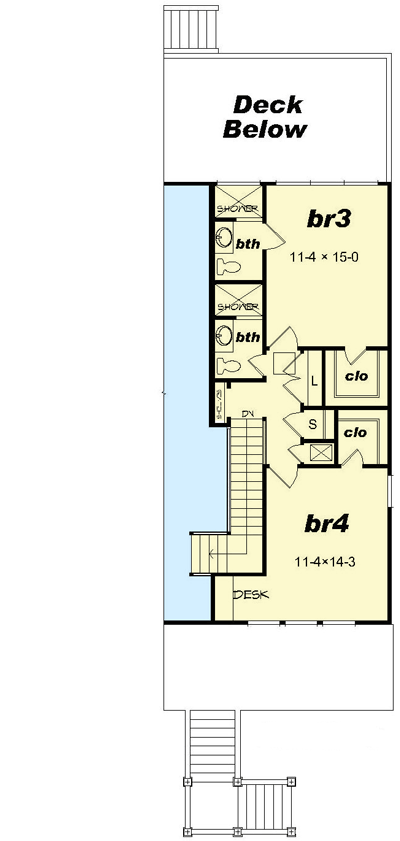

4-Bed Beach House Plan - 68567VR floor plan - Upper Level

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

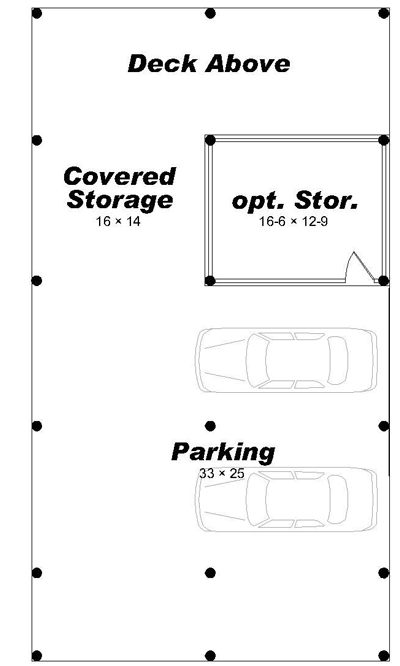

4-Bed Beach House Plan - 68567VR floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,005 sq. ft.
1st Floor: 1,375 sq. ft.
2nd Floor: 630 sq. ft.

Carport: 825 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Pier

Optional Foundations: Basement, Walkout, Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 33' 4"
Depth: 41' 3"
Max ridge height: 24' 6"

Garage

Type: Drive Under
Count: 2 Cars
Entry Location: Side, Front

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 4 on 12

Framing Type: Stick

Architectural Style

Special features

Scroll
