Plan 23861JD 4-Bed Contemporary Home Plan with Main-Floor Master

4-Bed Contemporary Home Plan with Main-Floor Master

Plan 23861JD

  • 4,425

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

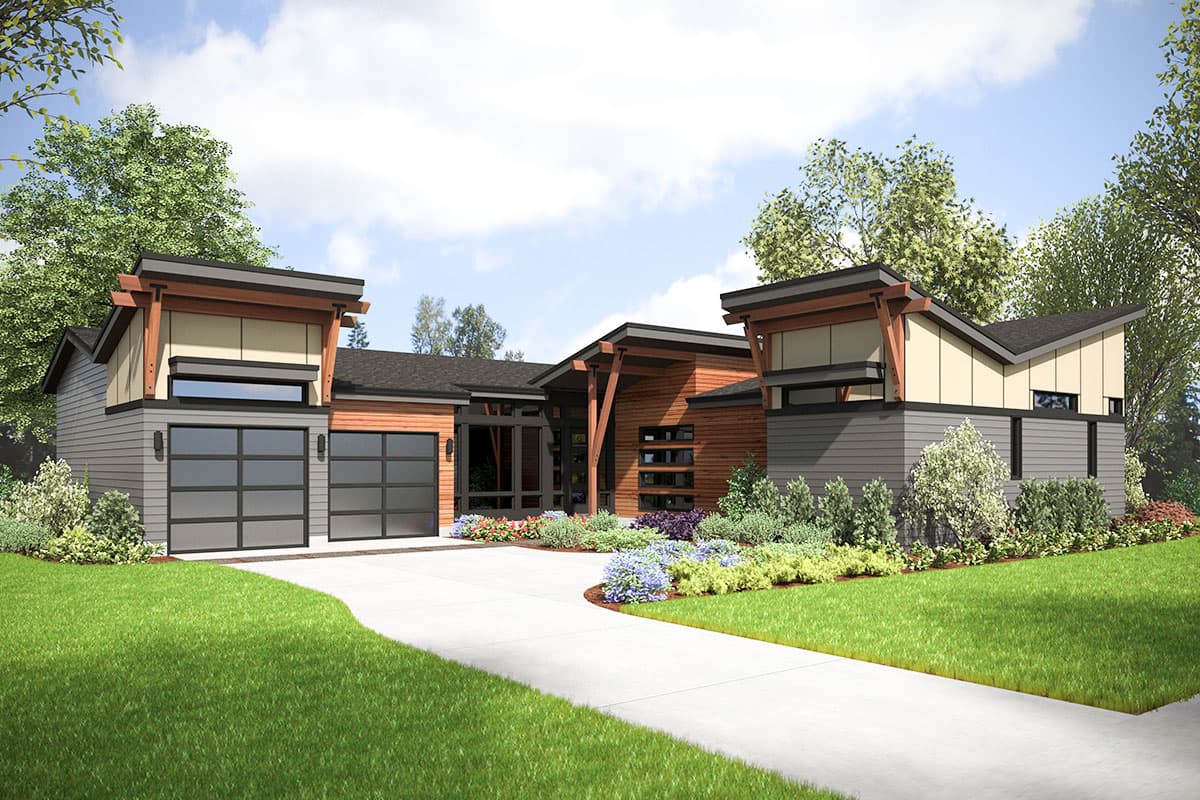

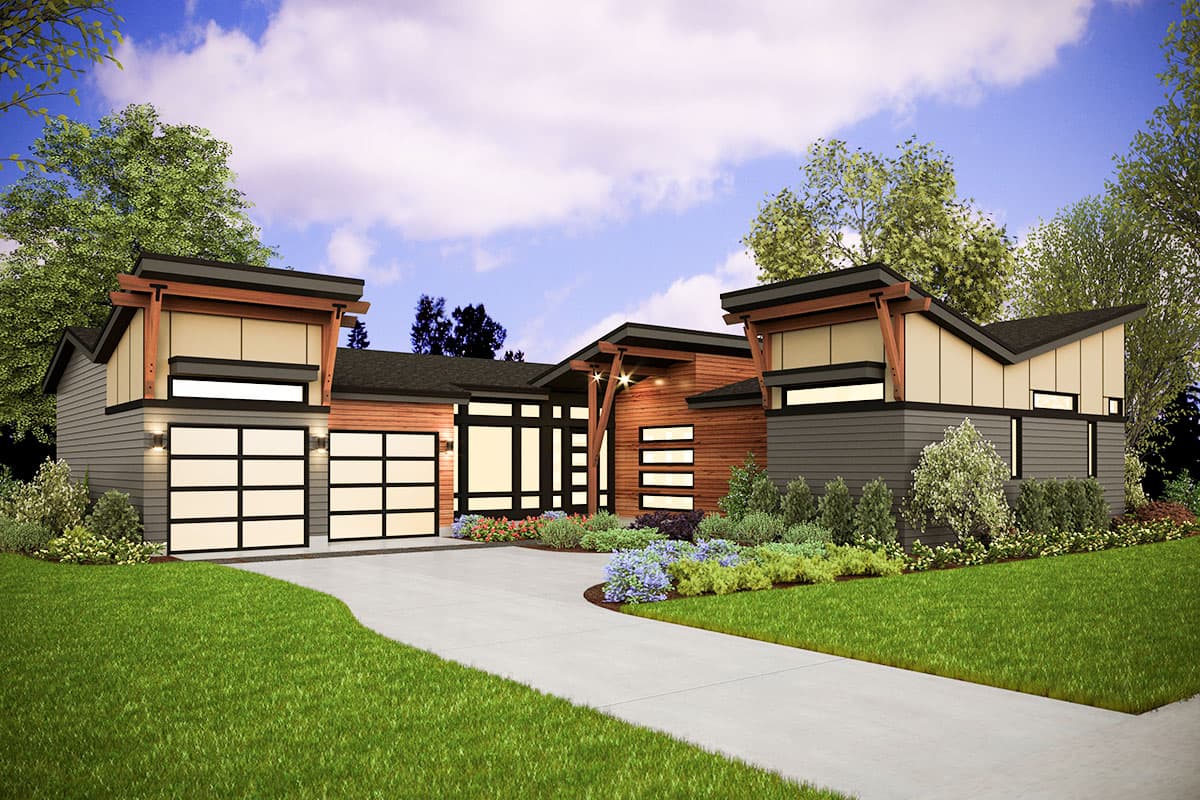

  • The butterfly roof adds a unique and appealing dimension to this 4-bedroom, contemporary home plan. The spacious interior is loaded with natural light, with the most common shared living spaces open to one another.
  • From the kitchen, pass through the butler's pantry as a shortcut to the laundry room when multi-tasking, or retreat to the adjacent covered porch for some fresh air.
  • The master bedroom is located on the main level for easy access, and protrudes from the front of the home. The butterfly roof tops the master bathroom, which boasts a freestanding tub, commode room, and dual closets.

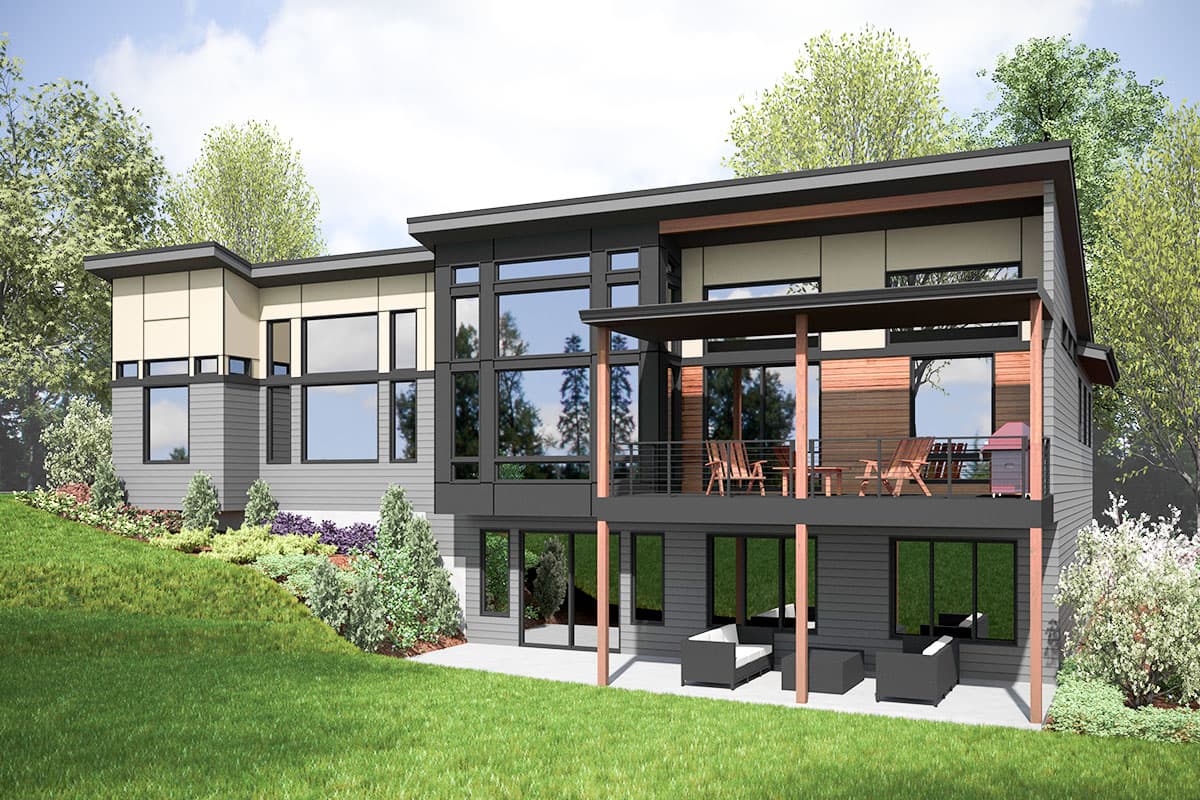

  • Each of the three, lower-level bedrooms include a full bath, while two of the bedrooms walk-out to a covered patio. A generous recreation room provides a fun space for all to enjoy, and a second laundry room downstairs helps with the chore.
  • Enter the 3-car, tandem garage from the front of the home, and discover a mudroom with built-in cubbies just inside.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

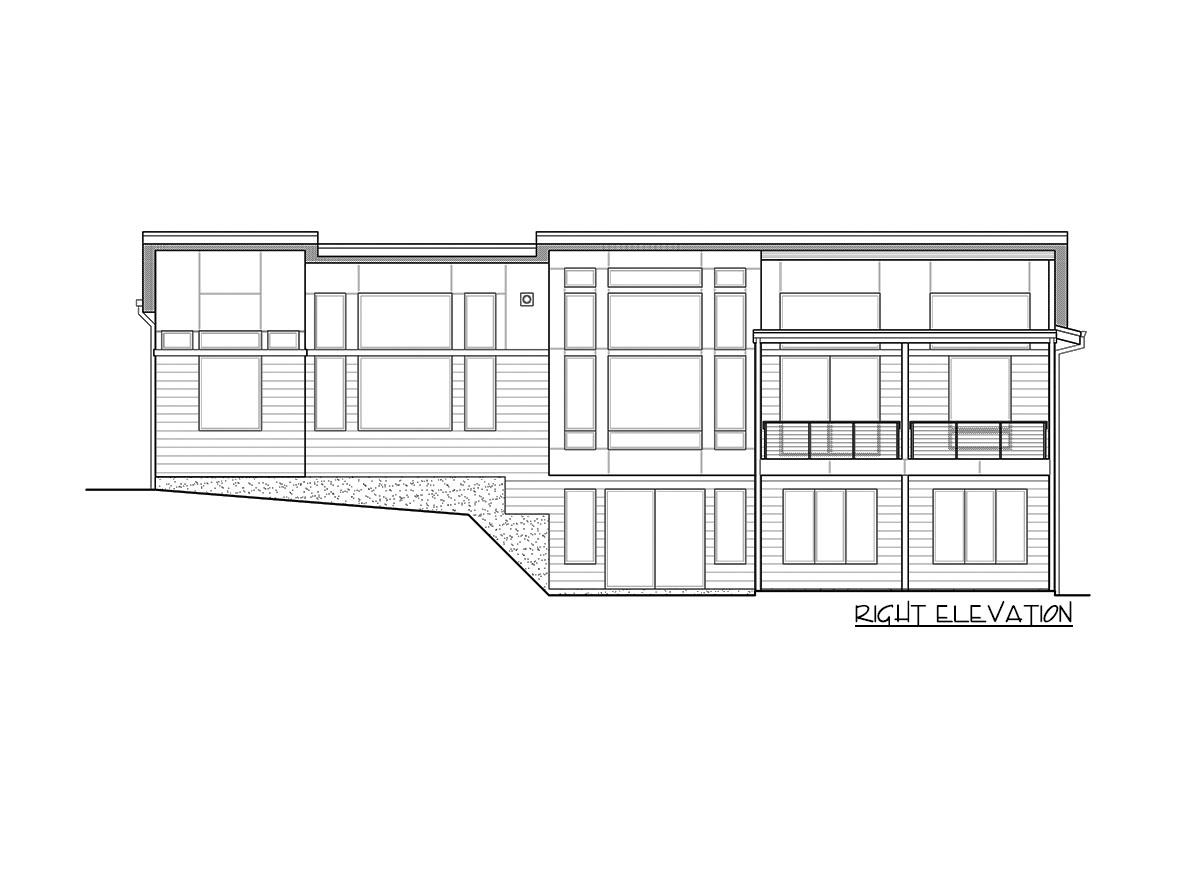

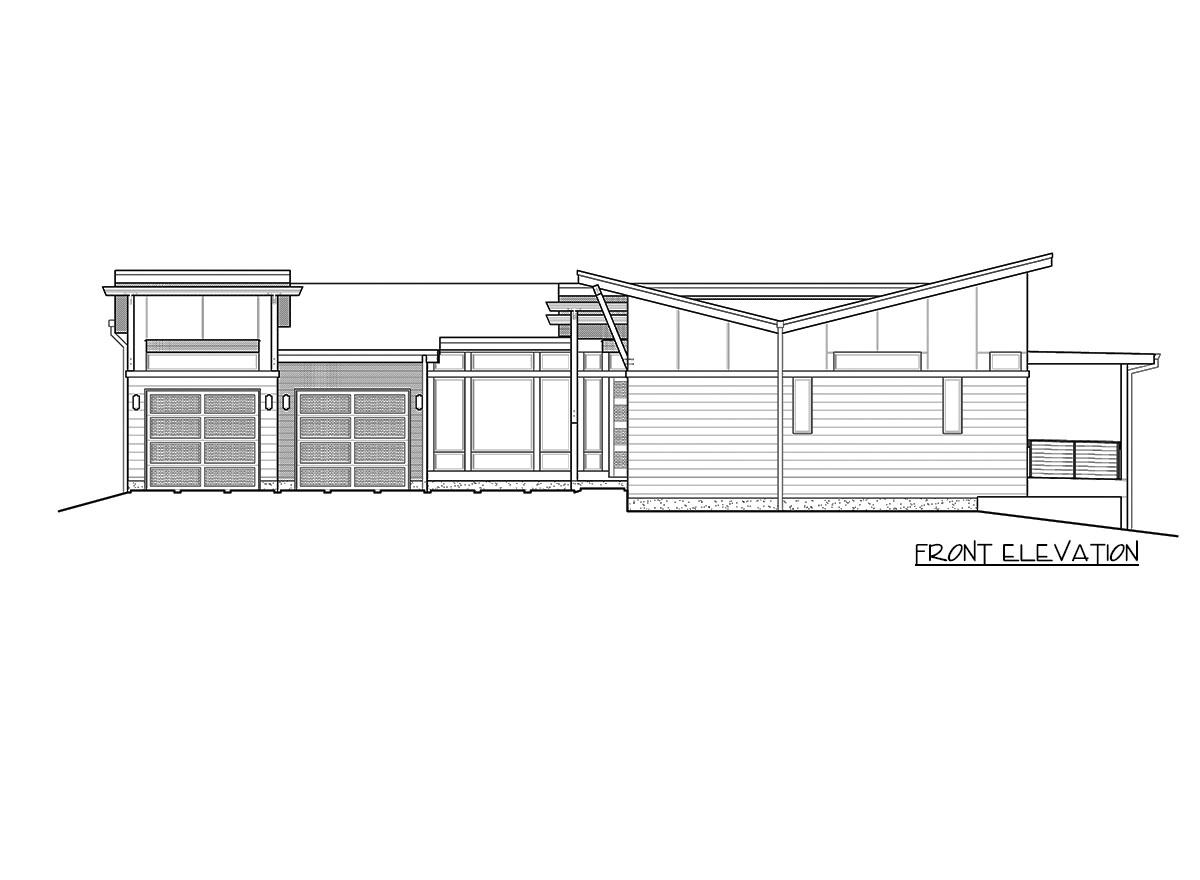

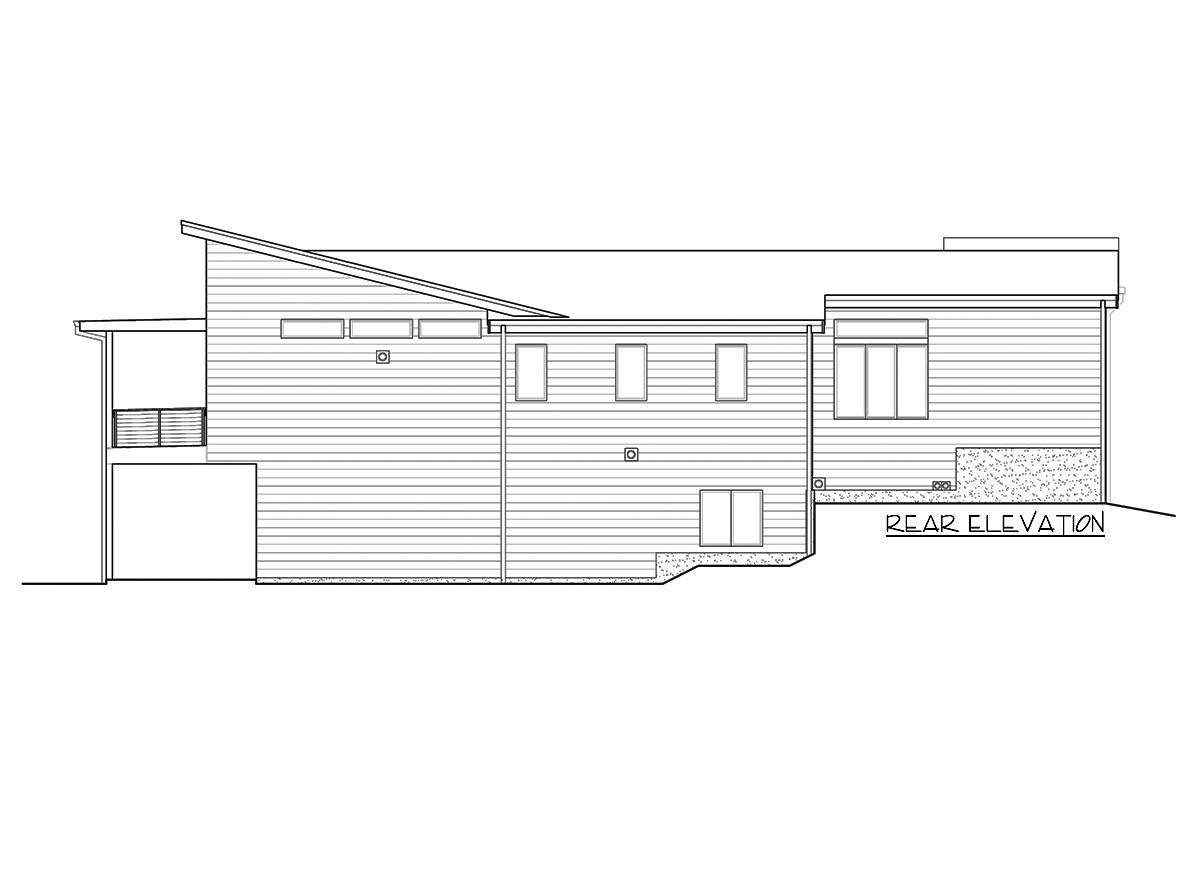

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



4-Bed Contemporary Home Plan with Main-Floor Master

  • 4,425

    Heated s.f.

  • 4 - 5

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,000
  • CAD - Unlimited Build $3,300
  • View all purchase option online

About This Plan

  • The butterfly roof adds a unique and appealing dimension to this 4-bedroom, contemporary home plan. The spacious interior is loaded with natural light, with the most common shared living spaces open to one another.
  • From the kitchen, pass through the butler's pantry as a shortcut to the laundry room when multi-tasking, or retreat to the adjacent covered porch for some fresh air.
  • The master bedroom is located on the main level for easy access, and protrudes from the front of the home. The butterfly roof tops the master bathroom, which boasts a freestanding tub, commode room, and dual closets.
  • Each of the three, lower-level bedrooms include a full bath, while two of the bedrooms walk-out to a covered patio. A generous recreation room provides a fun space for all to enjoy, and a second laundry room downstairs helps with the chore.
  • Enter the 3-car, tandem garage from the front of the home, and discover a mudroom with built-in cubbies just inside.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

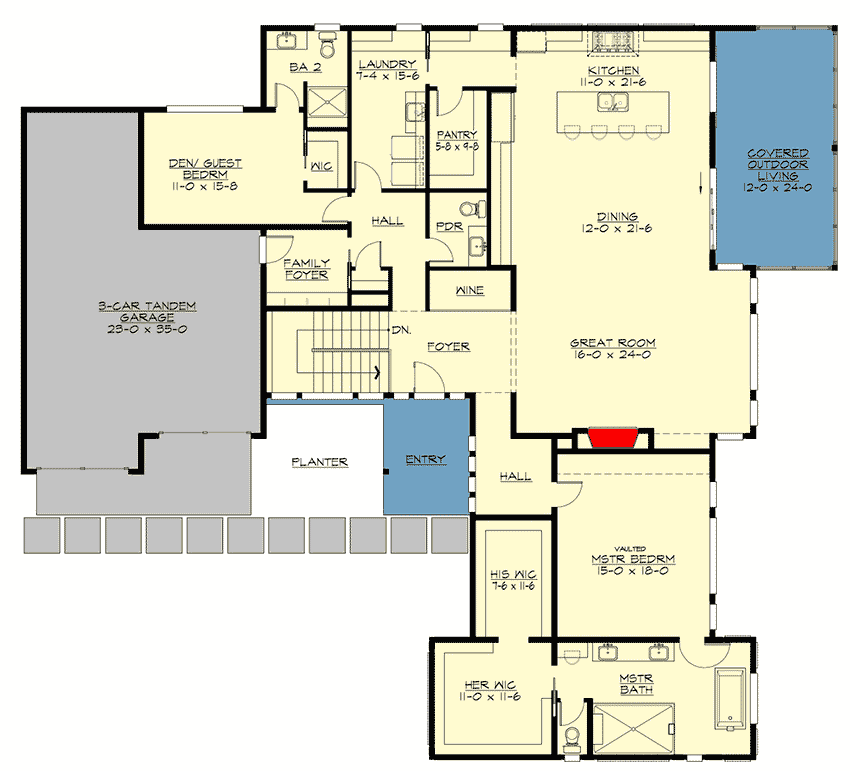

  • Main Level

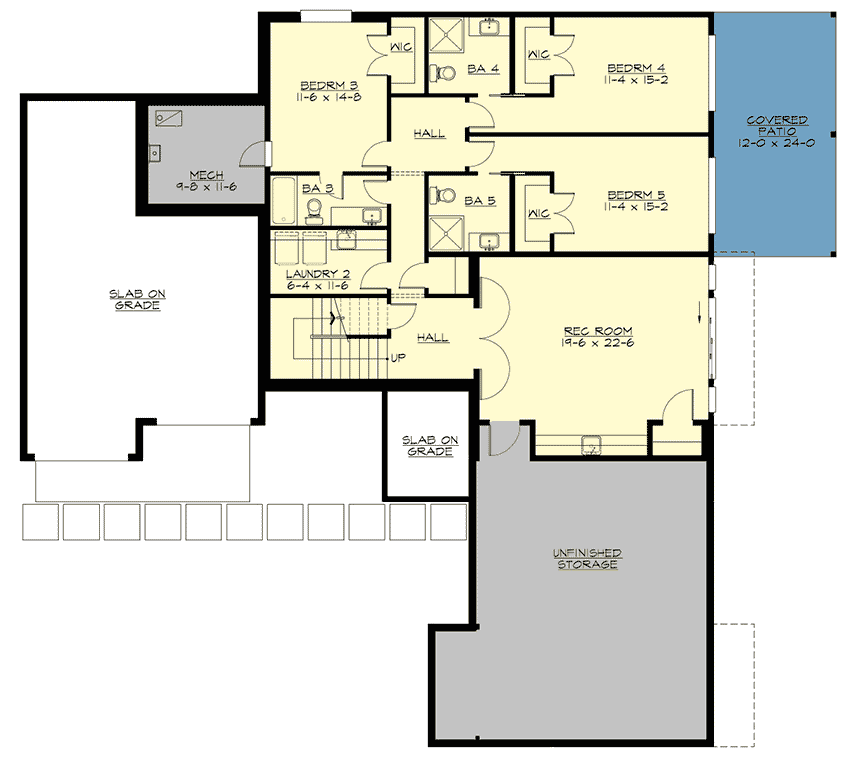

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,425 sq. ft.
  • Lower Level: 1,785 sq. ft.
  • 1st Floor: 2,640 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 72' 0"
  • Max ridge height: 18' 0"

Garage

  • Type: Attached
  • Area: 670 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
