Plan 50227PH
4-Bed Cottage House Plan with Brick Exterior and 2-Story Living Room - 2950 Sq Ft
Heated S.F.
2,950
Beds
4
Baths
2.5
Stories
2
What's Included
Plan Details
  • This 4-bed cottage house plan has a brick exterior with two dormers adding form and function to the 2950 square foot design. Inside, a flex room off the foyer makes a great home office, den, or a guest bedroom if you have a visitor from out of town.
  • In back, a 2-story ceiling sits above the living room with fireplace and decorative beamed ceiling. The living room is open to the island kitchen with a wall pantry and convenient access to the outdoors through a well-planned mudroom.
  • One of the four bedrooms - the prime bedroom - is on the main floor. It has two walk-in closets, two vanities and a walk-in shower. Upstairs, three bedrooms share a bath and have the use of the loft overlooking the space below.
What's Included
  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing Plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed Cottage House Plan with Brick Exterior and 2-Story Living Room - 2950 Sq Ft

  • 2,950

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

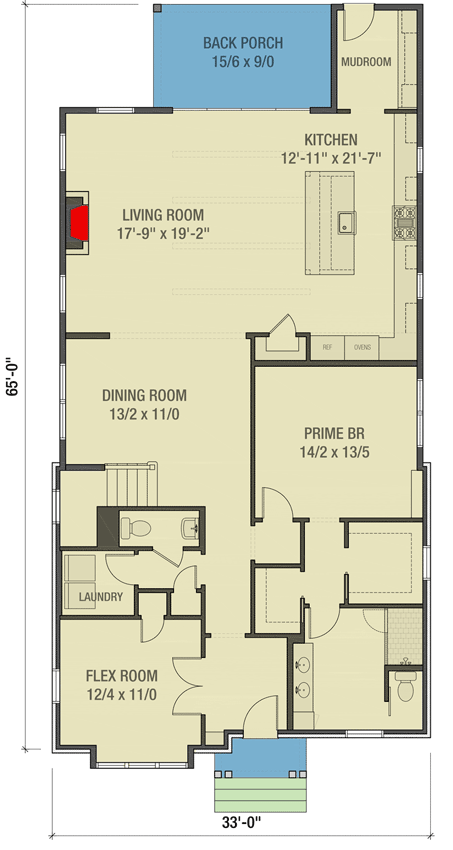

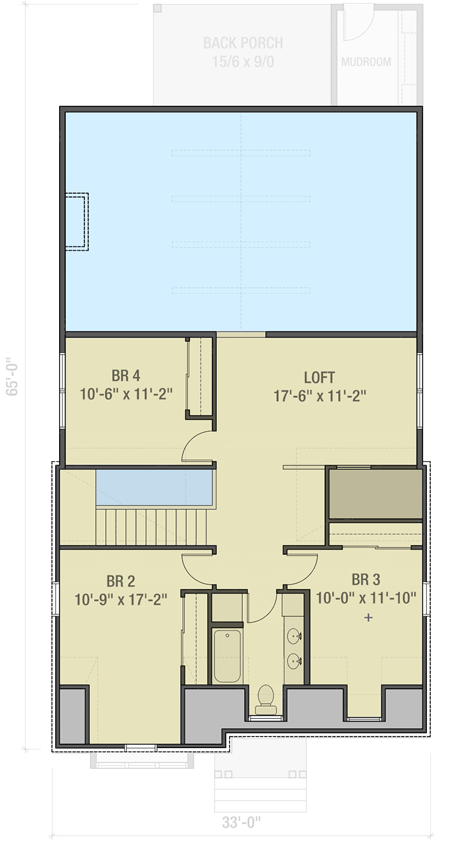

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,950 sq. ft.
  • 1st Floor: 1,875 sq. ft.
  • 2nd Floor: 1,075 sq. ft.

Dimensions

  • Width: 33' 0"
  • Depth: 65' 0"
  • Max ridge height: 26' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
