Plan 86231HH
4 Bed Cottage with Exterior Options
Heated S.F.
2,639
Beds
4
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details
  • This charming 4 bed cottage house plan comes in two versions giving you a choice of exterior options.
  • The big front porch shelters you from the elements and provides shade on a hot day.

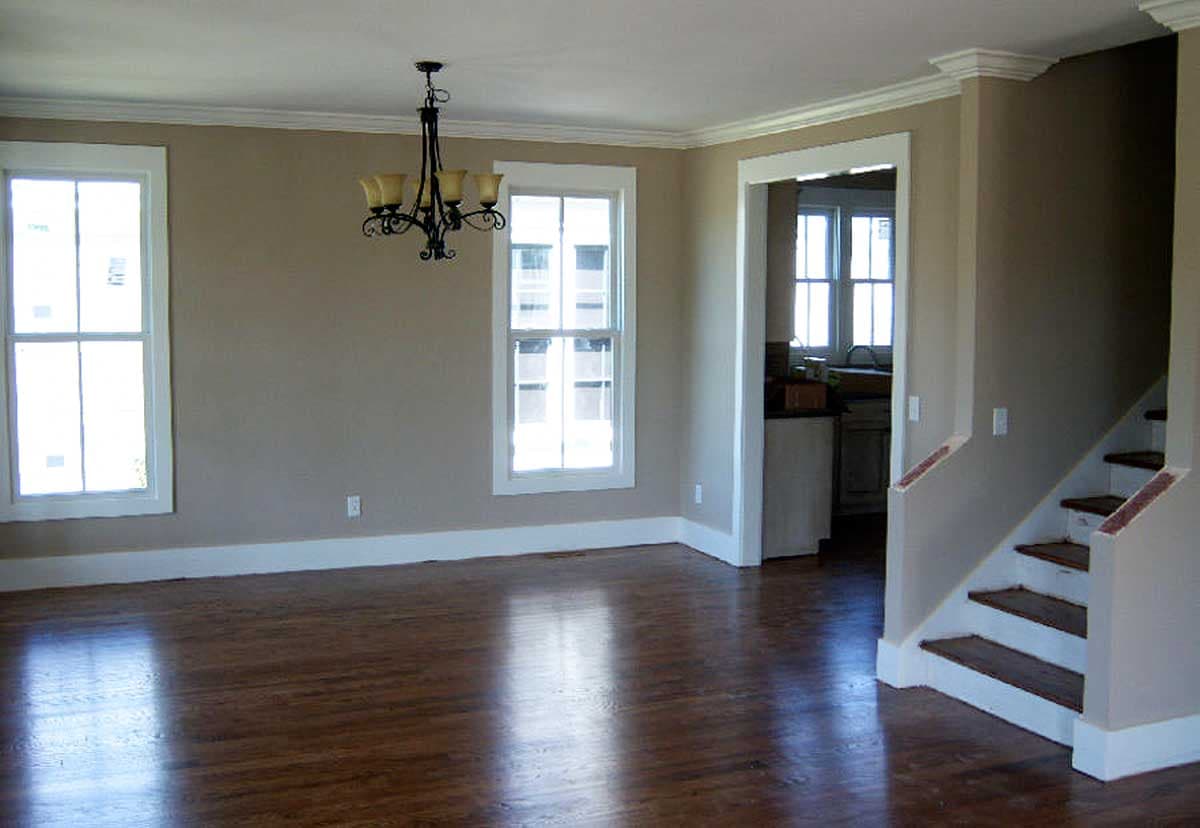

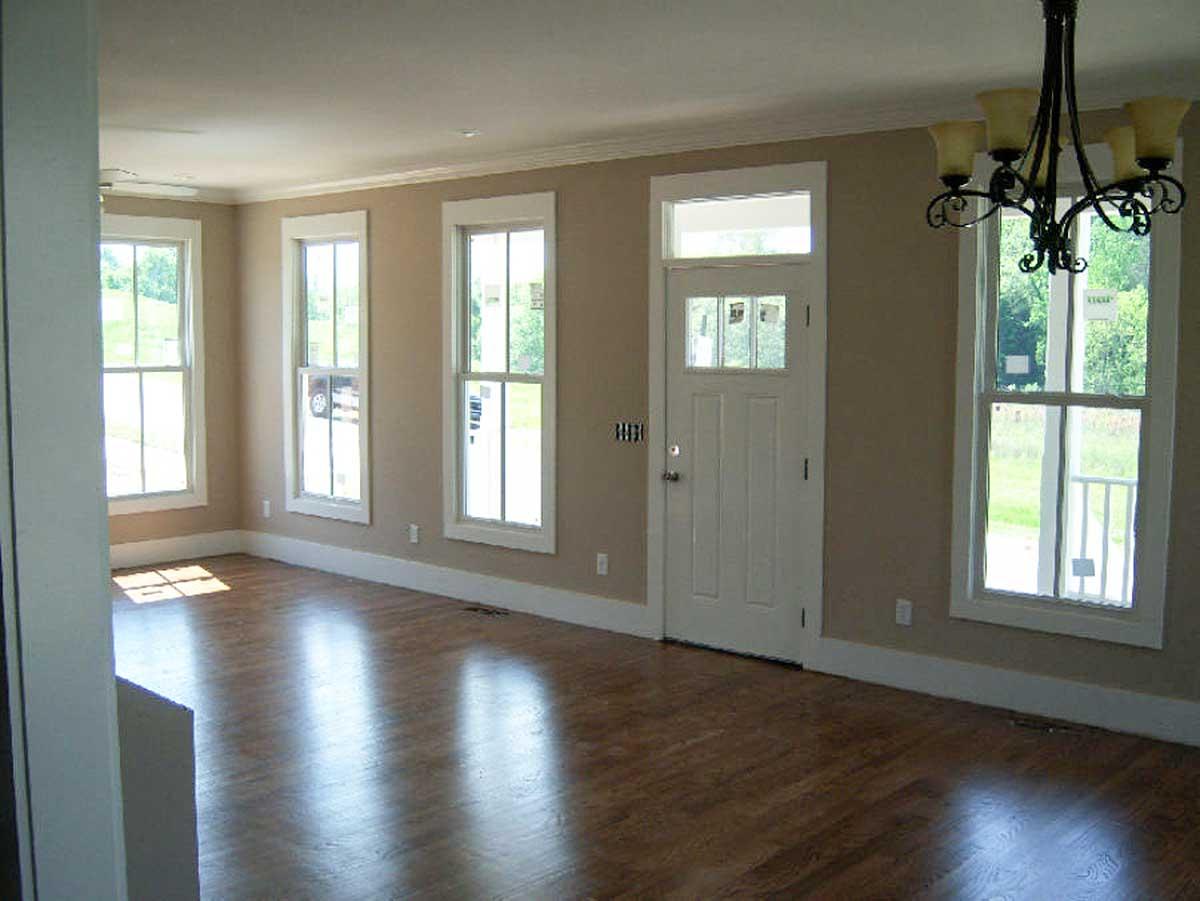

  • Once inside you are treated to a combined dining room/family room with easy access to the kitchen.
  • There's an office alcove on the other side of the kitchen and a big porch out back that can be screened in.
  • The master suite is on this level with the remaining bedrooms up on the second floor.
  • The home was designed with lots of storage space and a fabulous game room almost 21' wide.
  • Even the carport in back has a big storage room that can be closed off and locked.
  • The stick framed roof has an 8:12 pitch.
  • Related Plans: Get an alternate exterior with house plan 86232HH and 86235HH (with sun deck off game room).
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4 Bed Cottage with Exterior Options

  • 2,639

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

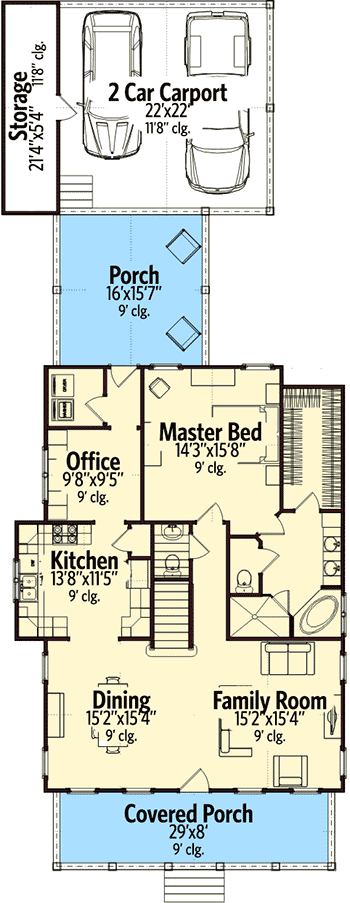

  • Main Level

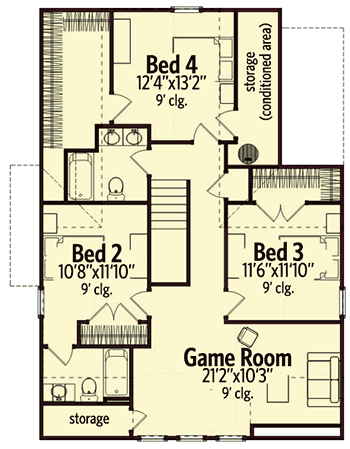

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,639 sq. ft.
  • 1st Floor: 1,388 sq. ft.
  • 2nd Floor: 1,251 sq. ft.

Dimensions

  • Width: 35' 4"
  • Depth: 89' 7"
  • Max ridge height: 24' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Carport
  • Area: 616 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
