Plan 86235HH

4 Bed Cottage with Options

2,713 4 3.5 2 2
Pageloader

4 Bed Cottage with Options

Plan 86235HH

  • 2,713

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This charming 4 bed cottage house plan comes in multiple versions giving you options.
  • The big front porch shelters you from the elements and provides shade on a hot day.
  • Once inside you are treated to a combined dining room/family room with easy access to the kitchen.
  • There's an office alcove on the other side of the kitchen and a big porch out back that can be screened in.
  • The master suite is on this level with the remaining bedrooms up on the second floor.
  • The home was designed with lots of storage space and a fabulous game room with a sun deck.
  • Even the carport in back has a big storage room that can be closed off and locked.
  • The stick framed roof has an 8:12 pitch.
  • Related Plans: Eliminate the sun deck with house plan 86232HH. And get an alternate exterior with house plan 86231HH.

Cover Sheet

Foundation plans
Elevations - complete with dimensions, ridge heights and special notes
Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
Rafter Plan
Details
Interior Elevations - include applicable cabinetry, electrical and special construction notes
Floor Joist Plan - complete with spans, sizes and direction (if applicable)
Ceiling Joist - complete with spans, sizes and direction
Sections - complete with dimensions, notes and specifications
Electrical plan - complete wit layout, light fixtures, outlets and legend

Floor Plan

Plan details



4 Bed Cottage with Options

  • 2,713

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $1,170
  • 5 Sets $1,190
  • 8 Sets $1,240
  • PDF - single-use $1,285
  • Reproducible Set $1,325
  • CAD $1,445
  • View all purchase option online

About This Plan

  • This charming 4 bed cottage house plan comes in multiple versions giving you options.
  • The big front porch shelters you from the elements and provides shade on a hot day.
  • Once inside you are treated to a combined dining room/family room with easy access to the kitchen.
  • There's an office alcove on the other side of the kitchen and a big porch out back that can be screened in.
  • The master suite is on this level with the remaining bedrooms up on the second floor.
  • The home was designed with lots of storage space and a fabulous game room with a sun deck.
  • Even the carport in back has a big storage room that can be closed off and locked.
  • The stick framed roof has an 8:12 pitch.
  • Related Plans: Eliminate the sun deck with house plan 86232HH. And get an alternate exterior with house plan 86231HH.

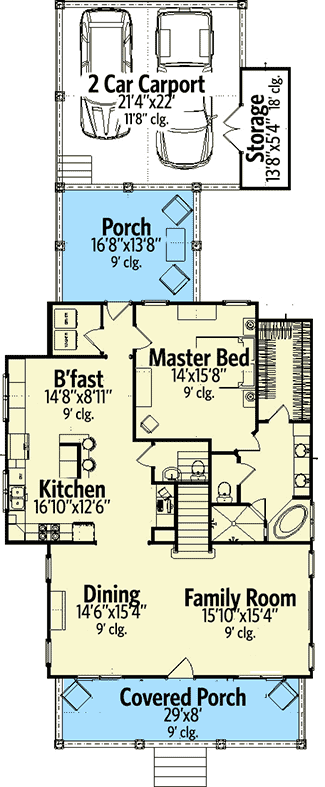

Floor Plans

  • Main Level

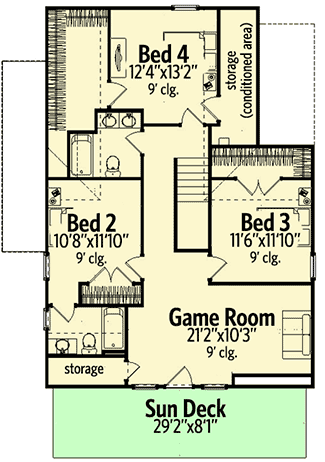

  • 2nd Floor
