Plan 710313BTZ

4-Bed Country Craftsman Home Plan with Main Floor Master

4-Bed Country Craftsman Home Plan with Main Floor Master

Plan 710313BTZ

  • 2,305

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This home encompasses the quintessential craftsman style with window boxes, farmhouse windows and columns welcoming guests by the door.
  • The first floor leads into the vaulted family room with a large fireplace and plenty of windows to let in natural light.
  • The kitchen is just to the left and includes an island for food preparation and an attached breakfast area.
  • The laundry room and a conveniently located powder room are down a small hall of the kitchen.
  • The master suite impresses with its oversized walk-in closet and bathroom made for two.
  • Upstairs, three more bedrooms are found with a shared bathroom.
  • Related: Get an alternate exterior with house plans 710314BTZ and 710315BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Plan details

Architectural Style



4-Bed Country Craftsman Home Plan with Main Floor Master

  • 2,305

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,235
  • 8 Sets $1,290
  • PDF - multi-use $1,380
  • Reproducible Set $1,445
  • CAD - multi-use $2,630
  • View all purchase option online

About This Plan

  • This home encompasses the quintessential craftsman style with window boxes, farmhouse windows and columns welcoming guests by the door.
  • The first floor leads into the vaulted family room with a large fireplace and plenty of windows to let in natural light.
  • The kitchen is just to the left and includes an island for food preparation and an attached breakfast area.
  • The laundry room and a conveniently located powder room are down a small hall of the kitchen.
  • The master suite impresses with its oversized walk-in closet and bathroom made for two.
  • Upstairs, three more bedrooms are found with a shared bathroom.
  • Related: Get an alternate exterior with house plans 710314BTZ and 710315BTZ.

Floor Plans

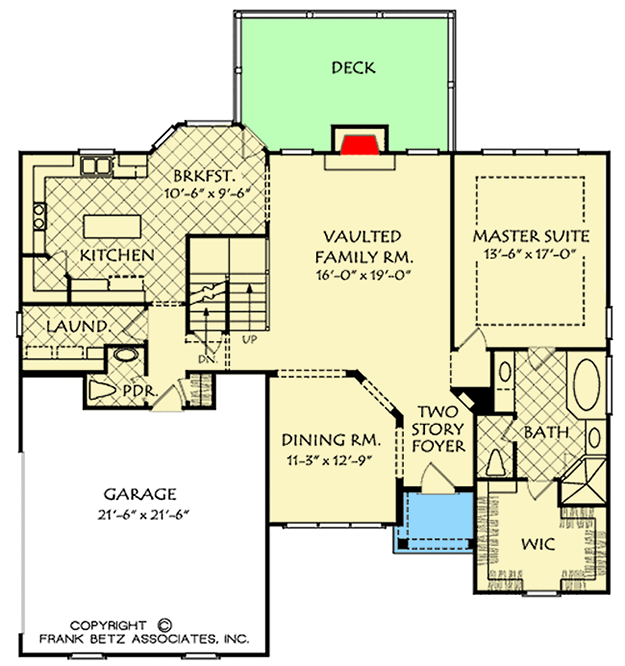

  • Main Level

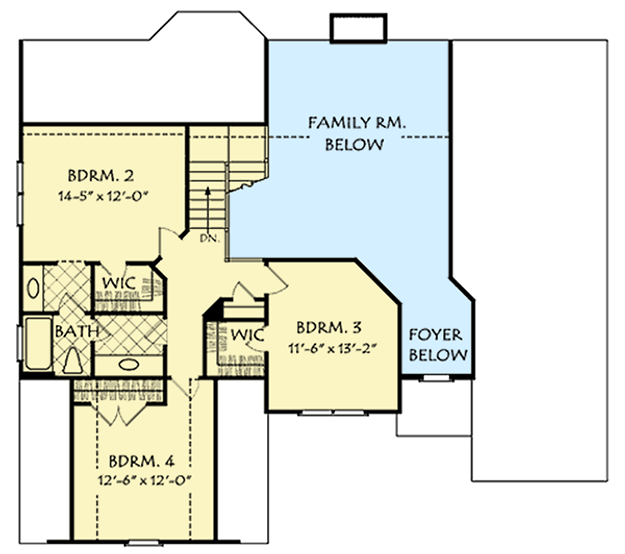

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,305 sq. ft.
  • 1st Floor: 1,537 sq. ft.
  • 2nd Floor: 768 sq. ft.
  • Basement Unfinished: 1,537 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 52' 0"
  • Depth: 47' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 506 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
