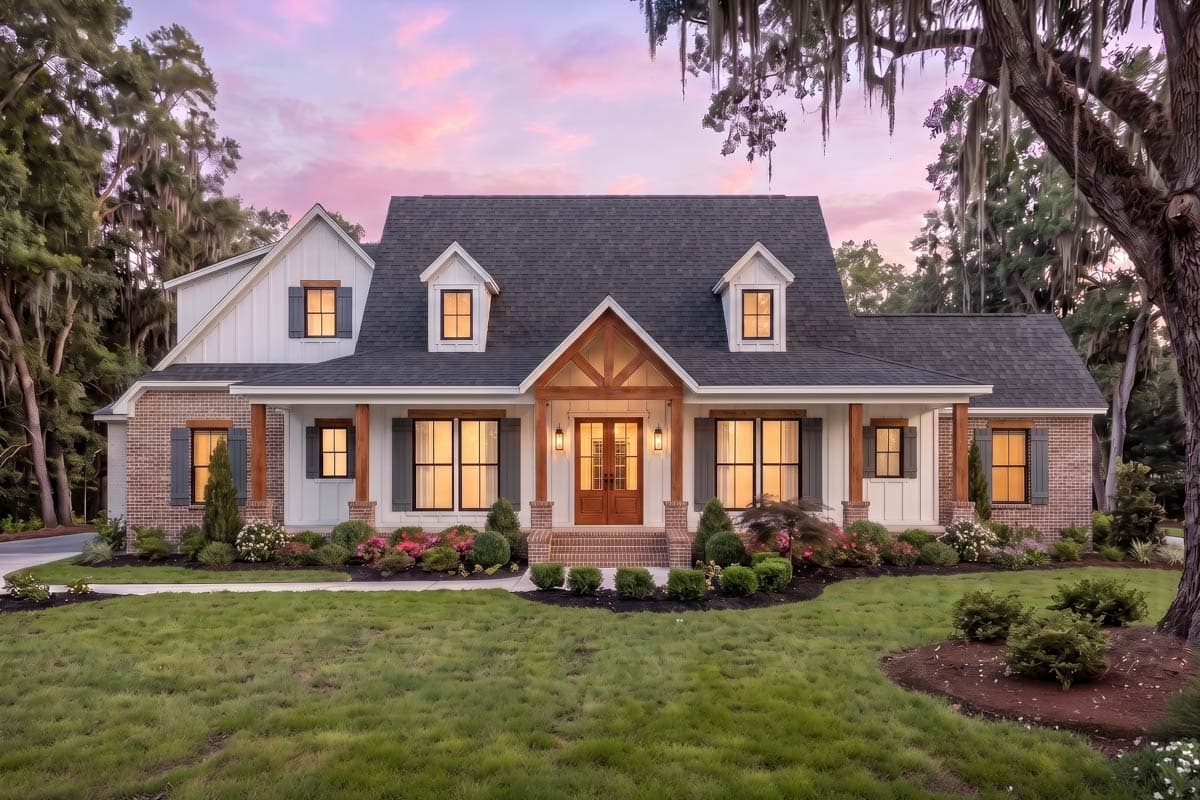

4-Bed Country Farmhouse with Board and Batten and Brick Exterior

Plan 56487SM

  • 2,584

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • A 10'-deep porch spans the entire front - and wraps around the corners - of this 4-bed country home plan with bonus upstairs. Dormers on the main body of the home - there for aesthetic purposes - and a third on over the garage - functional, bringing light and space into the bonus room - plus the timbered supports and covered entry give this home great curb appeal.
  • French doors open to reveal views extending through to the back of the family room - 12' ceilings, fireplace on the right - to the rear porch in back.
  • The kitchen has a roomy 4' by 8' island and is open to both the dining room and the family room. A large walk-in pantry (9'5" by 5') is steps away for your storage convenience.
  • A half bath, large laundry room and a mudroom with bench are all located by the entrance off the 2-car carport. A separate enclosed space gives you extra storage.
  • The master bedroom is privately located on the right of the home. French doors swing open to the master bath, through which you'll find a 16'10" wide walk-in closet. Two more beds, one to each side of the entry, have their own private baths and walk-in closets.
  • Stairs by the dining room take you to expansion space over the garage (this adds 393 square feet to the home when finished).

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

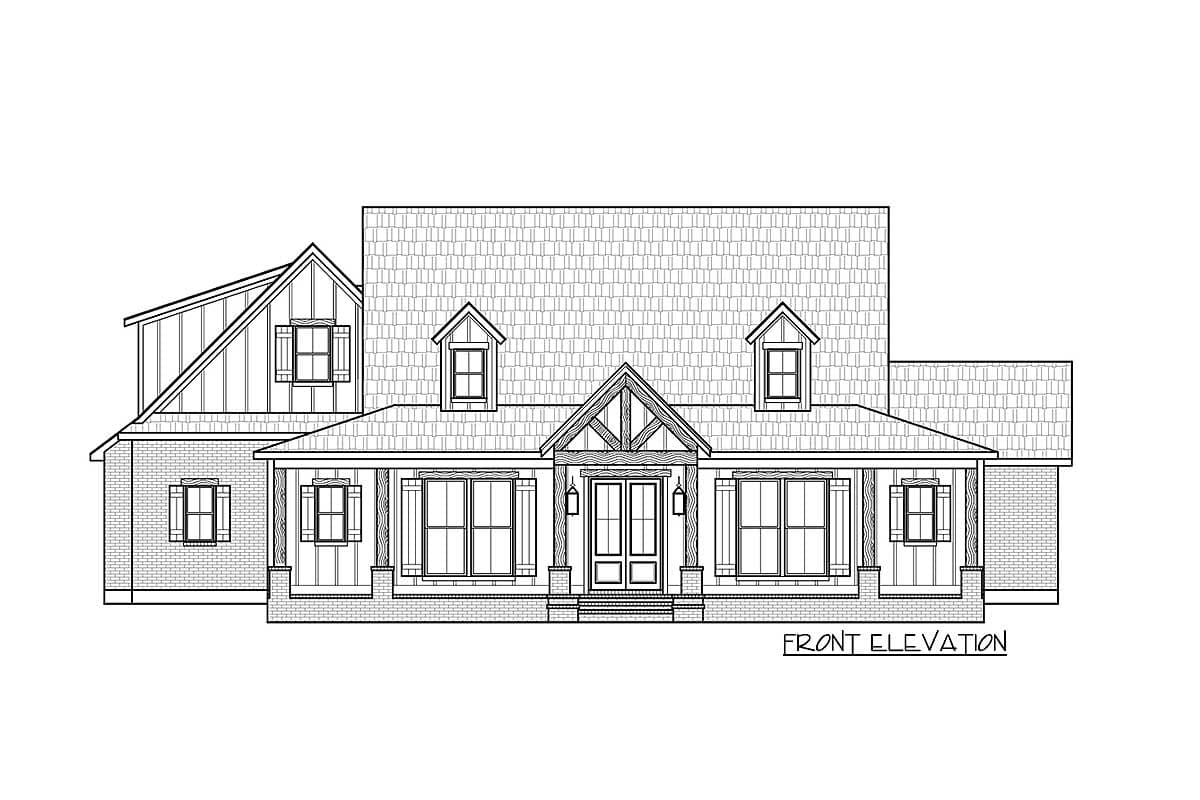

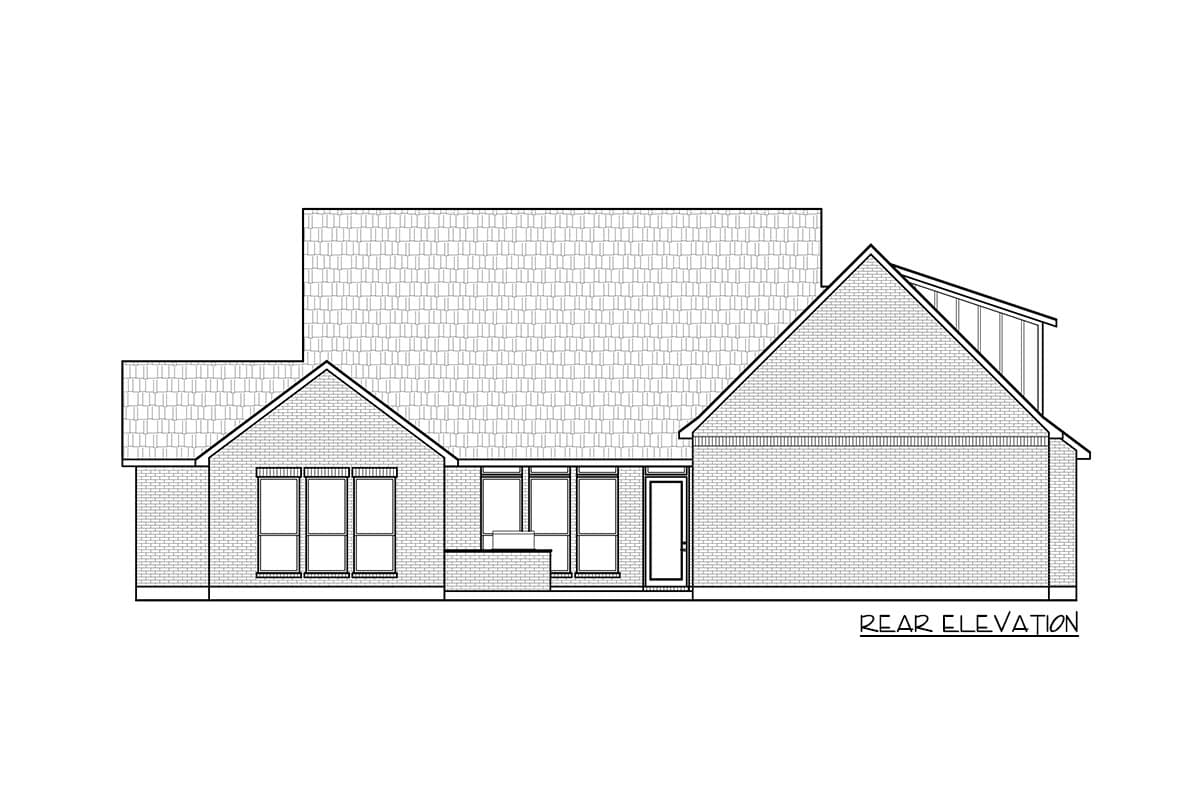

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

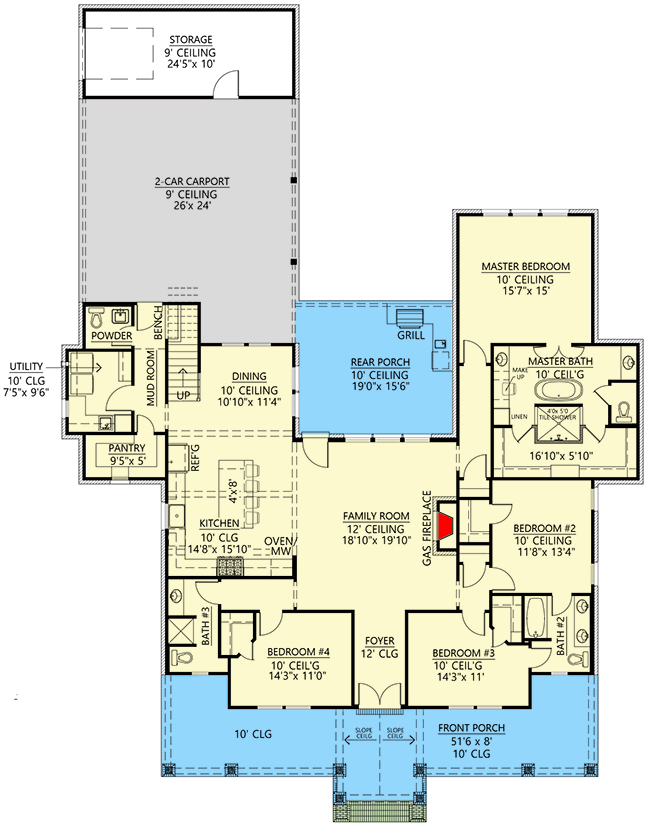

4-Bed Country Farmhouse with Board and Batten and Brick Exterior - 56487SM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

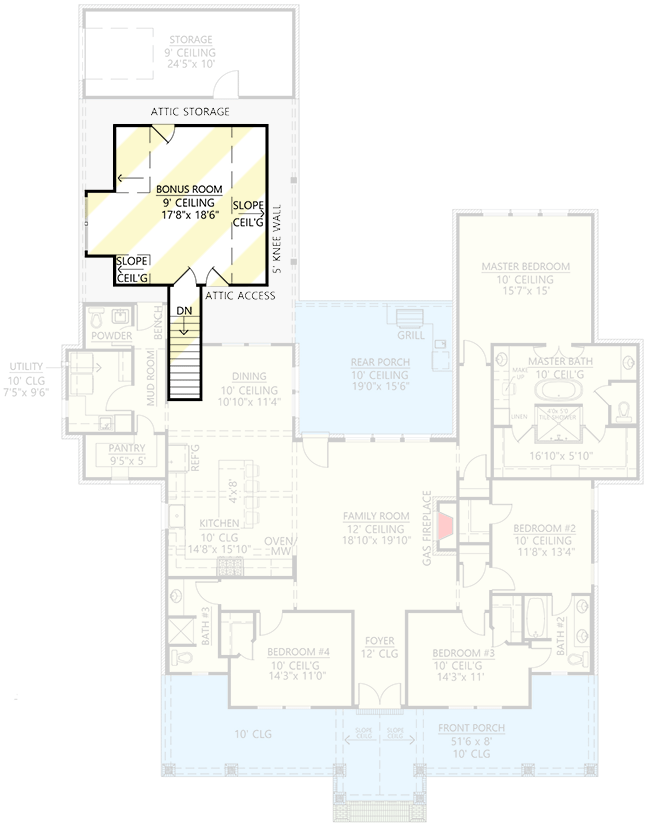

4-Bed Country Farmhouse with Board and Batten and Brick Exterior - 56487SM floor plan - Bonus

Main Level - Basement Stairs Location

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Country Farmhouse with Board and Batten and Brick Exterior - 56487SM floor plan - Main Level - Basement Stairs Location

4-Bed Country Farmhouse with Board and Batten and Brick Exterior

  • 2,584

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

  • Main Level - Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 2,584 sq. ft.
  • 1st Floor: 2,584 sq. ft.

Dimensions

  • Width: 67' 9"
  • Depth: 94' 0"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Carport
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Stem Wall
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

4-Bed Country Farmhouse with Board and Batten and Brick Exterior

  • 2,584

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

4-Bed Country Farmhouse with Board and Batten and Brick Exterior

  • 2,584

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,584 sq. ft.
  • 1st Floor: 2,584 sq. ft.

Dimensions

  • Width: 67' 9"
  • Depth: 94' 0"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Carport
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Stem Wall
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
