Plan 710014BTZ
4-Bed Country Home Plan with Porches Front and Back
Heated S.F.
3,708
Beds
4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 710014BTZ

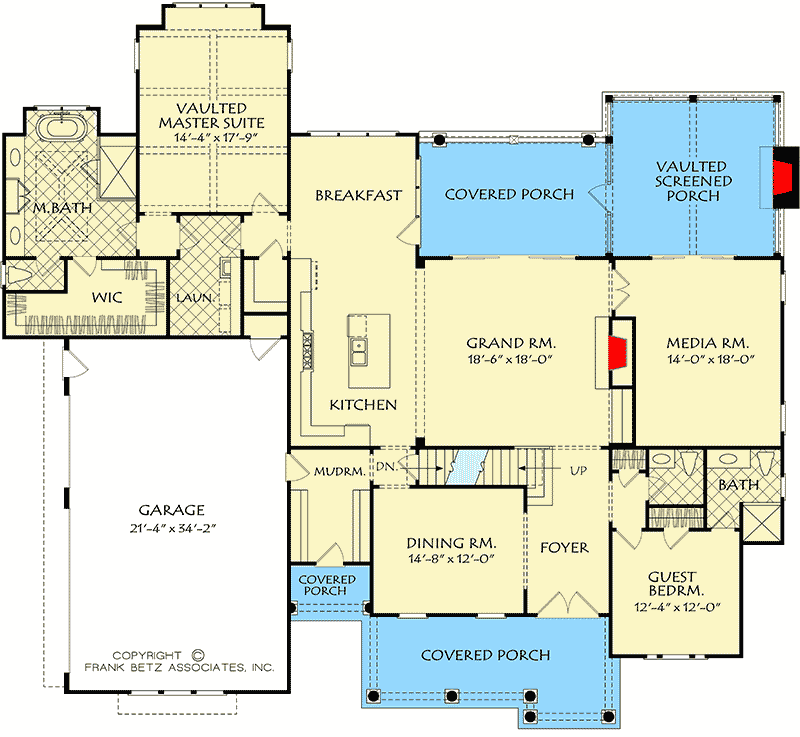

Main Level
slide image 0

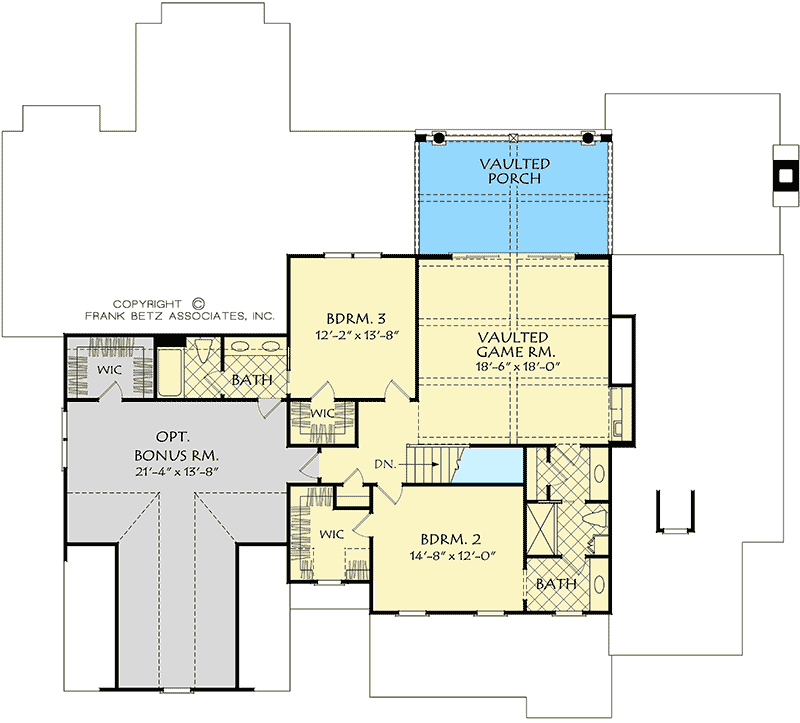

2nd Floor
slide image 1

Plan 710014BTZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Clean lines and a warm inviting exterior make this 4-bed country home plan perfect for any building site. The wide front porch with a distinct entry point and the eyebrow dormer above the three second story windows give it great curb appeal.
  • The home has a circular flow with the foyer connected to the grand room and dining room and both of those rooms connected to the kitchen. The kitchen has a large island and has convenient access to the garage making unloading groceries a breeze.
  • The media room is perfect for family movie night and is open to the vaulted screened porch. The outdoor living areas add space for fresh air entertainment.
  • There are two main floor bedrooms: a secluded guest suite and the vaulted master suite across the home.
  • The upper level has two secondary bedrooms with attached bathrooms, a large multi-use bonus room. The vaulted game room is a fun space for many activities and opens onto an upper level covered porch.
What's Included

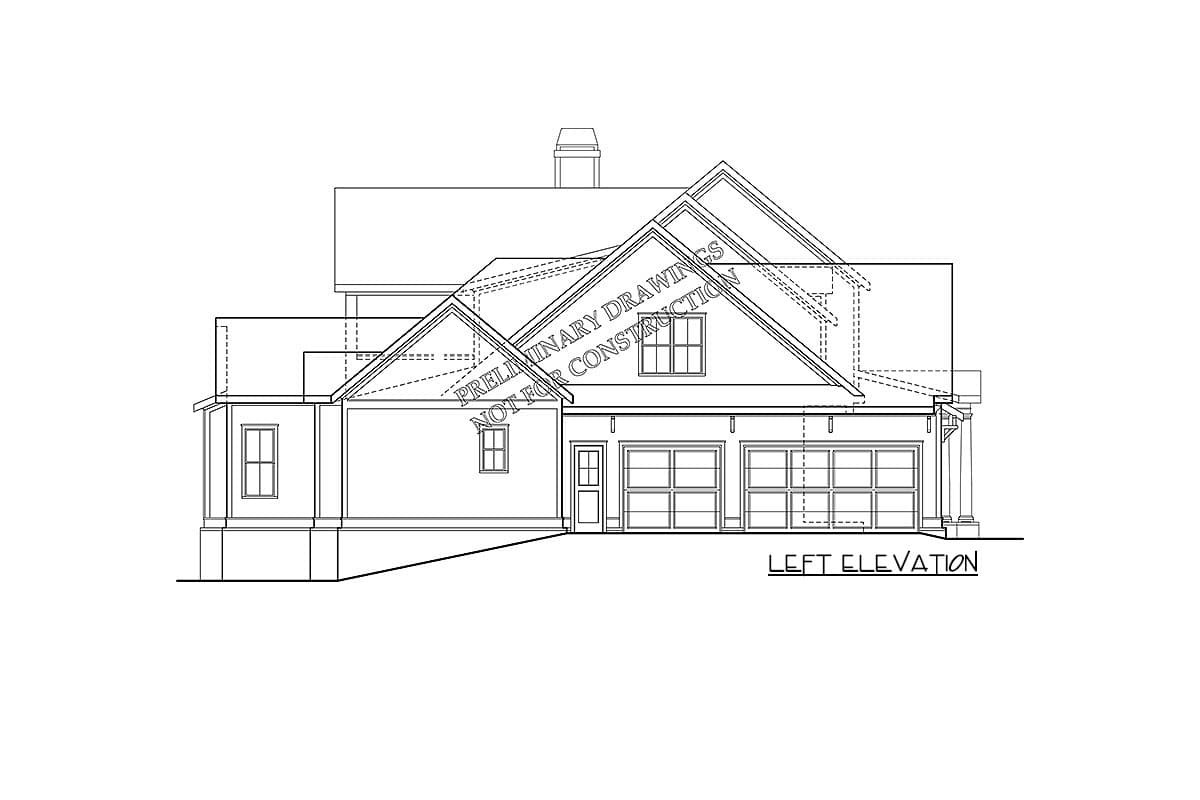

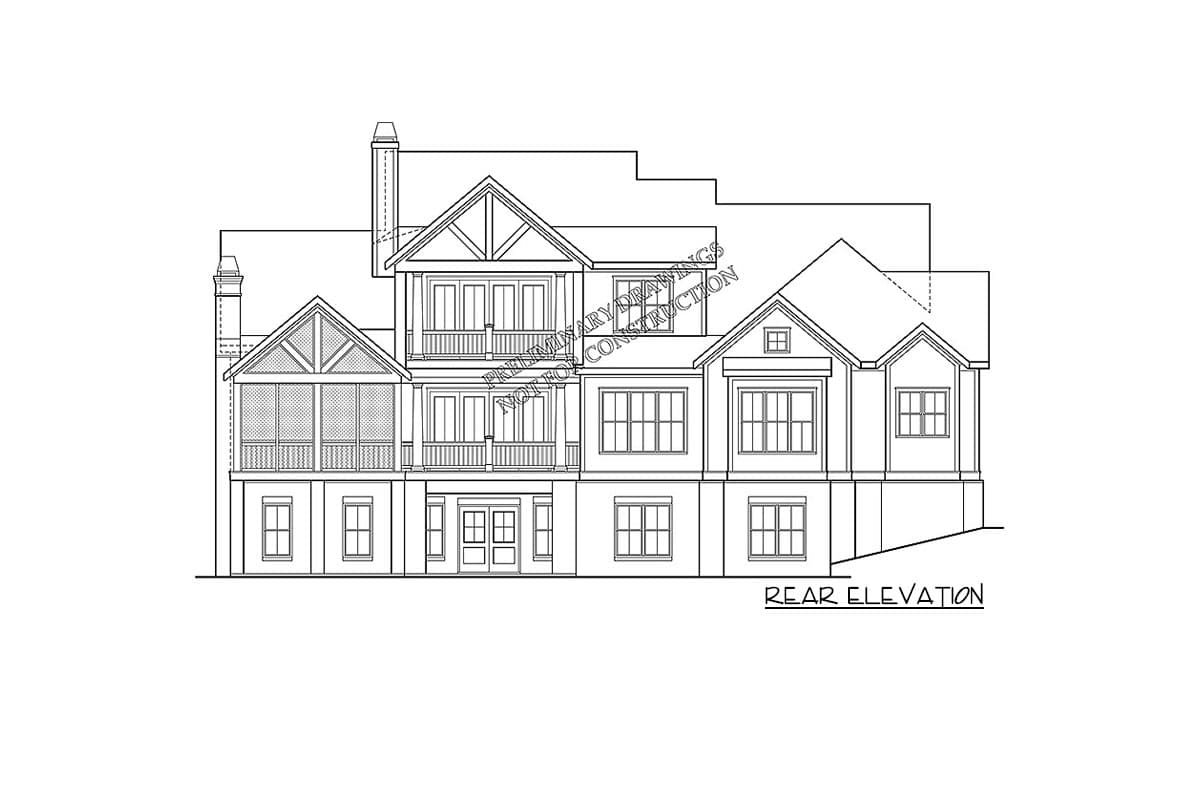

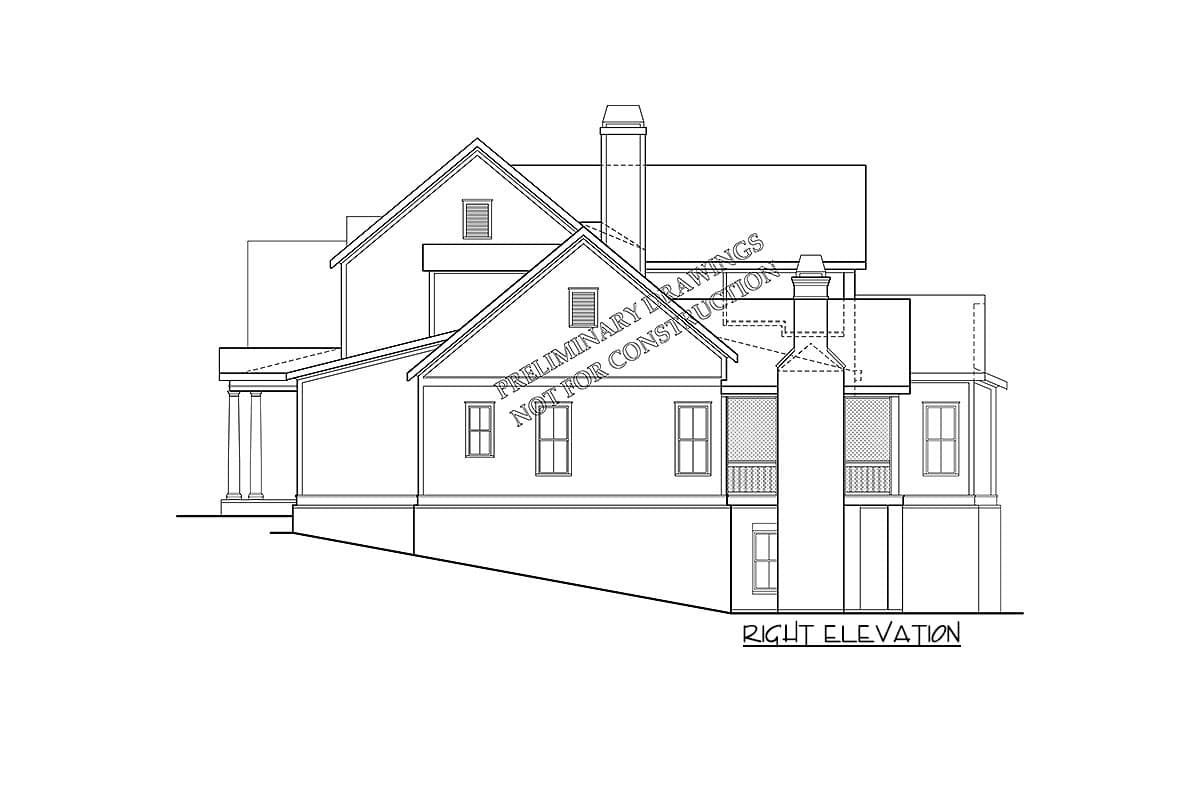

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,708 sq. ft.

1st Floor

2,578 sq. ft.

2nd Floor

1,130 sq. ft.

Basement Unfinished

2,578 sq. ft.

Bonus

543 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

76' 0"

Depth

70' 6"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

759 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Plan Collections

Sloping Lot
