Plan 17520LV

4-Bed Craftsman Home - 3680 Sq Ft

Heated S.F.
3,680
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 17520LV

Main Level
Main Level
2nd Floor
2nd Floor

Plan 17520LV

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 17520LV: 4-Bed Craftsman Home - 3680 Sq Ft - Floor Plan - Main Level - Craftsman, Traditional

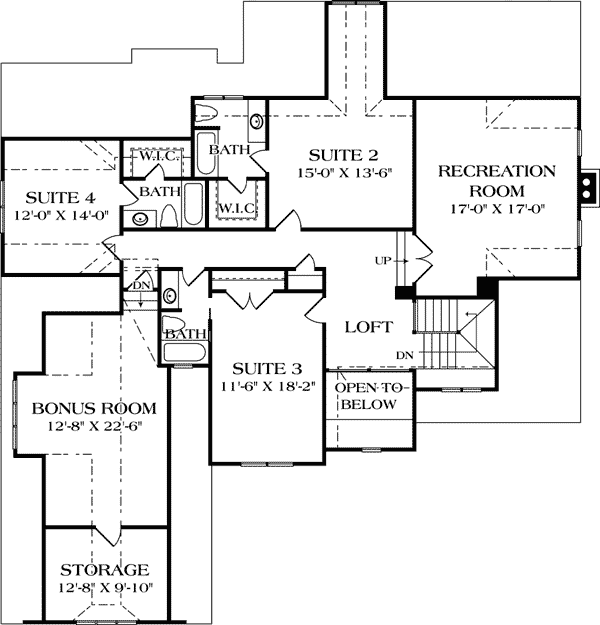

2nd Floor

Plan 17520LV: 4-Bed Craftsman Home - 3680 Sq Ft - Floor Plan - 2nd Floor - Craftsman, Traditional

Plan Details

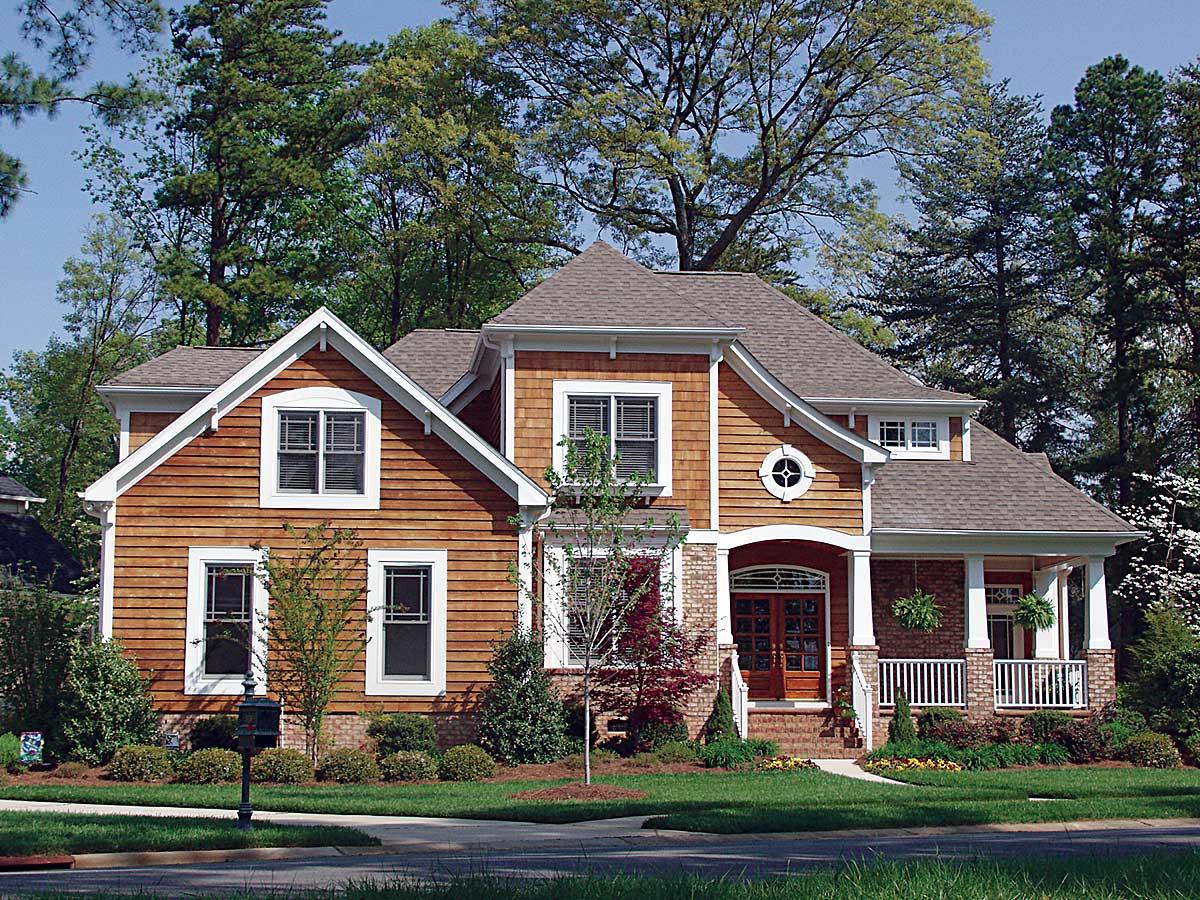

  • The wood siding adds a nice feel to the exterior of the this home plan.

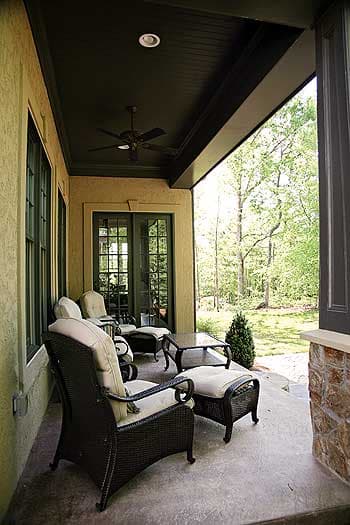

  • The columned front porch with porthole windows and French doors opening to the great room beckons a more casual lifestyle.

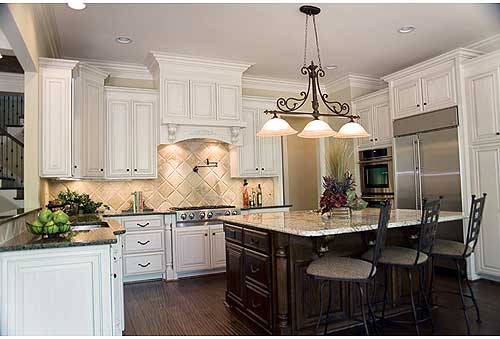

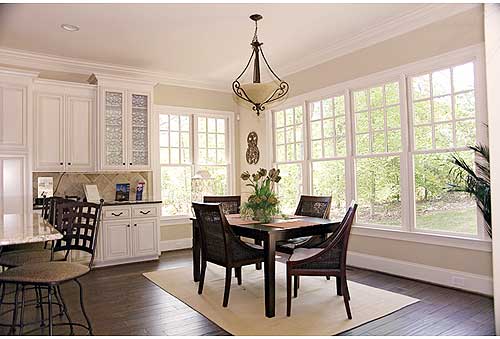

  • Eat casually at the kitchen island, in the breakfast room, out on your rear porch or in your formal dining room through the walk-through bar.

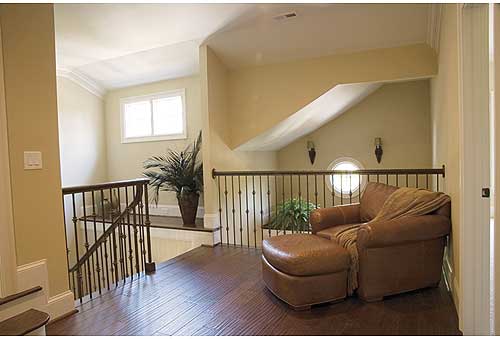

  • A large loft provides the perfect space for built-in bookcases for cherished family photographs. Three suites, a rec room plus a bonus room complete the upstairs.

What's Included

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,680 sq. ft.

1st Floor

2,059 sq. ft.

2nd Floor

1,621 sq. ft.

Bonus

471 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

63' 5"

Depth

66' 5"

Garage

Type

Attached

Area

723 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Craftsman

Traditional

Special Features

Breakfast Nook

Formal Dining

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Closed Floor Plans

Photo Gallery

Premium Collection
