4-Bed Craftsman Home Plan with Angled 3-Car Garage - 3253 Sq Ft
Heated S.F.
3,253
Beds
4
Baths
2.5
Stories
2
Cars
3
What's Included
Plan Details
  • Decorative brackets in four gable peaks add to the curb appeal of this 3,253 square foot 4 bed Craftsman house plan with 780 square foot 2-bay, 3-car angled garage.
  • Soaring ceilings greet you upon entering this home plan from the covered entry porch. The living room with fireplace has extensive windows overlooking the large rear covered patio area with vaulted ceiling.
  • The open concept kitchen has a 4' by 8' island and a spacious dining area. A double sink is set under a window with views to the back and a roomy pantry is located by the powder room and garage entry.
  • Work from home in the office by the stairs and close to the master suite with walk in closet and separate tub and shower with dual vanities.
  • Upstairs find a loft overlooking the living area and 3 generous bedroom and a full bath.
What's Included
  • Floor plans
  • Foundation plan
  • Floor framing plan
  • Roof framing plan
  • Cross Sections
  • Exterior Elevations
  • Exterior Elevations
  • Electrical Plan and notes
  • Detail Page
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed Craftsman Home Plan with Angled 3-Car Garage - 3253 Sq Ft

  • 3,253

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

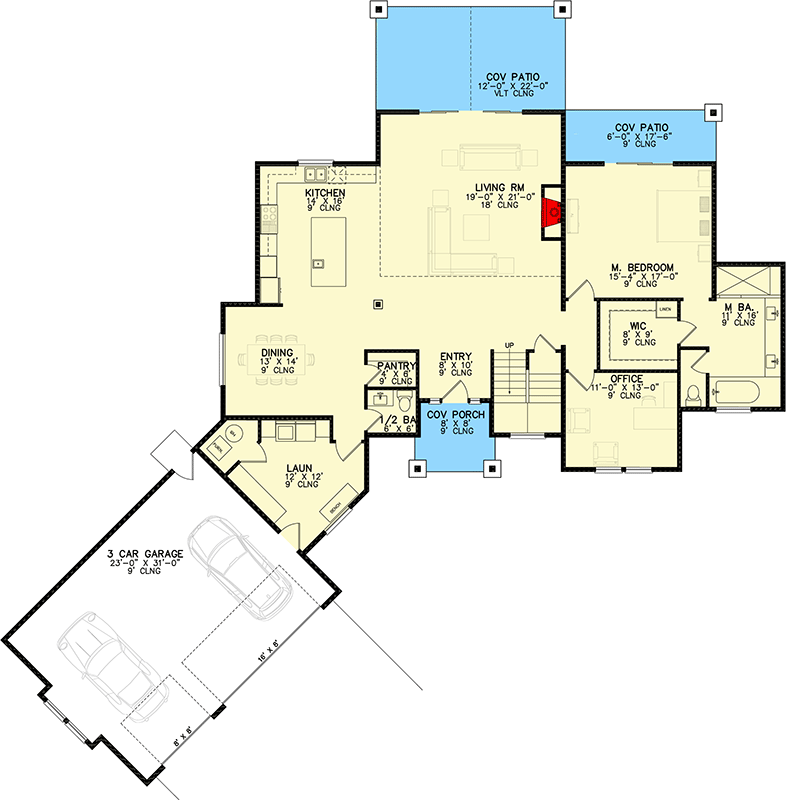

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,253 sq. ft.
  • 1st Floor: 2,225 sq. ft.
  • 2nd Floor: 1,028 sq. ft.

Dimensions

  • Width: 91' 0"
  • Depth: 90' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 780 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 8
  • Framing Type: Truss
