4-Bed Craftsman Home Plan with Detached Garage and Loft

Plan 25410TF

  • 2,569

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Layered, gable roofs sit atop shake and horizontal siding adding depth and texture to this 4-bedroom, farmhouse plan.
  • The design offers a desirable, open-concept layout while still including quieter spaces to unwind. A secluded study sits just off the foyer, next to a powder bath.
  • A grand fireplace in the living room serves as a focal point and has a door on either side leading to the screen porch.
  • Wrap-around counters in the kitchen, with an island in the center, provide ample workspace for meal preparation. A walk-in pantry sits adjacent the kitchen, conveniently located in the mudroom.
  • Your first-floor, master suite includes a walk-in closet, and a master bathroom with dual sinks and an oversized shower. Upstairs, discover a bedroom with a full bathroom and two additional bedrooms that share a 4-fixture bathroom.
  • As an added bonus, this house plan comes with a detached 2-car garage with a pool bath and a loft space above.

Plans include the following:
  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

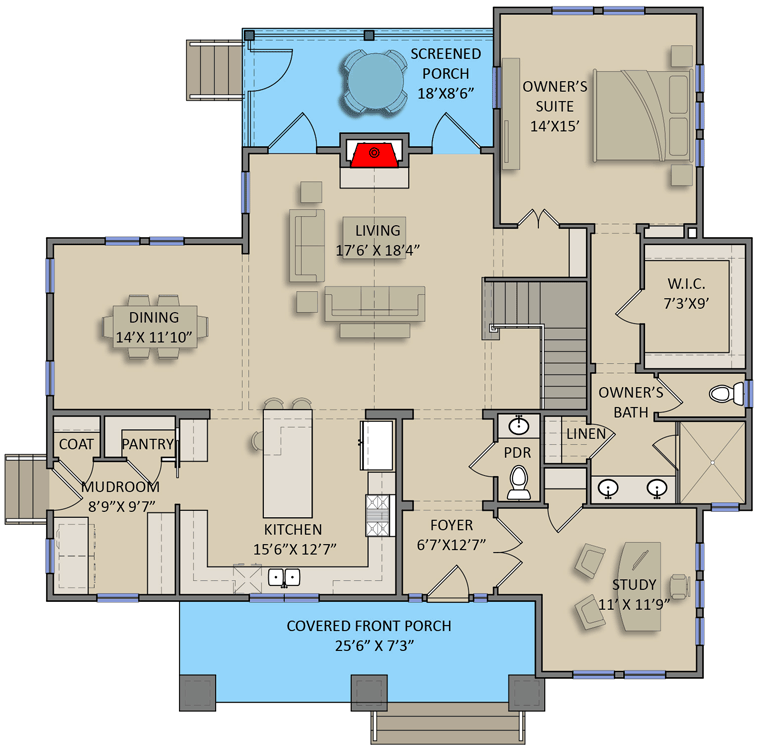

4-Bed Craftsman Home Plan with Detached Garage and Loft - 25410TF floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

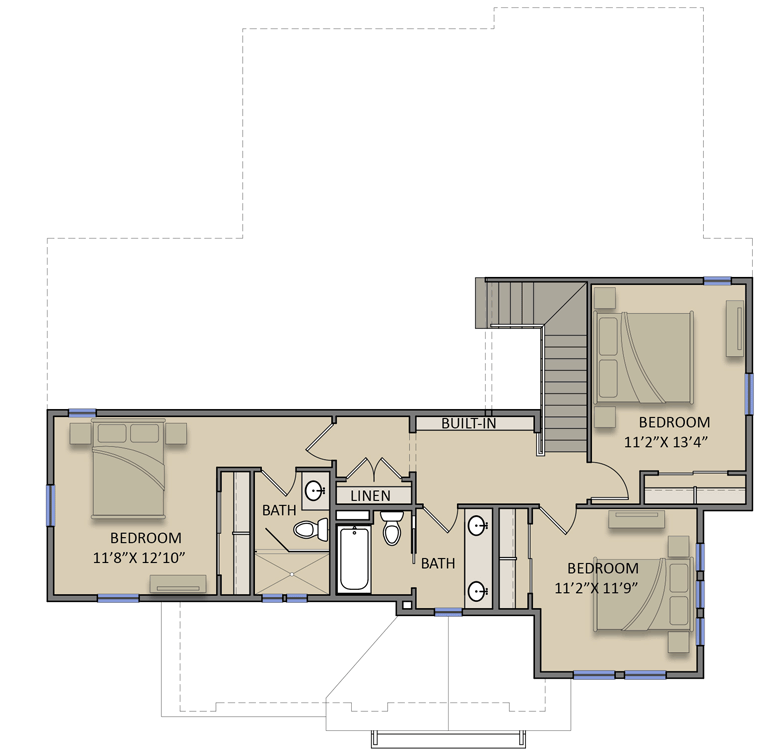

4-Bed Craftsman Home Plan with Detached Garage and Loft - 25410TF floor plan - 2nd Floor

Detached Carriage House (included)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Craftsman Home Plan with Detached Garage and Loft - 25410TF floor plan - Detached Carriage House (included)

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,569 sq. ft.
  • 1st Floor: 1,721 sq. ft.
  • 2nd Floor: 848 sq. ft.
  • Porch, Combined: 186 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 6"
  • Depth: 50' 5"
  • Max ridge height: 29' 9"

Garage

  • Type: Detached
  • Area: 471 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
Room Type Height
Living Room 16' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

4-Bed Craftsman Home Plan with Detached Garage and Loft

  • 2,569

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,199
  • PDF - Single-Build $1,229
  • CAD - Single-Build $1,829
  • View all purchase option online

About This Plan

  • Layered, gable roofs sit atop shake and horizontal siding adding depth and texture to this 4-bedroom, farmhouse plan.
  • The design offers a desirable, open-concept layout while still including quieter spaces to unwind. A secluded study sits just off the foyer, next to a powder bath.
  • A grand fireplace in the living room serves as a focal point and has a door on either side leading to the screen porch.
  • Wrap-around counters in the kitchen, with an island in the center, provide ample workspace for meal preparation. A walk-in pantry sits adjacent the kitchen, conveniently located in the mudroom.
  • Your first-floor, master suite includes a walk-in closet, and a master bathroom with dual sinks and an oversized shower. Upstairs, discover a bedroom with a full bathroom and two additional bedrooms that share a 4-fixture bathroom.
  • As an added bonus, this house plan comes with a detached 2-car garage with a pool bath and a loft space above.

Floor Plans

  • Main Level

  • 2nd Floor

  • Detached Carriage House (included)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,569 sq. ft.
  • 1st Floor: 1,721 sq. ft.
  • 2nd Floor: 848 sq. ft.
  • Porch, Combined: 186 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 6"
  • Depth: 50' 5"
  • Max ridge height: 29' 9"

Garage

  • Type: Detached
  • Area: 471 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick And Truss
