Plan 28116J

4 Bed Craftsman House Plan Under 2200 Square Feet

Heated S.F.
2,139
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 28116J

Main Level
Main Level
2nd Floor
2nd Floor

Plan 28116J

M-F 9am-5pm EST |

1-203-761-8500

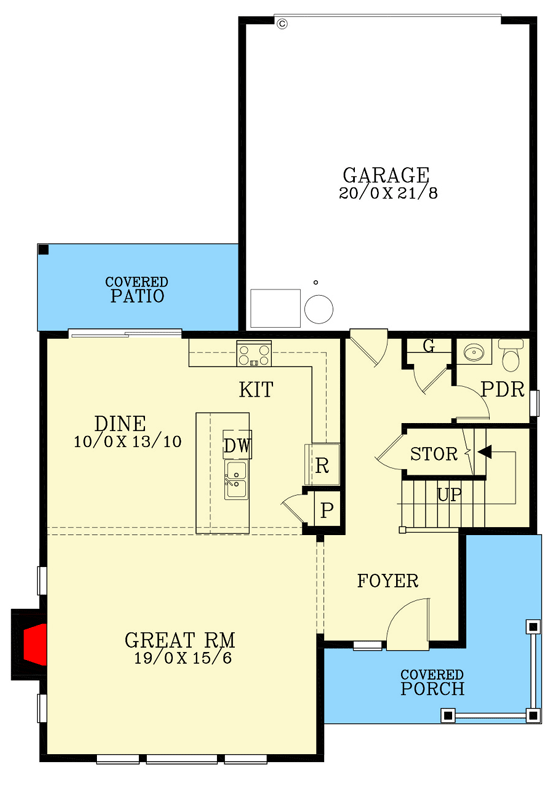

Main Level

Plan 28116J: 4 Bed Craftsman House Plan Under 2200 Square Feet - Floor Plan - Main Level - Country, Craftsman, Northwest, Traditional

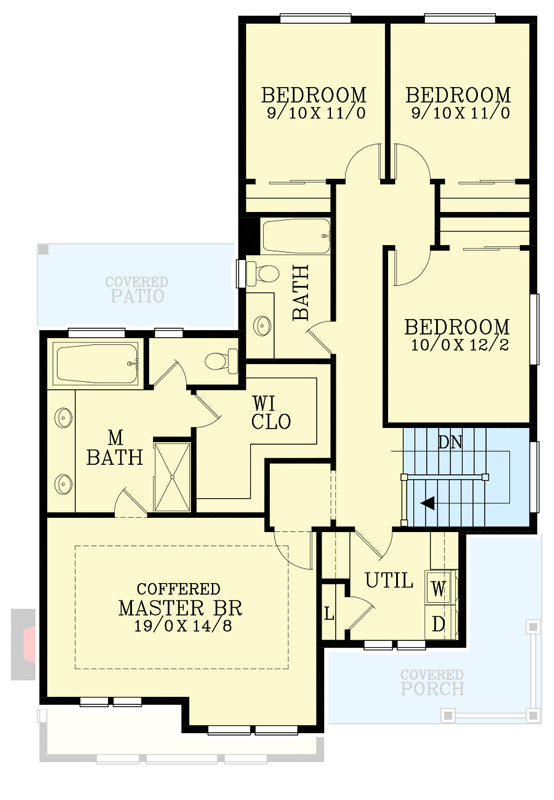

2nd Floor

Plan 28116J: 4 Bed Craftsman House Plan Under 2200 Square Feet - Floor Plan - 2nd Floor - Country, Craftsman, Northwest, Traditional

Plan Details

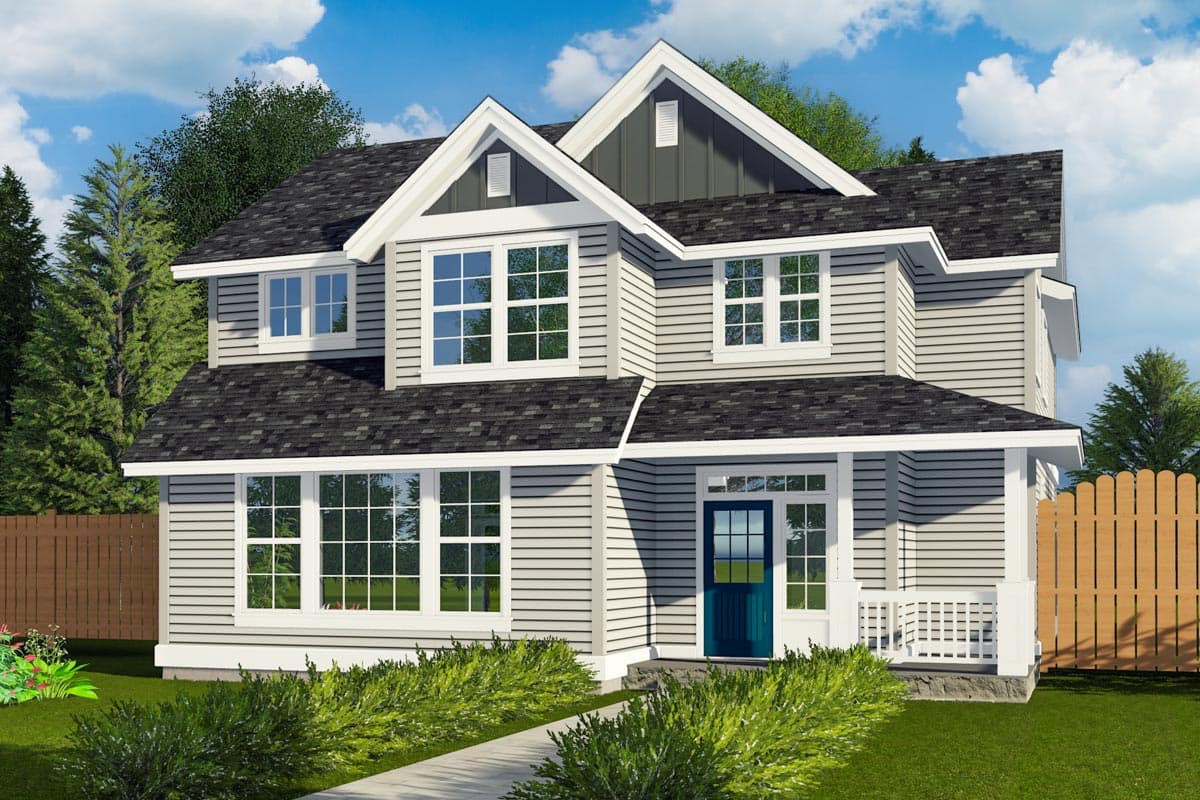

  • Craftsman details adorn the exterior of this 2,139 square foot 4-bedroom home plan.
  • An L-shaped front porch welcomes you into the main level where the front-facing great room flows into the eat-in kitchen.
  • The island kitchen includes a pantry and nearby glass sliders lead to the perfect grilling patio.
  • Four bedrooms and the laundry room can be found upstairs with a coffered ceiling above the master bedroom.
  • The double garage provides entry from the rear and a powder bath and coat closet is conveniently located just inside.
  • Related Plan: Get an alternate version with house plan 28042J.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,139 sq. ft.

1st Floor

902 sq. ft.

2nd Floor

1,237 sq. ft.

Porch, Front

115 sq. ft.

Porch, Rear

84 sq. ft.

Covered Patio

84 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

52' 6"

Max Ridge Height

27' 2"

Garage

Type

Attached

Area

483 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Coffered

7' 4''

Roof Details

Primary Pitch

12 on 7

Secondary Pitch

12 on 10

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs
