4-Bed Craftsman Ranch Plan with Bonus Room over Garage

Heated S.F.
2,472
Beds
4
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 911004JVD

Main Level
Main Level
Bonus Level
Bonus Level
Unfinished Walkout Basement
Unfinished Walkout Basement

Plan 911004JVD

M-F 9am-5pm EST |

1-203-761-8500

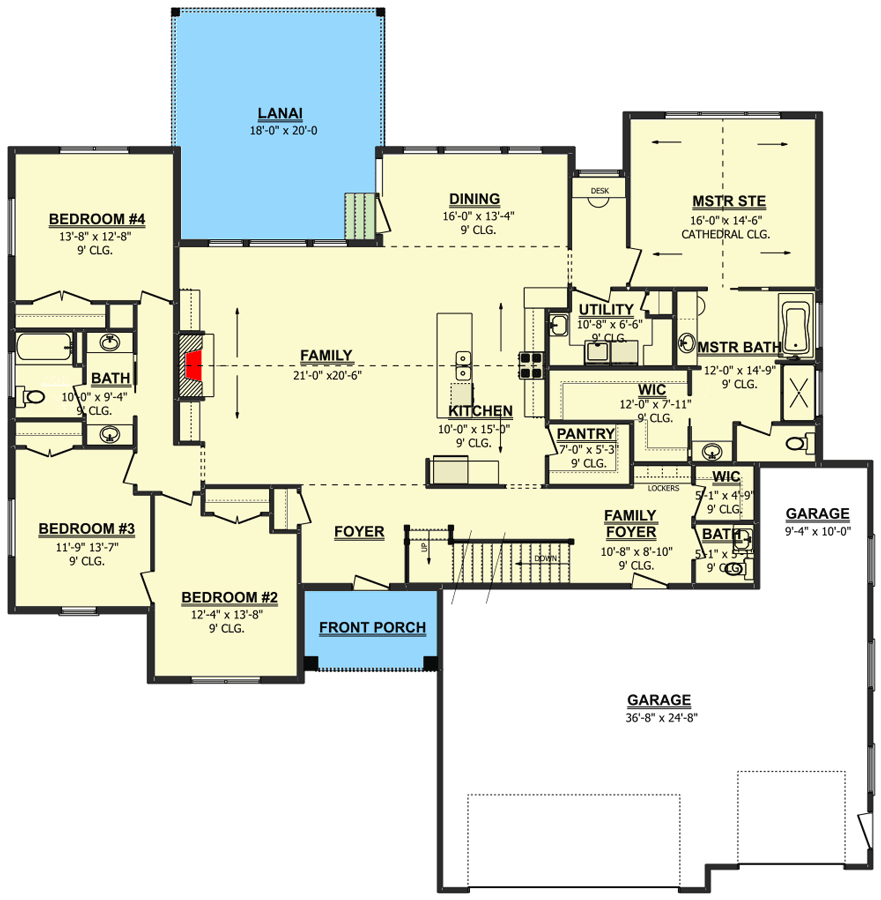

Main Level

Plan 911004JVD: 4-Bed Craftsman Ranch Plan with Bonus Room over Garage - Floor Plan - Main Level - Craftsman, New American, Ranch, Traditional

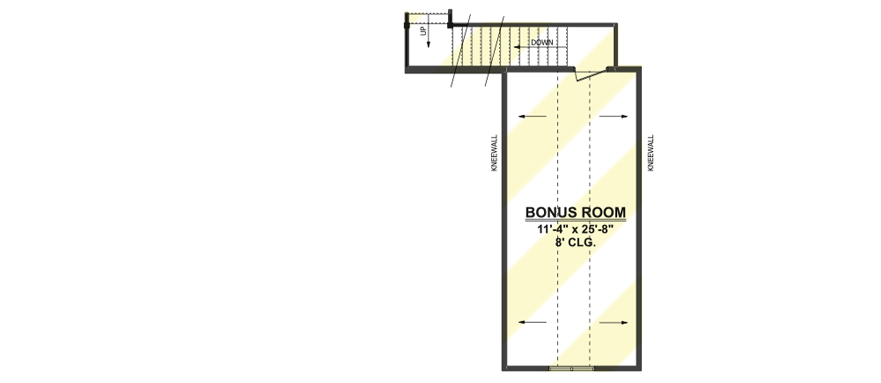

Bonus Level

Plan 911004JVD: 4-Bed Craftsman Ranch Plan with Bonus Room over Garage - Floor Plan - Bonus Level - Craftsman, New American, Ranch, Traditional

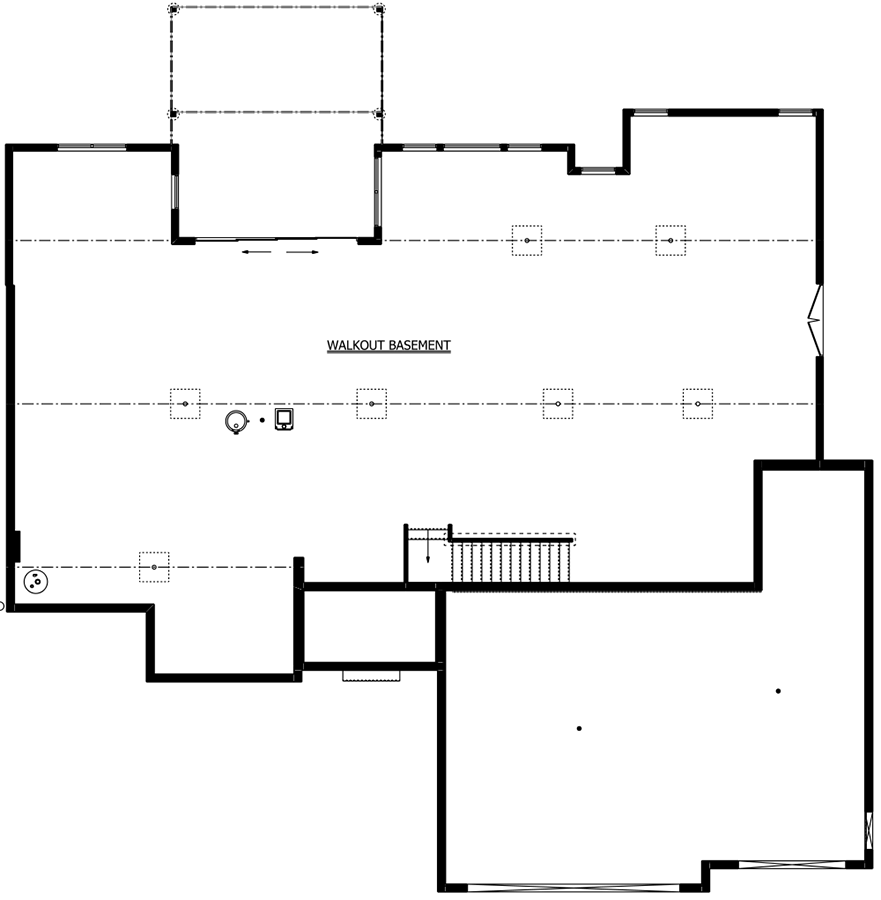

Unfinished Walkout Basement

Plan 911004JVD: 4-Bed Craftsman Ranch Plan with Bonus Room over Garage - Floor Plan - Unfinished Walkout Basement - Craftsman, New American, Ranch, Traditional

Plan Details

  • This 4-bedroom, Craftsman ranch home design boasts stone accents, vertical and horizontal siding, and a comfortable interior flow for a family or empty nesters.
  • Once past the threshold, the foyer gives way to an open layout, which is oriented to take advantage of any rearward views. Enjoy spending time outdoors, or entertaining friends and family, on the back lanai.
  • A large kitchen island hosts a double-bowl sink, and 7' by 5' pantry offers plenty of space for storing oversized appliances.
  • The master suite is set apart from the other bedrooms and features a charming built-in desk in the neighboring hallway, next to the laundry room. The sizable ensuite includes two vanities, a private toilet room, and a walk-in pantry.
  • Three family bedrooms line the left side of the home, and share a compartmentalized bath.
  • Find flexibility in the 322 sq ft bonus room, which resides over the garage. Enter from the garage to find a powder bath, coat closet, and built-in lockers.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,472 sq. ft.

1st Floor

2,472 sq. ft.

Basement Unfinished

2,401 sq. ft.

Bonus

322 sq. ft.

Porch, Front

88 sq. ft.

Porch, Rear

366 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 4"

Depth

76' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached, Standard

Area

1062 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Architectural Style

Craftsman

New American

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,472 sq. ft.

1st Floor

2,472 sq. ft.

Basement Unfinished

2,401 sq. ft.

Bonus

322 sq. ft.

Porch, Front

88 sq. ft.

Porch, Rear

366 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 4"

Depth

76' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached, Standard

Area

1062 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Architectural Style

Craftsman

New American

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry
