4 Bed Craftsman with Tapered Columns

Plan 51756HZ

2,759
Heated s.f.
4
Beds
3.5
Baths
1
Stories
2
Cars

This charming four bedroom, three and a half bath Craftsman-style house plan features tapered columns and ornate brackets supporting the roof overhangs. The windows over the entry are decorative and add to the curb appeal.
Inside, the kitchen offers a large butler's pantry connecting the kitchen and dining areas and a wet bar in the great room.
The family entry off the garage has built in seating and lockers to help minimize clutter.
The master suite has a spectacular bathroom, a walk in closet with an island and custom cabinetry and access to the laundry room.
The rear porch is 14'-deep and has an optional outdoor kitchen.
Note: Please note that orders including special options may result in a delay. Call us for details.

This plan includes the following:

Page 1 Cover Sheet with abbreviations, rendering, sheet index
Page 2 Foundation Plan and Details
Page 3 Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4 Exterior views and other misc notes/ details
Page 5 Exterior views and other misc notes/ details
Page 6 Cross Sections & Kitchen Cabinet Views
Page 7 Roof Plan & Span Charts
Page 8 Electrical Plans & Notes

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

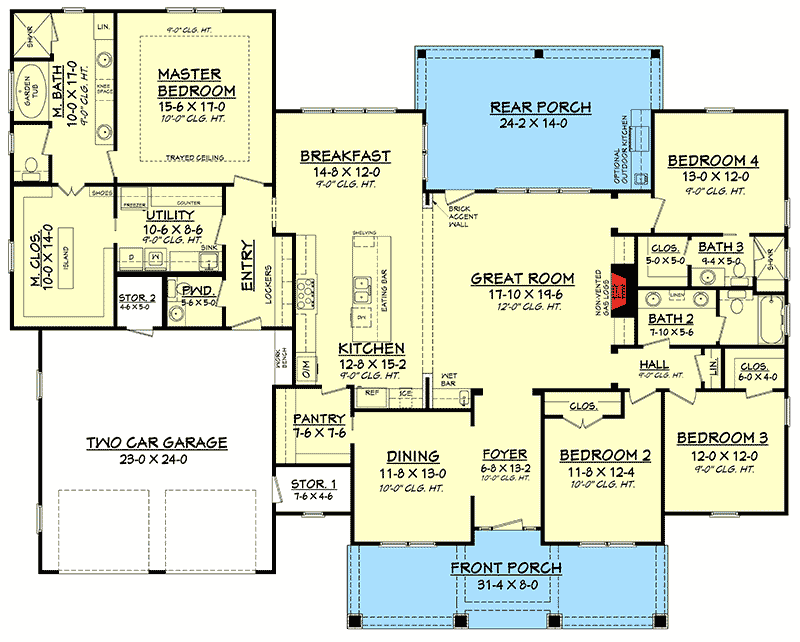

4 Bed Craftsman with Tapered Columns - 51756HZ floor plan - Main Level

Basement option

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

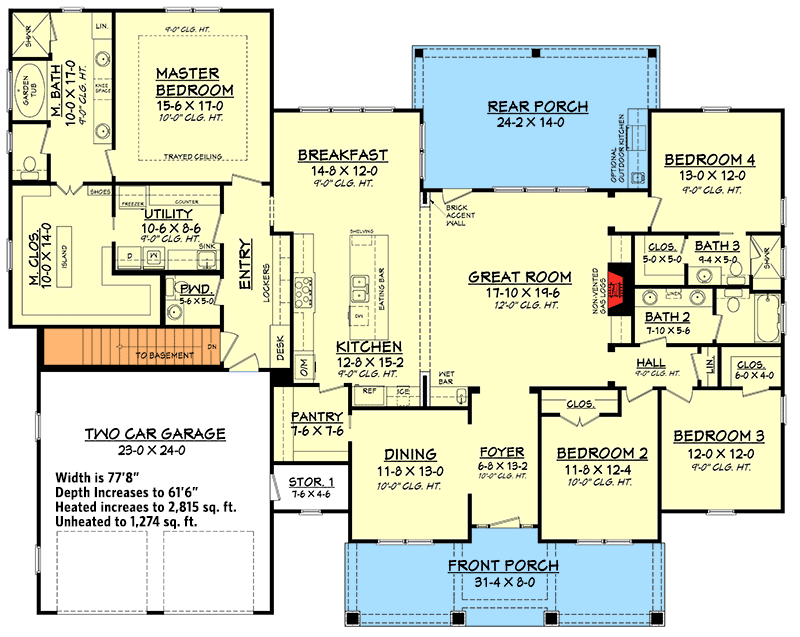

4 Bed Craftsman with Tapered Columns - 51756HZ floor plan - Basement option

Plan details

Square Footage Breakdown

Total Heated Area: 2,759 sq. ft.
1st Floor: 2,759 sq. ft.

Storage: 60 sq. ft.
Porch, Rear: 325 sq. ft.
Porch, Front: 260 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab, Crawl

Optional Foundations: Basement, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 77' 8"
Depth: 61' 6"
Max ridge height: 24' 0"

Garage

Type: Attached
Area: 582 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 7 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections
