4-Bed Exclusive House Plan Offering Grand One-Story Living
Heated S.F.
3,096
Beds
4
Baths
3.5
Stories
1
Cars
4
What's Included
Plan Details
  • This Exclusive house plan greets you with a covered entry, a stucco exterior and a Spanish tile roof. Step inside and you are greeted with views across the gallery - with 16' ceiling - and to the great room ahead.
  • Flanking the foyer you'll find your study behind French doors and the formal dining room set off by ceiling treatments instead of walls.
  • A split bedroom layout leaves the center of the home open for entertaining. Enjoy the great room with fireplace or step onto the outdoor living room in back with skylights and a corner fireplace of its own.
  • The master occupies most of the right side of the home. Step through the large walk-in closet and you conveniently find yourself in your laundry room. Across the home, Bed 2 has its own bathroom and Beds 3 and 4 share a Jack-and-Jill bath.
What's Included
  • Cover Sheet

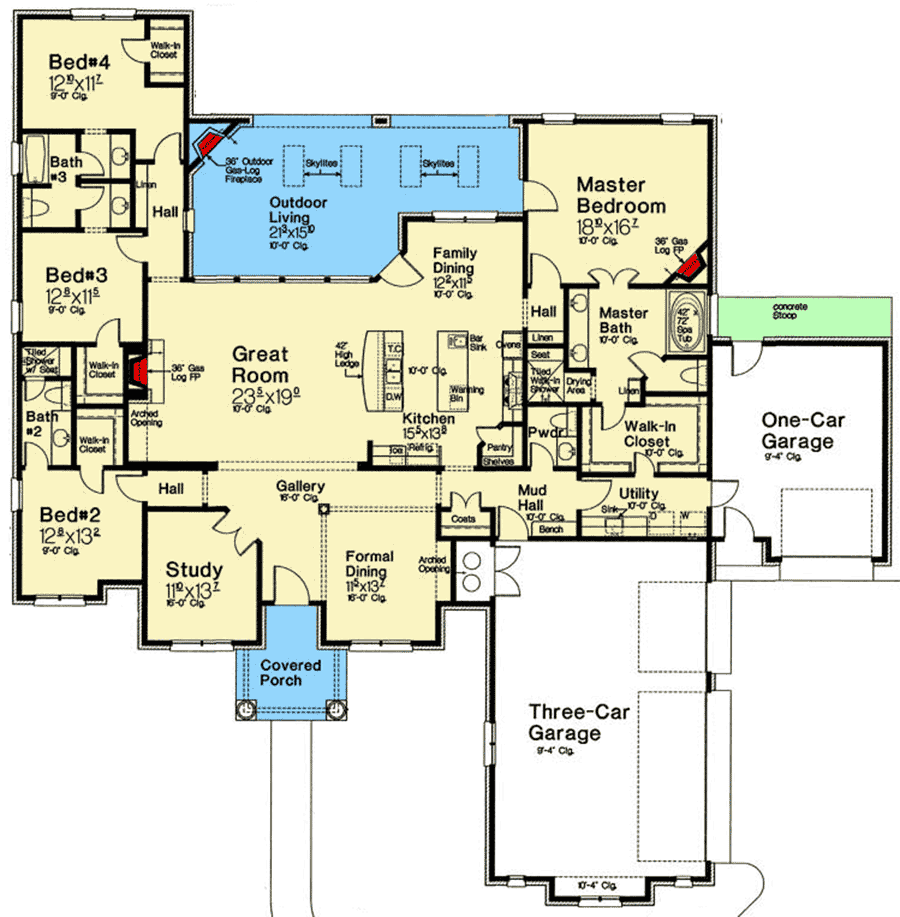

  • Floor Plans
  • Electrical Plan
  • Foundation Plan

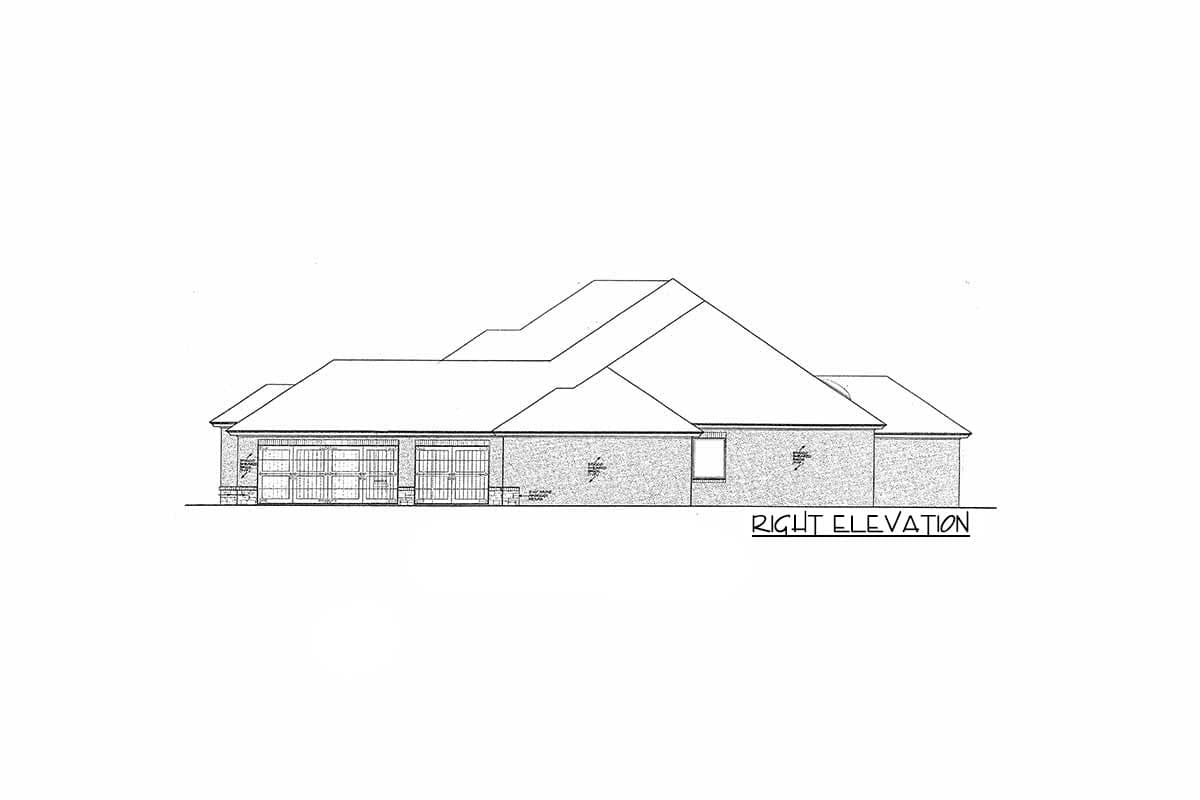

  • Front and Left Elevation

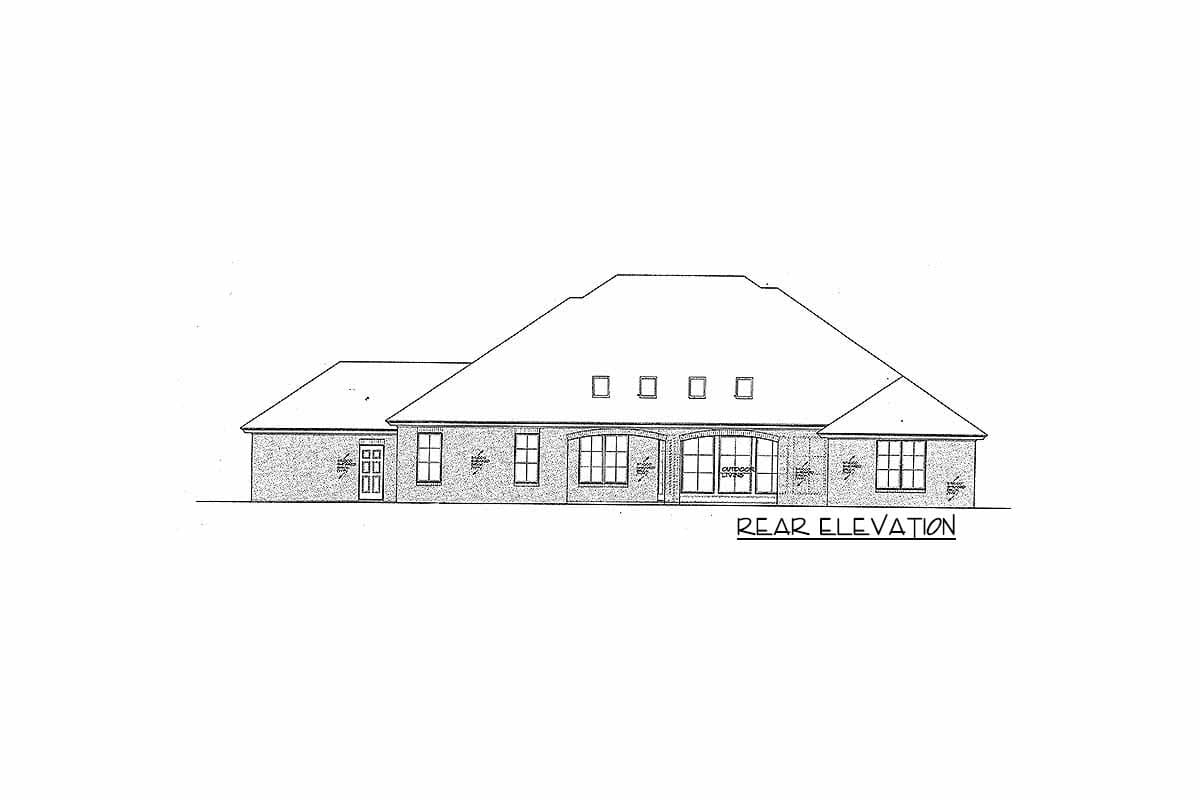

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed Exclusive House Plan Offering Grand One-Story Living

  • 3,096

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,096 sq. ft.
  • 1st Floor: 3,096 sq. ft.

Dimensions

  • Width: 87' 6"
  • Depth: 89' 4"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1228 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
