Plan 790009GLV

4-Bed Exclusive House Plan with Large Covered Porch

3,030 4 3.5 2 3
Pageloader

4-Bed Exclusive House Plan with Large Covered Porch

Plan 790009GLV

  • 3,030

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

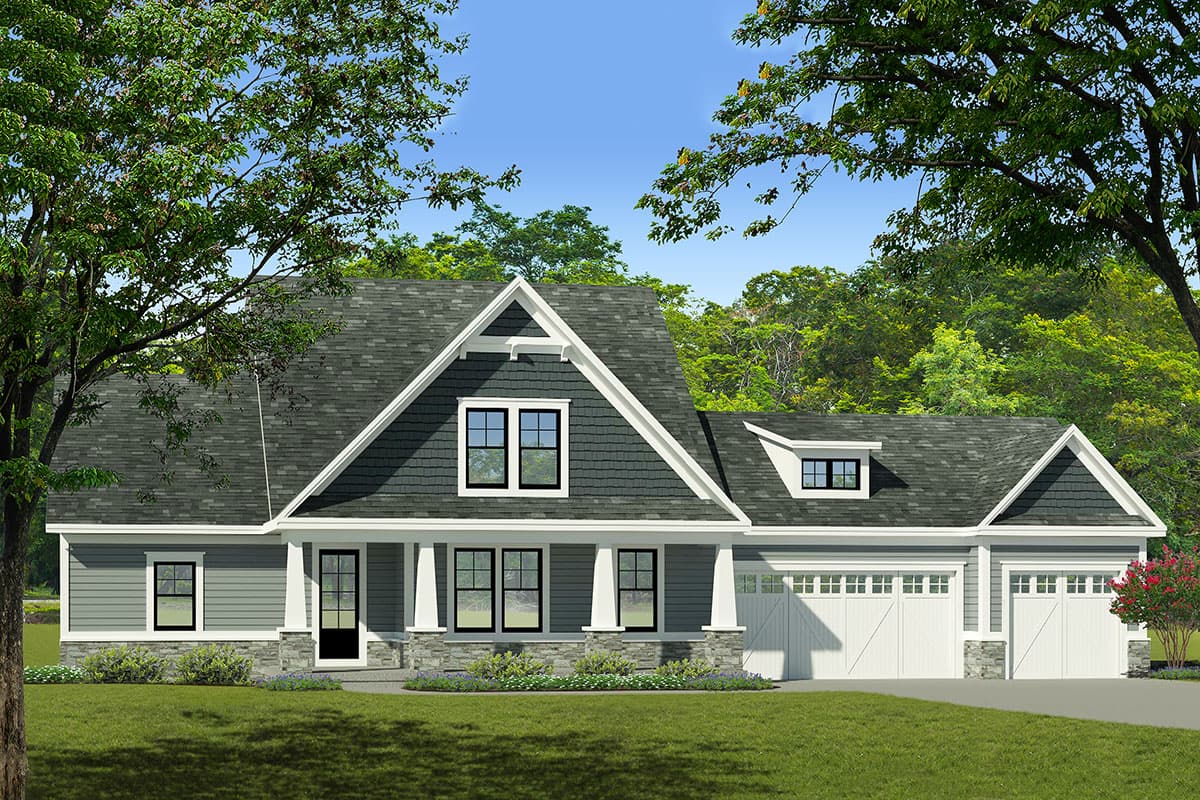

  • Four tapered columns set upon stone bases support a large gable on this 4-bed Exclusive house plan. A shed dormer over the 2-car garage and a smaller gable above the 1-car garage add to the visual appeal of this design.

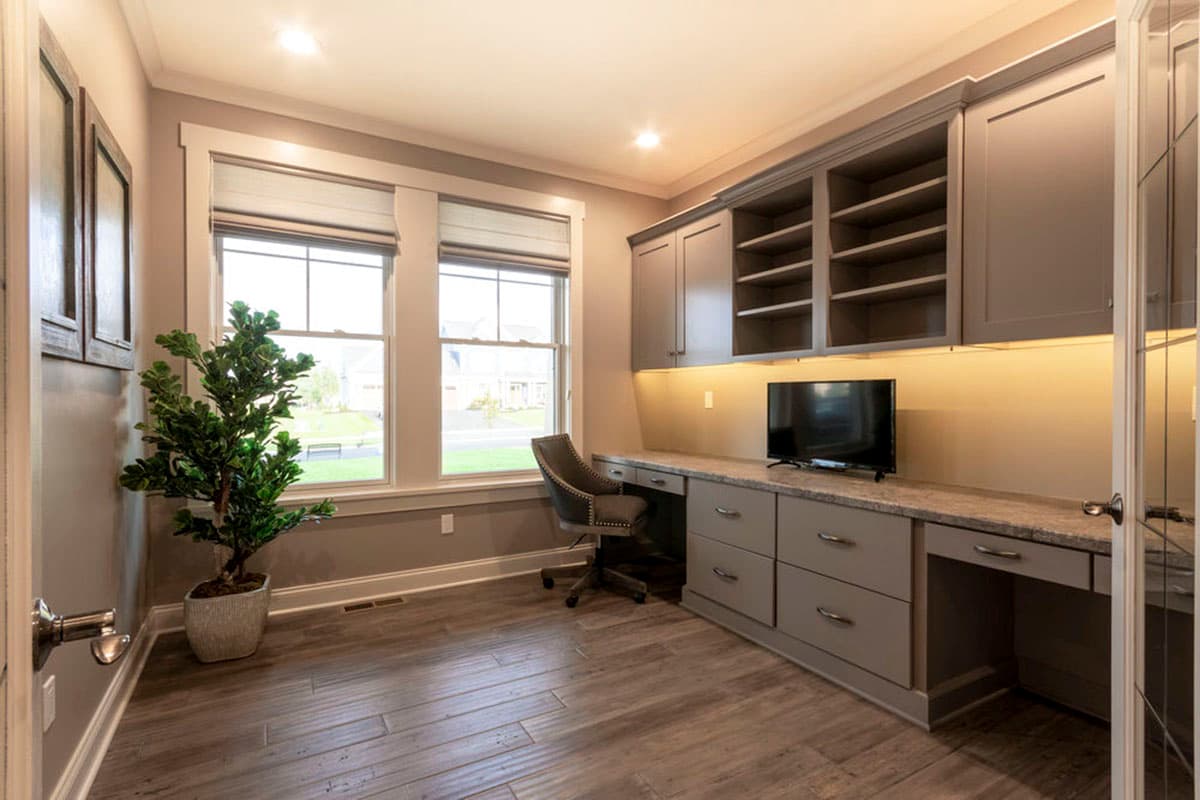

  • In the front of the home you'll find a  private study behind French doors and a large laundry room and the family entry from the garage.

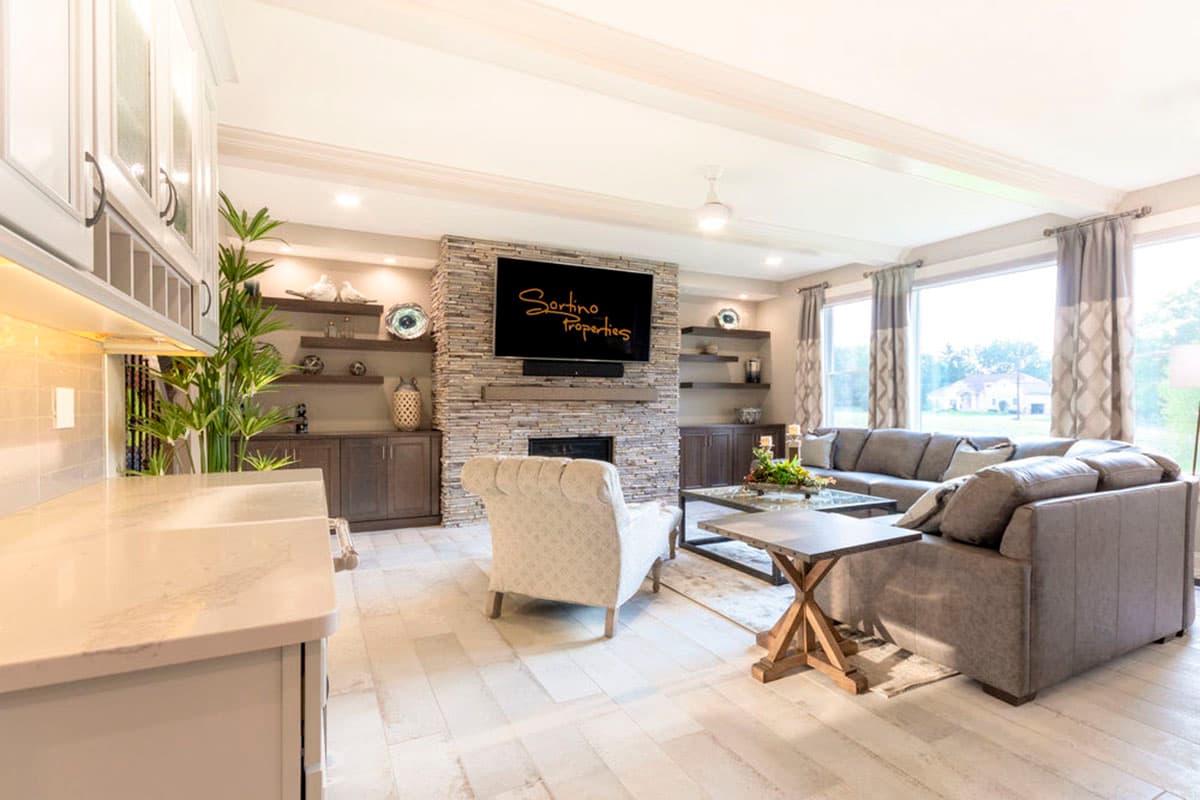

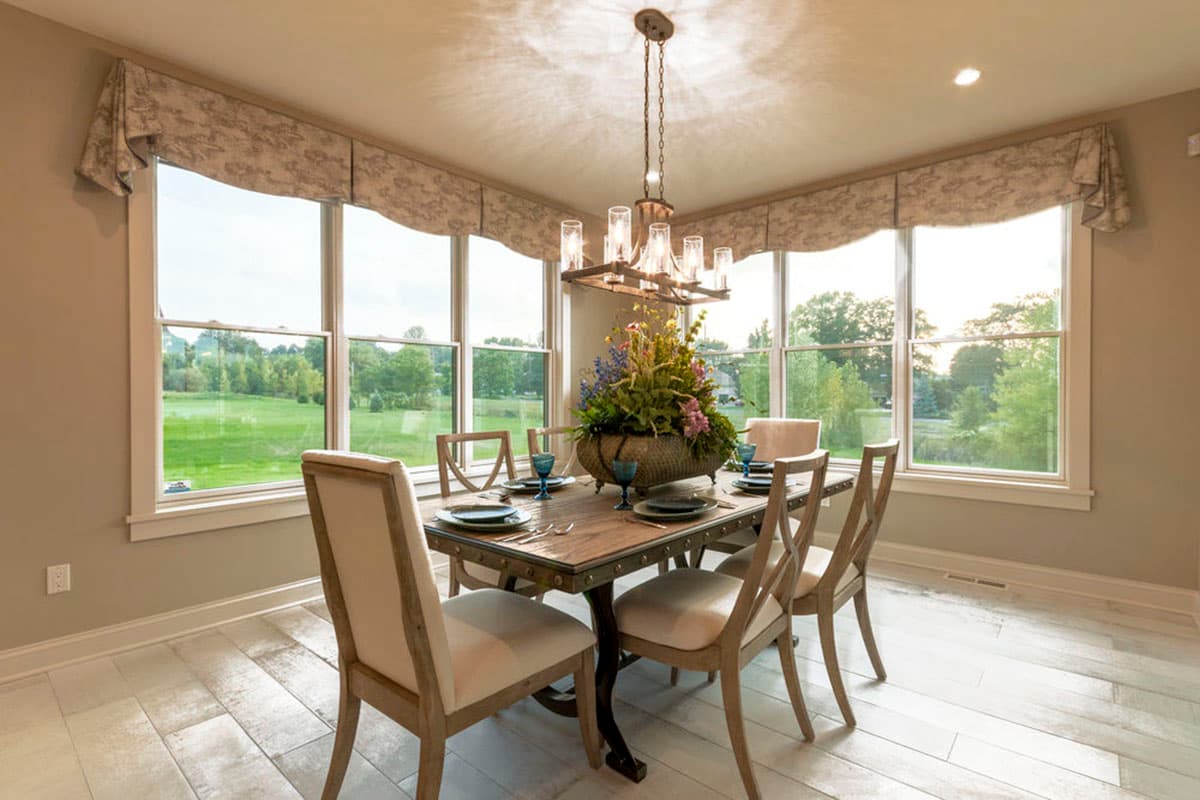

  • Move towards the back - to the left or right of the stairs (a great circular-flow floor plan) and you reach the open concept part of the home with the kitchen and great room open to each other and to the dining room.

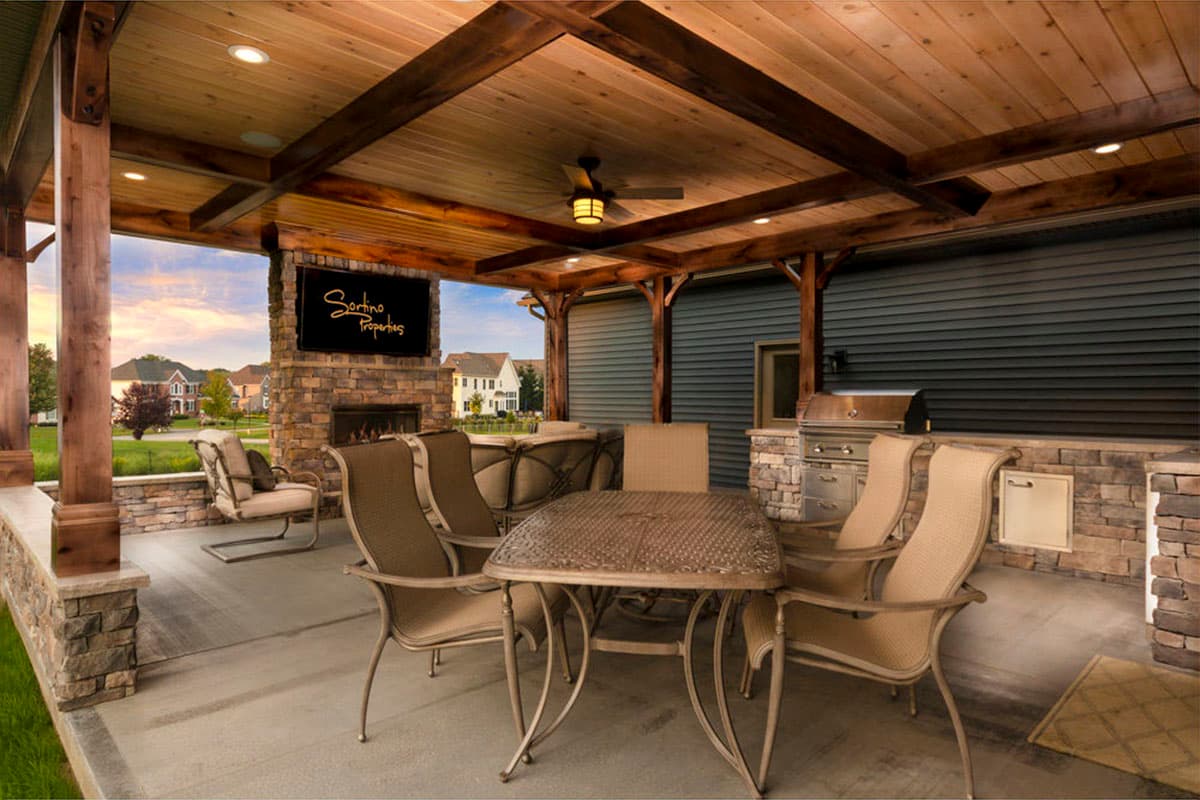

  • Access your large covered porch with optional fireplace from the dining room.

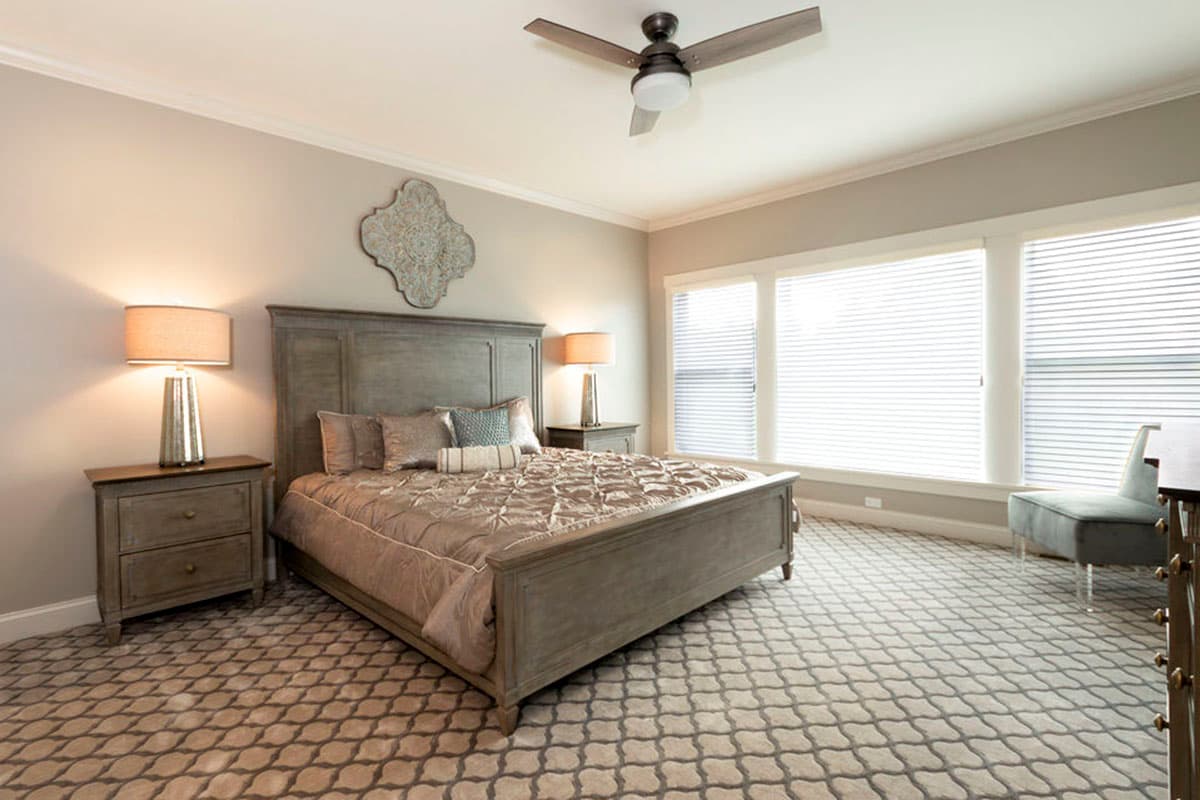

  • The master suite is on the main floor and has views to the back. A large walk-in closet , dual vanities and a walk-in shower complete the suite.

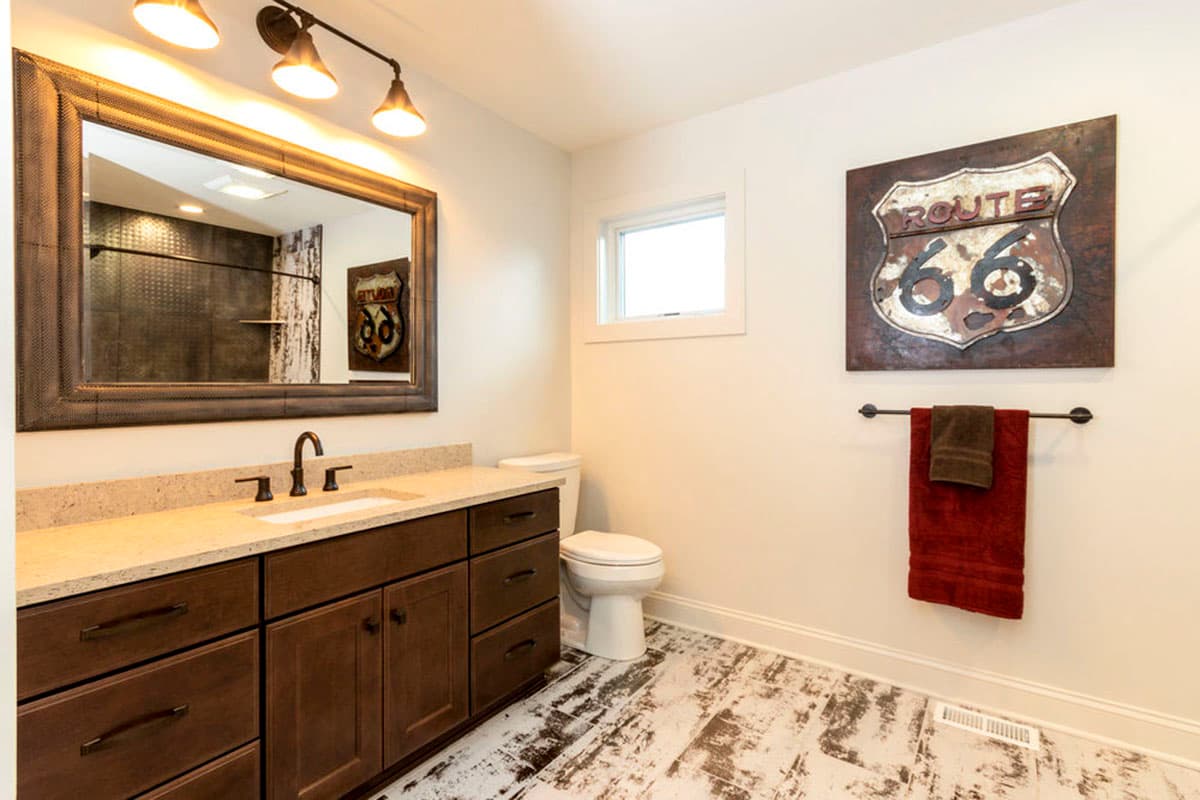

  • Upstairs, Bed 2 has its own bath and Bed 3 and 4 share a bath. A loft gives the kids a place to spend time outside of their rooms.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

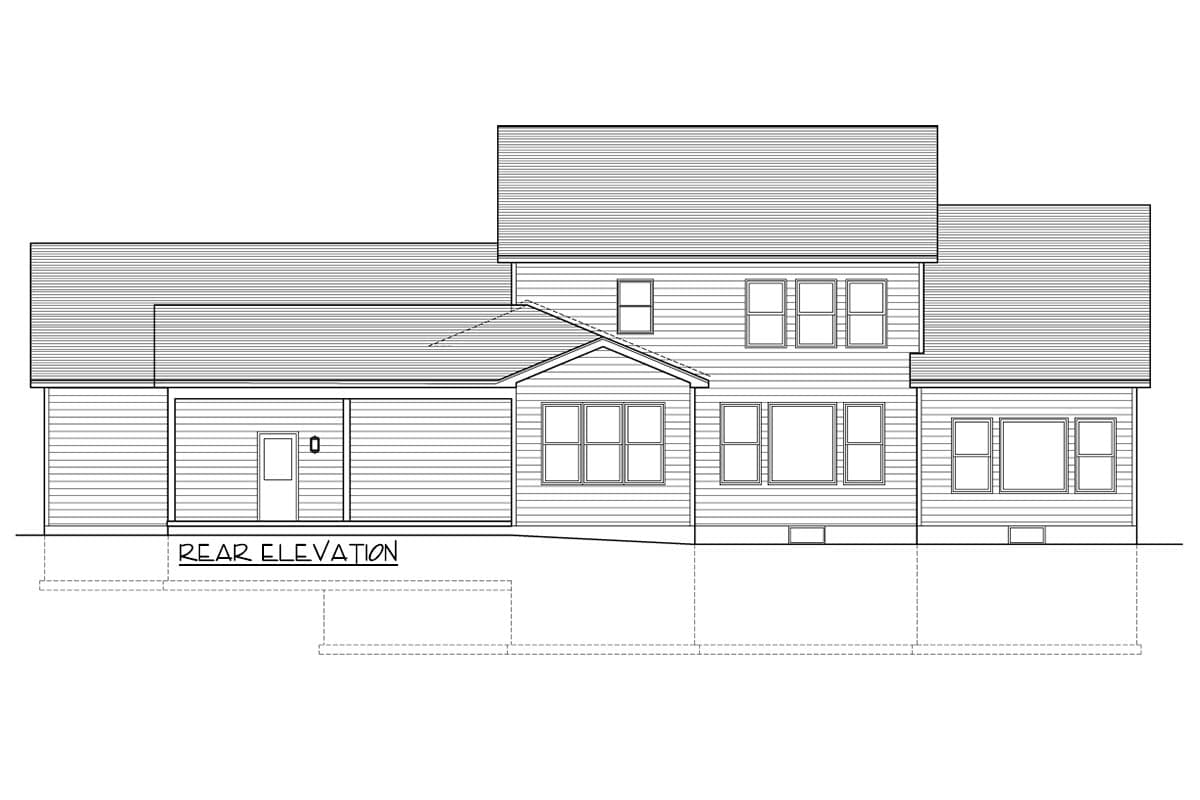

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Plan details



4-Bed Exclusive House Plan with Large Covered Porch

  • 3,030

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,200
  • PDF - single-use $2,000
  • 5 Sets $2,000
  • CAD $4,000
  • View all purchase option online

About This Plan

  • Four tapered columns set upon stone bases support a large gable on this 4-bed Exclusive house plan. A shed dormer over the 2-car garage and a smaller gable above the 1-car garage add to the visual appeal of this design.
  • In the front of the home you'll find a  private study behind French doors and a large laundry room and the family entry from the garage.
  • Move towards the back - to the left or right of the stairs (a great circular-flow floor plan) and you reach the open concept part of the home with the kitchen and great room open to each other and to the dining room.
  • Access your large covered porch with optional fireplace from the dining room.
  • The master suite is on the main floor and has views to the back. A large walk-in closet , dual vanities and a walk-in shower complete the suite.
  • Upstairs, Bed 2 has its own bath and Bed 3 and 4 share a bath. A loft gives the kids a place to spend time outside of their rooms.

Floor Plans

  • Main Level

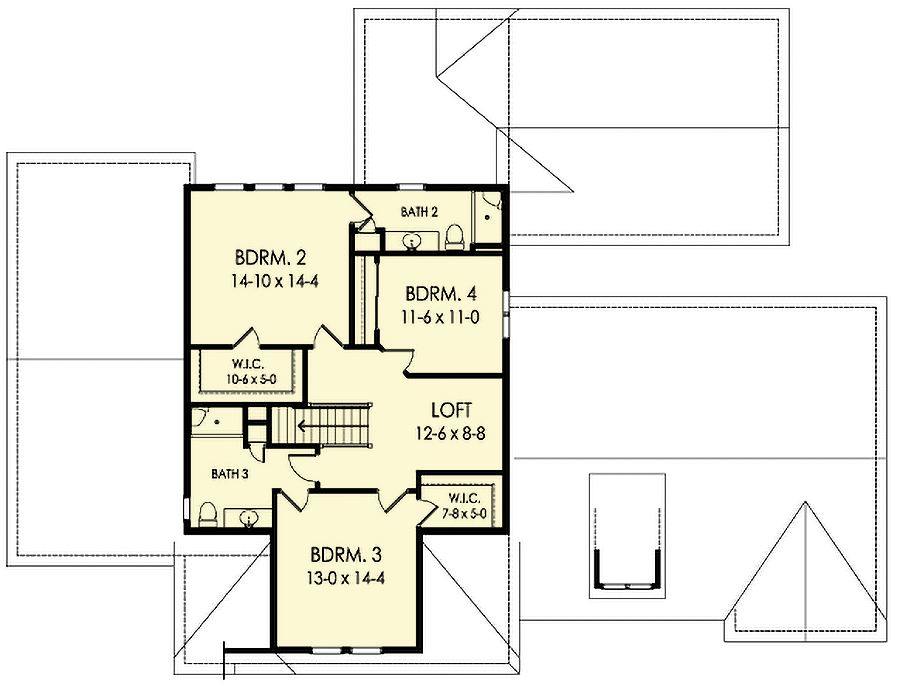

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,030 sq. ft.
  • 1st Floor: 1,906 sq. ft.
  • 2nd Floor: 1,124 sq. ft.
  • Porch, Rear: 500 sq. ft.
  • Porch, Front: 195 sq. ft.
  • Basement Unfinished: 1,725 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 6"
  • Depth: 60' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 978 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick And Truss
