Plan 50177PH 4-Bed Farmhouse Plan with Upstairs Loft

4-Bed Farmhouse Plan with Upstairs Loft

Plan 50177PH

  • 2,483

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • A shed roof with open rafter tails provides shade on the front porch of this 4-bed farmhouse plan with an upstairs loft (the two left windows provide light for the loft, the windows on the right for one of the three upstairs bedrooms.
  • The back porch gives you a second outdoor space to enjoy. At 15'4" wide and 15' deep, it gives you room for furniture.
  • The kitchen opens up to the living room and the dining room, the latter has access to the back porch.
  • Enjoy the convenience of having your master suite on the main floor. Three more bedrooms, plus the loft, are on the second floor.

Each plan set includes the following:

  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.

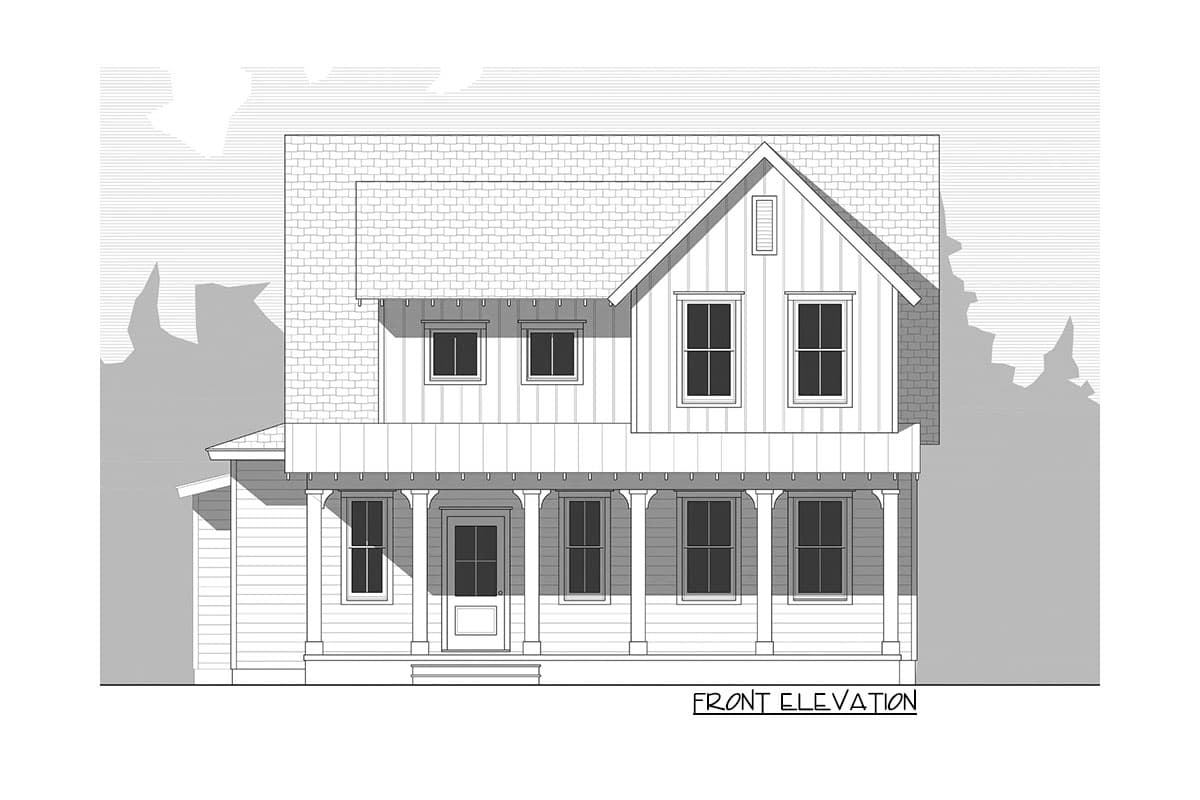

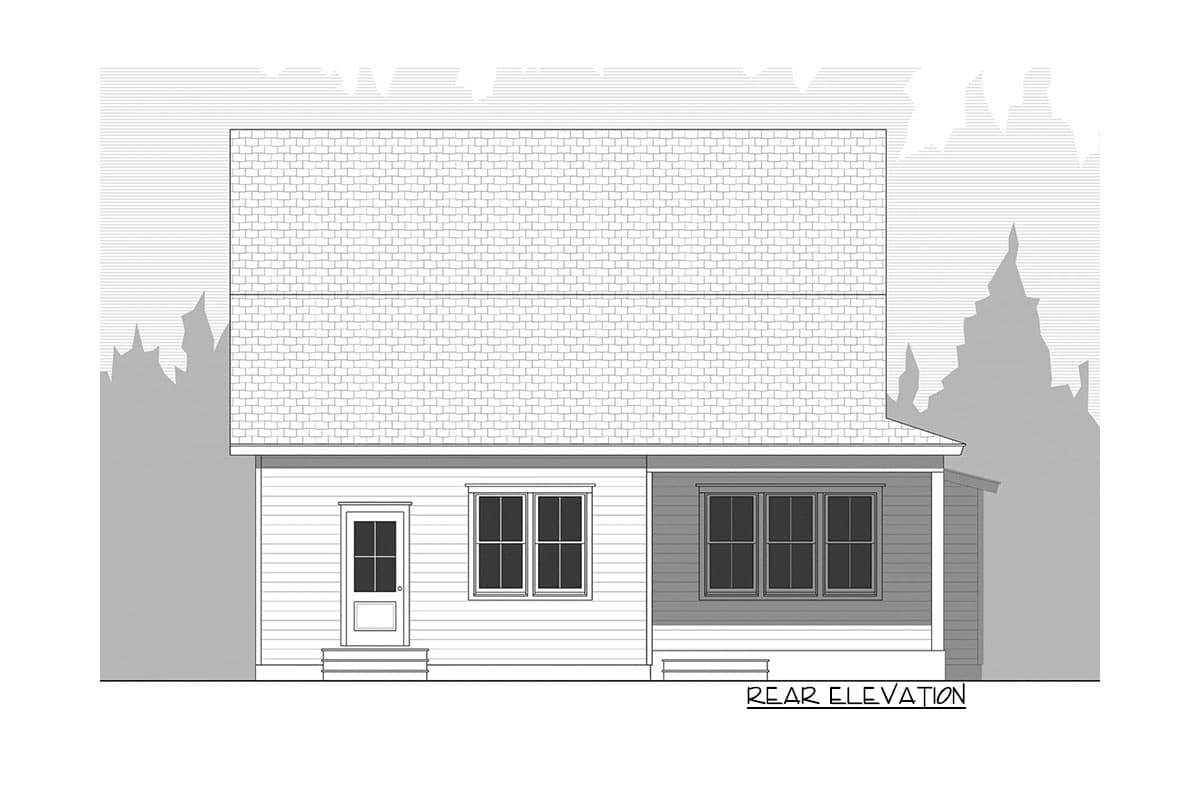

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.

Floor Plan

Plan details



4-Bed Farmhouse Plan with Upstairs Loft

  • 2,483

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets $1,415
  • CAD - Single-Build $2,390
  • View all purchase option online

About This Plan

  • A shed roof with open rafter tails provides shade on the front porch of this 4-bed farmhouse plan with an upstairs loft (the two left windows provide light for the loft, the windows on the right for one of the three upstairs bedrooms.
  • The back porch gives you a second outdoor space to enjoy. At 15'4" wide and 15' deep, it gives you room for furniture.
  • The kitchen opens up to the living room and the dining room, the latter has access to the back porch.
  • Enjoy the convenience of having your master suite on the main floor. Three more bedrooms, plus the loft, are on the second floor.

Floor Plans

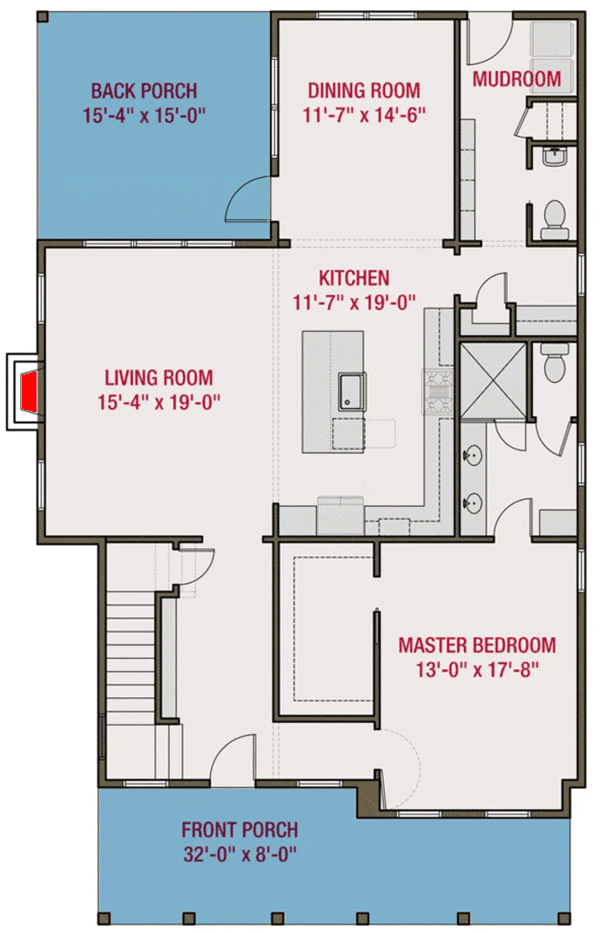

  • Main Level

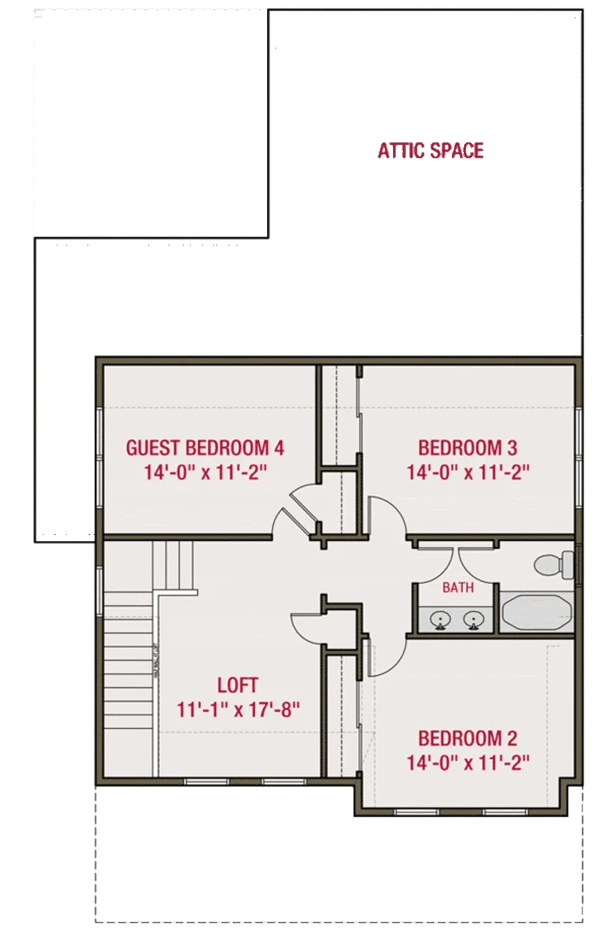

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,483 sq. ft.
  • 1st Floor: 1,570 sq. ft.
  • 2nd Floor: 913 sq. ft.
  • Porch, Rear: 230 sq. ft.
  • Porch, Front: 251 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 60' 0"
  • Max ridge height: 27' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Stick
