Plan 72773DA
4 Bed Home With 2 Car Detached Garage
Heated S.F.
2,717
Beds
4
Baths
3
Stories
2
Cars
2
What's Included
Plan Details
  • Shingle siding adds to the visual appeal of this 4 bed house plan with 2 car detached garage. The 2-story symmetrical front faзade has a front porch with glassed door insets and sidelites.

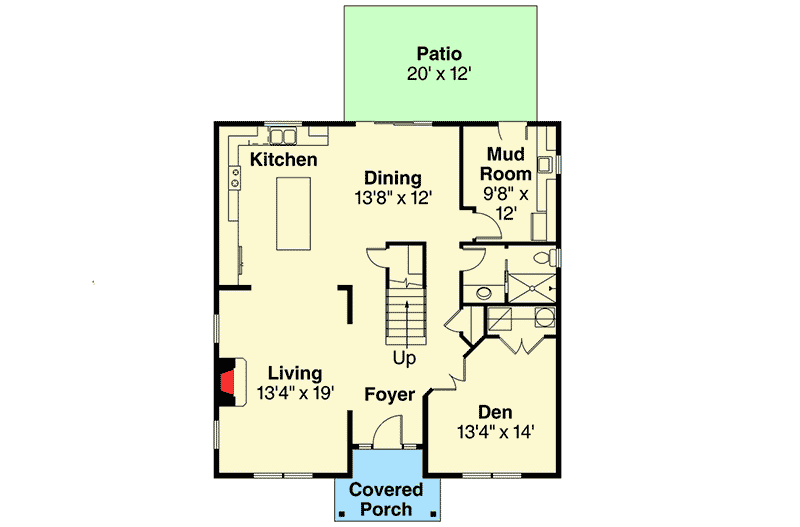

  • Inside and straight ahead, a stairway to the upper level runs up the right side of the foyer, while the left half flows on into the main floor dining area and kitchen. A large living room with a fireplace is through a wide opening on the foyer's left.
  • An opening on the opposite wall accesses the right wing, which comprises a den (or home office), a two-section bathroom, and a mudroom. Cabinetry and a long counter with a deep sink run along one side of this handy mudroom, and an upright freezer fits in nicely here too. At the rear, this wing also links with the dining area and kitchen.
  • A flush eating bar rims the rectangular work island that bounds the otherwise L-shaped kitchen. Sliding glass doors open onto a wide, partially covered patio.

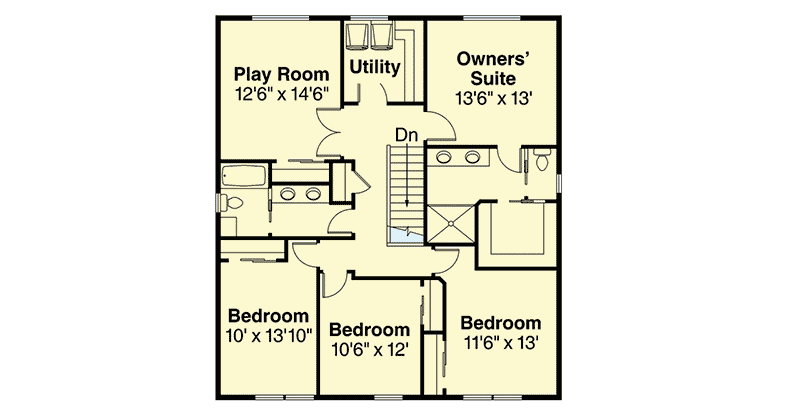

  • Four bedrooms, a playroom, a utility room and two bathrooms are upstairs. Both two-section bathrooms have dual vanities. The owners' bathroom boasts an oversized shower and a large walk-in closet, while the other bathroom has a combination tub and shower.
  • Laundry is conveniently locaterd upstairs. Built-in cabinetry and a long counter make for ease of processing sheets, towels, clothing and the like.

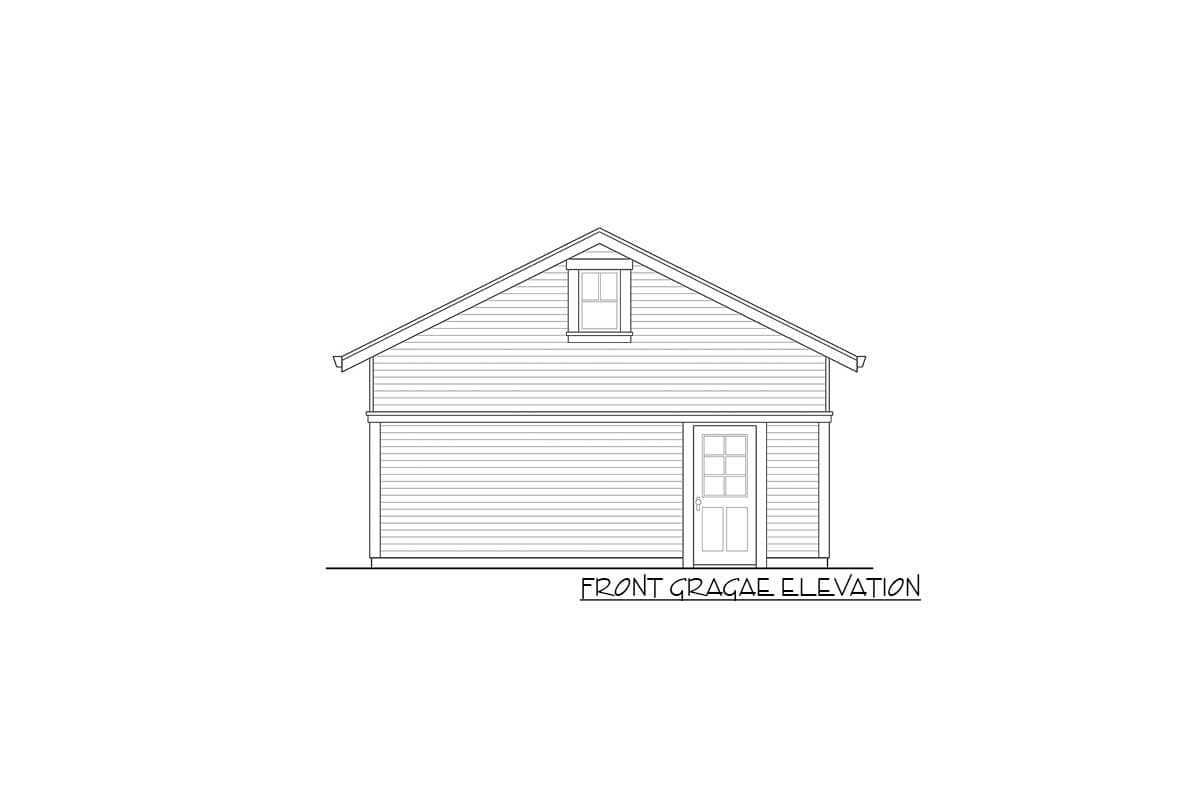

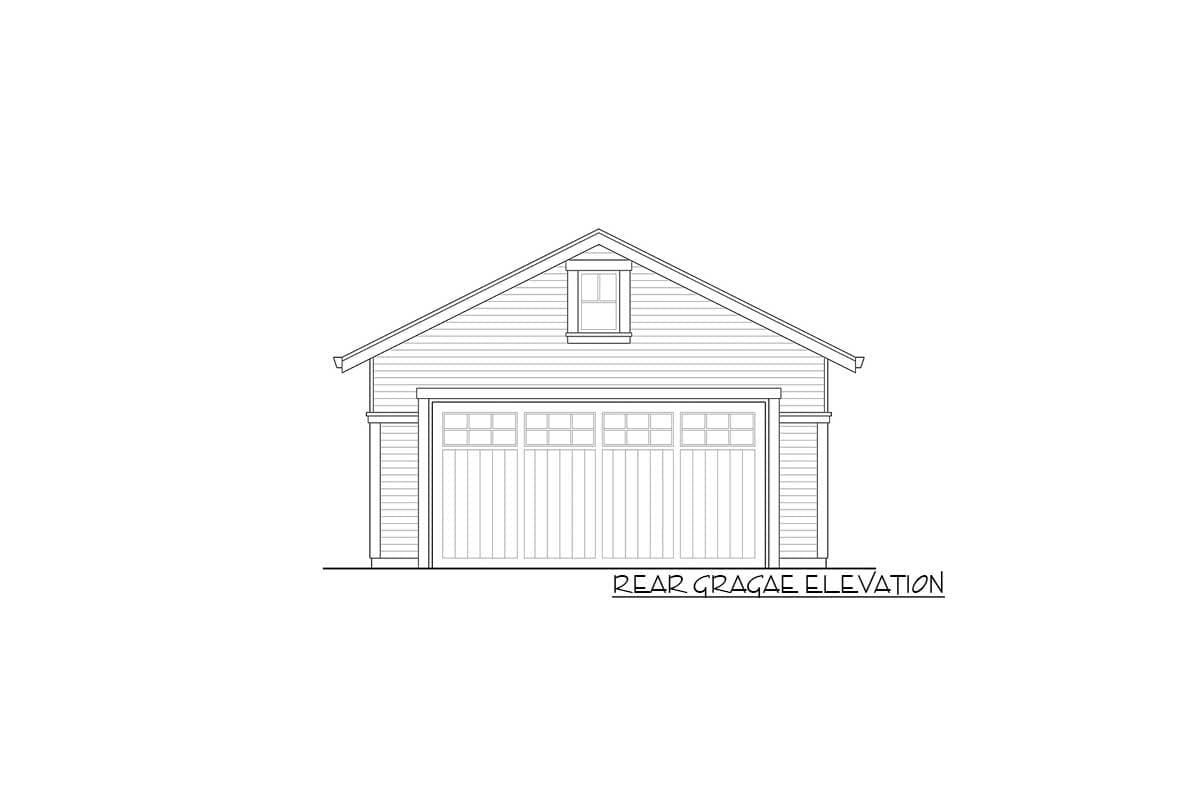

  • A 2-car detached garage comes with the plans and can be placed wherever you like on your lot.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

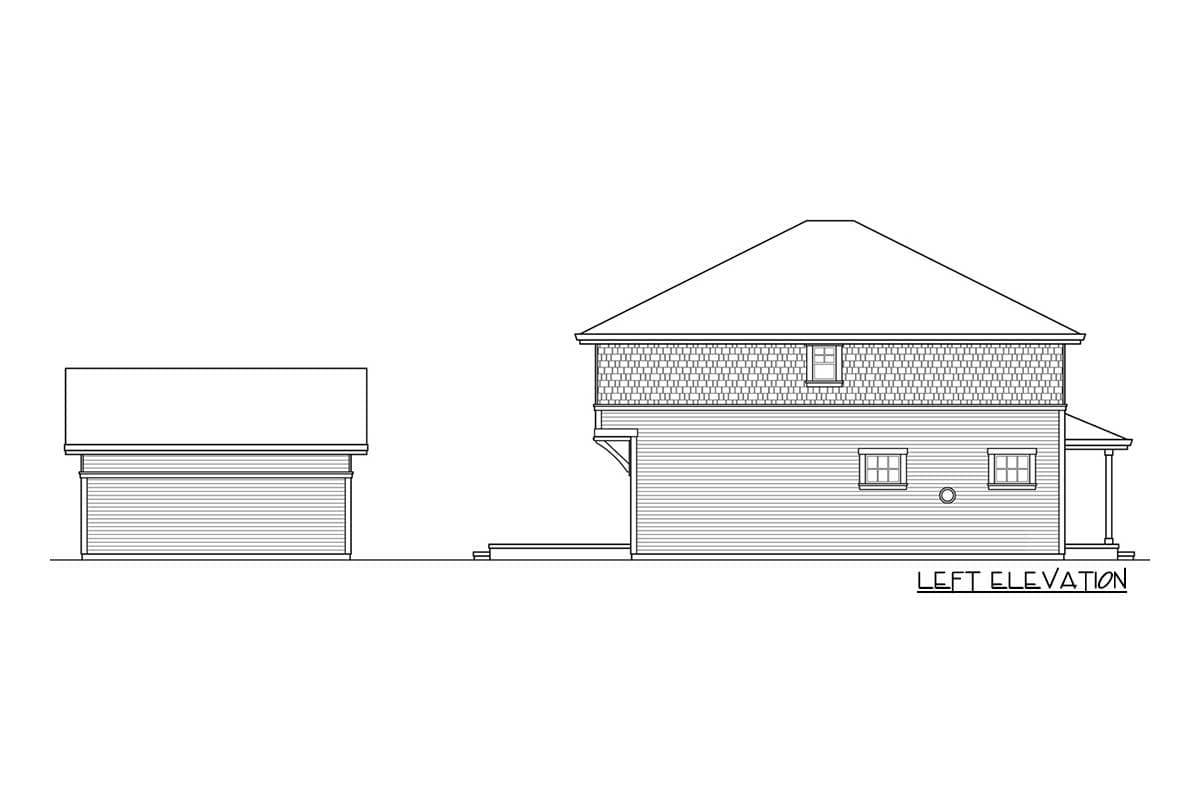

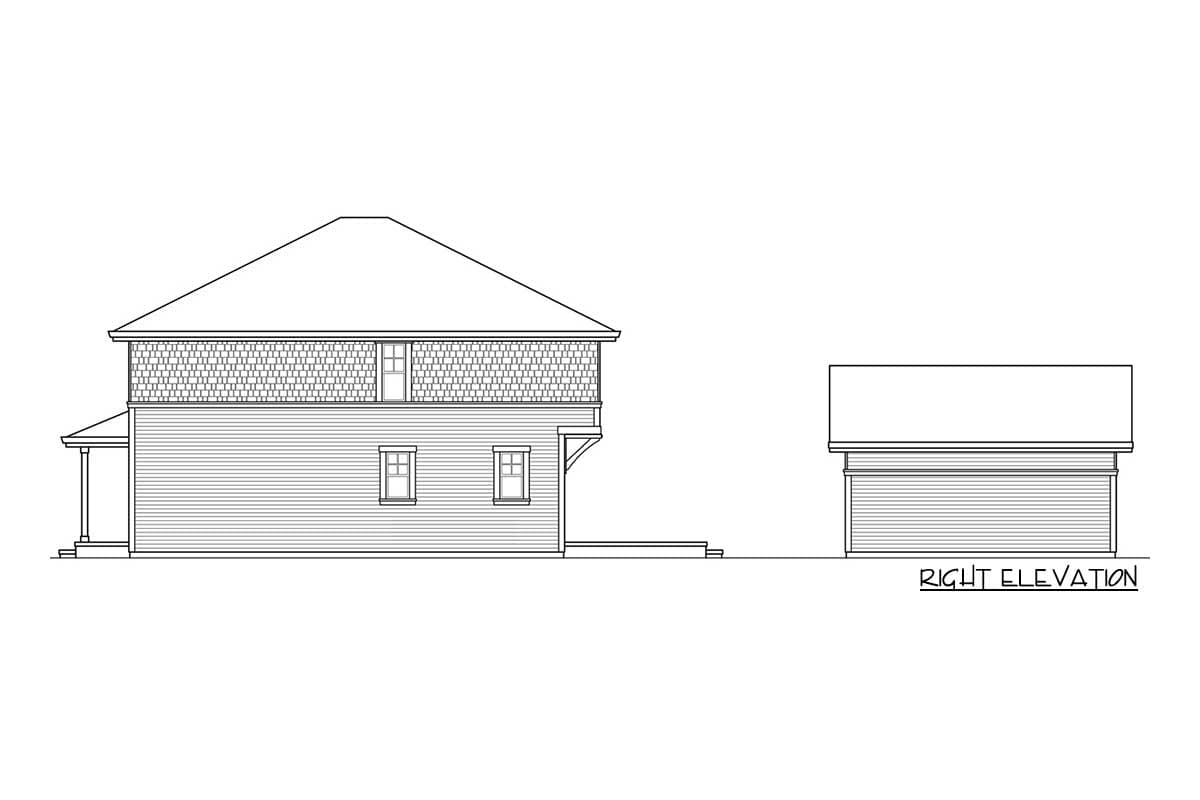

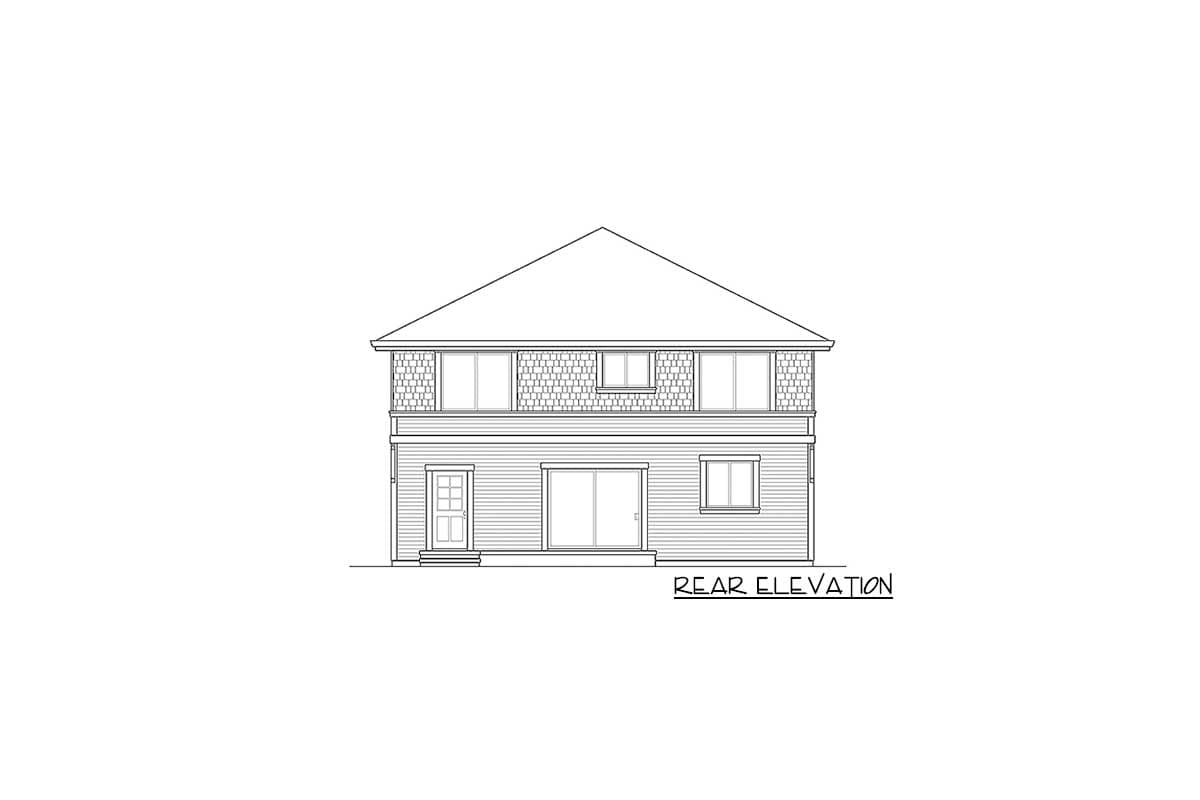

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4 Bed Home With 2 Car Detached Garage

  • 2,717

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Detached Garage

Plan Details

Square Footage Breakdown

  • Total: 2,717 sq. ft.
  • 1st Floor: 1,310 sq. ft.
  • 2nd Floor: 1,407 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 41' 0"
  • Max ridge height: 28' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Detached
  • Area: 506 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
