Plan 710252BTZ 4-Bed House Plan with 3-Car Courtyard Garage with Large Bonus Room Above

3,641 4 4 - 5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed House Plan with 3-Car Courtyard Garage with Large Bonus Room Above

Plan 710252BTZ

  • 3,641

    Heated s.f.

  • 4

    Beds

  • 4 - 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The covered porch and courtyard entry welcome guests, while the 3-car garage gives considerable room for the homeowners' personal use.
  • The 2-story foyer leads to the vaulted family room that includes a fireplace, built-in cabinets and a beautiful rear wall of windows that allows views onto the spacious deck and back yard. The large eat-in kitchen includes an island for the chef of the family and an attached breakfast area. A cozy keeping room is just a few steps away with its own fireplace, creating an ideal space for relaxing with company.
  • The master suite on the right wing of this floor comes with a sitting area, oversized bath and his-and-her closet. It has access to the back deck and views to the rear. A second bedroom on this floor lies across the home.
  • Upstairs, two more bedrooms with their own private en suites can be found. A loft down the hall boasts French doors that open to overlook the keeping room, giving the home a unique and tasteful touch.

The plans include the following:

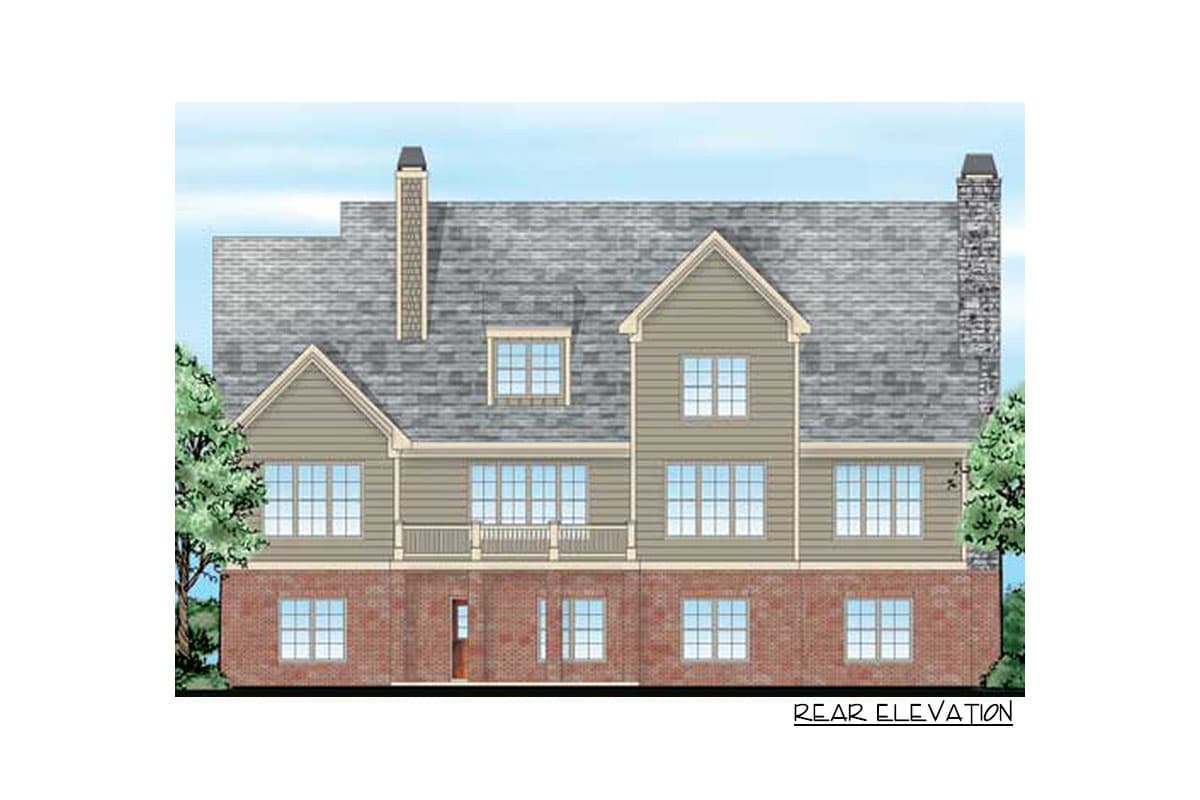

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

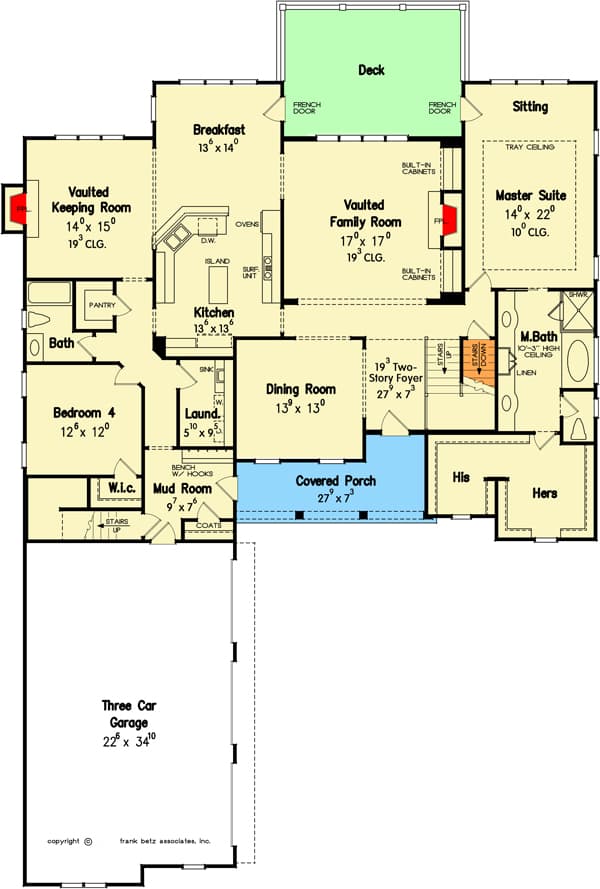

4-Bed House Plan with 3-Car Courtyard Garage with Large Bonus Room Above - 710252BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed House Plan with 3-Car Courtyard Garage with Large Bonus Room Above - 710252BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,641 sq. ft.
  • 1st Floor: 2,673 sq. ft.
  • 2nd Floor: 968 sq. ft.
  • Bonus: 787 sq. ft.
  • Basement Unfinished: 2,673 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4 or 5

Foundation Type

  • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 64' 4"
  • Depth: 87' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 833 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

4-Bed House Plan with 3-Car Courtyard Garage with Large Bonus Room Above

  • 3,641

    Heated s.f.

  • 4

    Beds

  • 4 - 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-Sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • The covered porch and courtyard entry welcome guests, while the 3-car garage gives considerable room for the homeowners' personal use.
  • The 2-story foyer leads to the vaulted family room that includes a fireplace, built-in cabinets and a beautiful rear wall of windows that allows views onto the spacious deck and back yard. The large eat-in kitchen includes an island for the chef of the family and an attached breakfast area. A cozy keeping room is just a few steps away with its own fireplace, creating an ideal space for relaxing with company.
  • The master suite on the right wing of this floor comes with a sitting area, oversized bath and his-and-her closet. It has access to the back deck and views to the rear. A second bedroom on this floor lies across the home.
  • Upstairs, two more bedrooms with their own private en suites can be found. A loft down the hall boasts French doors that open to overlook the keeping room, giving the home a unique and tasteful touch.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,641 sq. ft.
  • 1st Floor: 2,673 sq. ft.
  • 2nd Floor: 968 sq. ft.
  • Bonus: 787 sq. ft.
  • Basement Unfinished: 2,673 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4 or 5

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 64' 4"
  • Depth: 87' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 833 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
