Plan 710050BTZ
4-Bed House Plan with 3 Steep Gables
Heated S.F.
2,218
Beds
3-4
Baths
2.5 - 3.5
Stories
1-2
Cars
2
What's Included
Plan Details
  • Three steep gables each with architectural brackets and cedar shakes accent the front elevation of this 4-bed house plan. Classic brick and double hung windows with distinctive mullions add fresh design elements to this design.
  • Inside, an entertainer's kitchen is anchored by a large island and a voluminous family room with a high ceiling.
  • The dining and sitting areas are flooded with natural light and will take full advantage of any rear view.
  • The master suite is located on the rear as well for privacy and is complimented by a spa like bath and large walk-in-closet. There are two secondary bedrooms adjoined by a "Jack-and Jill" bath and each with large closets.
  • A mud area and large pantry provide storage and organization. The pocket office is the perfect space for meal planning and making a busy schedule easier.
  • Upstairs there is a fourth bedroom and a loft with multiple purposes and an additional bath.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed House Plan with 3 Steep Gables

  • 2,218

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

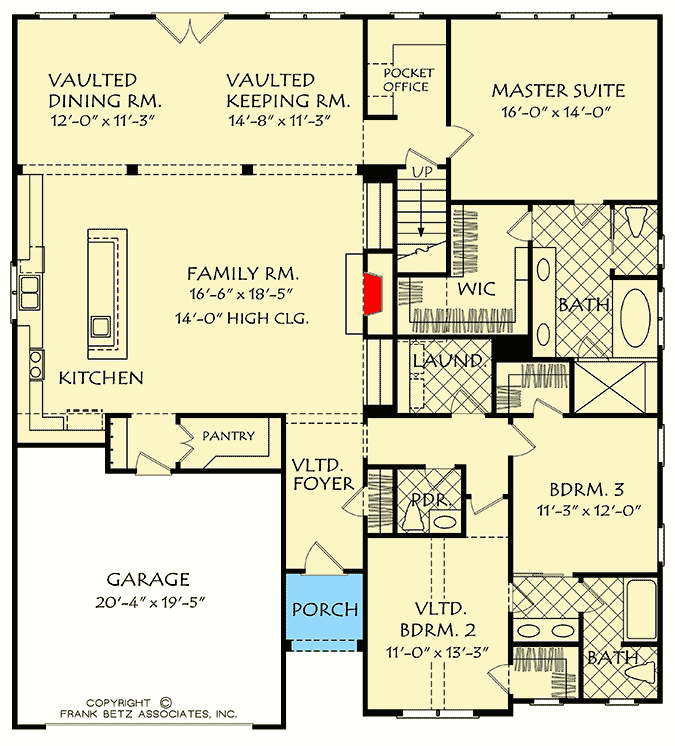

  • Main Level

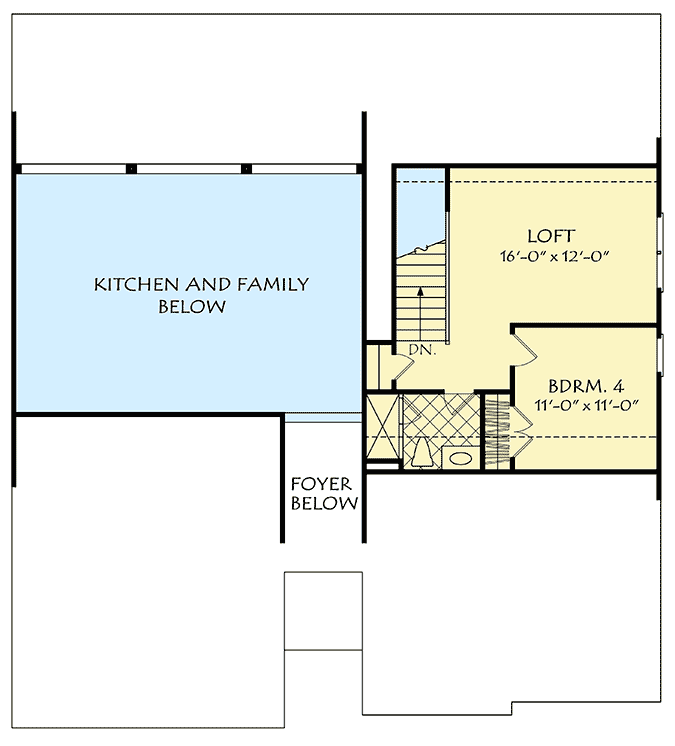

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,218 sq. ft.
  • 1st Floor: 2,218 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 55' 0"
  • Max ridge height: 25' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 428 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

4-Bed House Plan with 3 Steep Gables

  • 2,218

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

4-Bed House Plan with 3 Steep Gables

  • 2,218

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,218 sq. ft.
  • 1st Floor: 2,218 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 55' 0"
  • Max ridge height: 25' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 428 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

    Main Level

    2nd Floor
