Plan 710381BTZ 4-Bed House Plan with a Timber-Framed Gable Designed for a Rear Sloping Lot

4-Bed House Plan with a Timber-Framed Gable Designed for a Rear Sloping Lot

Plan 710381BTZ

  • 3,072

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • A timber-framed gable is the focal point that leads one to the front door of this 4-bed house designed on a walkout basement and is ideally sited on a rear-sloping lot with exposure to a lake, hillside or golf course. Fieldstone and textured siding create an elevation design that will be suitable for building sites from urban to rural.
  • The main level provides the owner's with one level living perfect for retirees. The open concept kitchen, living and dining areas mesh perfectly for gathering with friends and family.
  • The master suite is located to the rear to take full advantage of views that are available. The master bath is fully appointed with a soaking tub, large shower and ample closet space.
  • There is also a guest suite on the main floor, located for privacy and convenience. The guest room would make a great home work space as well.
  • The mudroom, laundry room and pantry provide storage and convenience for a busy family.
  • The finished lower level contains two additional bedrooms each with a connected bath and walk-in-closet. A large family room is also located on the lower level for entertaining family and friends.
  • Related Plans: Get alternate versions with house plans 710035BTZ and 710321BTZ.

The plans include the following:

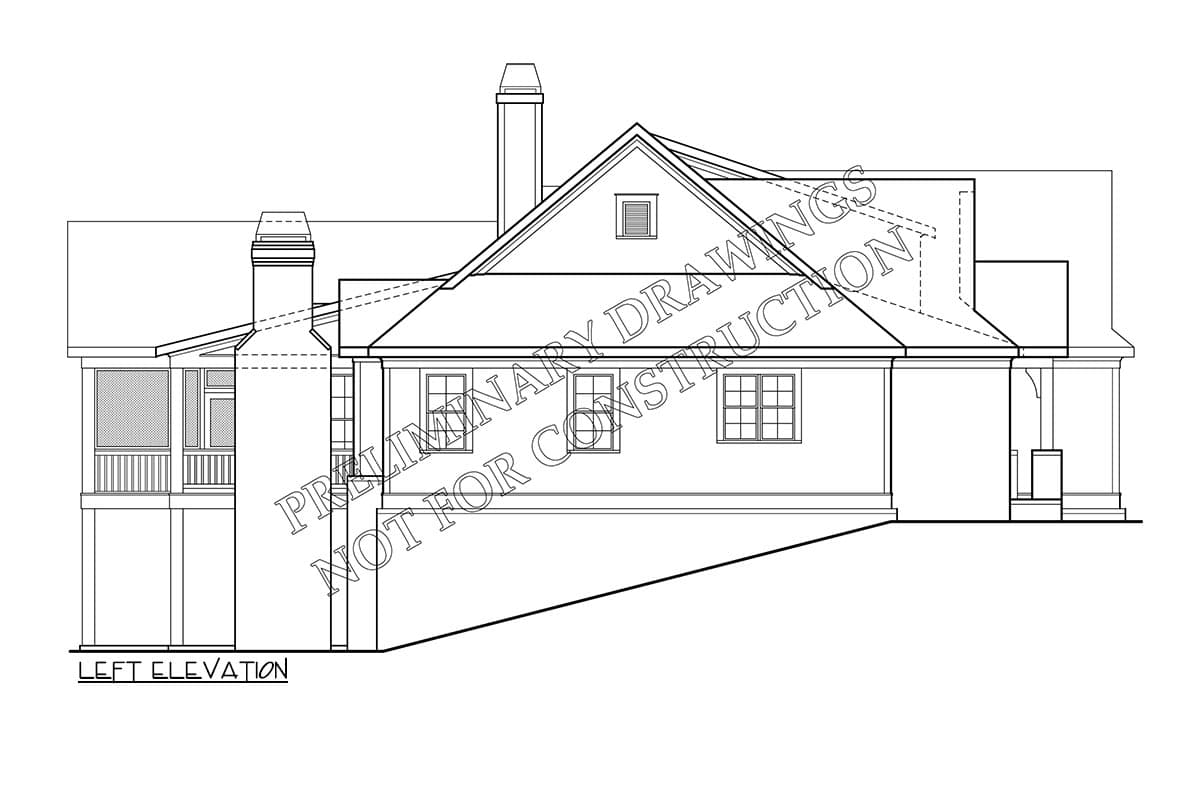

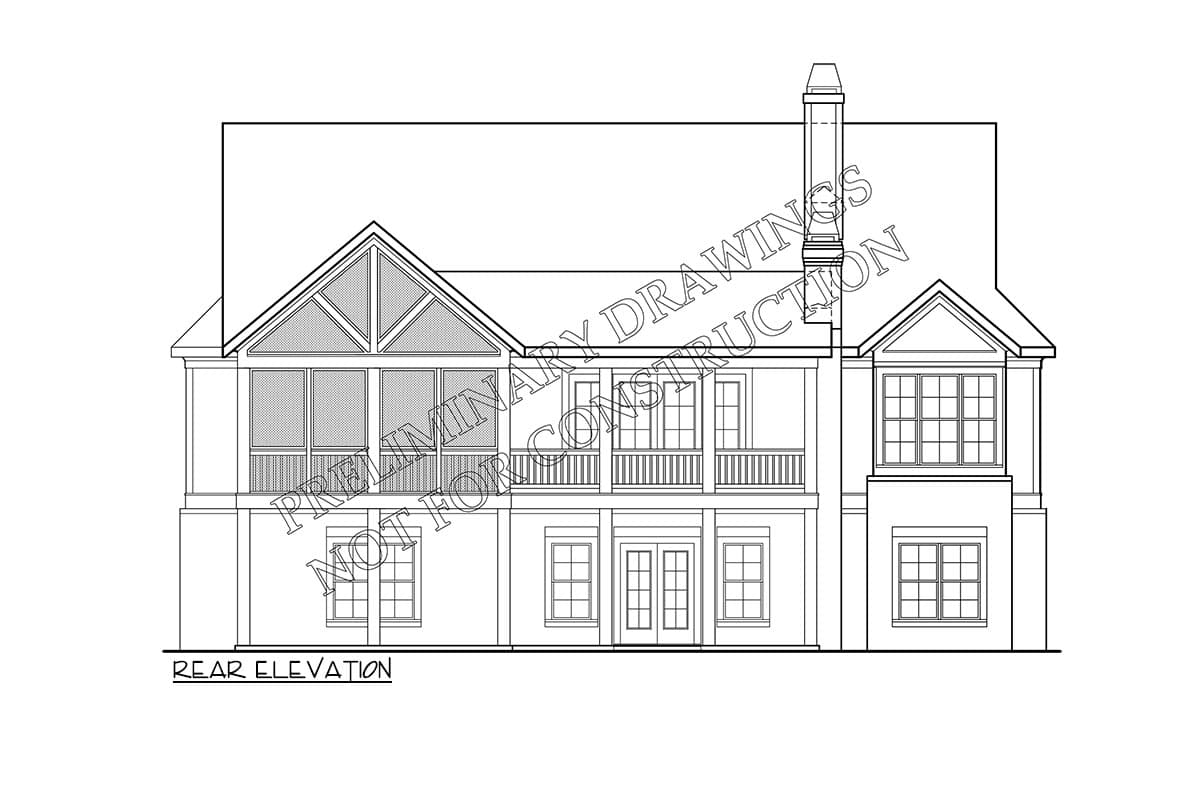

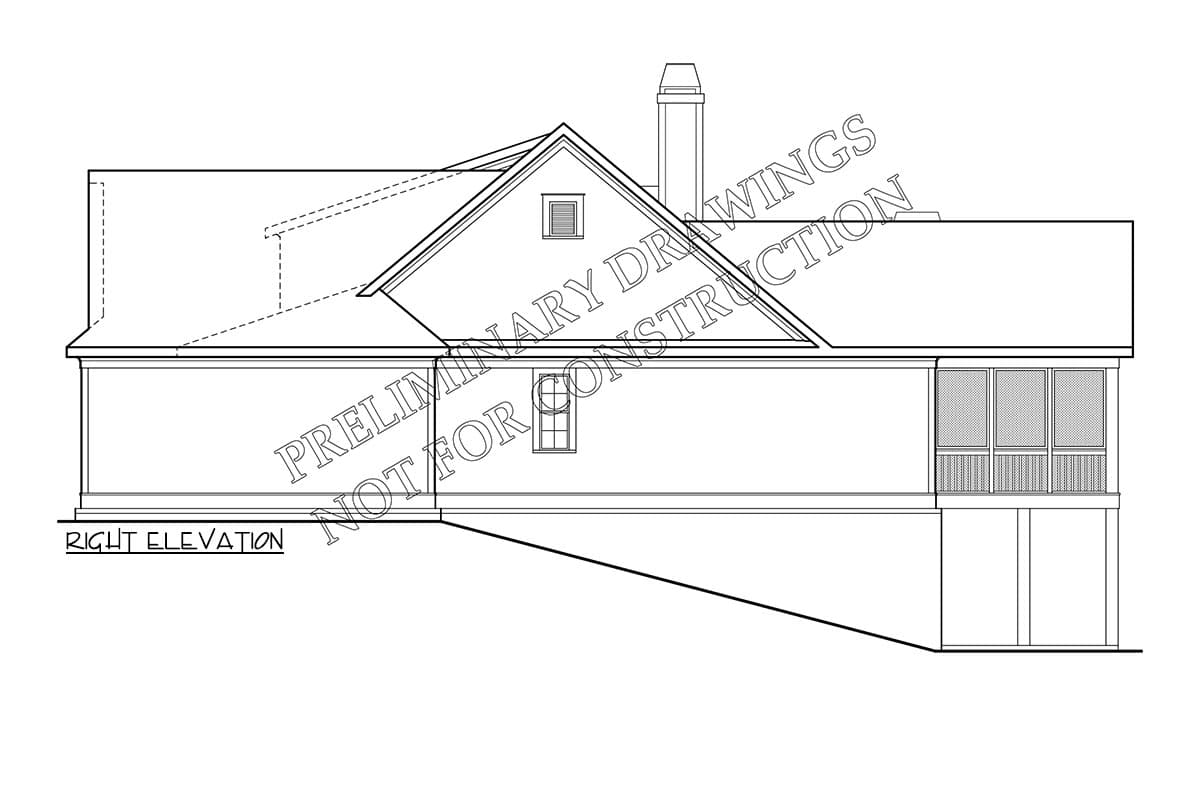

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

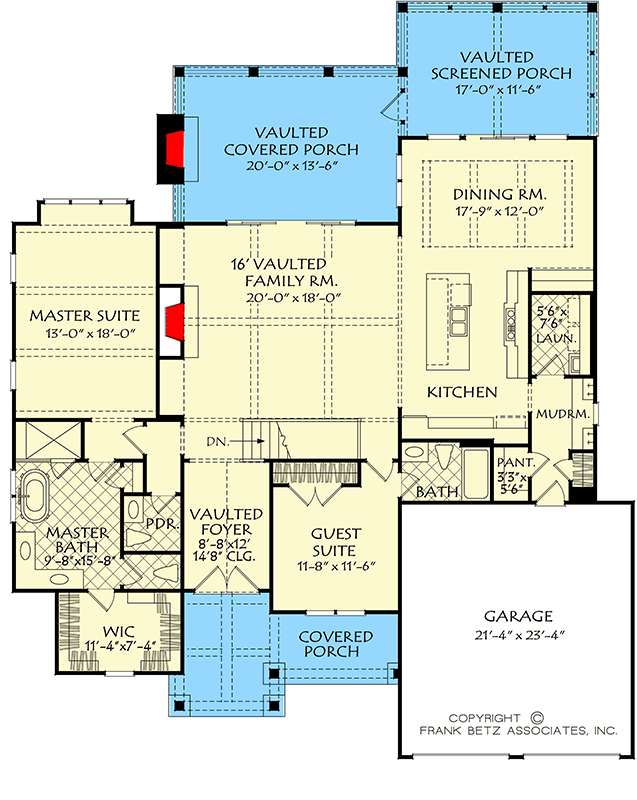

4-Bed House Plan with a Timber-Framed Gable Designed for a Rear Sloping Lot - 710381BTZ floor plan - Main Level

Finished Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

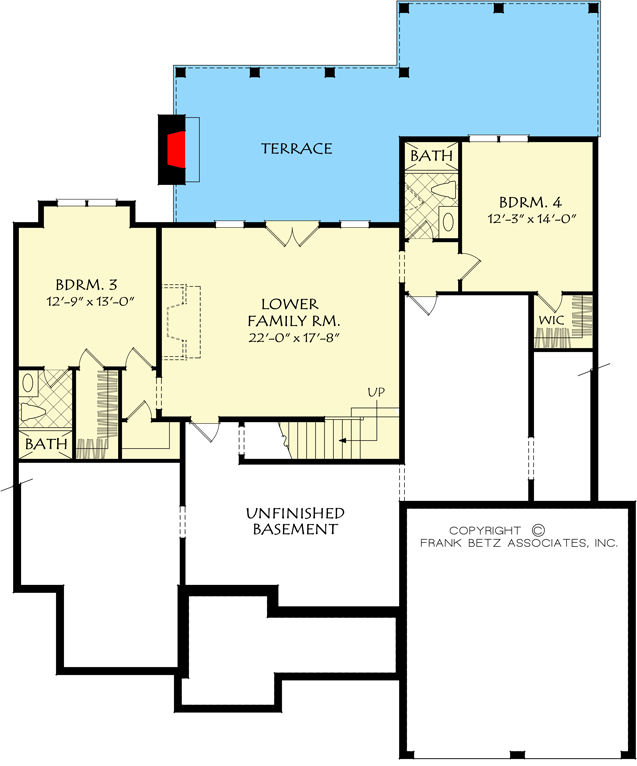

4-Bed House Plan with a Timber-Framed Gable Designed for a Rear Sloping Lot - 710381BTZ floor plan - Finished Lower Level

Plan details

4-Bed House Plan with a Timber-Framed Gable Designed for a Rear Sloping Lot

  • 3,072

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,625
  • 8 Sets $1,775
  • PDF - Unlimited Build $1,925
  • CAD - Unlimited Build $3,670
  • View all purchase option online

About This Plan

  • A timber-framed gable is the focal point that leads one to the front door of this 4-bed house designed on a walkout basement and is ideally sited on a rear-sloping lot with exposure to a lake, hillside or golf course. Fieldstone and textured siding create an elevation design that will be suitable for building sites from urban to rural.
  • The main level provides the owner's with one level living perfect for retirees. The open concept kitchen, living and dining areas mesh perfectly for gathering with friends and family.
  • The master suite is located to the rear to take full advantage of views that are available. The master bath is fully appointed with a soaking tub, large shower and ample closet space.
  • There is also a guest suite on the main floor, located for privacy and convenience. The guest room would make a great home work space as well.
  • The mudroom, laundry room and pantry provide storage and convenience for a busy family.
  • The finished lower level contains two additional bedrooms each with a connected bath and walk-in-closet. A large family room is also located on the lower level for entertaining family and friends.
  • Related Plans: Get alternate versions with house plans 710035BTZ and 710321BTZ.

Floor Plans

  • Main Level

  • Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,072 sq. ft.
  • Lower Level: 1,059 sq. ft.
  • 1st Floor: 2,013 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 58' 0"
  • Depth: 70' 5"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 520 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
