4-Bed House Plan with Central Atrium - 2716 Sq Ft

Name: Plan 60505ND: 4-Bed House Plan with Central Atrium - 2716 Sq Ft
Brand: Architectural Designs
SKU: 60505ND
Price: 1119.88 USD
Availability: InStock

Heated S.F.

2,716

Beds

Baths

3.5

Stories

Cars

Floor Plan

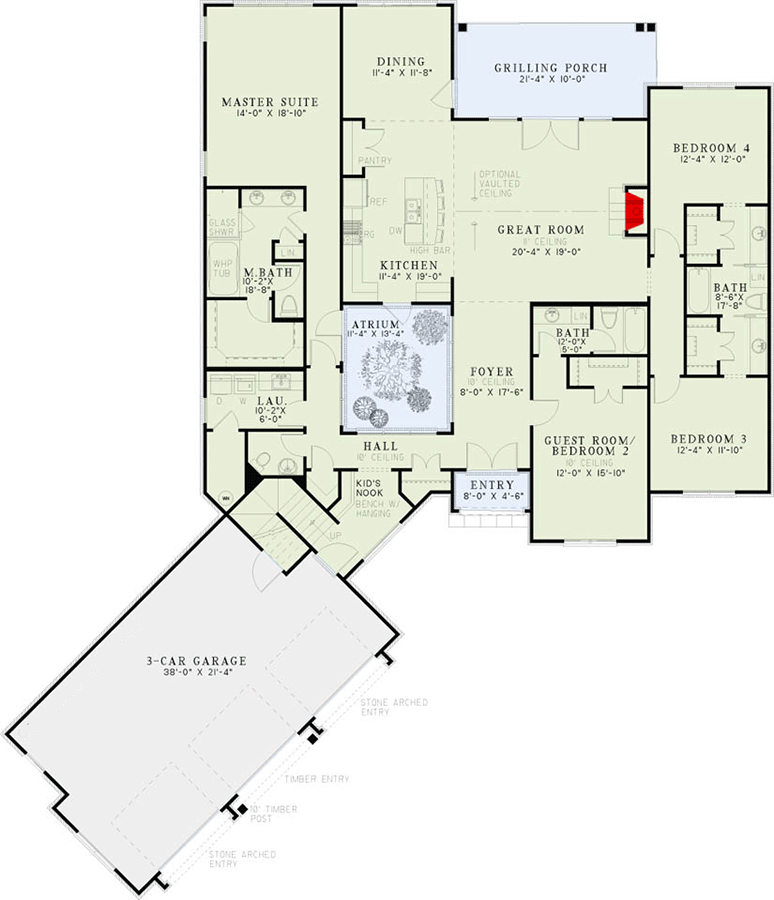

Main Level

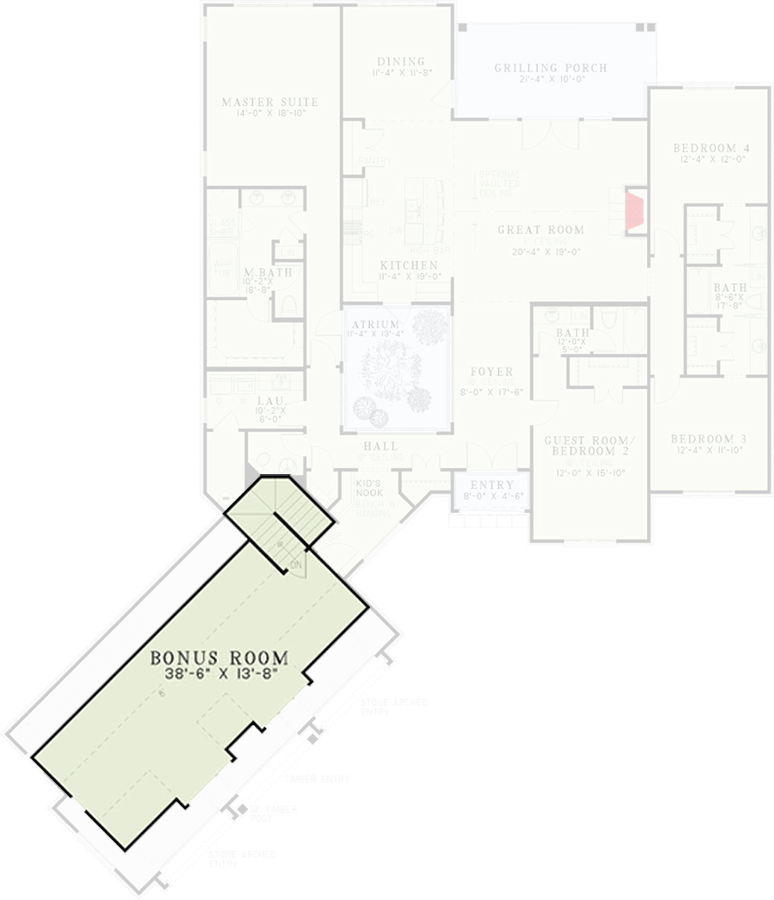

Bonus

Plan Details

This 4-bed house plan gives you 2716 square feet of heated living and has a 3-car garage set at a 45 degree angle and an atrium in the middle of the house.
Entering into the foyer, you are greeted by a wall of windows of the atrium and are welcomed into the great room where you’ll find a fireplace and French doors opening to the grilling porch.
The great room is open to the kitchen which features an island bar housing the dishwasher and sink. The kitchen also has a pantry and a door to the atrium.
The large master suite features a whirlpool tub, corner glass shower and a large walk-in closet. Bedrooms 3 and 4 both have walk-in closets and share a full bath. Bedroom 2/guest room also has a walk-in closet and full bathroom.
A huge bonus room over the garage offers expansion possibilities.

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
Roof plan (bird's eye view of roof showing pitches, ridges and valleys
An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
