4-Bed House Plan with Distinctive Brick Exterior

Plan 710153BTZ

This plan plants 3 trees

3,041
Heated s.f.
4
Beds
3.5
Baths
2
Stories
3
Cars

This classic 4-bed house plan has a distinctive brick exterior, setting the stage for the unique and expansive layout inside.
A three-car garage, vaulted family room and keeping room with a secondary fireplace create the majority of the first floor.
The expansive kitchen is the heart of the home, and includes an island ideal for entertaining, as well as an entrance onto the back deck.
The right wing of this floor is where the master suite can be found complete with a large walk-in closet and master bath.
The second floor comprises of a computer loft, three spacious bedrooms and two full baths.
Related Plans: Get alternate exteriors with house plans 710152BTZ and 710154BTZ

The plans include the following:

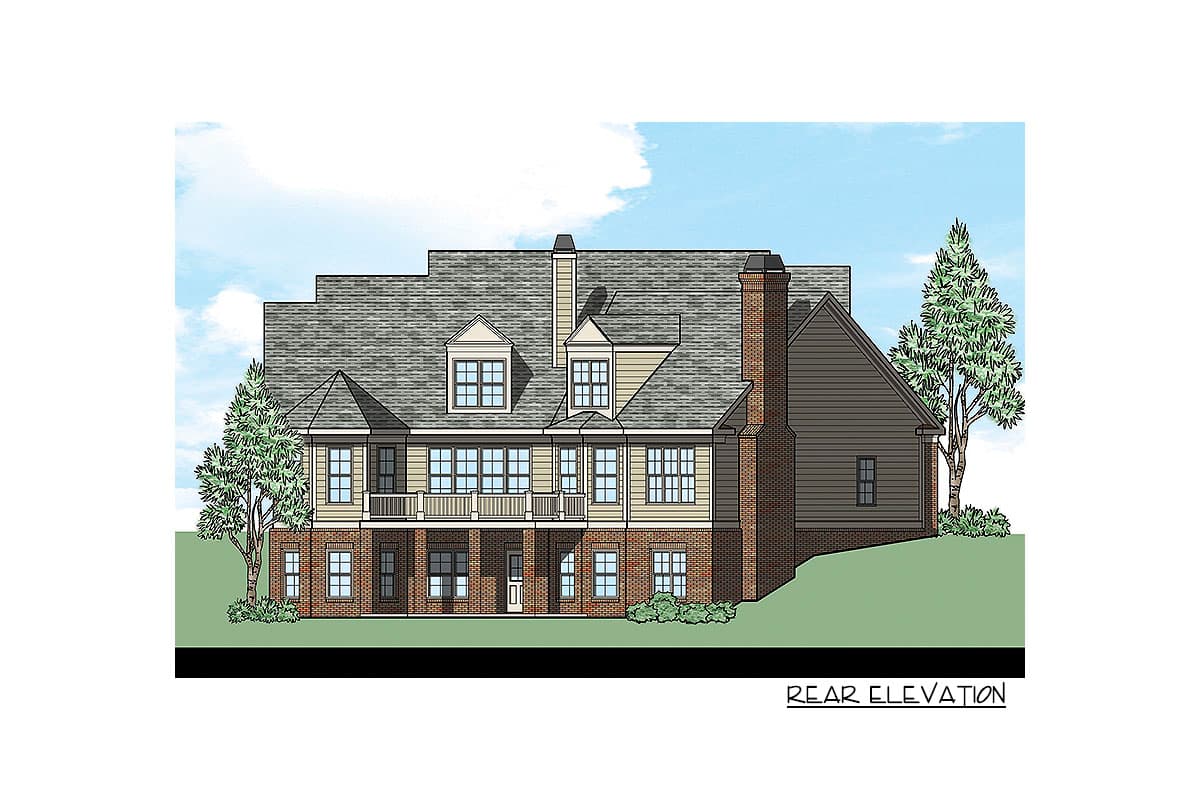

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.
Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

Architectural or Engineering Stamp

Site Plan

Mechanical Drawings (location of heating and air equipment and duct work)

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)

Energy calculations

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

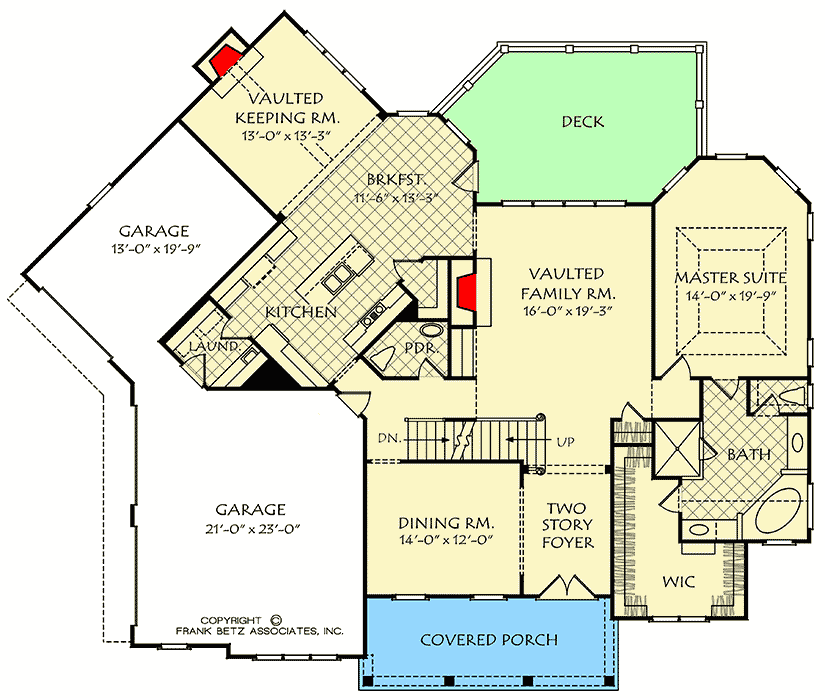

4-Bed House Plan with Distinctive Brick Exterior - 710153BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

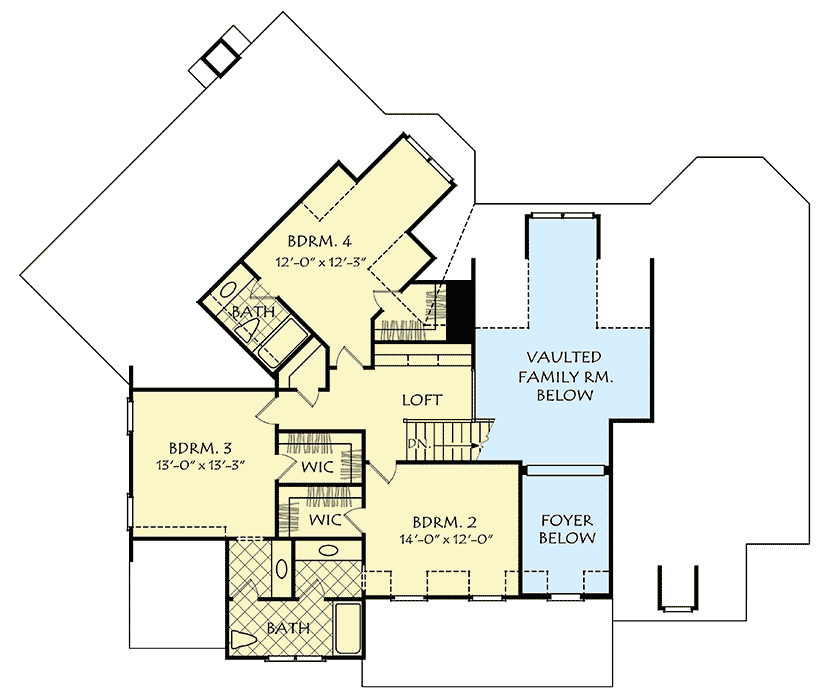

4-Bed House Plan with Distinctive Brick Exterior - 710153BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 3,041 sq. ft.
1st Floor: 2,021 sq. ft.
2nd Floor: 1,020 sq. ft.

Basement Unfinished: 1,957 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab, Crawl, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 72' 0"
Depth: 61' 6"
Max ridge height: 29' 6"

Garage

Type: Attached
Area: 788 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 10 on 12

Framing Type: Stick

Architectural Style

Special features
