4-Bed House Plan with Dynamic Facade

Plan 710073BTZ

  • 3,080

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

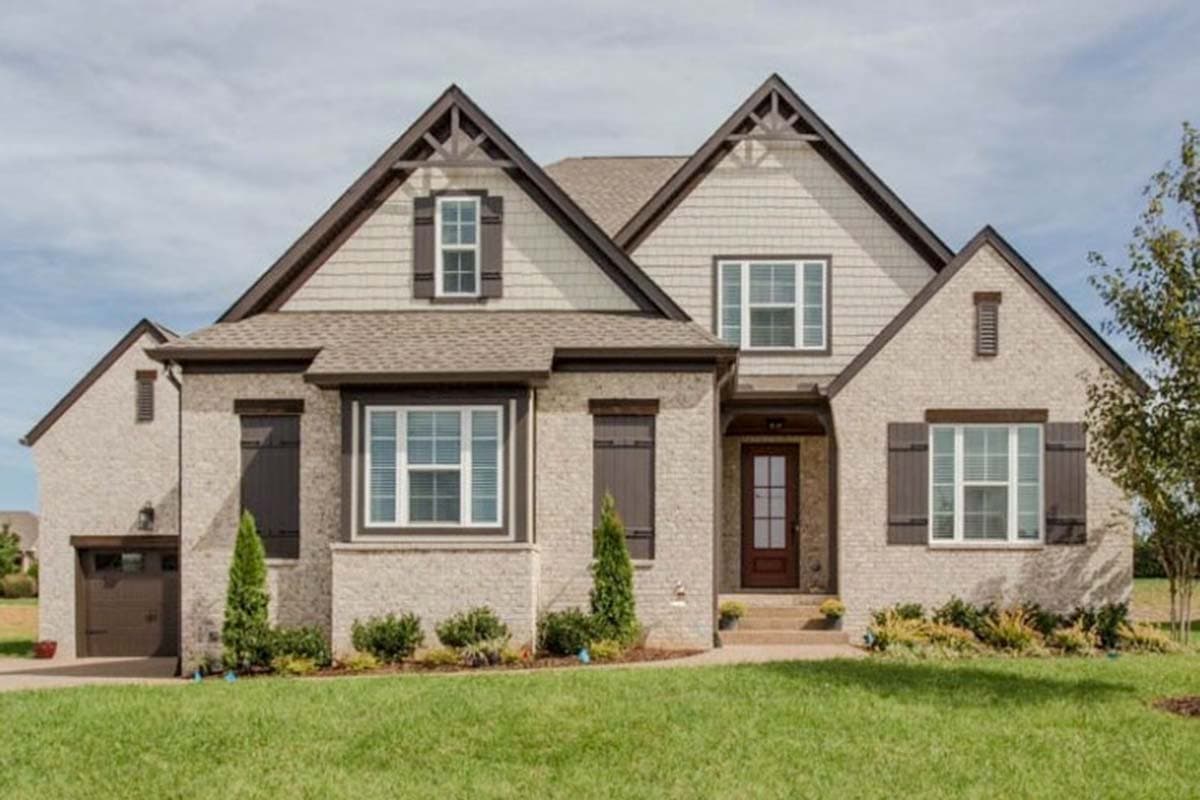

  • This 4-bed house plan has a dynamic facade with great roof lines. Painted or washed brick, shakes, and board-and-batten siding are the chosen exterior materials which allow for many diverse color palates. Timber lintels, gable brackets and slatted shutters complete the façade. The unique footprint is purposefully designed so that the home may be placed on different sites such as cul-de-sac or corner lots while maintaining the side entry garage.

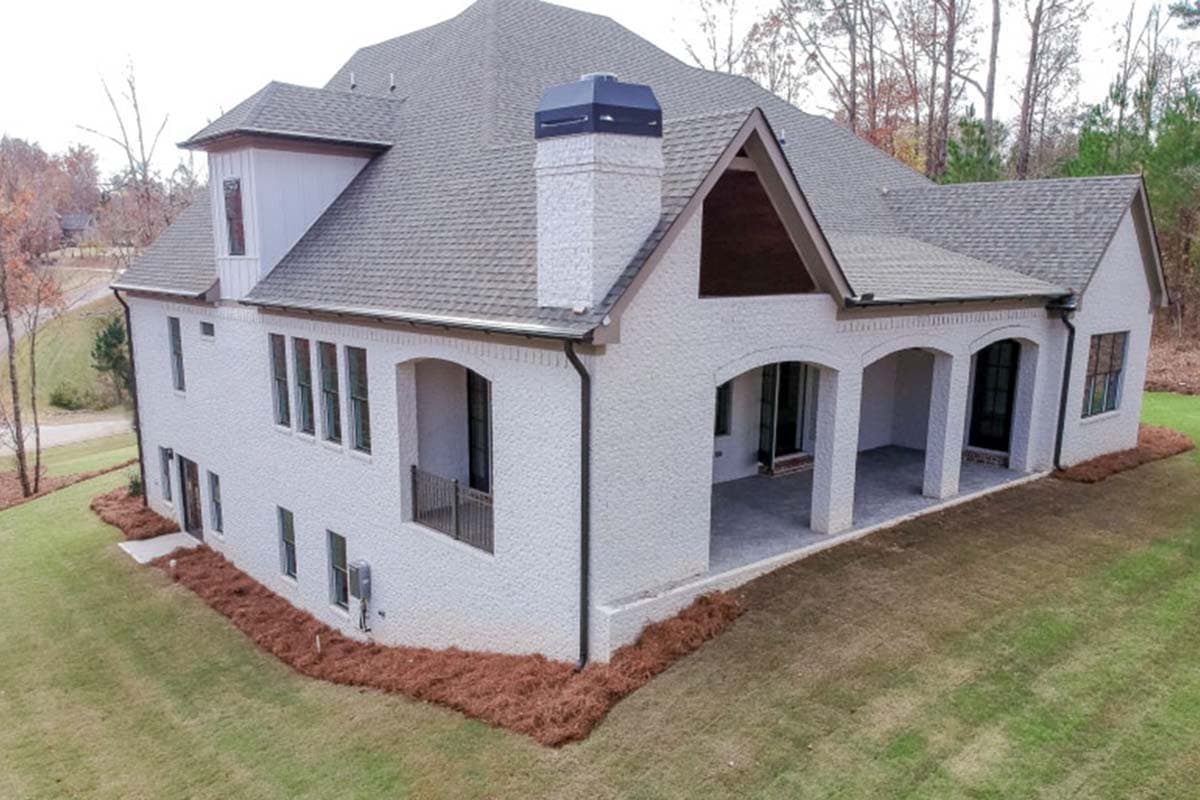

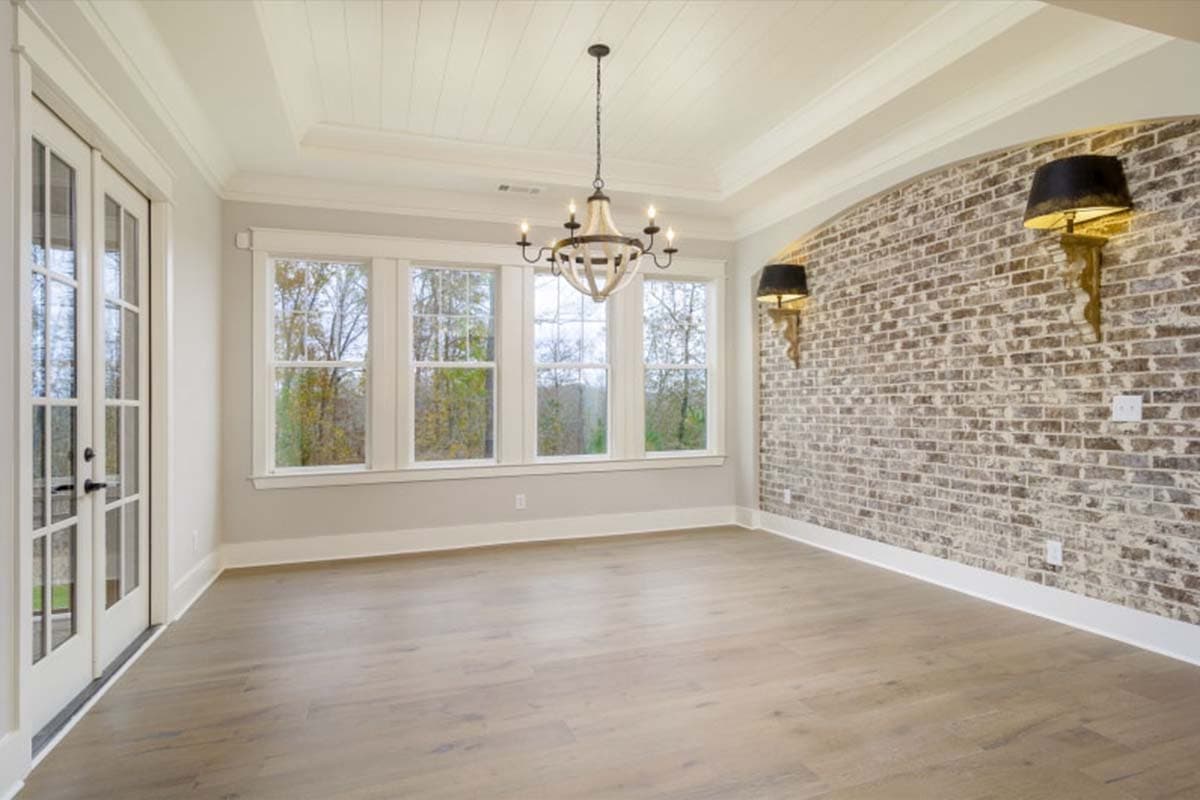

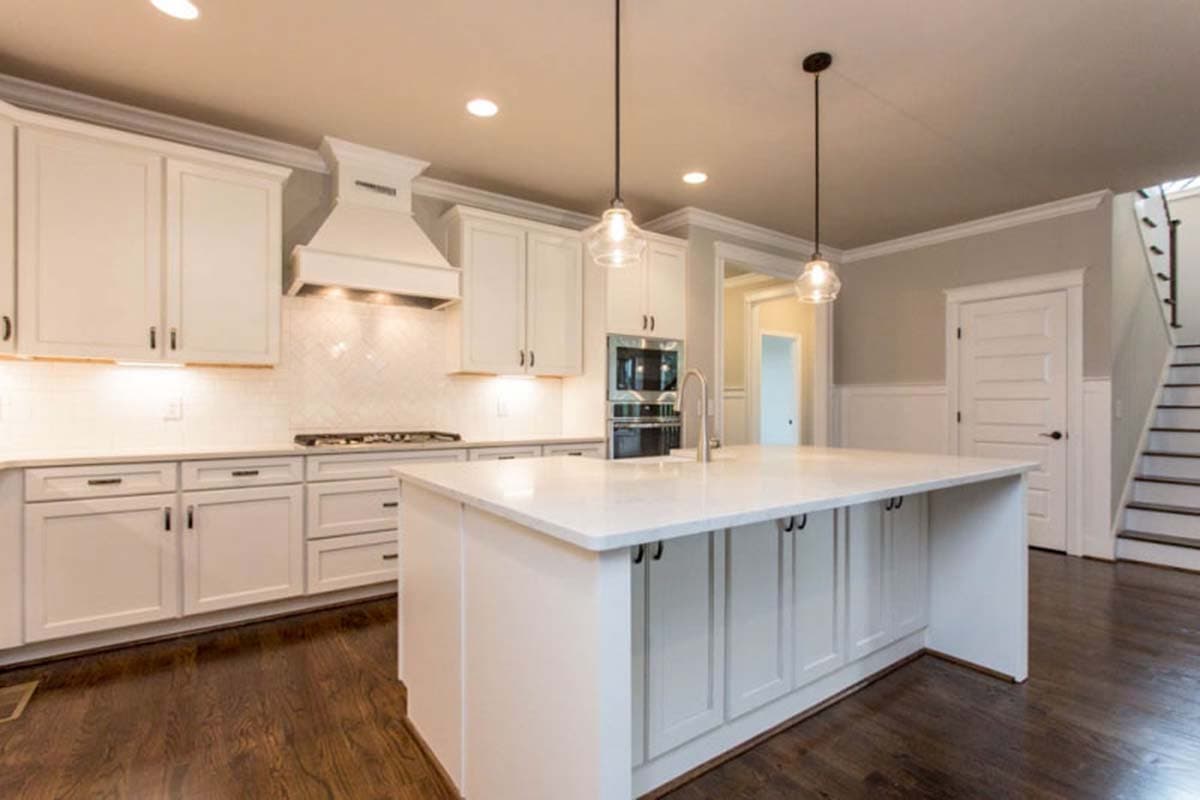

  • Inside, the grand island kitchen anchors the living areas opening on to a family room with a cozy fireplace and built-in cabinetry and a large dining room. A 3-season screened porch as well as a covered porch add outdoor living spaces.

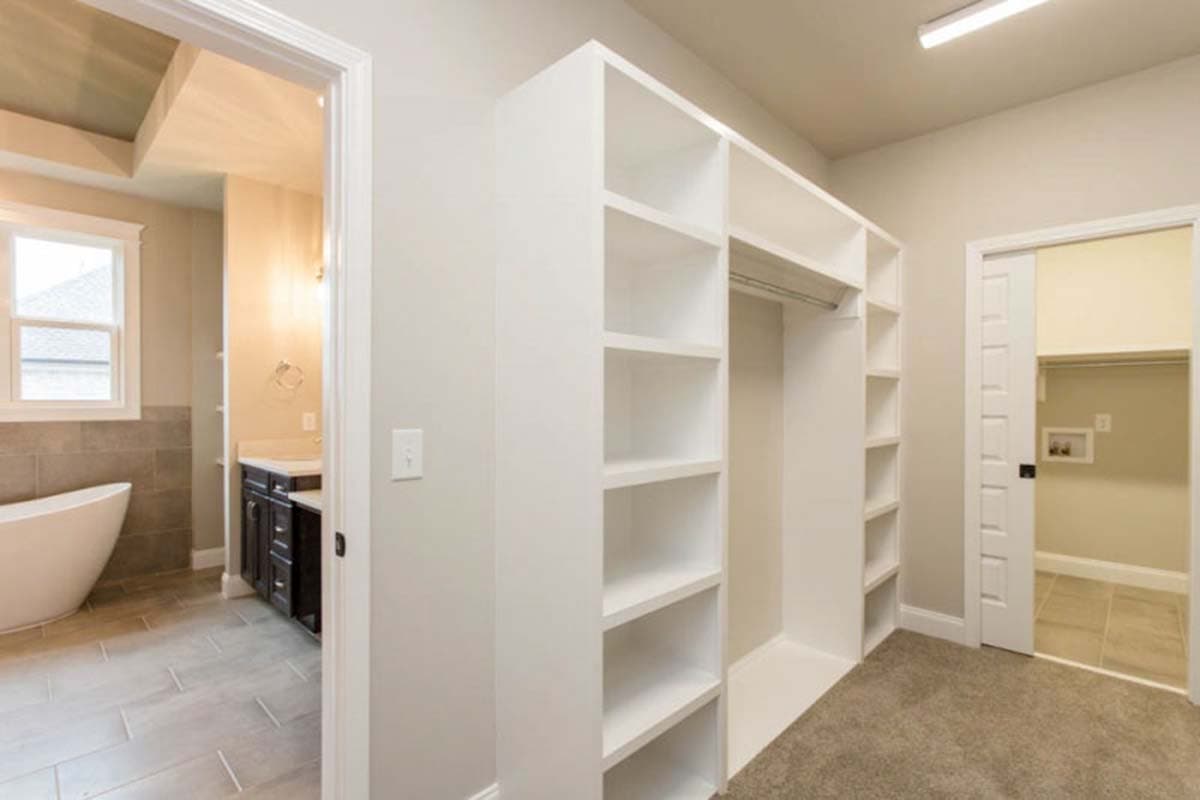

  • The master suite is located to give you ultimate privacy and includes a spa bath and large walk-in closet. A guest suite with a private bath rounds out the lower level. This flexible space could double as an office for the telecommuter.
  • The upper level holds two additional bedroom suites and a multi-purpose bonus space.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

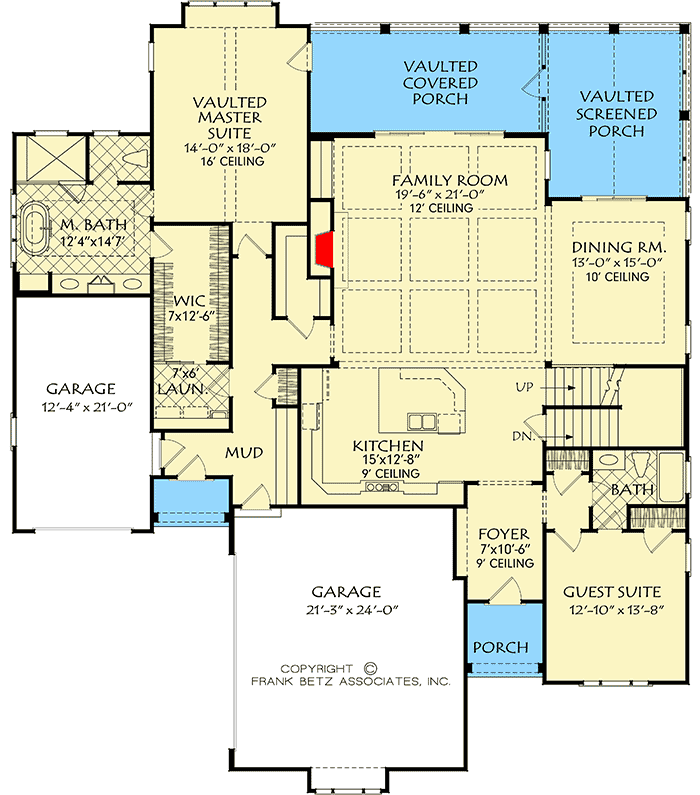

4-Bed House Plan with Dynamic Facade - 710073BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

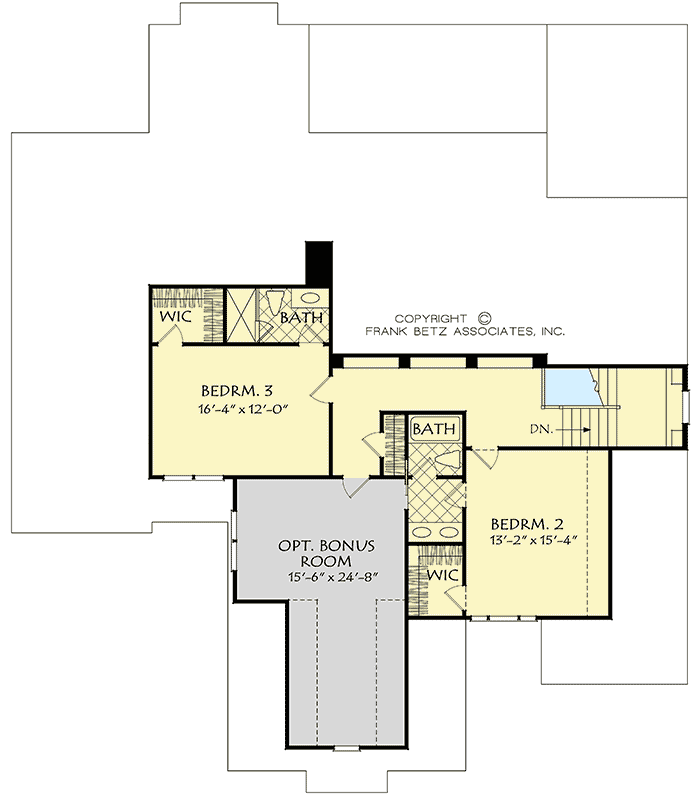

4-Bed House Plan with Dynamic Facade - 710073BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,080 sq. ft.
  • 1st Floor: 2,276 sq. ft.
  • 2nd Floor: 804 sq. ft.
  • Bonus: 335 sq. ft.
  • Basement Unfinished: 2,276 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl, Walkout
  • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 62' 6"
  • Depth: 73' 0"
  • Max ridge height: 31' 8"

Garage

  • Type: Attached
  • Area: 773 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

4-Bed House Plan with Dynamic Facade

  • 3,080

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,490
  • 8 Sets $1,580
  • PDF - Unlimited Build $1,730
  • CAD - Unlimited Build $3,300
  • View all purchase option online

About This Plan

  • This 4-bed house plan has a dynamic facade with great roof lines. Painted or washed brick, shakes, and board-and-batten siding are the chosen exterior materials which allow for many diverse color palates. Timber lintels, gable brackets and slatted shutters complete the façade. The unique footprint is purposefully designed so that the home may be placed on different sites such as cul-de-sac or corner lots while maintaining the side entry garage.
  • Inside, the grand island kitchen anchors the living areas opening on to a family room with a cozy fireplace and built-in cabinetry and a large dining room. A 3-season screened porch as well as a covered porch add outdoor living spaces.
  • The master suite is located to give you ultimate privacy and includes a spa bath and large walk-in closet. A guest suite with a private bath rounds out the lower level. This flexible space could double as an office for the telecommuter.
  • The upper level holds two additional bedroom suites and a multi-purpose bonus space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,080 sq. ft.
  • 1st Floor: 2,276 sq. ft.
  • 2nd Floor: 804 sq. ft.
  • Bonus: 335 sq. ft.
  • Basement Unfinished: 2,276 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl, Walkout
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 62' 6"
  • Depth: 73' 0"
  • Max ridge height: 31' 8"

Garage

  • Type: Attached
  • Area: 773 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
