Plan 36127TX 4-Bed House Plan with Elegant Motor Court and High Ceilings

4,674 4 4.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed House Plan with Elegant Motor Court and High Ceilings

Plan 36127TX

  • 4,674

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 4

    Cars

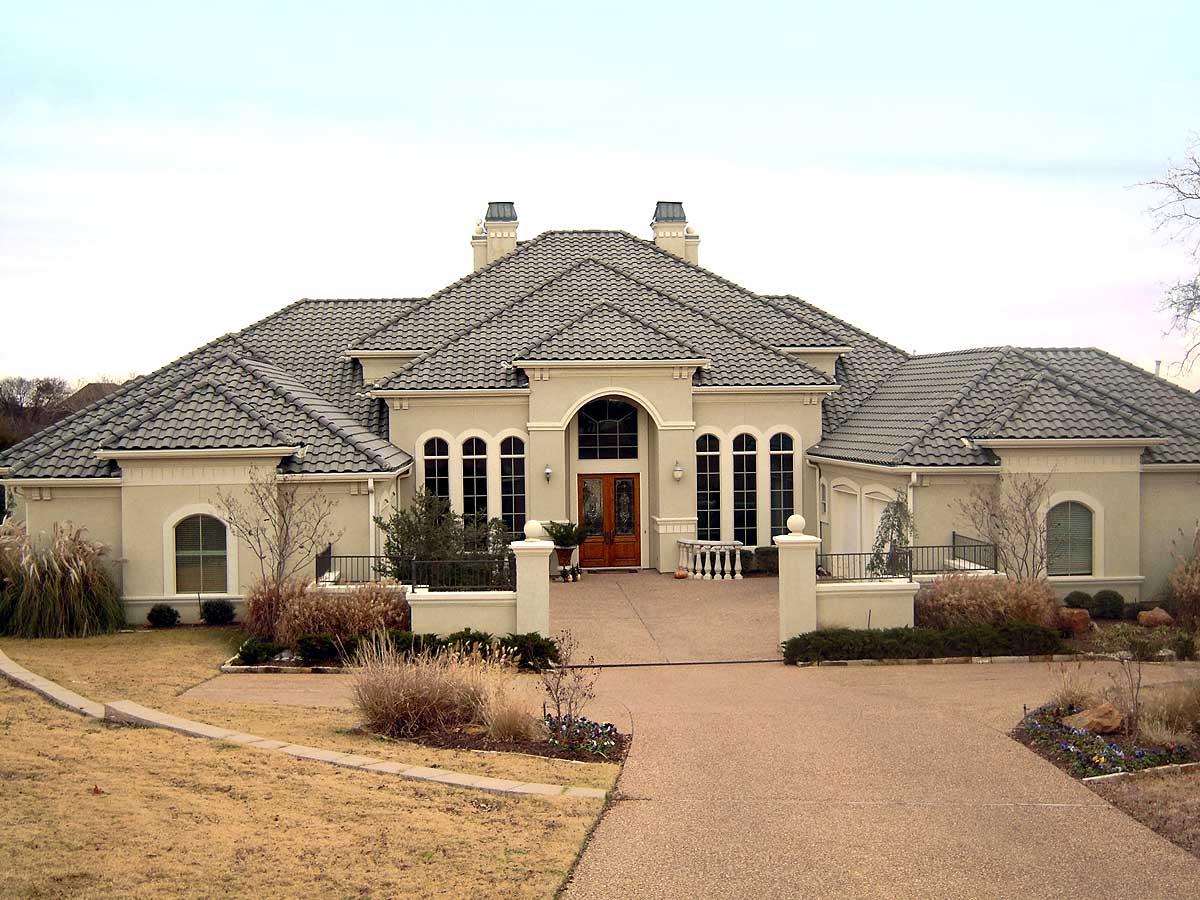

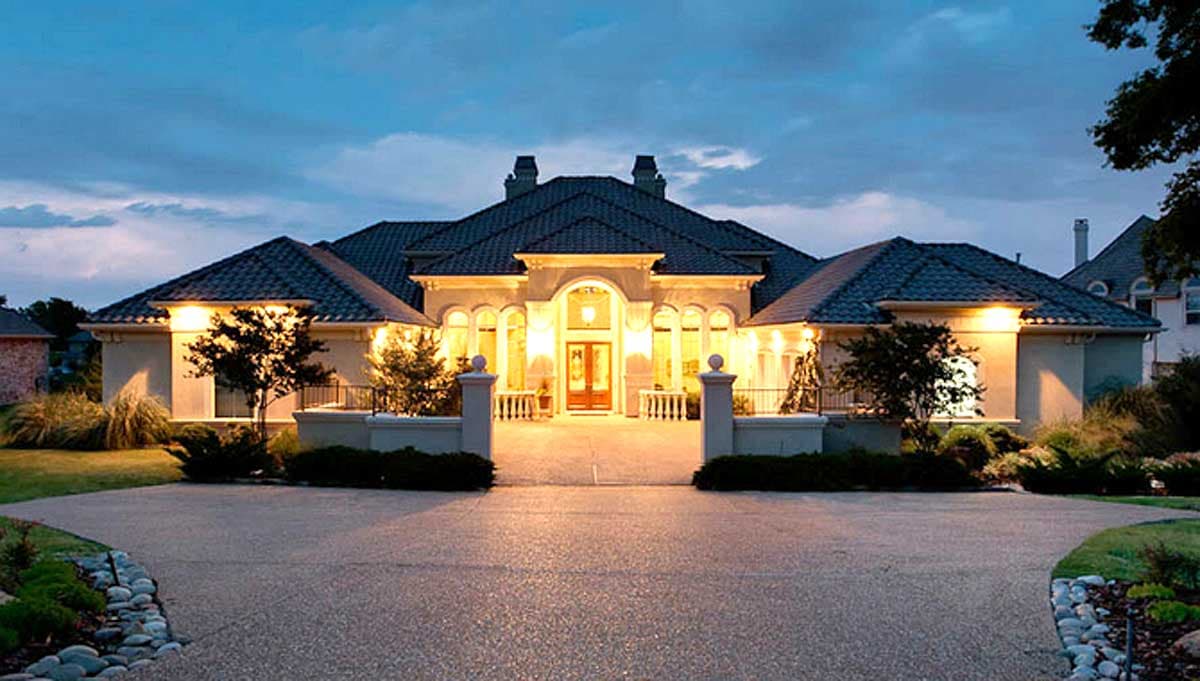

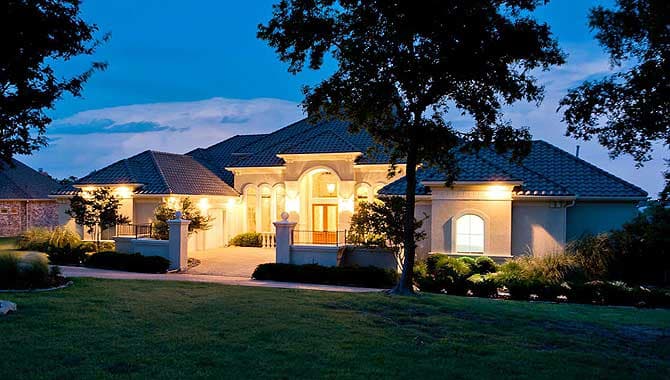

  • An elegant motor court sets the stage for this luxury house plan with high ceilings throughout.

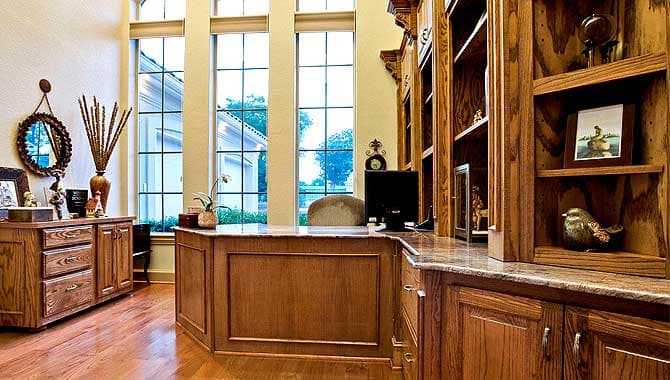

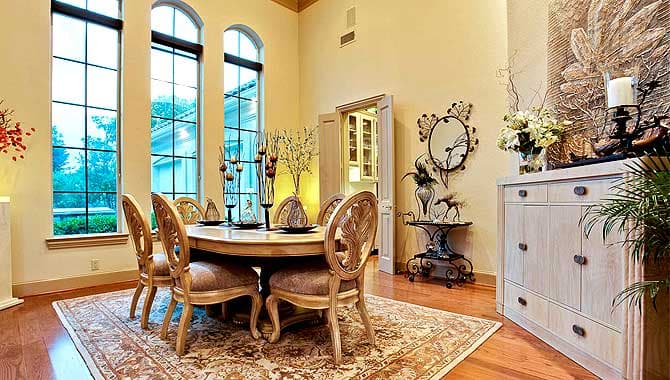

  • The foyer features a 20' ceiling and is flanked by the formal dining room and study, both with 17' ceilings sure to impress. Angled walls in both rooms adds to their allure.

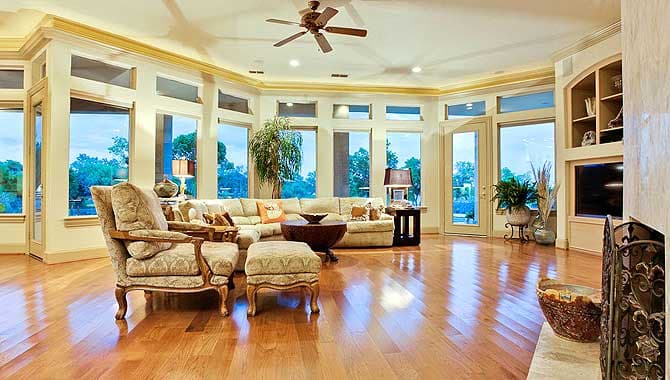

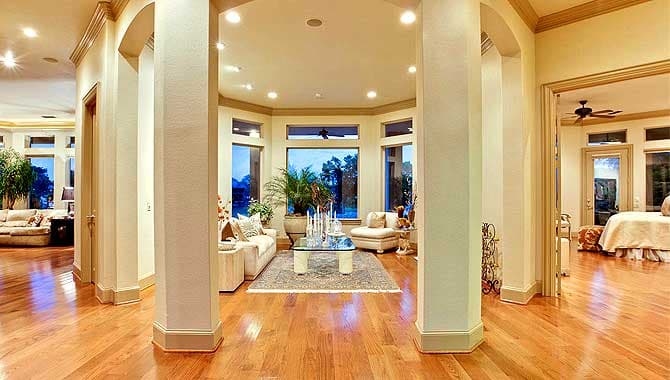

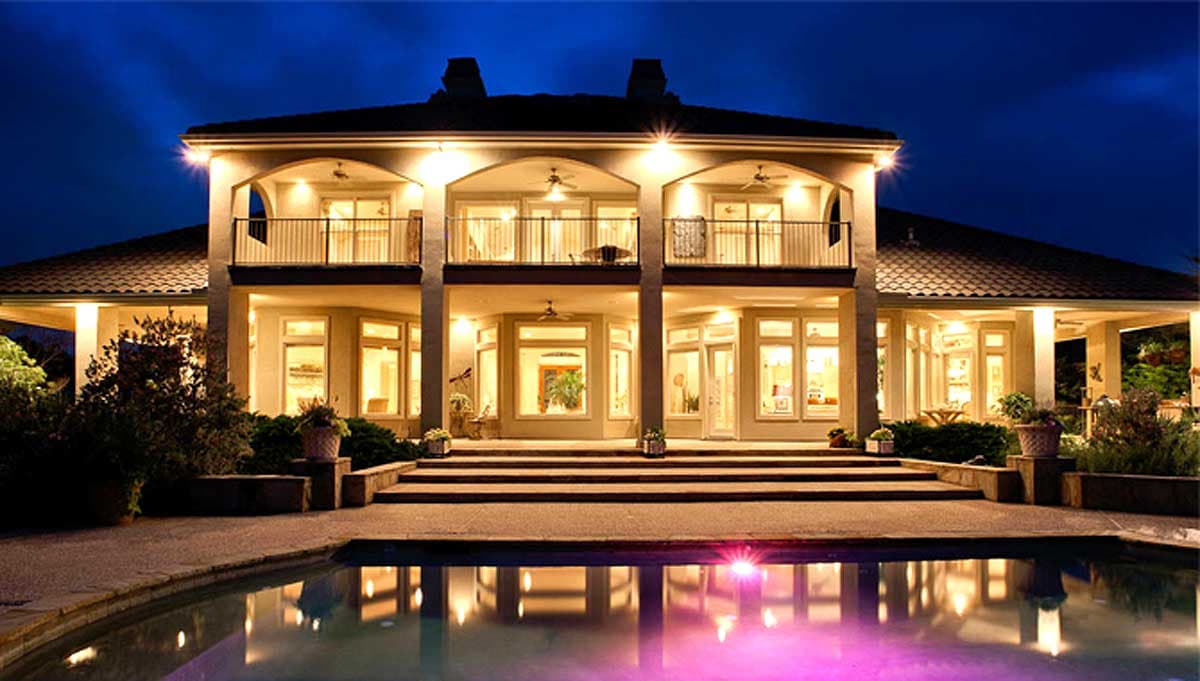

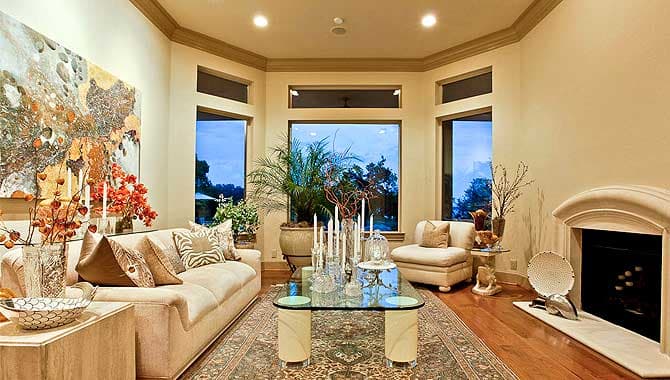

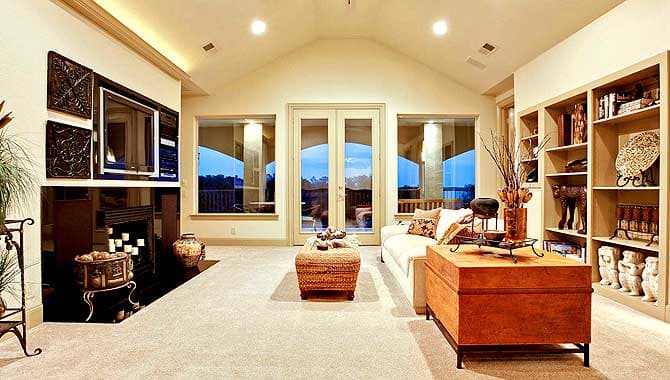

  • The living room features a fireplace and has views across the veranda. The room separates the master wing from the common areas adding to your privacy.

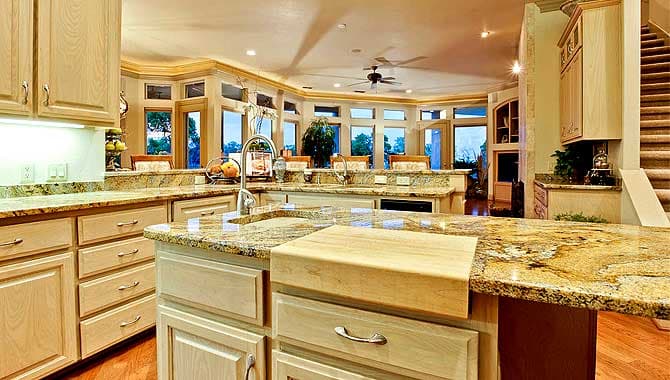

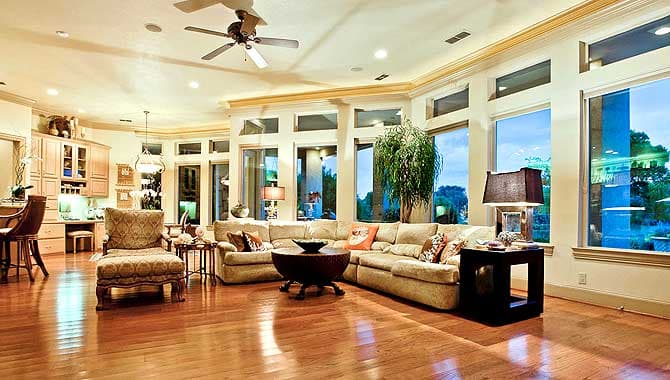

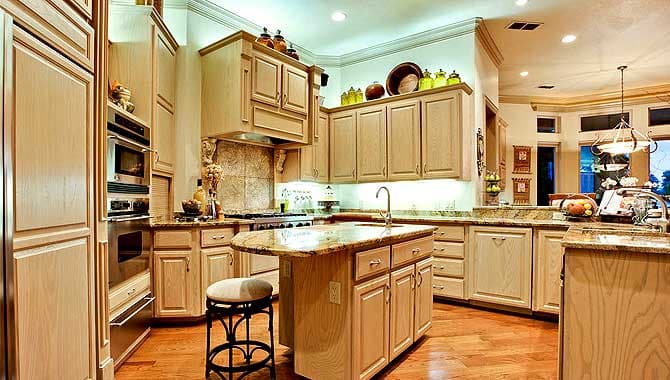

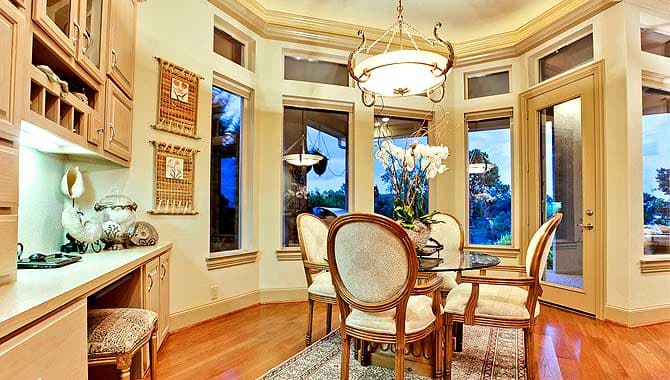

  • The family room is open to the Kitchen and breakfast room. The Kitchen features two pantrys located off the garage egntry. Note the media room access making your home theater setup a breeze in the family room.

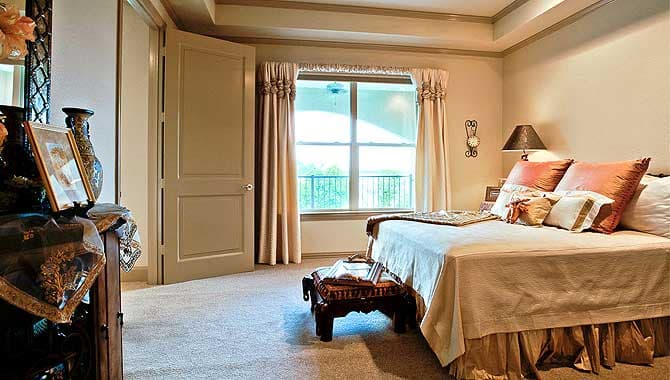

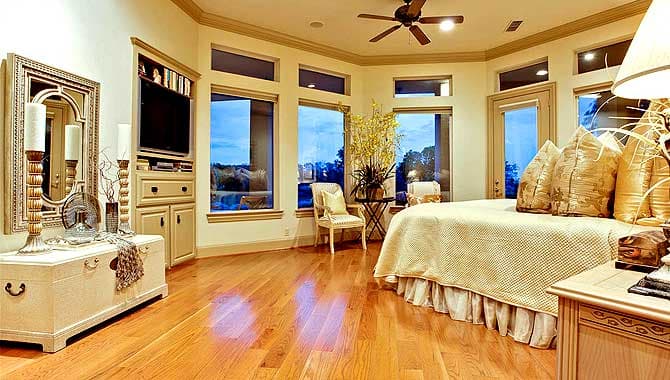

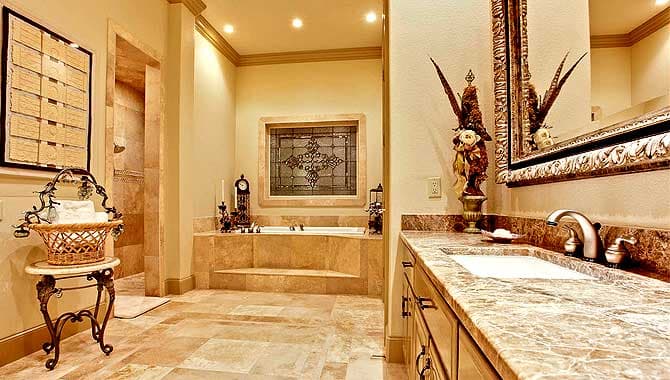

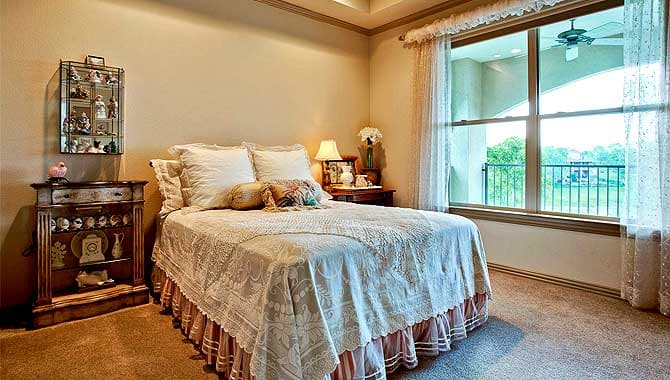

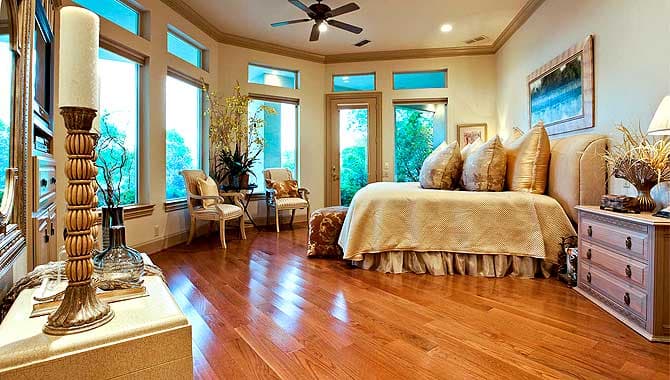

  • The master suite is expansive and has veranda access, large walk-in closets and an exercise room. On the other side of the main floor, Bedroom 2 can be used as an office or guest room.

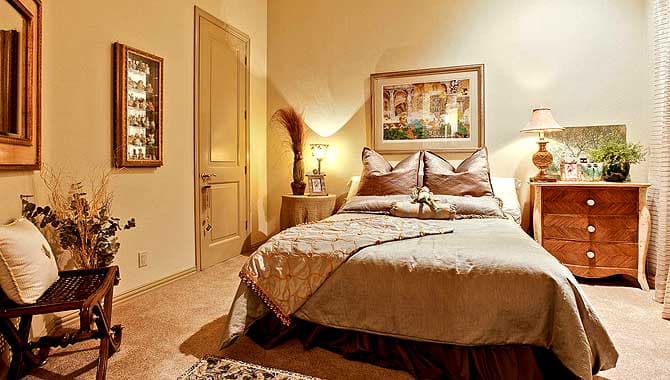

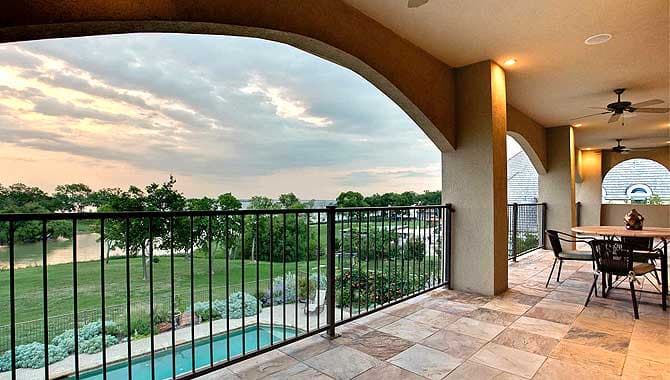

  • Upstairs you'll find a vaulted game room flanked by two bedroom suites as well as a covered balcony.
  • Related Plan: Get a larger version with house plan 36125TX (5,162 sq. ft.).

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

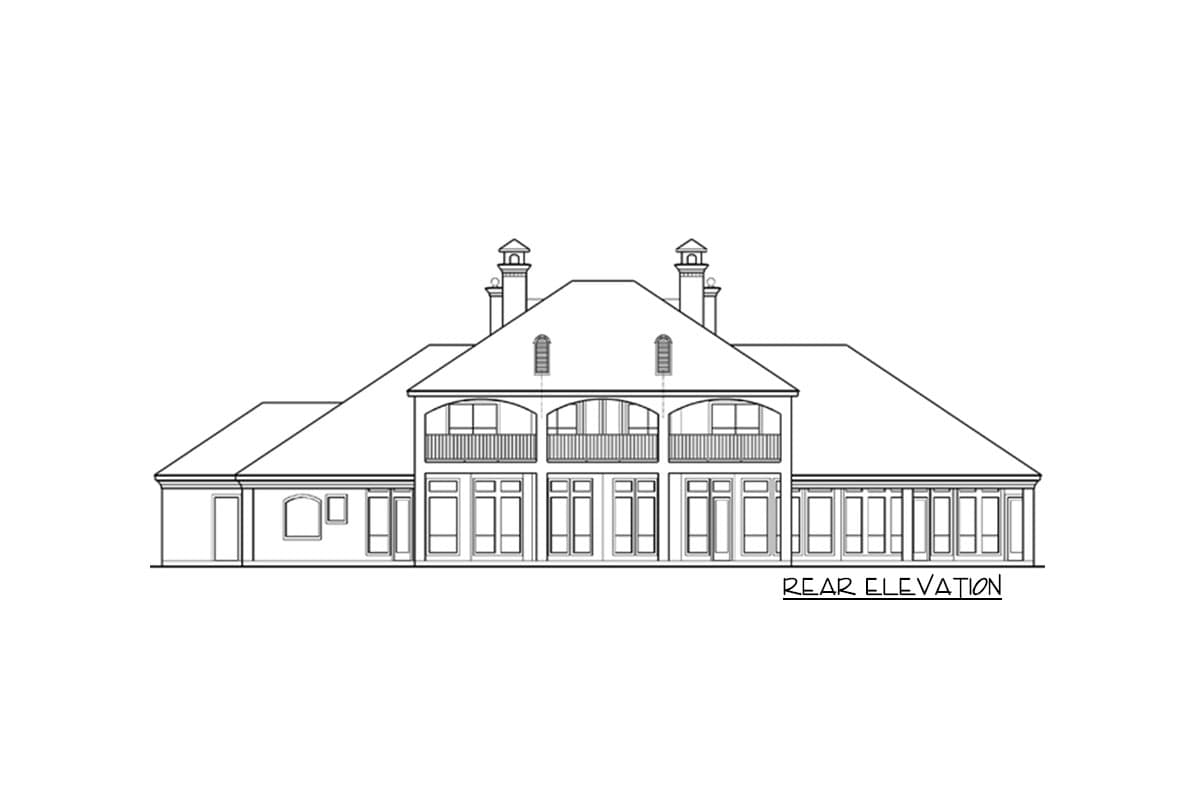

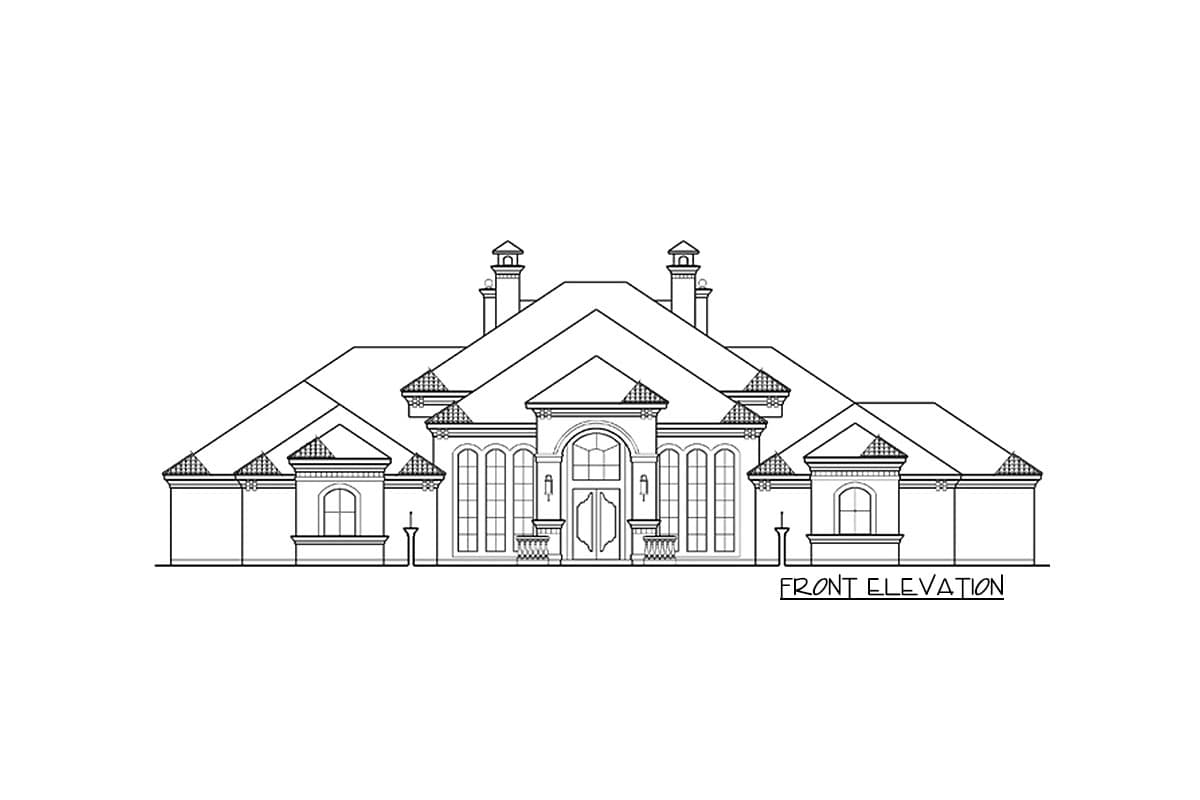

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

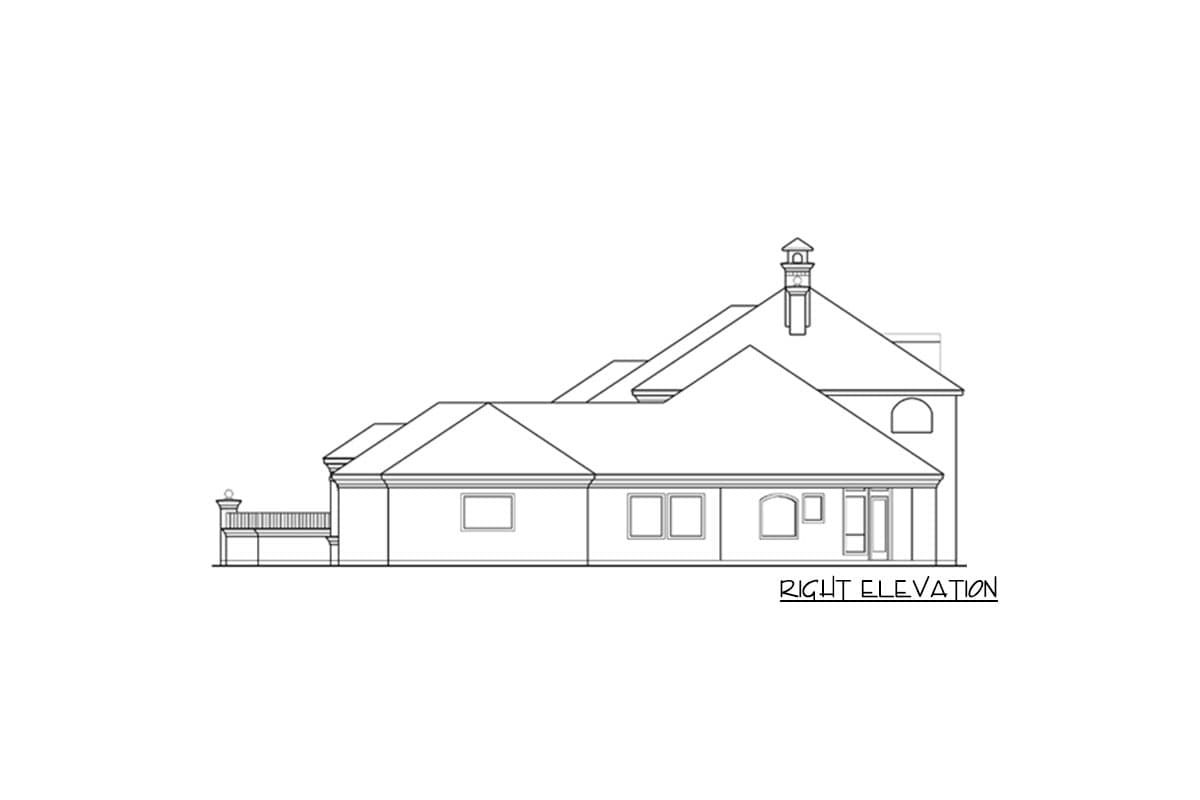

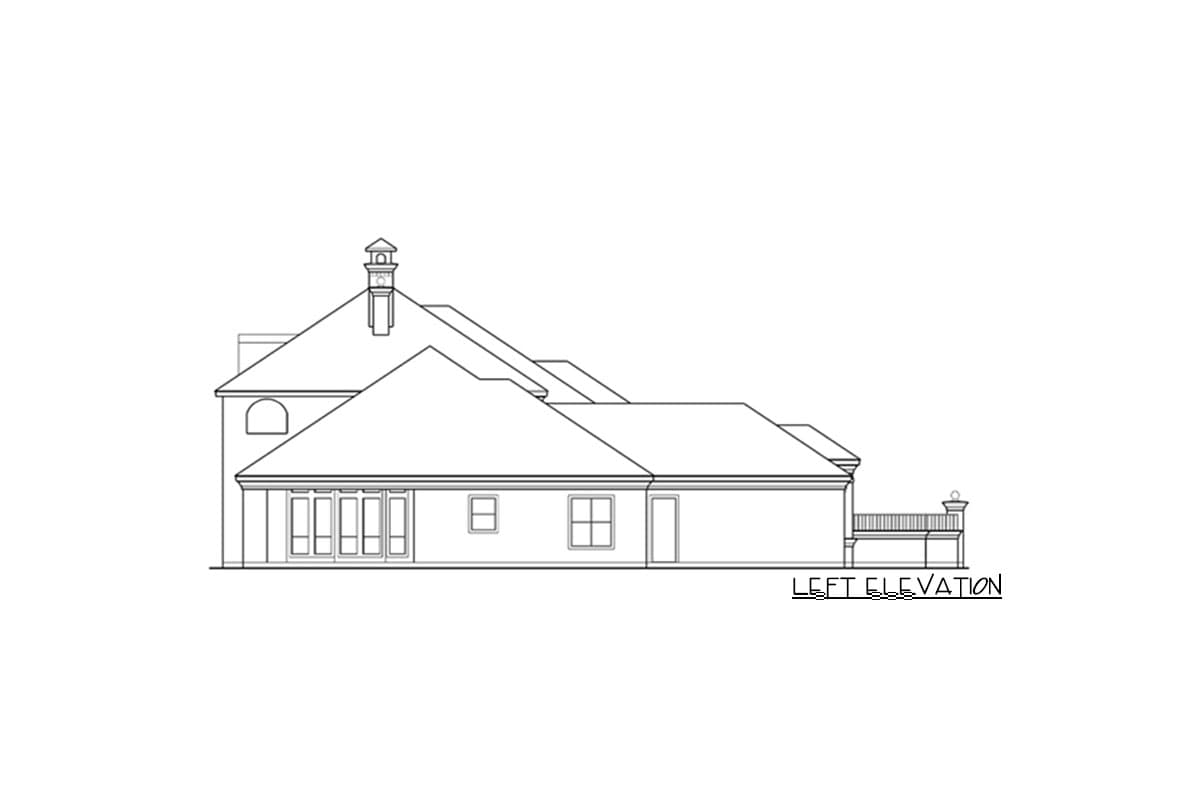

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

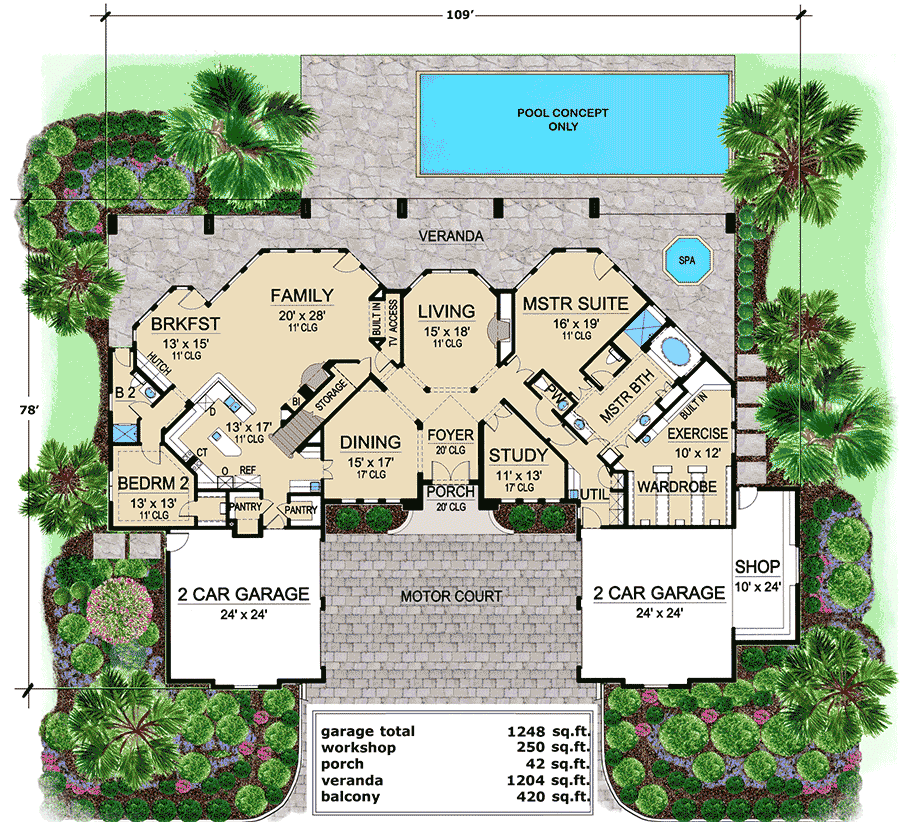

4-Bed House Plan with Elegant Motor Court and High Ceilings - 36127TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

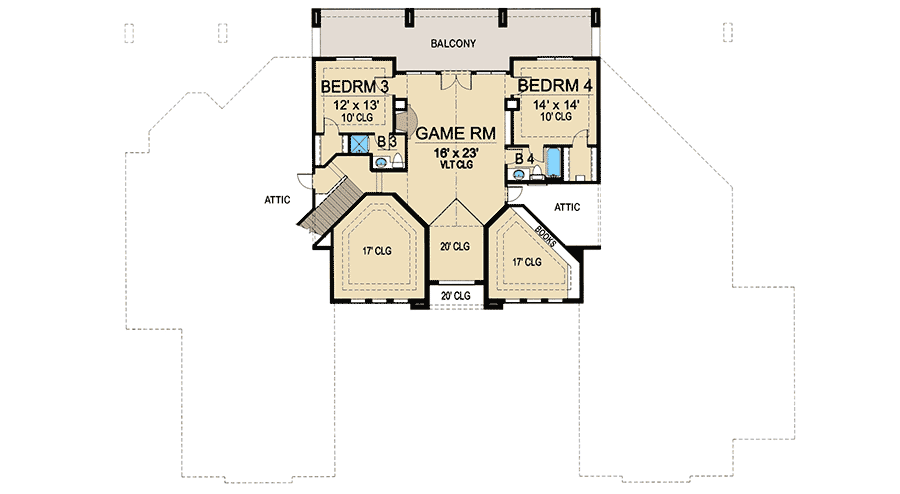

4-Bed House Plan with Elegant Motor Court and High Ceilings - 36127TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,674 sq. ft.
  • 1st Floor: 3,682 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • Lanai: 1,204 sq. ft.
  • Balcony / Veranda: 420 sq. ft.
  • Porch, Front: 42 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 109' 0"
  • Depth: 78' 0"
  • Max ridge height: 36' 0"

Garage

  • Type: Attached
  • Area: 1248 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"

Architectural Style

Special features

Plan Collections

4-Bed House Plan with Elegant Motor Court and High Ceilings

  • 4,674

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,650
  • 5 Sets $1,850
  • CAD + PDF - Single Build $2,475
  • View all purchase option online

About This Plan

  • An elegant motor court sets the stage for this luxury house plan with high ceilings throughout.
  • The foyer features a 20' ceiling and is flanked by the formal dining room and study, both with 17' ceilings sure to impress. Angled walls in both rooms adds to their allure.
  • The living room features a fireplace and has views across the veranda. The room separates the master wing from the common areas adding to your privacy.
  • The family room is open to the Kitchen and breakfast room. The Kitchen features two pantrys located off the garage egntry. Note the media room access making your home theater setup a breeze in the family room.
  • The master suite is expansive and has veranda access, large walk-in closets and an exercise room. On the other side of the main floor, Bedroom 2 can be used as an office or guest room.
  • Upstairs you'll find a vaulted game room flanked by two bedroom suites as well as a covered balcony.
  • Related Plan: Get a larger version with house plan 36125TX (5,162 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,674 sq. ft.
  • 1st Floor: 3,682 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • Lanai: 1,204 sq. ft.
  • Balcony / Veranda: 420 sq. ft.
  • Porch, Front: 42 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 109' 0"
  • Depth: 78' 0"
  • Max ridge height: 36' 0"

Garage

  • Type: Attached
  • Area: 1248 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"
Plan 36127TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36127TX
|
Need Help? 800-854-7852
|
Plan 36127TX
