Plan 710040BTZ

4-Bed House Plan with Large Upstairs Bonus Room

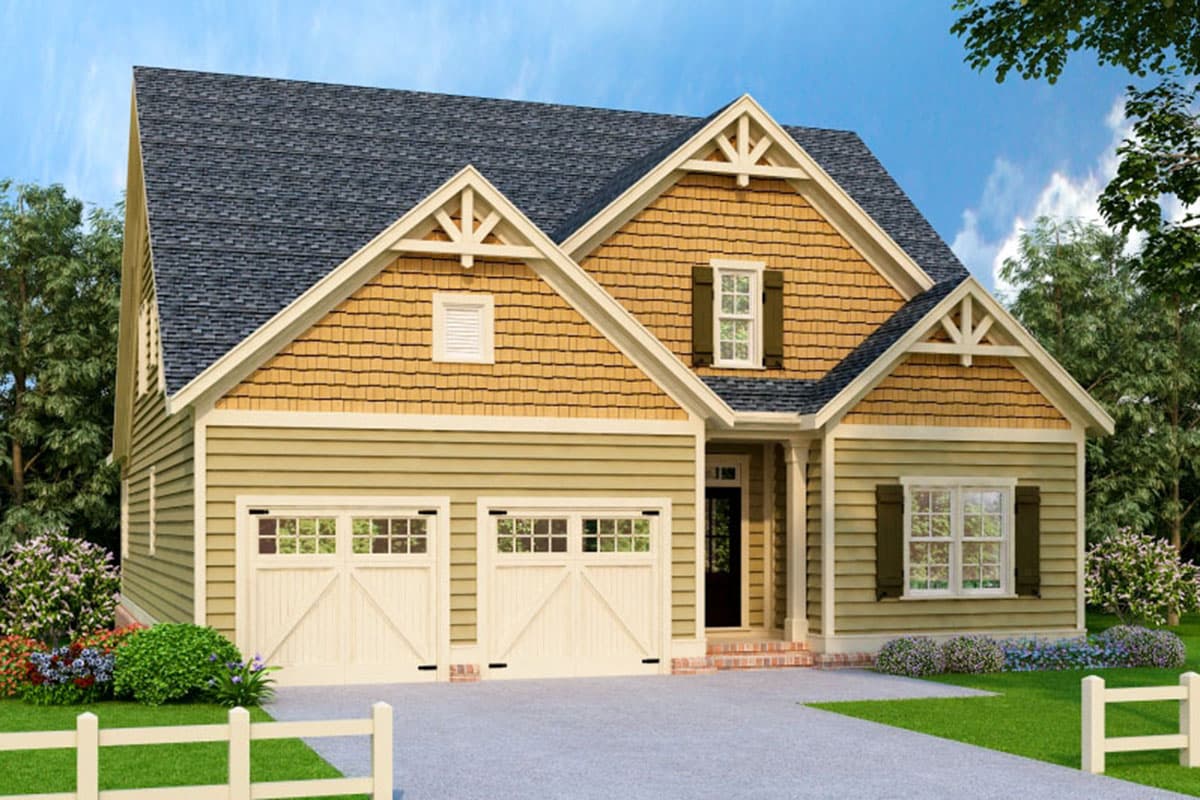

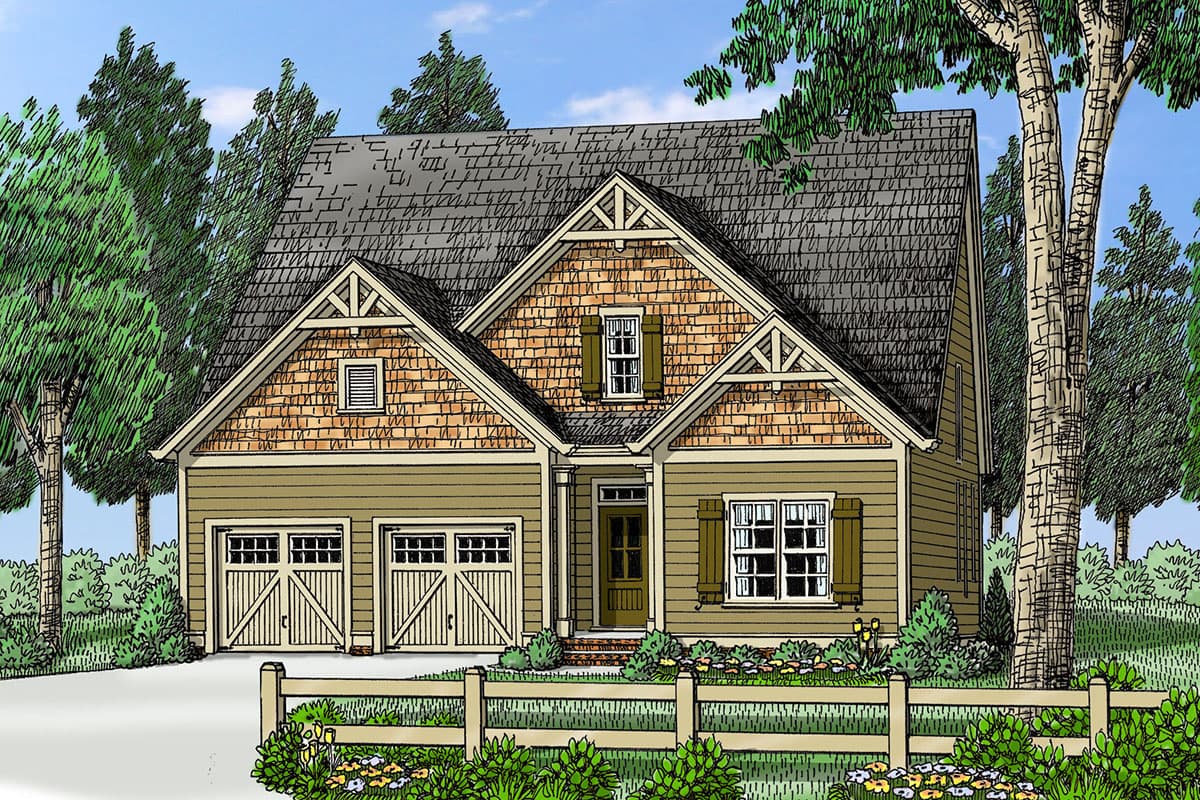

4-Bed House Plan with Large Upstairs Bonus Room

Plan 710040BTZ

  • 2,458

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 4-bed house plan is perfect for the urban in-fill lot or the wide open property. Inside, it offers them "open concept" living areas.
  • The kitchen is open into the family room and dining space with no interruption. Sliding doors in the dining room give you access to your covered patio.
  • The master's suite is on the main floor and is oriented toward the rear to take full advantage of any view. It is complemented with a spa bath and large walk-in-closet. Bedroom two is perfect for guests or space to work from home.
  • The upper floor continues to complete a modern buyer's wish list with a loft including a built-in-desk, a huge bonus room and two secondary bedrooms with large closets and a great compartmentalized bathroom.

The plans include the following:

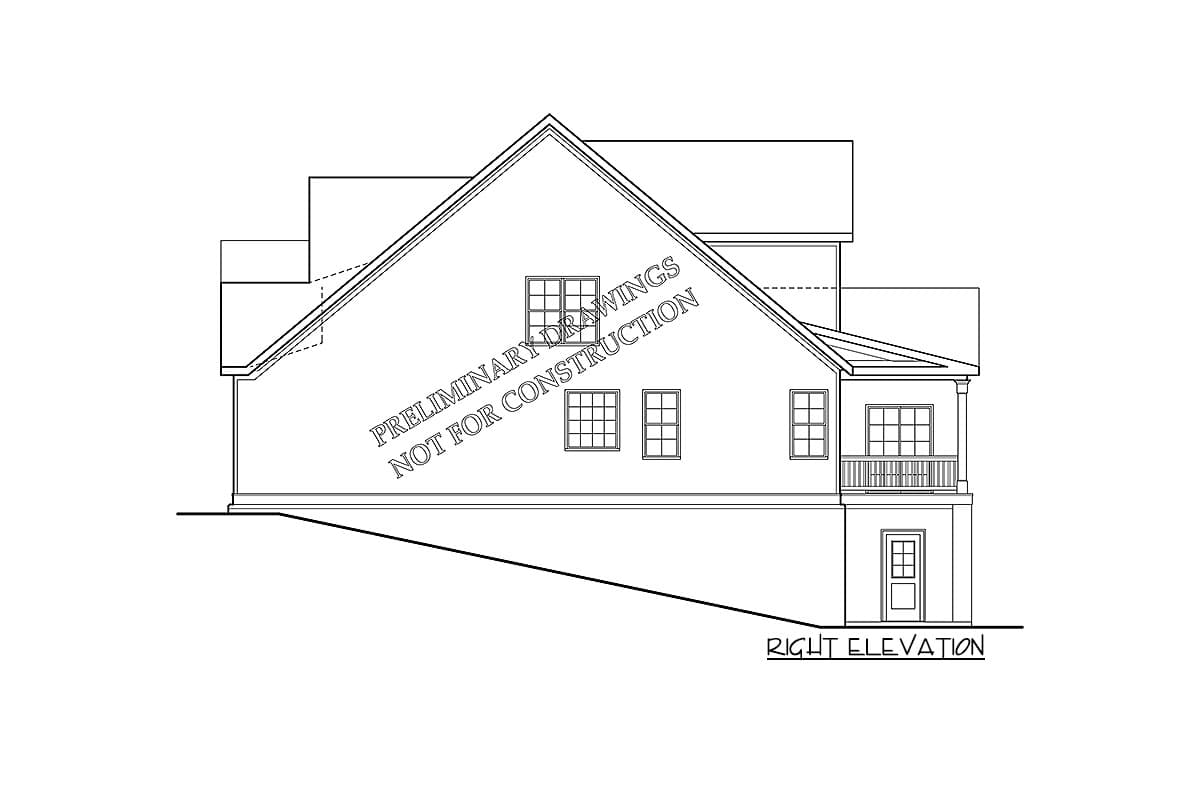

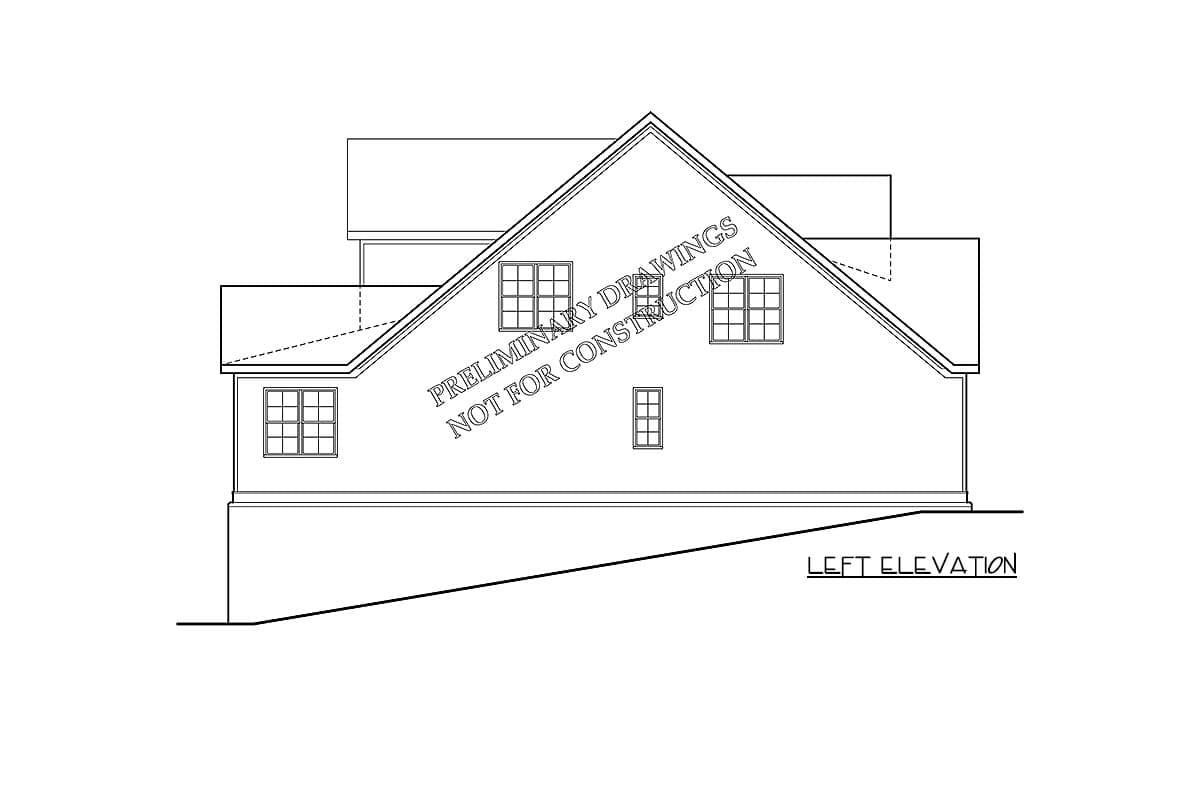

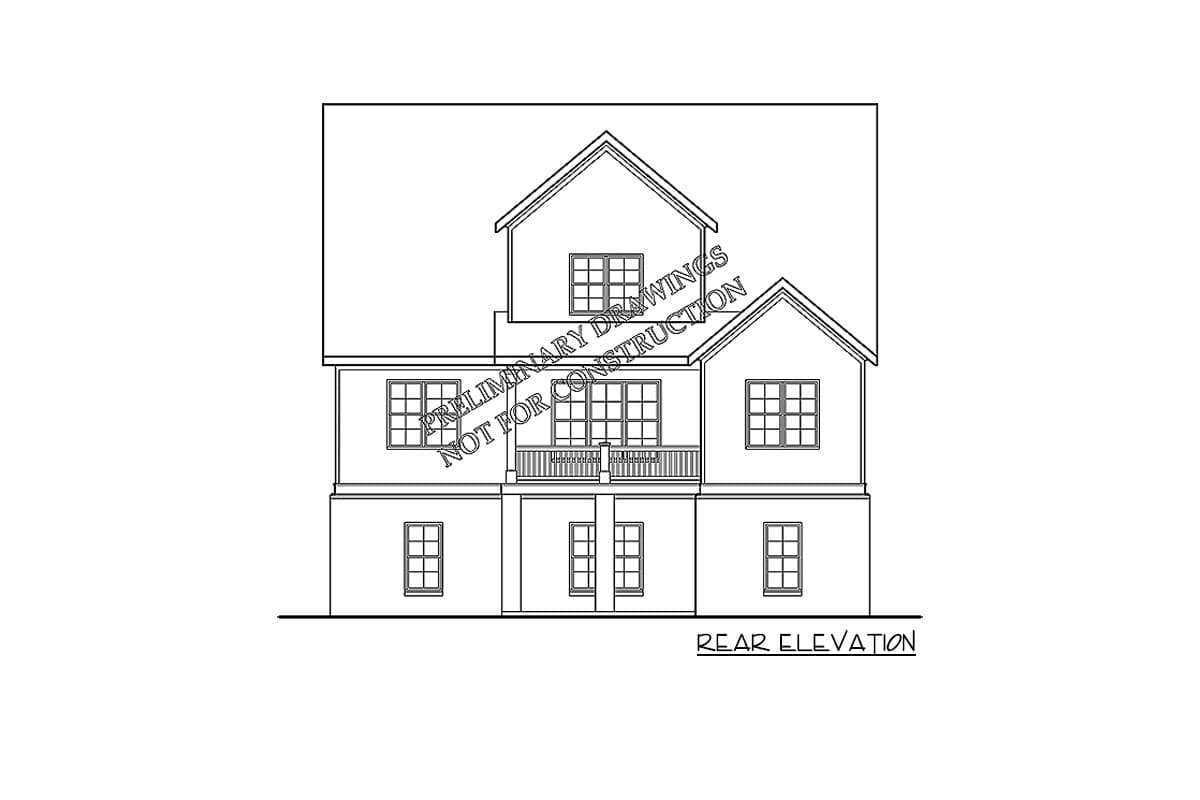

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Plan details

Architectural Style

Plan Collections



4-Bed House Plan with Large Upstairs Bonus Room

  • 2,458

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,280
  • 8 Sets $1,380
  • PDF - multi-use $1,490
  • Reproducible Set $1,565
  • CAD - multi-use $2,850
  • View all purchase option online

About This Plan

  • This 4-bed house plan is perfect for the urban in-fill lot or the wide open property. Inside, it offers them "open concept" living areas.
  • The kitchen is open into the family room and dining space with no interruption. Sliding doors in the dining room give you access to your covered patio.
  • The master's suite is on the main floor and is oriented toward the rear to take full advantage of any view. It is complemented with a spa bath and large walk-in-closet. Bedroom two is perfect for guests or space to work from home.
  • The upper floor continues to complete a modern buyer's wish list with a loft including a built-in-desk, a huge bonus room and two secondary bedrooms with large closets and a great compartmentalized bathroom.

Floor Plans

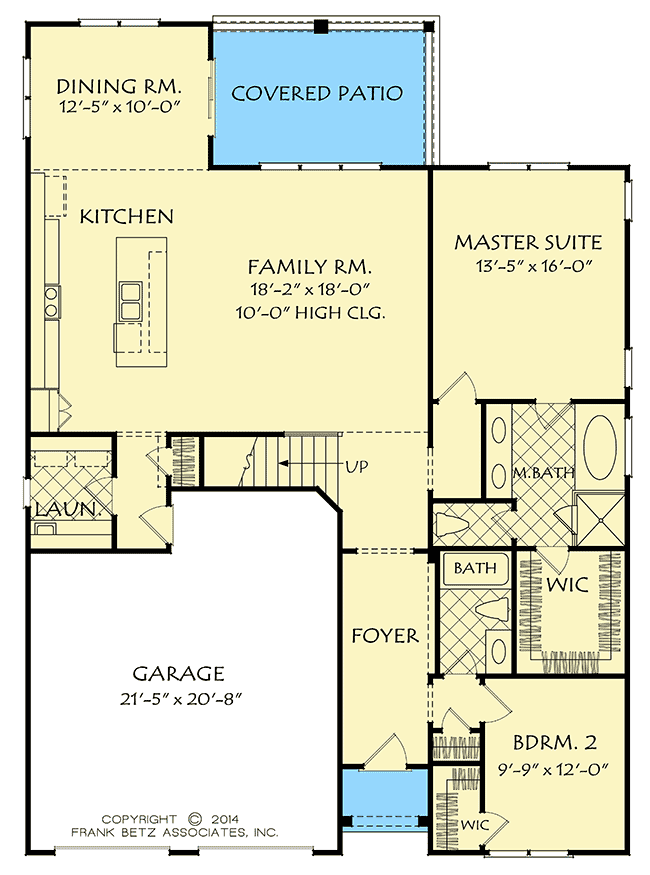

  • Main Level

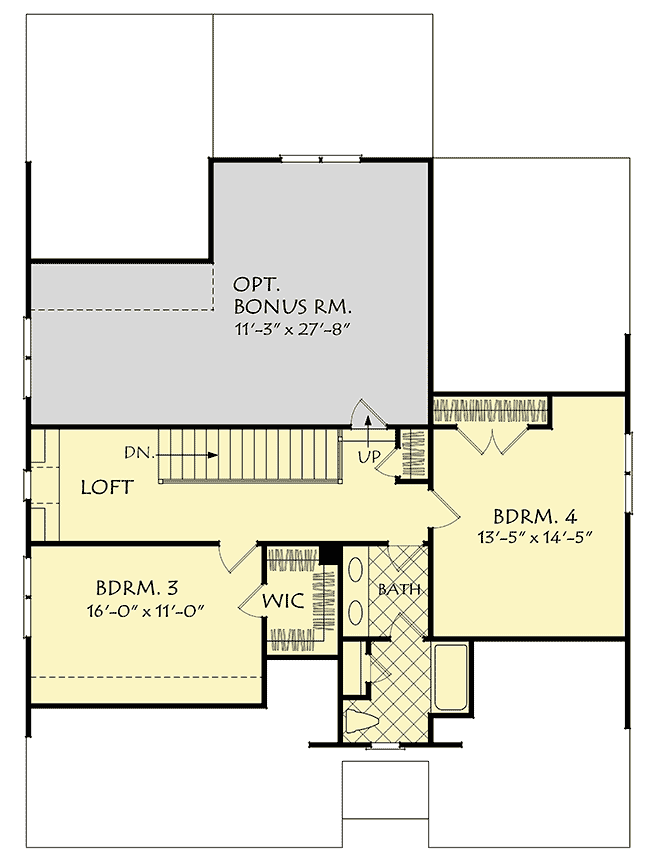

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,458 sq. ft.
  • 1st Floor: 1,603 sq. ft.
  • 2nd Floor: 855 sq. ft.
  • Bonus: 436 sq. ft.
  • Basement Unfinished: 1,603 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 42' 0"
  • Depth: 58' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 507 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
