4-Bed House Plan with Upstairs Teen Suite

Plan 710128BTZ

  • 3,254

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

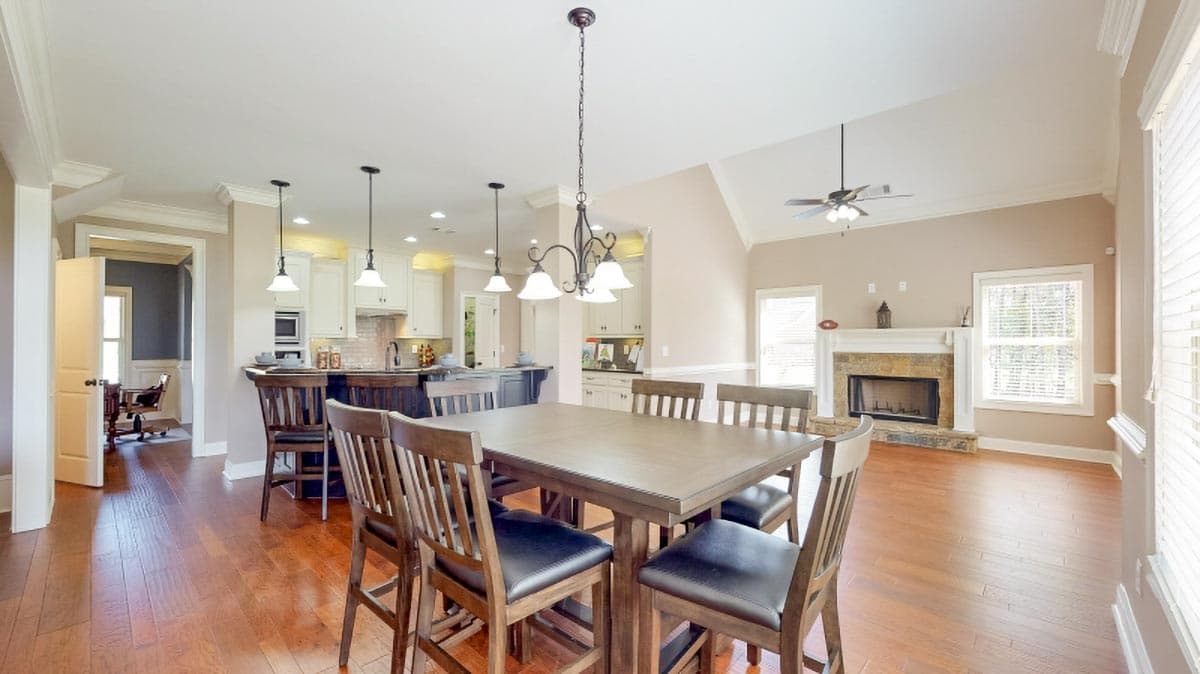

  • Fieldstone accents against board-and-batten siding generate a welcoming and warm appeal to this 4-bed house plan. Inside, transom and radius windows illuminate the main floor with plenty of natural light.

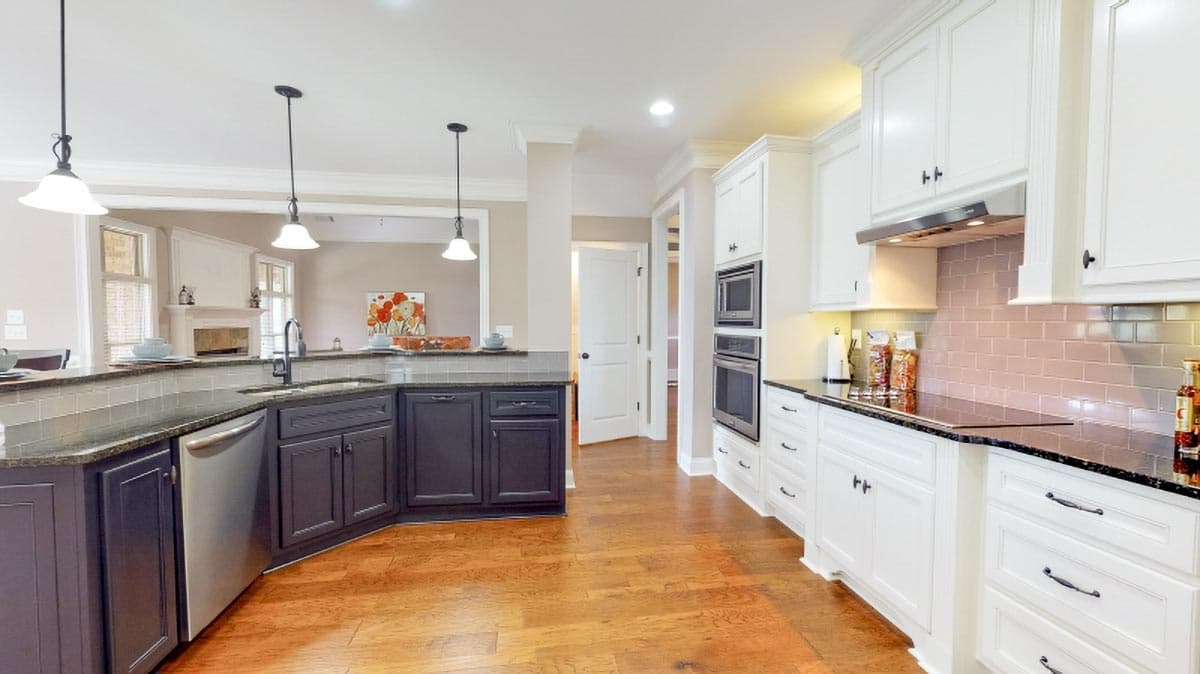

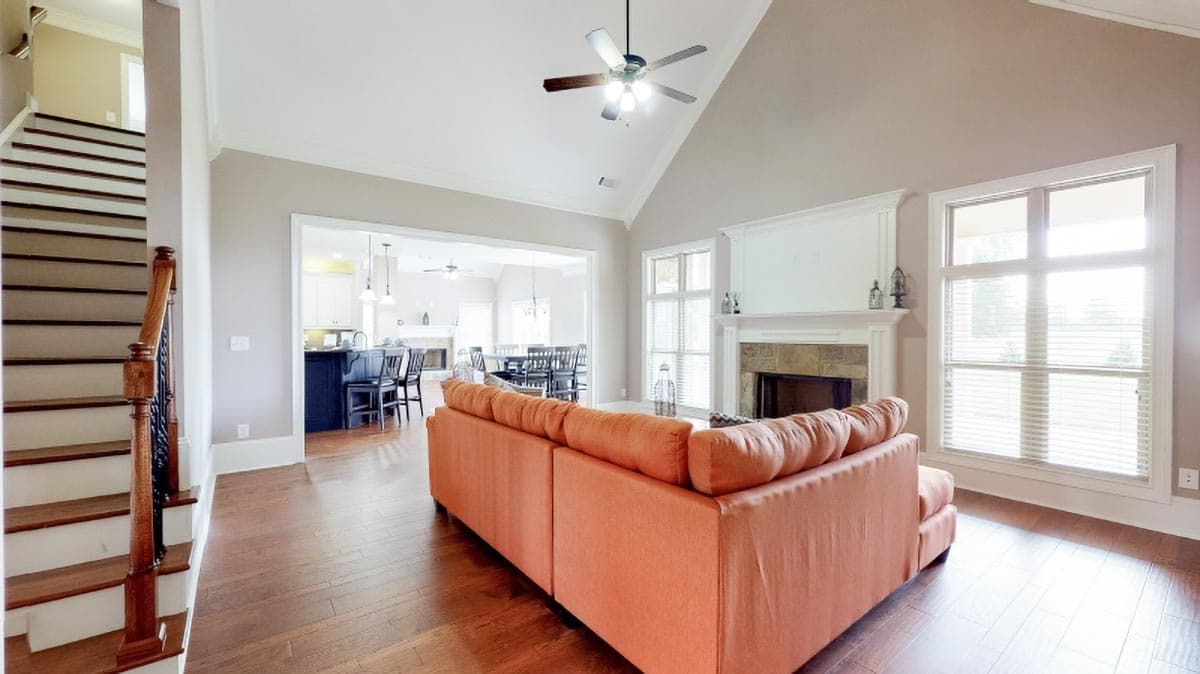

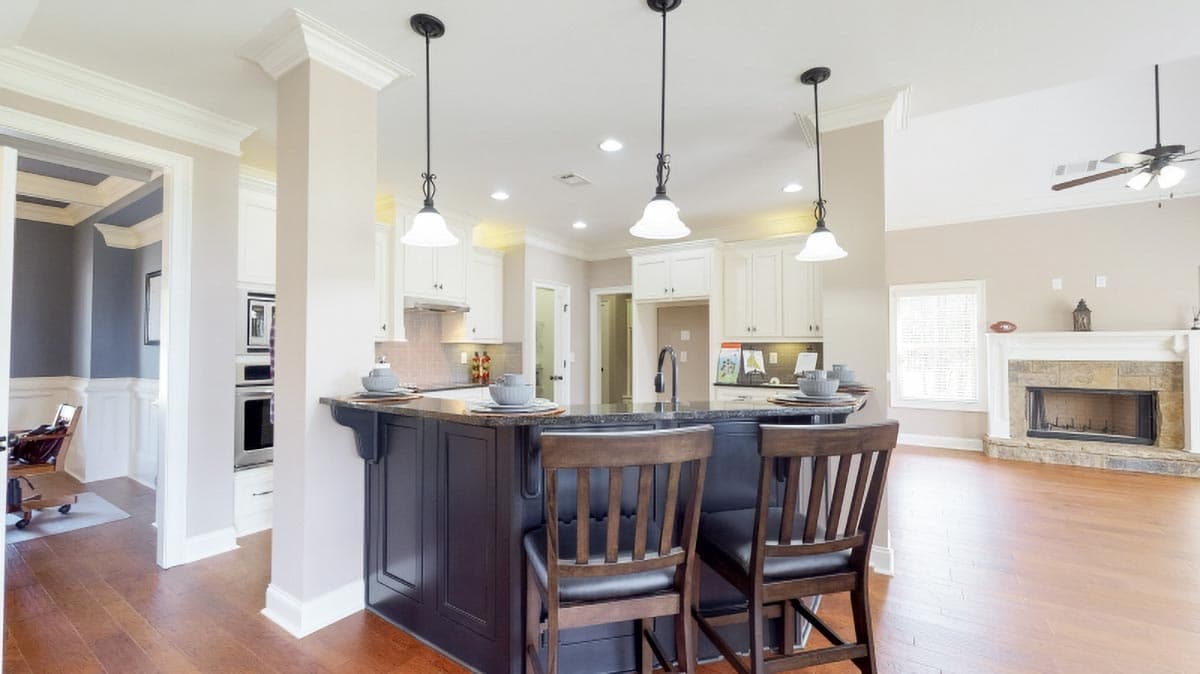

  • A vaulted keeping room connects to the kitchen and breakfast areas, creating that relaxing place to rest and unwind. The kitchen has an island and outer peninsula giving you lots of working space as well as a place for casual eating. From behind the peninsula, you have vies to both the vaulted family and keeping rooms, both with fireplaces.
  • A mudroom and coat closet are placed just off the garage, routing traffic through it before entering the rest of the home.
  • A teen suite has been designed into the second floor near the bedrooms. Equipped with a built-in desk, this spot makes the perfect homework station and recreational hang-out.

The plans include the following:

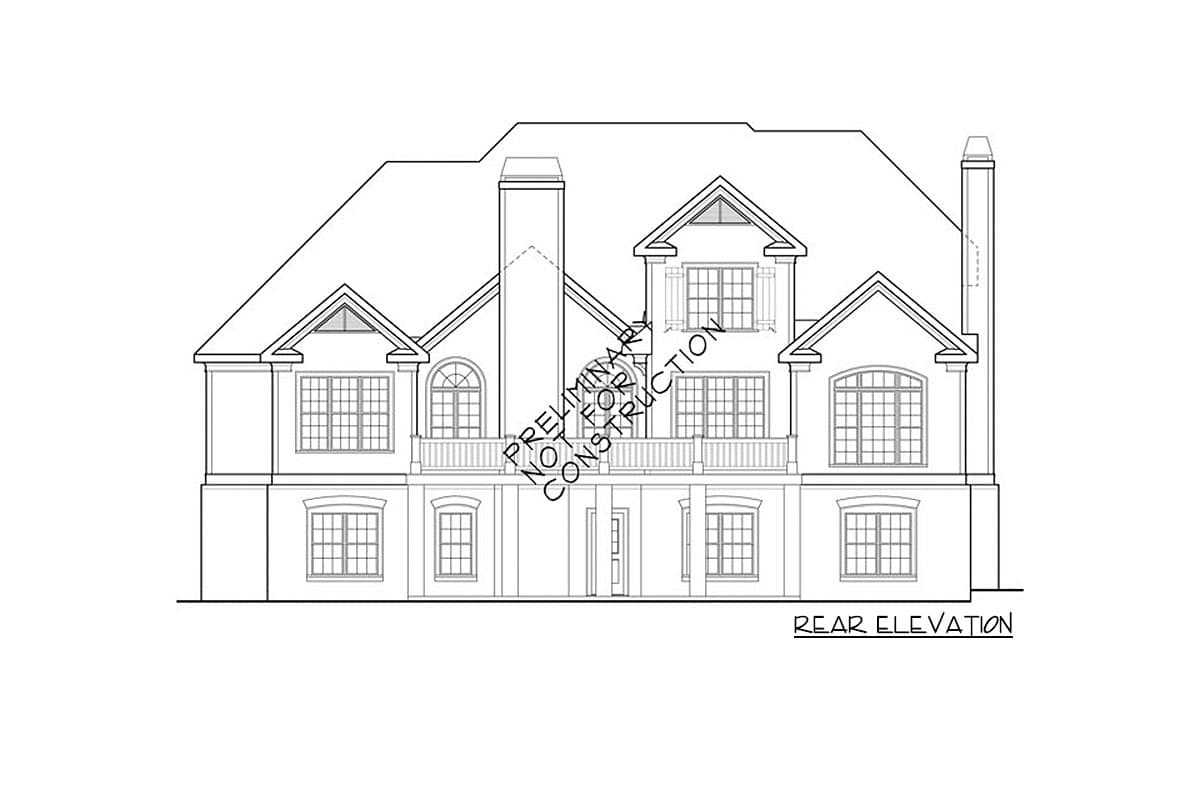

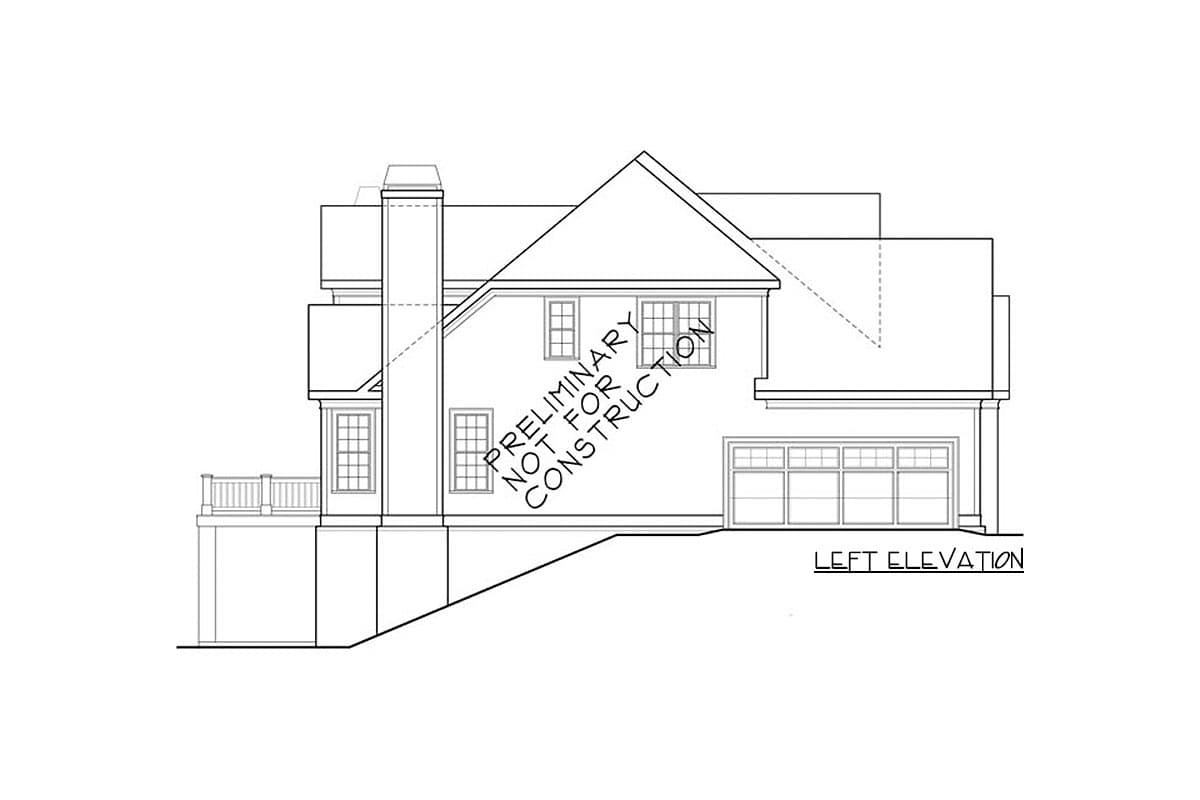

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed House Plan with Upstairs Teen Suite - 710128BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed House Plan with Upstairs Teen Suite - 710128BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,254 sq. ft.
  • 1st Floor: 2,224 sq. ft.
  • 2nd Floor: 1,030 sq. ft.
  • Basement Unfinished: 2,224 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 4"
  • Depth: 53' 8"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 509 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

4-Bed House Plan with Upstairs Teen Suite

  • 3,254

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • Fieldstone accents against board-and-batten siding generate a welcoming and warm appeal to this 4-bed house plan. Inside, transom and radius windows illuminate the main floor with plenty of natural light.
  • A vaulted keeping room connects to the kitchen and breakfast areas, creating that relaxing place to rest and unwind. The kitchen has an island and outer peninsula giving you lots of working space as well as a place for casual eating. From behind the peninsula, you have vies to both the vaulted family and keeping rooms, both with fireplaces.
  • A mudroom and coat closet are placed just off the garage, routing traffic through it before entering the rest of the home.
  • A teen suite has been designed into the second floor near the bedrooms. Equipped with a built-in desk, this spot makes the perfect homework station and recreational hang-out.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,254 sq. ft.
  • 1st Floor: 2,224 sq. ft.
  • 2nd Floor: 1,030 sq. ft.
  • Basement Unfinished: 2,224 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 4"
  • Depth: 53' 8"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 509 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Framing Type: Stick
