4-Bed House Plan with Vaulted Master and Turreted Flex Room

Pageloader

4-Bed House Plan with Vaulted Master and Turreted Flex Room

Plan 70501MK

  • 3,713

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • This wonderful open floor plan offers plenty of space, including a 4-car, side loading garage and an optional daylight basement offering a huge game room, kitchen, safe room, and storage/workout room.
  • The vaulted great room features vaulted ceilings, a fireplace and access to the rear grilling porch. It is open to the breakfast room and a kitchen that features a large eat-at island bar, a prep island bar, a large walk-in pantry and a butler's pantry.
  • Beyond the butler's pantry is the dining room with arched windows on the front wall to allow for plenty of natural light.
  • The very spacious master suite features a corner fireplace, vaulted ceiling and a master bath which boasts a raised corner whirlpool with gas fireplace behind it, a large corner glass shower with a seat, and a giant walk-in closet.
  • Off of the foyer and Great Room is the office/media/theater with its front rounded wall floor to ceiling windows, again, for maximum natural lighting.
  • Bedrooms 2 & 3 share a Jack and Jill bath.
  • Related Plan: Get an alternate version with house plan 60541ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



4-Bed House Plan with Vaulted Master and Turreted Flex Room

  • 3,713

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $1,170
  • 5 Sets $1,270
  • CAD $2,540
  • View all purchase option online

About This Plan

  • This wonderful open floor plan offers plenty of space, including a 4-car, side loading garage and an optional daylight basement offering a huge game room, kitchen, safe room, and storage/workout room.
  • The vaulted great room features vaulted ceilings, a fireplace and access to the rear grilling porch. It is open to the breakfast room and a kitchen that features a large eat-at island bar, a prep island bar, a large walk-in pantry and a butler's pantry.
  • Beyond the butler's pantry is the dining room with arched windows on the front wall to allow for plenty of natural light.
  • The very spacious master suite features a corner fireplace, vaulted ceiling and a master bath which boasts a raised corner whirlpool with gas fireplace behind it, a large corner glass shower with a seat, and a giant walk-in closet.
  • Off of the foyer and Great Room is the office/media/theater with its front rounded wall floor to ceiling windows, again, for maximum natural lighting.
  • Bedrooms 2 & 3 share a Jack and Jill bath.
  • Related Plan: Get an alternate version with house plan 60541ND.

Floor Plans

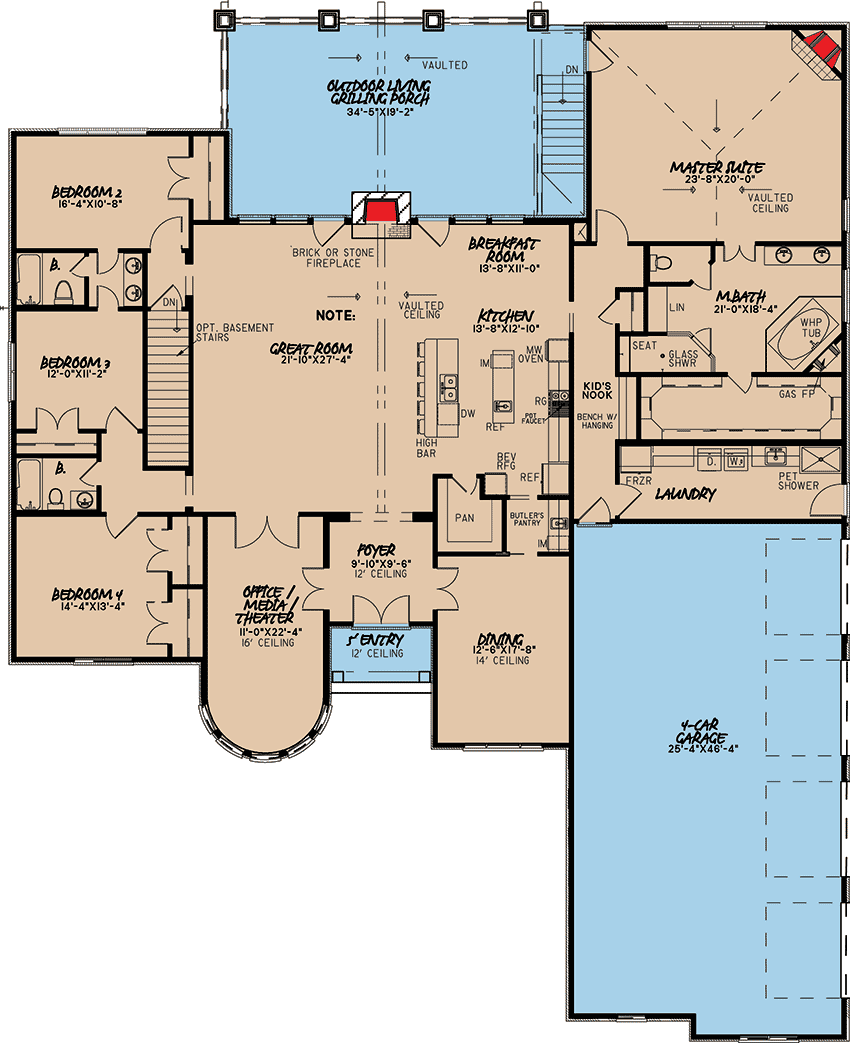

  • Main Level

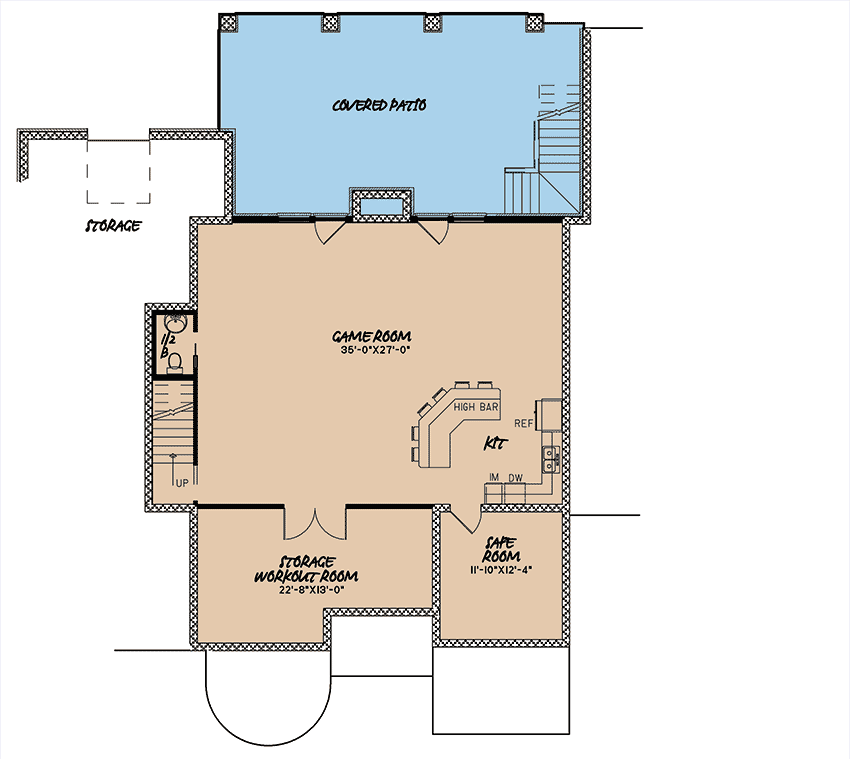

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,713 sq. ft.
  • 1st Floor: 3,713 sq. ft.
  • Porch, Combined: 1,279 sq. ft.
  • Optional Lower Level: 1,405 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 6"
  • Depth: 95' 5"
  • Max ridge height: 34' 4"

Garage

  • Type: Attached
  • Area: 1233 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
