Plan 36530TX

4 Bed Luxury House Plan with Double Front Doors

Heated S.F.

4,153

Beds

4

Baths

4.5

Stories

2

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

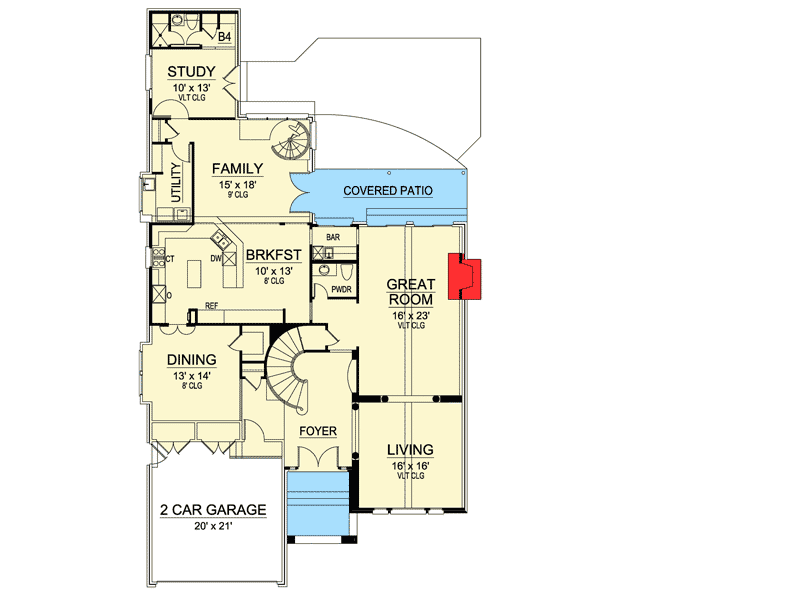

4 Bed Luxury House Plan with Double Front Doors - 36530TX floor plan - Main Level

2nd Floor

Reverse Floor Plan

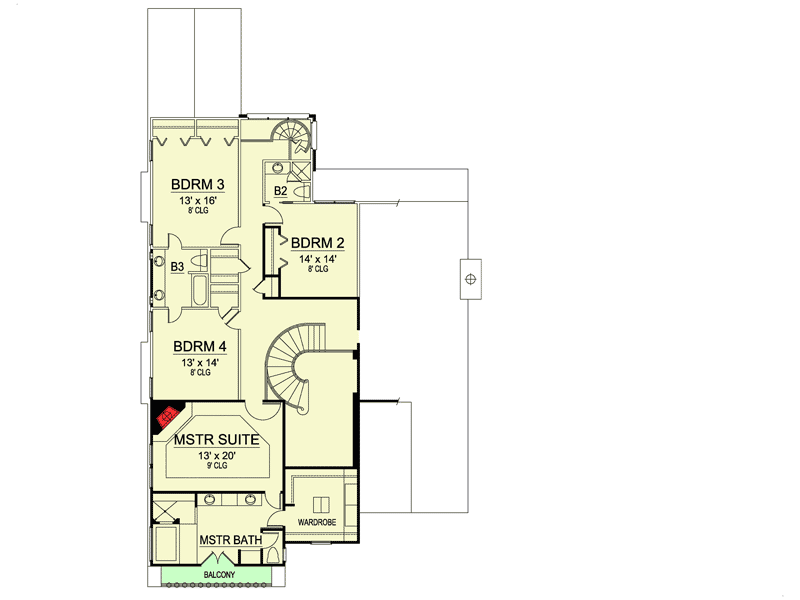

4 Bed Luxury House Plan with Double Front Doors - 36530TX floor plan - 2nd Floor

Plan Details

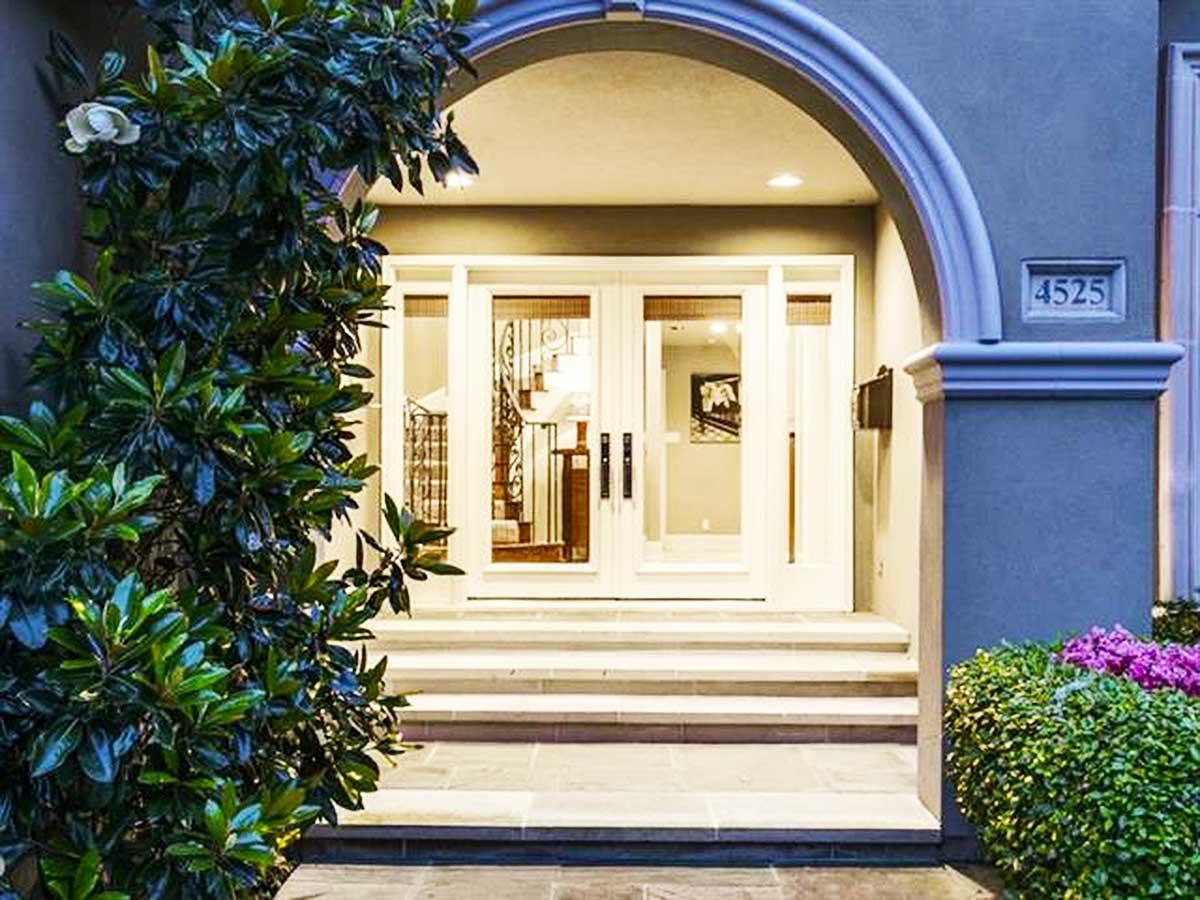

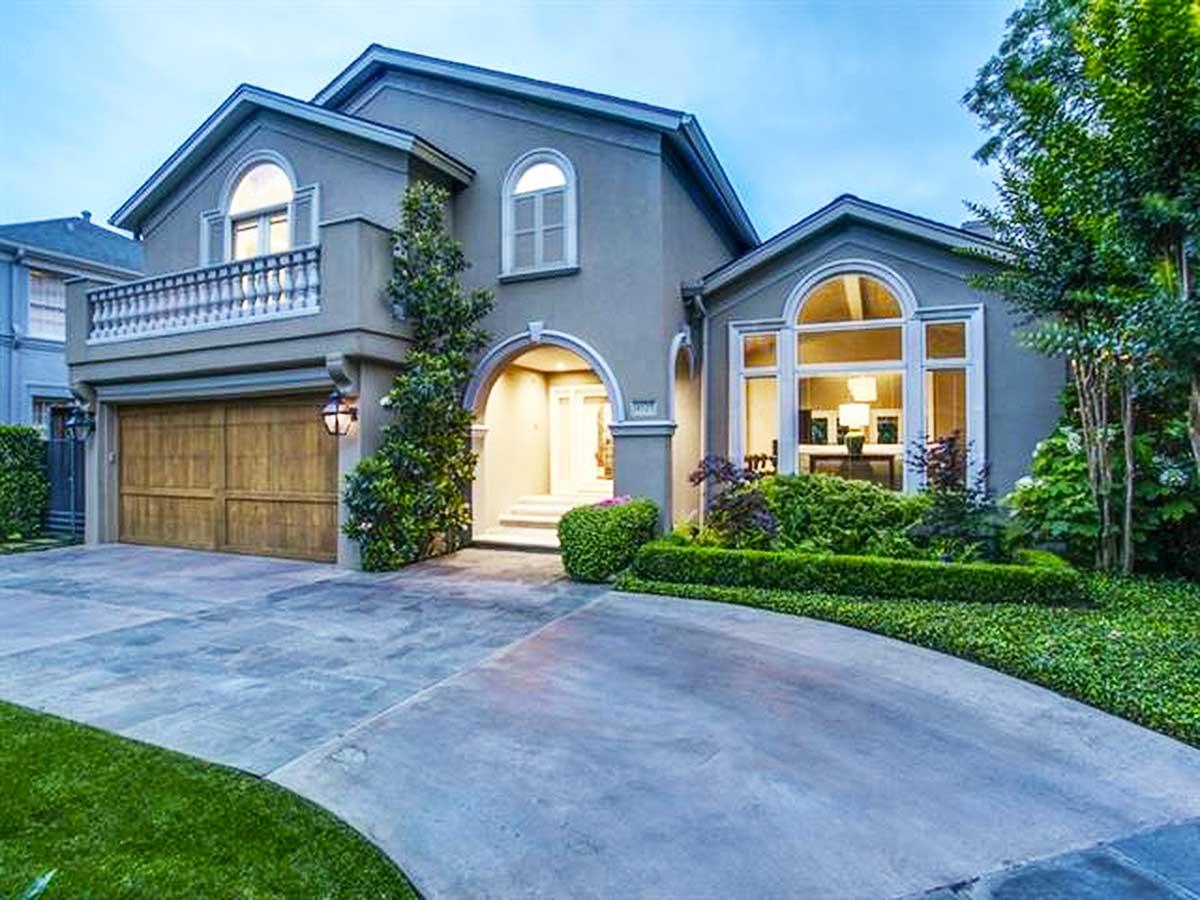

This luxury house plan has a stucco exterior, Palladian windows and shutters, and is trimmed with a keystone. Double front doors flanked by sidelights open to reveal the foyer.
To the left of the stairs is the dining room with large storage closet and access to the kitchen. The kitchen has a free-standing center island and a breakfast bar that divides the kitchen from the breakfast area.
Off the family room is a large utility room and a quiet study with vaulted ceiling and a full bath.
French doors lead to the outdoor living area and covered patio. A spiral staircase in the family room winds its way upstairs.
The vaulted great room has a warming fireplace and two sets of double doors that lead to the covered patio. A bar and powder room share space off the great room. The formal living room has a vaulted ceiling.
Upstairs two family bedrooms with walk-in closets share a Jack-and-Jill bath, while a third family bedroom with walk-in closet has a full bath.
The master suite has a fireplace, trey ceiling, large wardrobe, and bath with his and hers vanities, step-up tub and separate glass shower, and a private balcony.
A 2-car, front entry garage with two storage areas and a side door completes the home.

What's Included

Plan set includes the following:

1. Cover sheet

2. Foundation Plan

3. First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4. Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5. First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6. Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

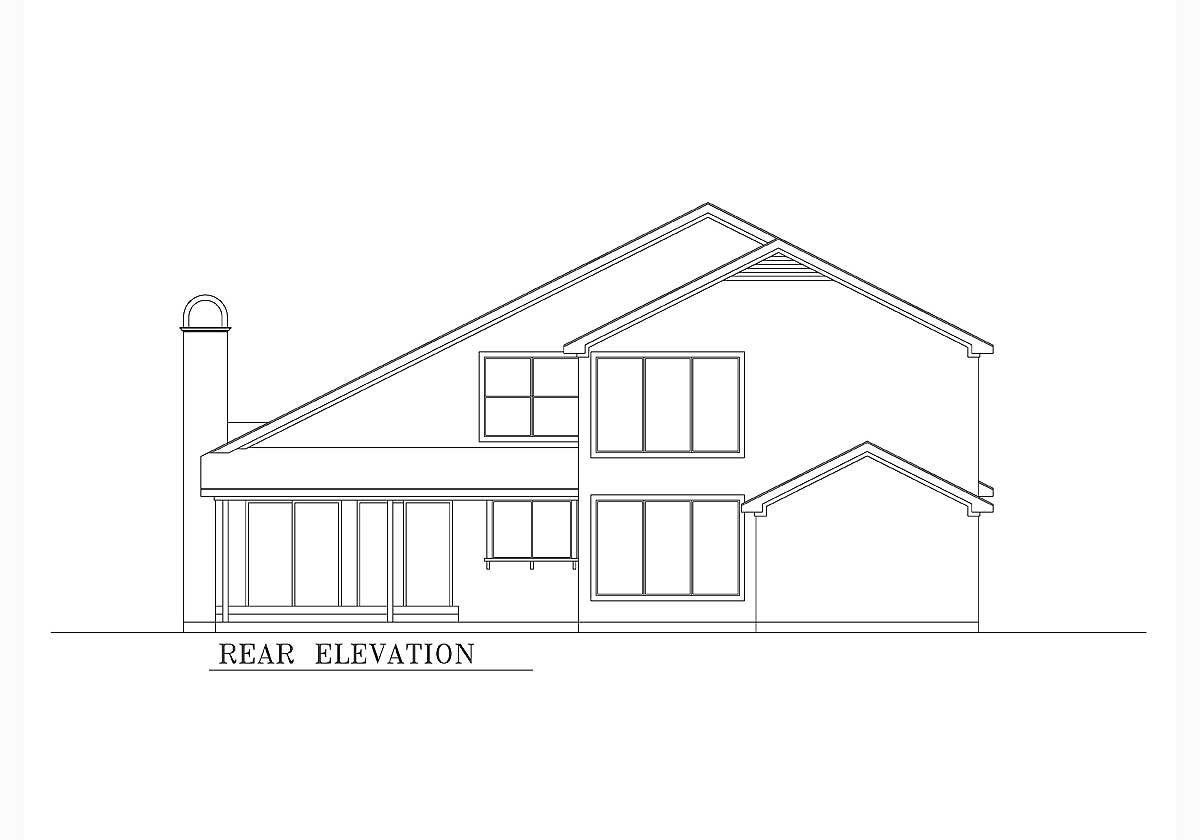

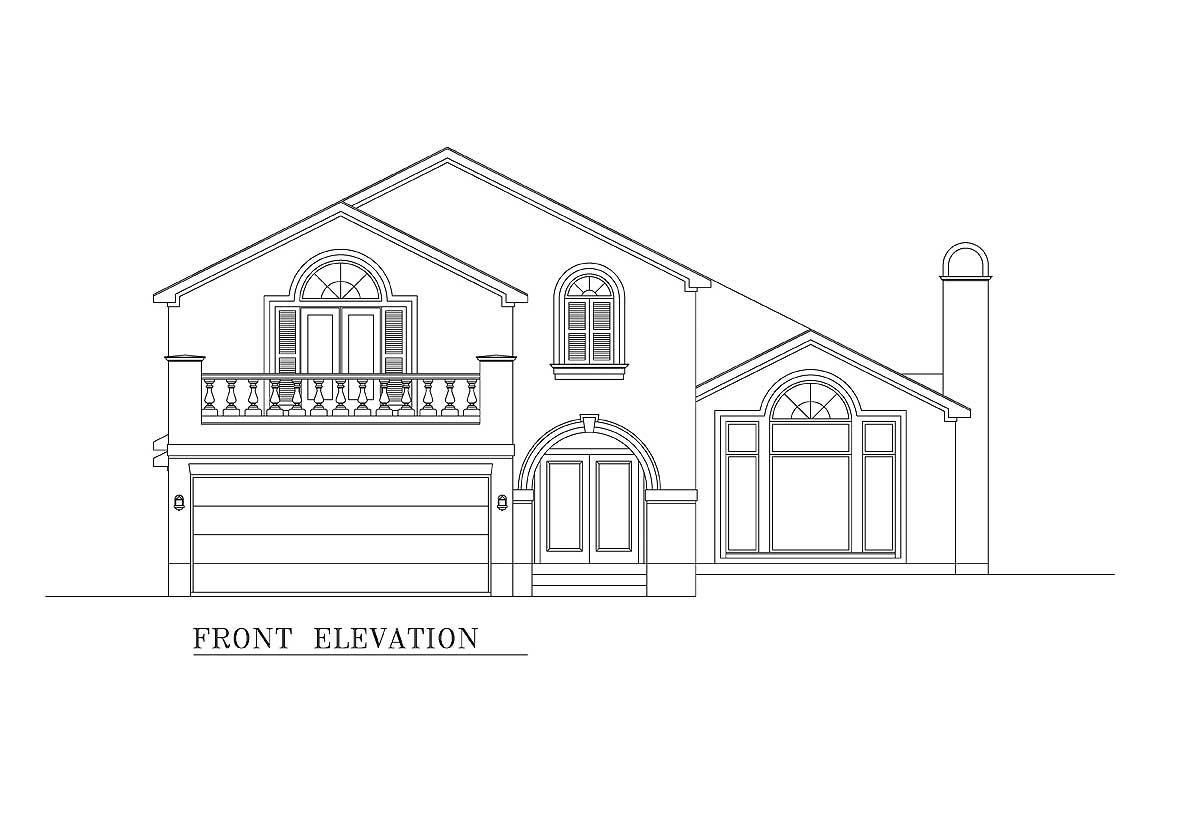

7. Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

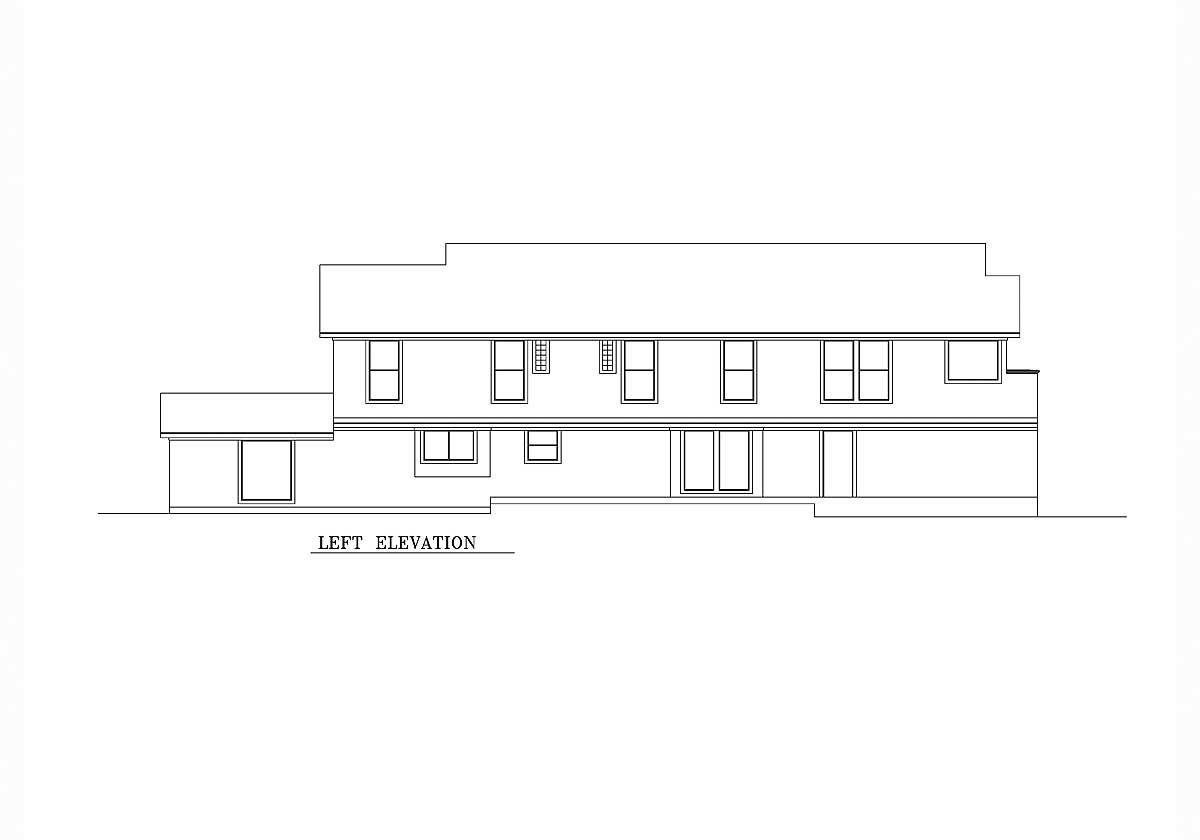

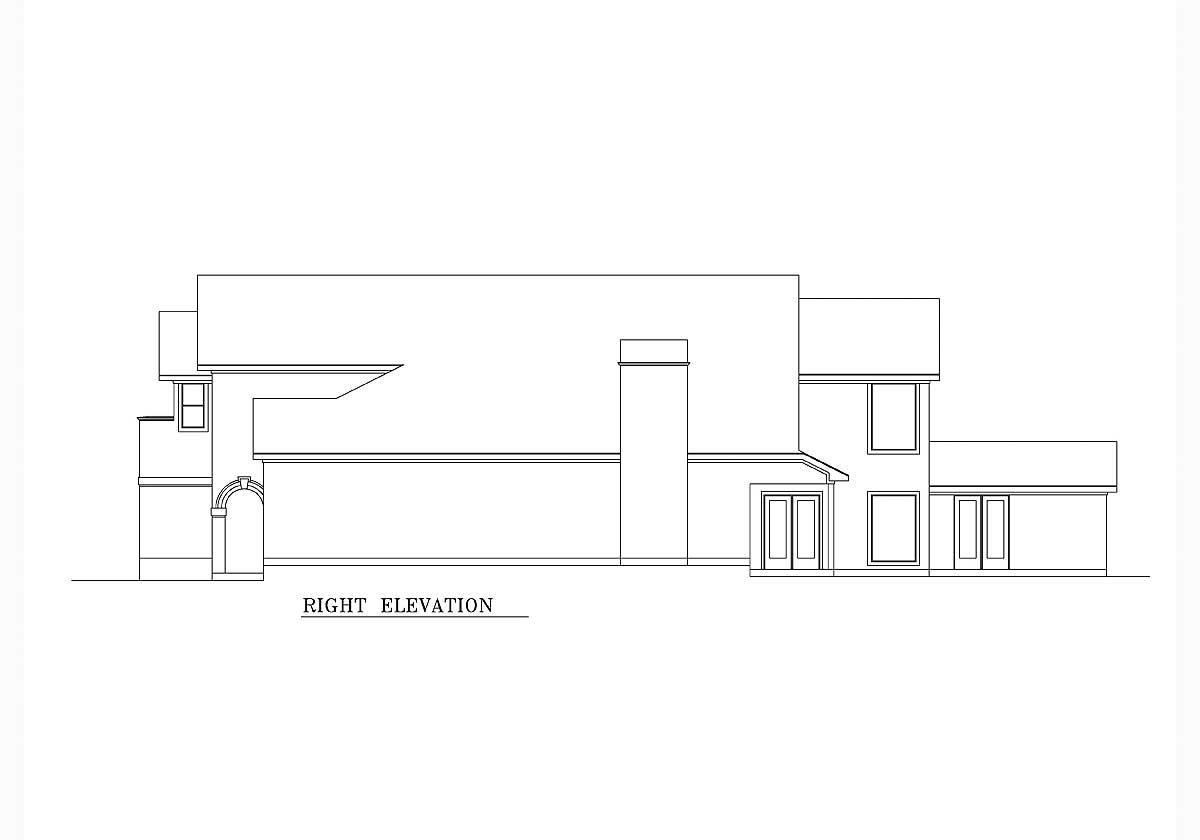

8. Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9. Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10. Sections page

11. Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

4,153 sq. ft.

1st Floor:

2,427 sq. ft.

2nd Floor:

1,726 sq. ft.

Balcony / Veranda:

53 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

4

Half bathrooms:

1

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

50' 0"

Depth:

87' 0"

Max Ridge Height:

28' 0"

Garage

Type:

Attached

Area:

497 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

First Floor / 8' 0" Second Floor / 8' 0"

Special Features

Jack & Jill Bath

Laundry - Main Level

Master Suite - 2nd Floor
