4-Bed Mediterranean-style House Plan with Upstairs Game Room

Plan 62600DJ

  • 3,009

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Two beautiful arched windows and an arched entry porch in this 4-bed Mediterranean-style house plan will capture your attention from the street.
  • Arched entryways continue inside giving you a lovely transition between rooms.
  • Wide openings let you see into the adjacent rooms, creating wonderful sightlines.
  • There are two fireplaces, one in the informal hearth room and one in the great room.
  • Homeowners enjoy a first floor master suite with no stairs to climb at night.
  • Each bedroom on the second floor is a great size and they share a walk-in linen closet. The game room is great for kids of all ages.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

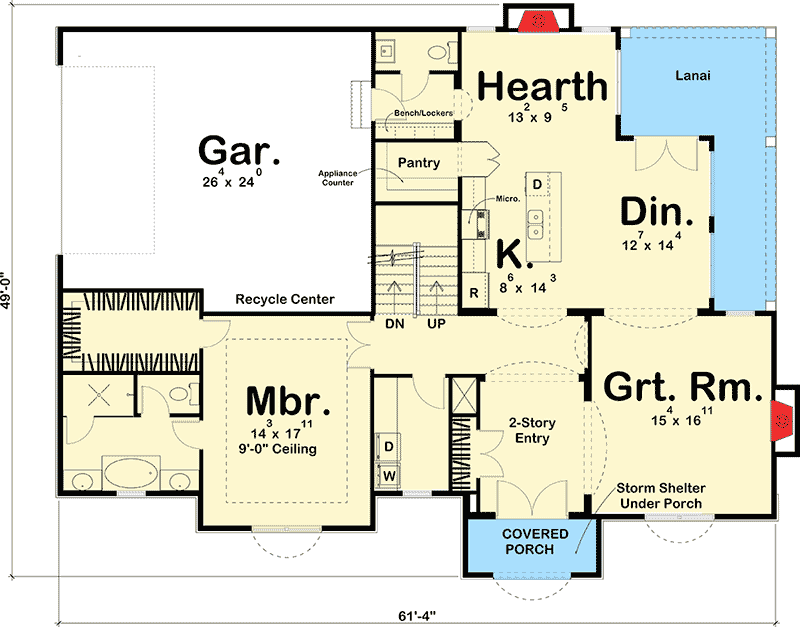

4-Bed Mediterranean-style House Plan with Upstairs Game Room - 62600DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

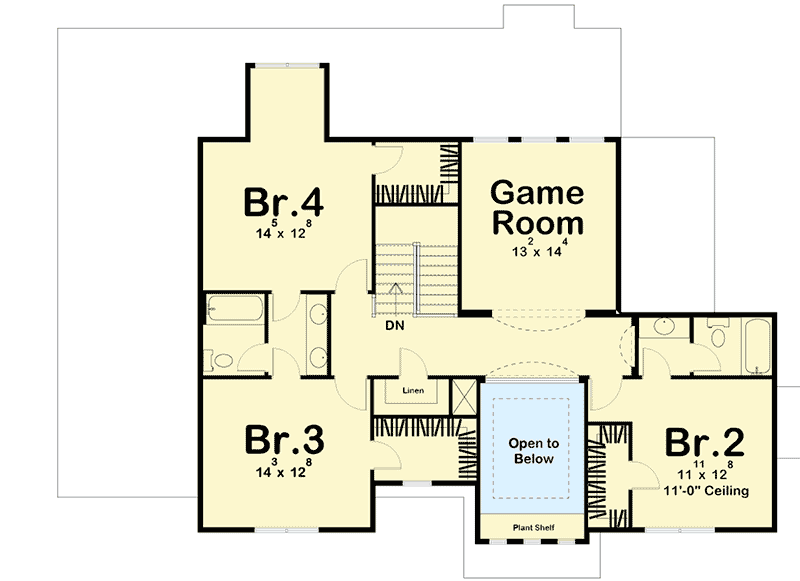

4-Bed Mediterranean-style House Plan with Upstairs Game Room - 62600DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,009 sq. ft.
  • 1st Floor: 1,721 sq. ft.
  • 2nd Floor: 1,288 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 49' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 626 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12

Architectural Style

Special features

4-Bed Mediterranean-style House Plan with Upstairs Game Room

  • 3,009

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,700
  • 5 Sets + PDF $1,950
  • PDF - Unlimited Build $2,200
  • CAD + PDF - Single-Build $2,200
  • CAD - Unlimited Build $2,700
  • View all purchase option online

About This Plan

  • Two beautiful arched windows and an arched entry porch in this 4-bed Mediterranean-style house plan will capture your attention from the street.
  • Arched entryways continue inside giving you a lovely transition between rooms.
  • Wide openings let you see into the adjacent rooms, creating wonderful sightlines.
  • There are two fireplaces, one in the informal hearth room and one in the great room.
  • Homeowners enjoy a first floor master suite with no stairs to climb at night.
  • Each bedroom on the second floor is a great size and they share a walk-in linen closet. The game room is great for kids of all ages.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,009 sq. ft.
  • 1st Floor: 1,721 sq. ft.
  • 2nd Floor: 1,288 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 49' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 626 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
Plan 62600DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62600DJ
|
Need Help? 800-854-7852
|
