4-Bed Modern Acadian House Plan with Bonus Room

Plan 510134WDY

  • 3,336

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 4 bedroom modern Acadian house plan looks great with its brick exterior painted white, wood shutters and a standing seam metal roof over the front porch with a dormer - there for aesthetics - above.
  • French doors open to the vaulted living room. Windows look out over the screened porch with fireplace and a door takes you there to enjoy the outdoors without the bugs.
  • The kitchen has an L-shaped layout with a large island with dual sinks on one side and seating on the other. A butler pantry connects this space to the dining room, and a larger walk-in pantry gives you even more storage.
  • Your master suite is privately situated on the left side of the home and has a roomy walk-in closet. Two more bedrooms are located across the home and share a Jack and Jill bath. Laundry is located nearby as is the powder room.
  • One more bedroom is on the main floor off the foyer and could be converted to use as a den. Stairs go up to a 502 square foot bonus room with full bath over the garage.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

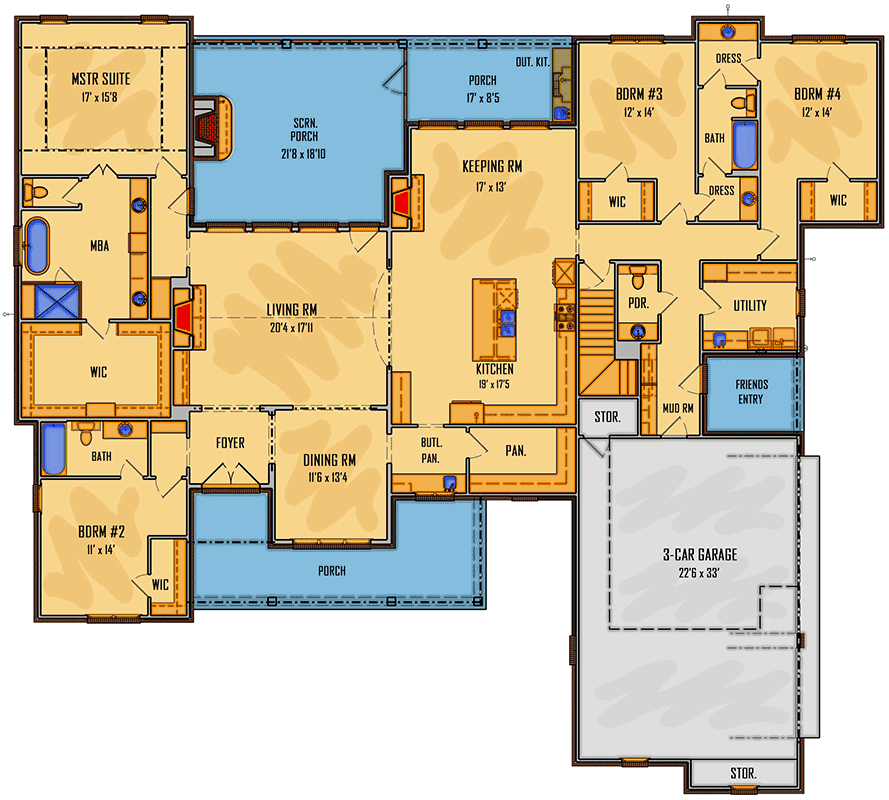

4-Bed Modern Acadian House Plan with Bonus Room - 510134WDY floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

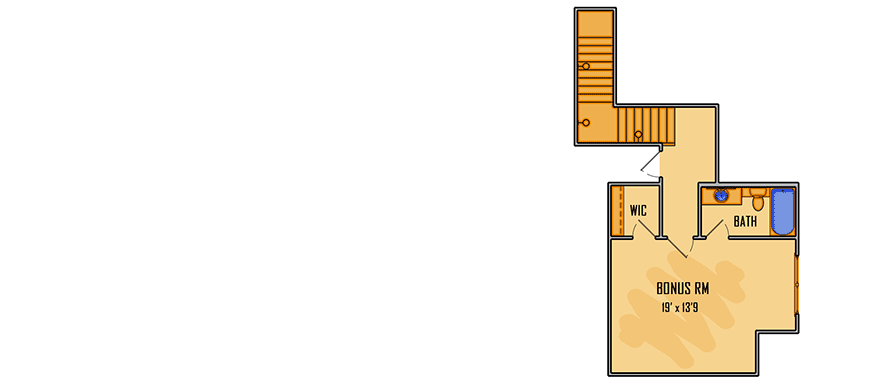

4-Bed Modern Acadian House Plan with Bonus Room - 510134WDY floor plan - Bonus
