Plan 83656CRW 4 Bed Modern Farmhouse Plan Under 3000 Square Feet with Home Office

2,963 4 2.5 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4 Bed Modern Farmhouse Plan Under 3000 Square Feet with Home Office

Plan 83656CRW

  • 2,963

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

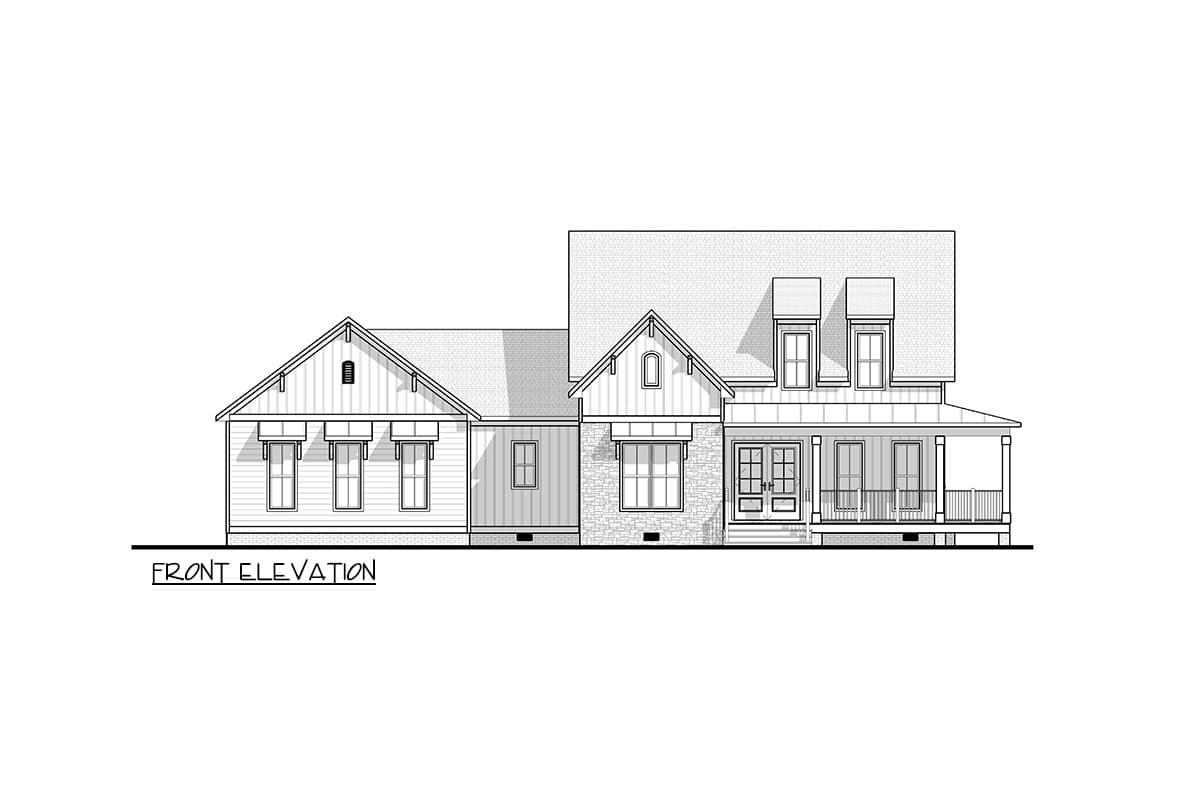

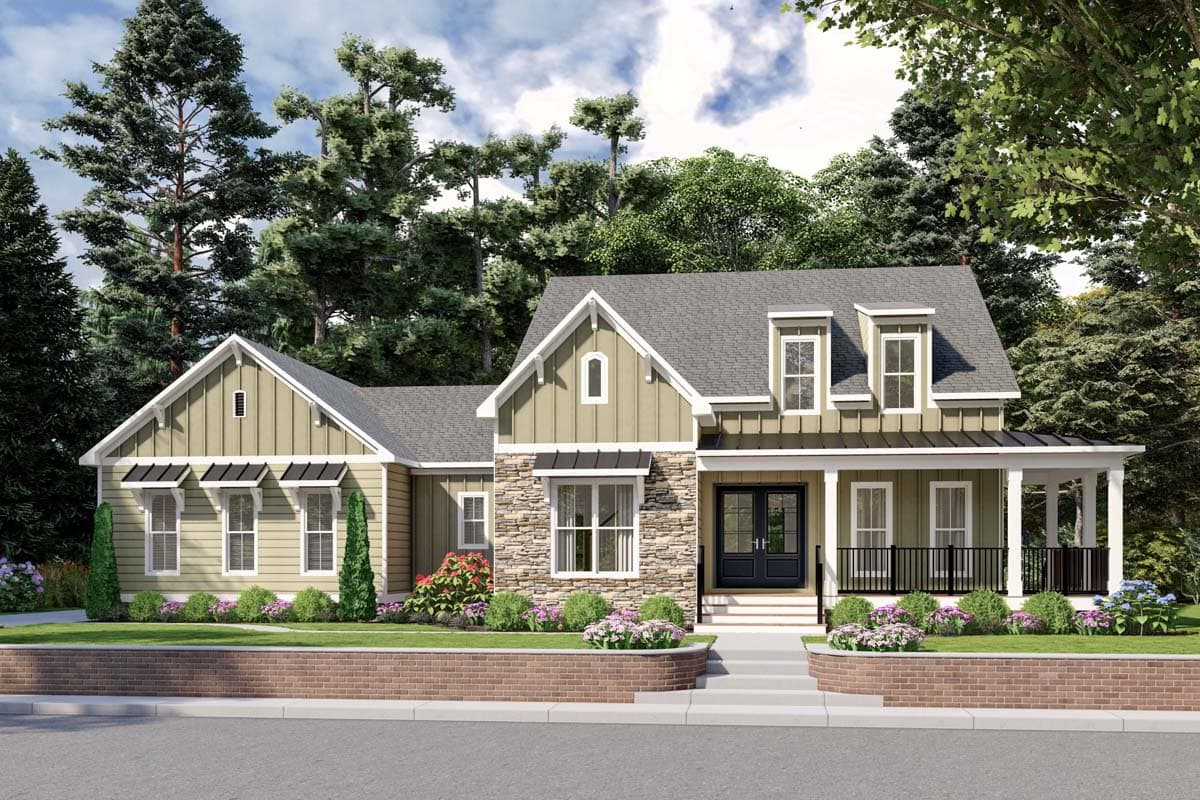

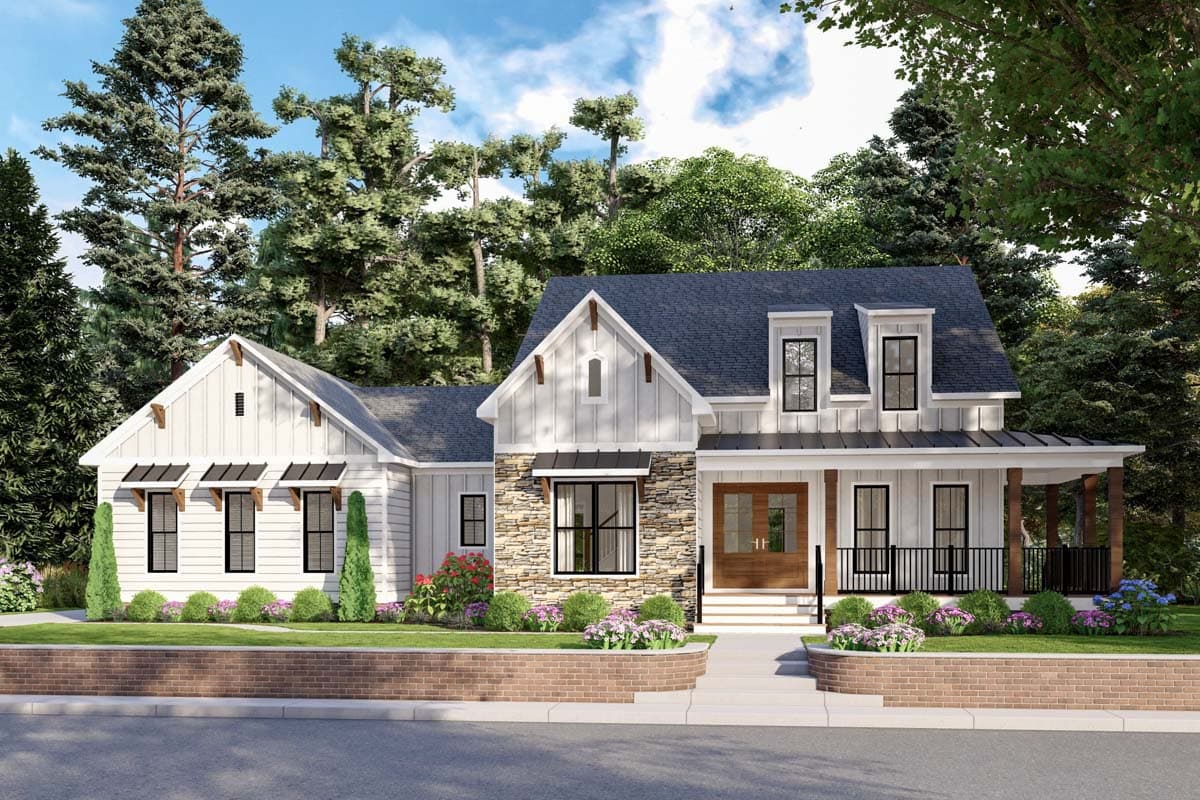

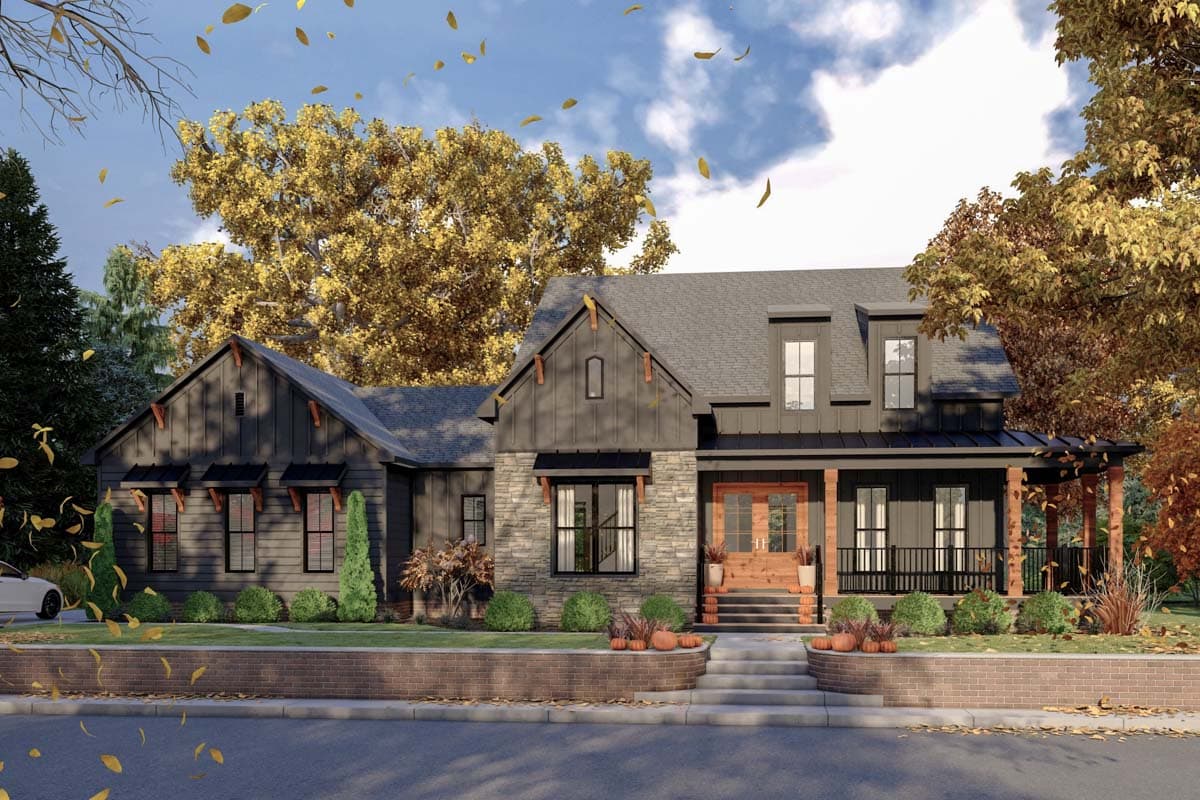

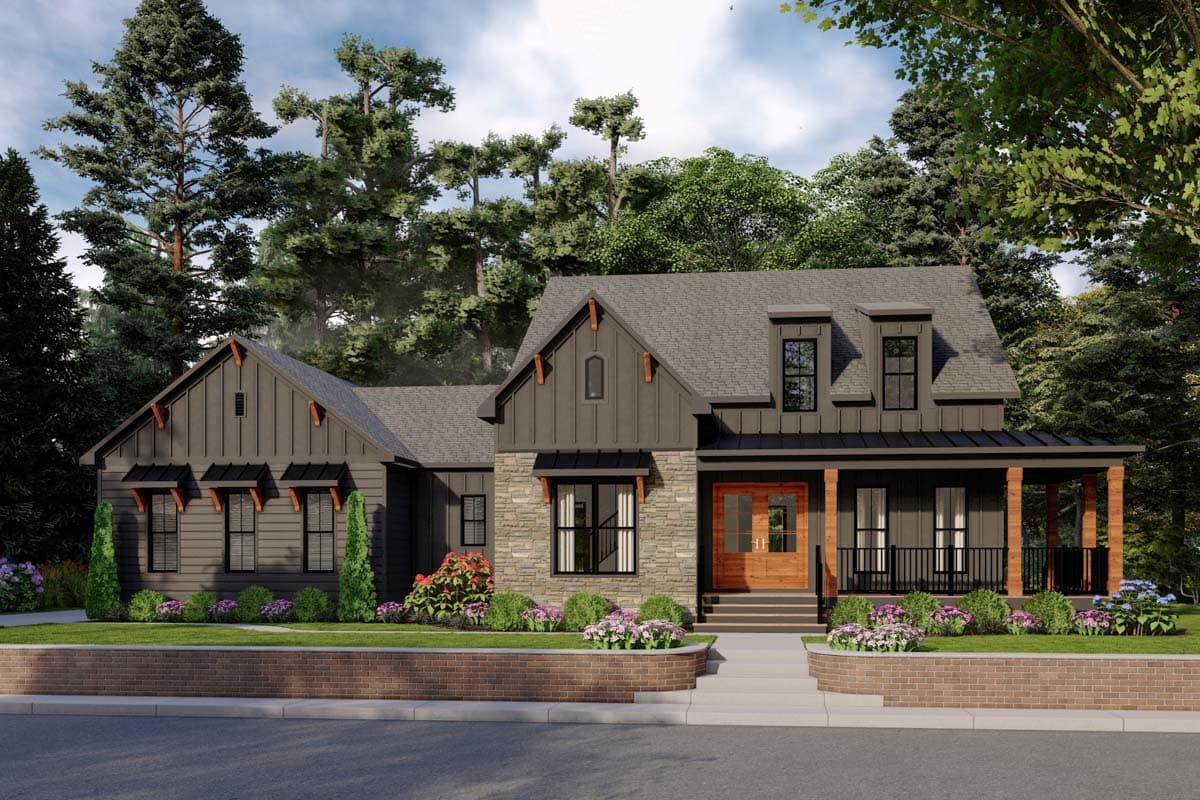

  • This 2,963 square foot Modern Farmhouse plan has 4 beds, 2.5 baths and a 492 square foot 2-car garage. The exterior has a blend of board and batten siding, clapboard siding, stone and wood giving it great curb appeal.

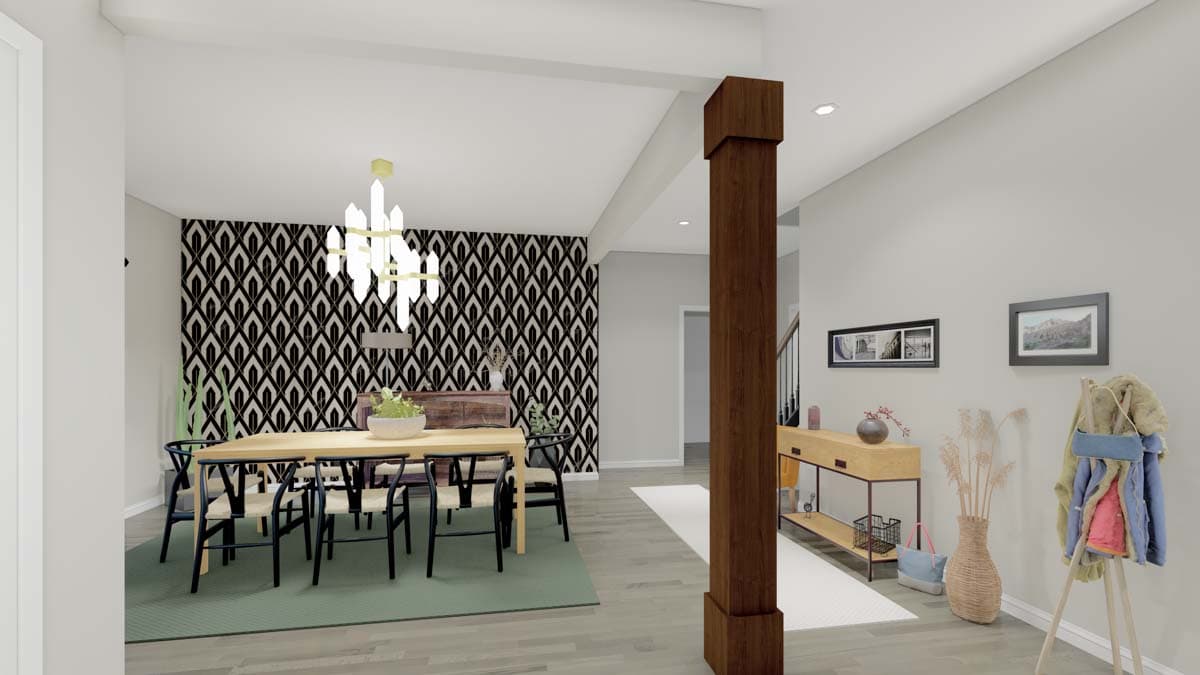

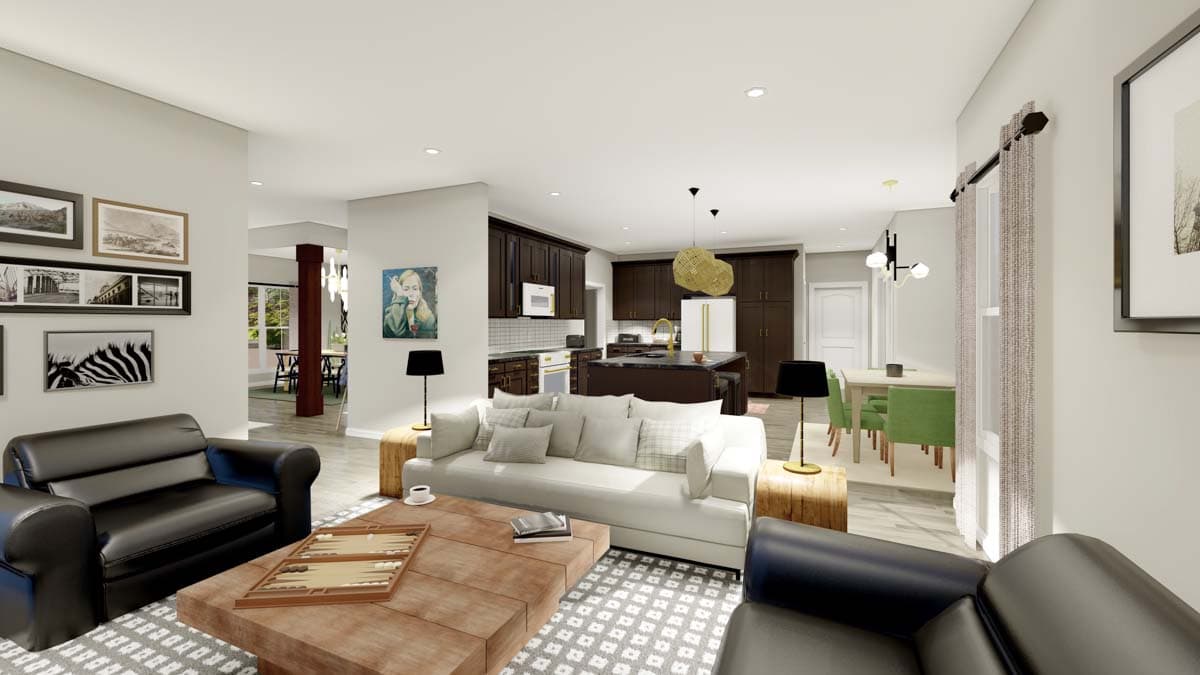

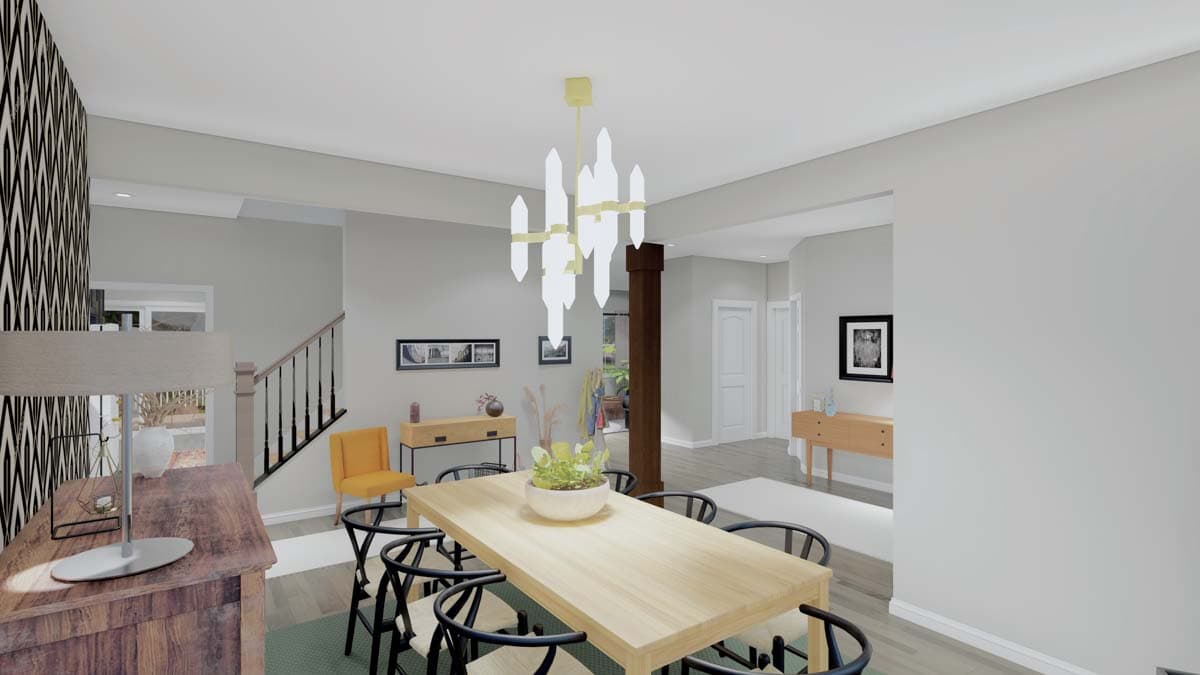

  • The openness of the island kitchen brings family and friends together, while a formal dining room provides a space for intimate meals.
  • Retreat to the rear deck on warm summer days which is accessible from the kitchen.

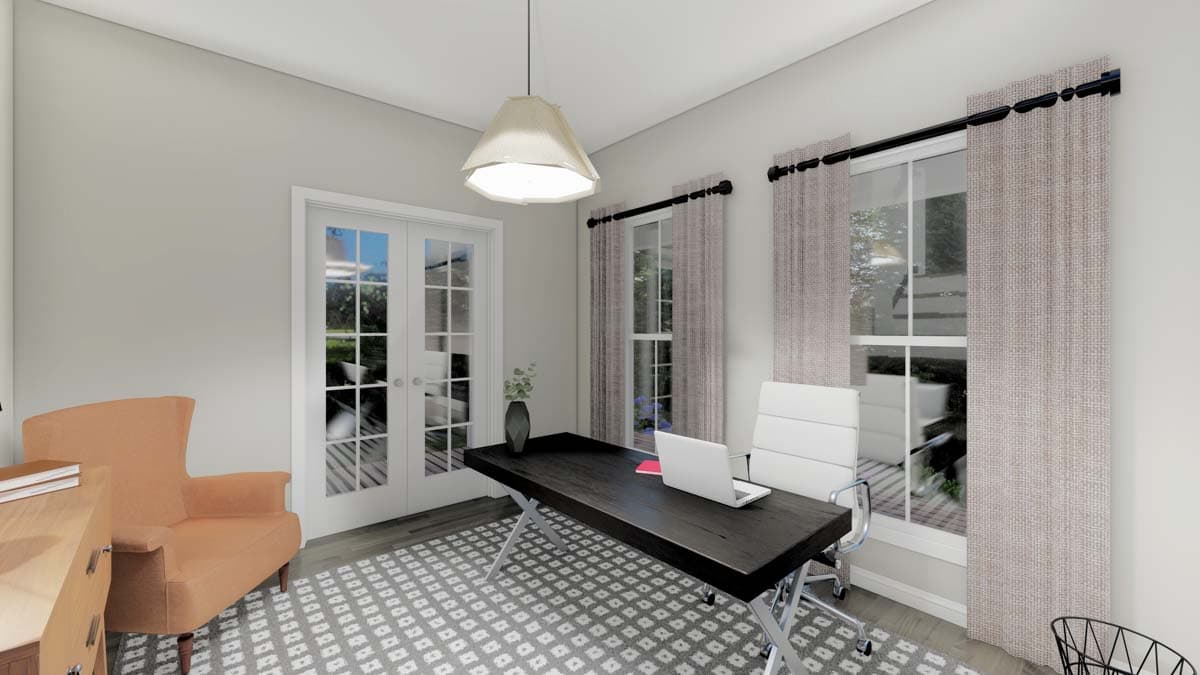

  • The home office is perfect for the work-at-home resident and includes access to the wraparound front porch through French doors.

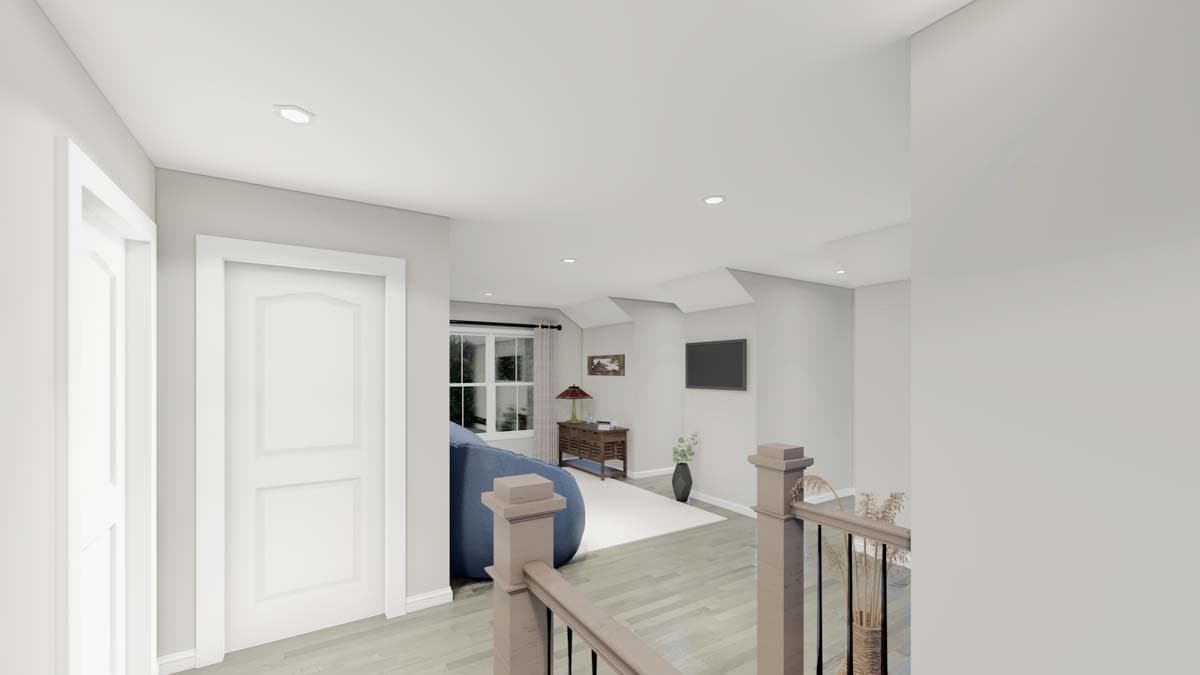

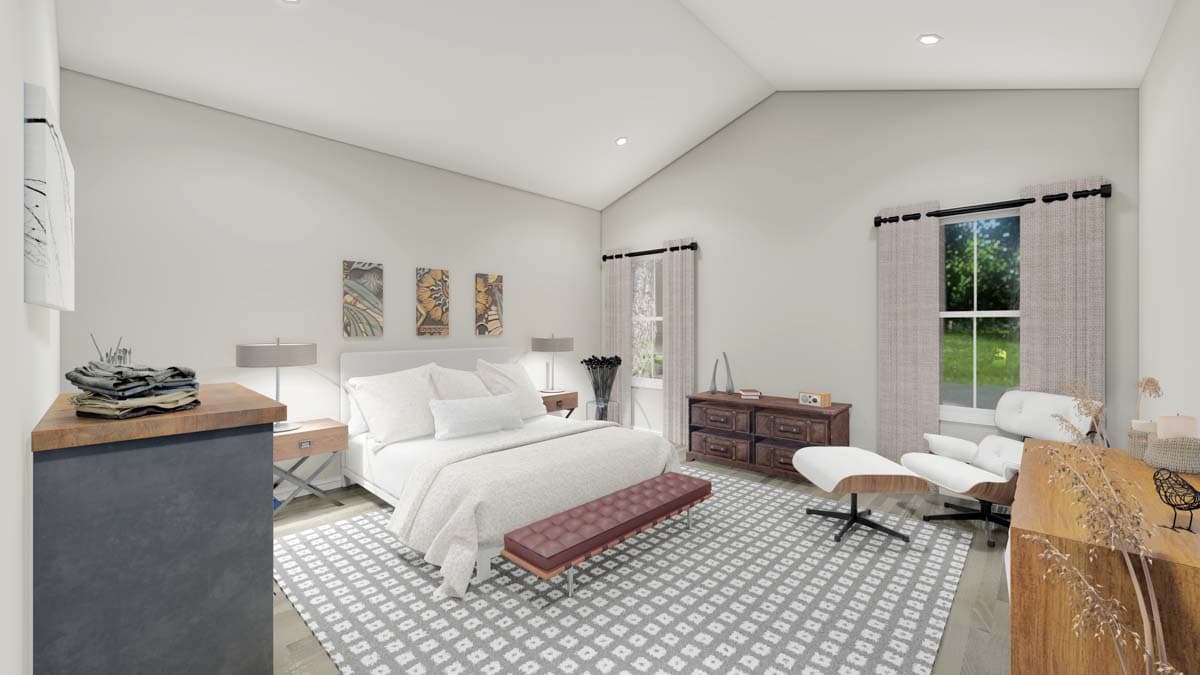

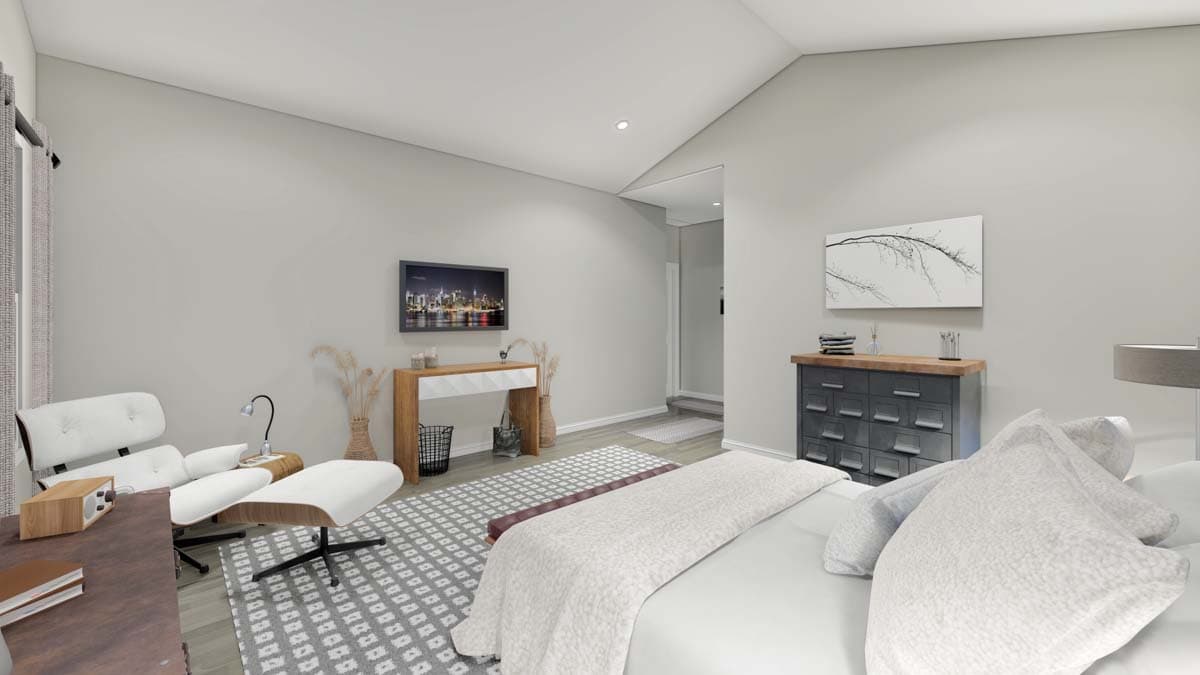

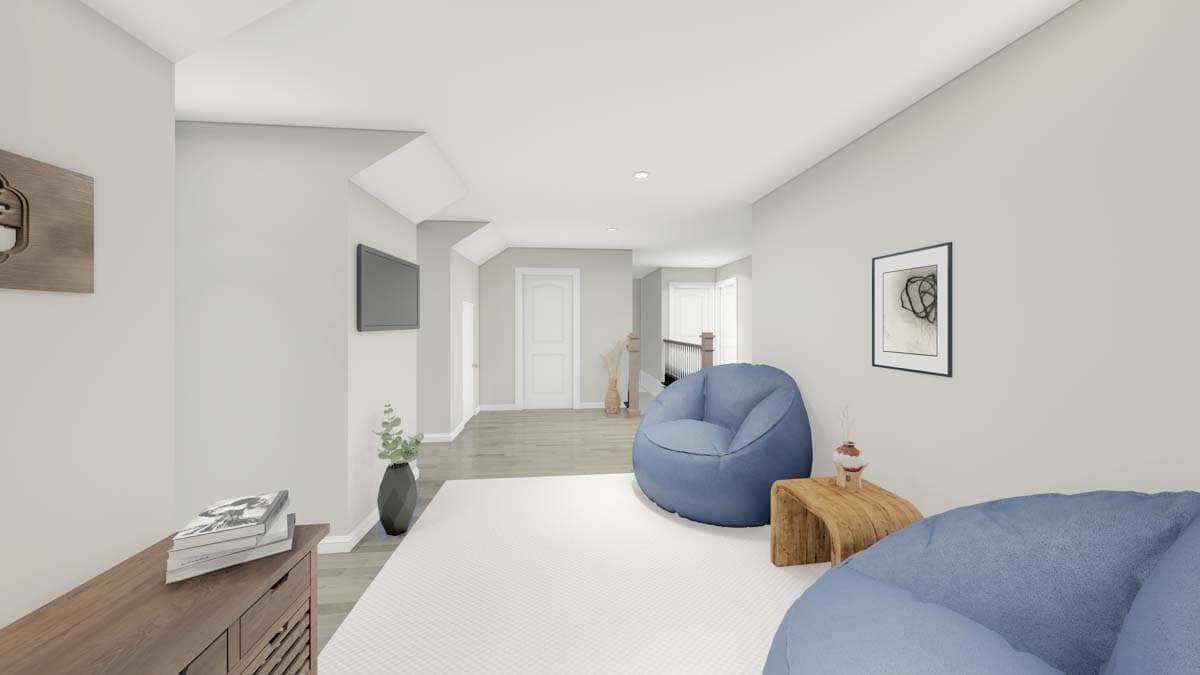

  • The owner's bedroom is conveniently located on the main level, paired with a 5-fixture bath with a large walk-in closet. Upstairs, three bedrooms share a compartmentalized bath and flexible loft space.
  • Related Plan: Get an alternate version with house plan 83616CRW.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

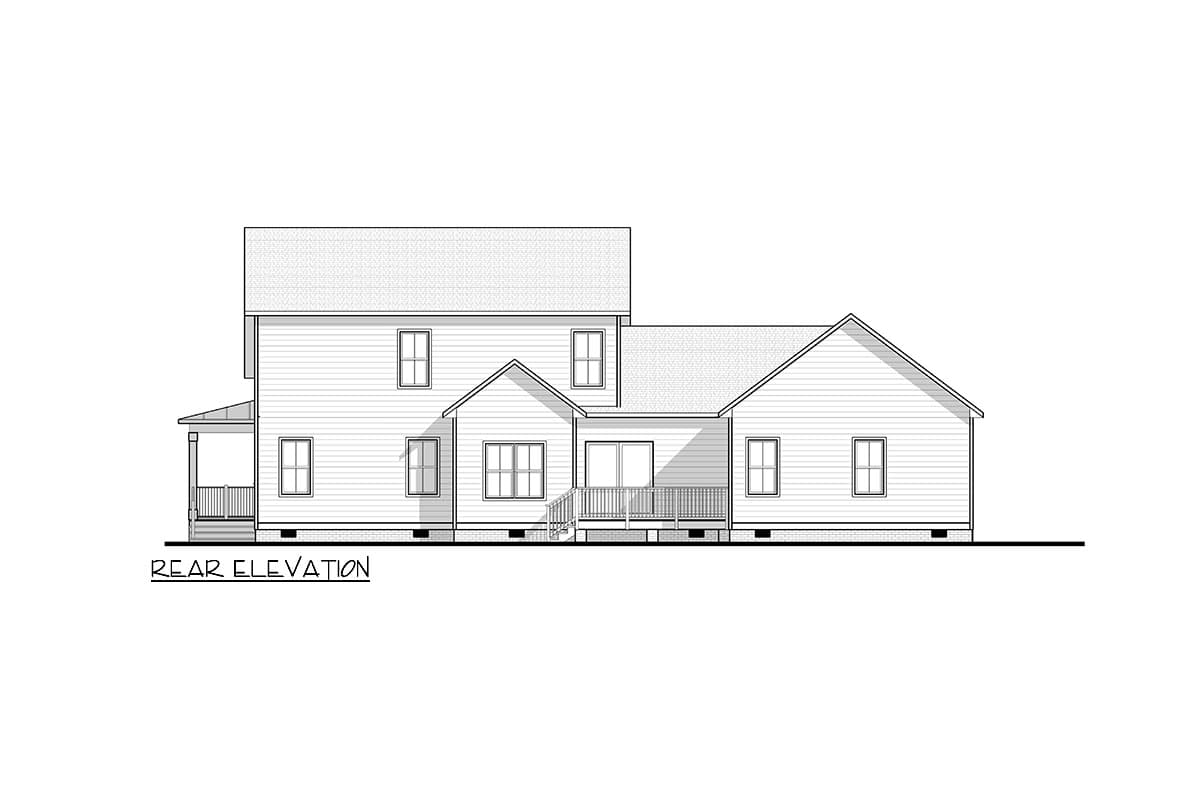

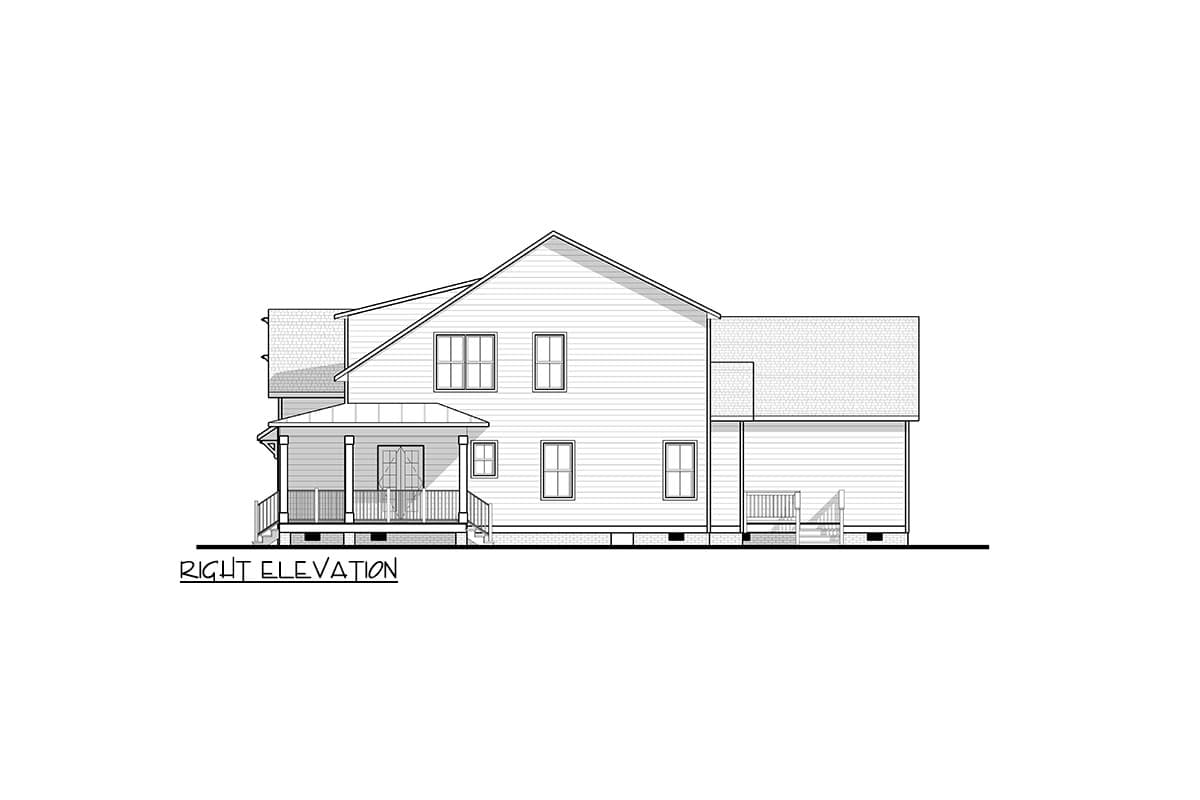

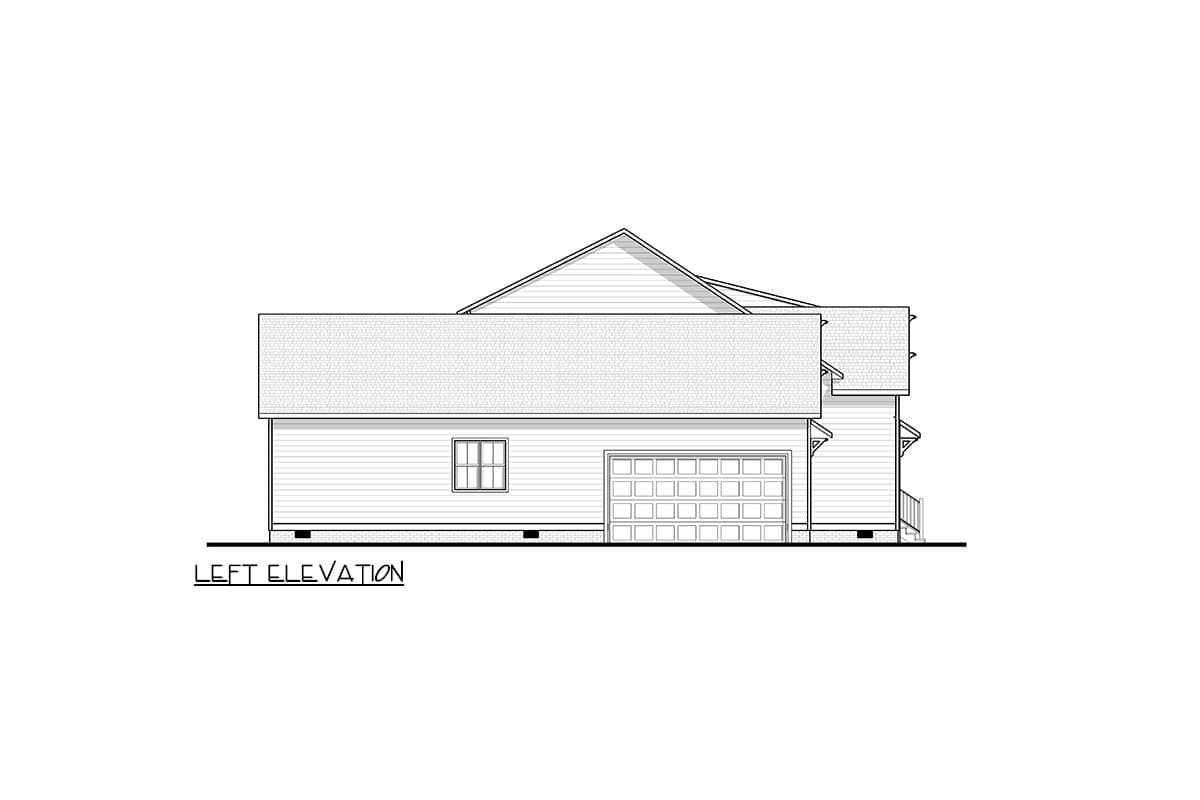

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

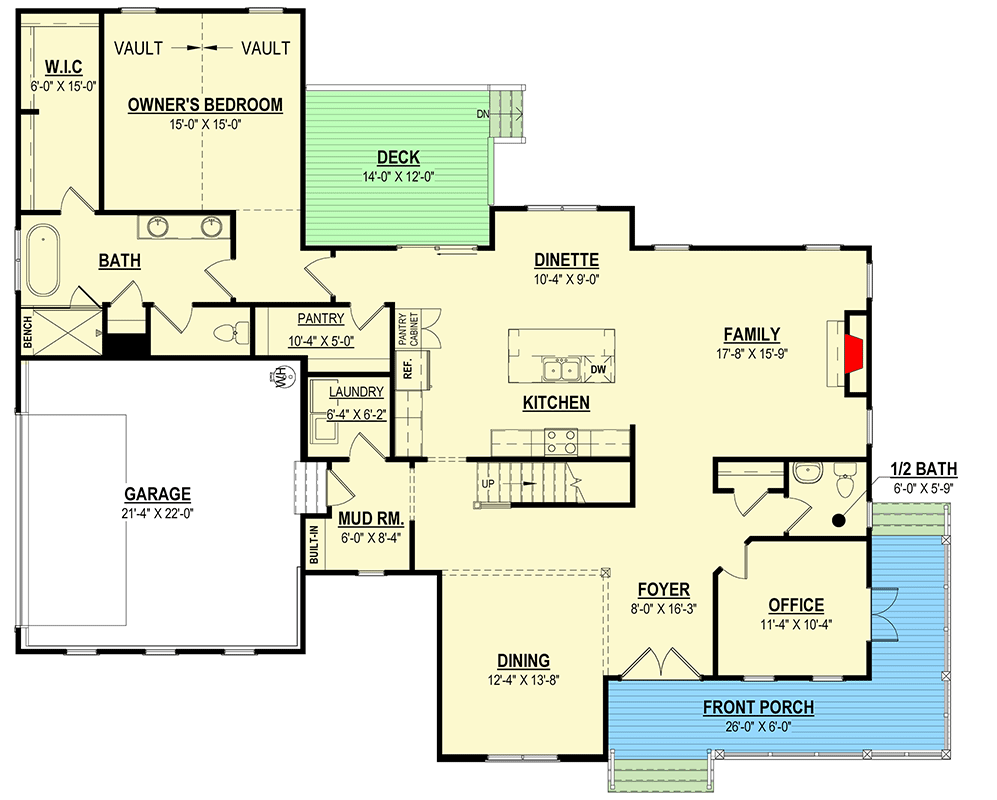

4 Bed Modern Farmhouse Plan Under 3000 Square Feet with Home Office - 83656CRW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

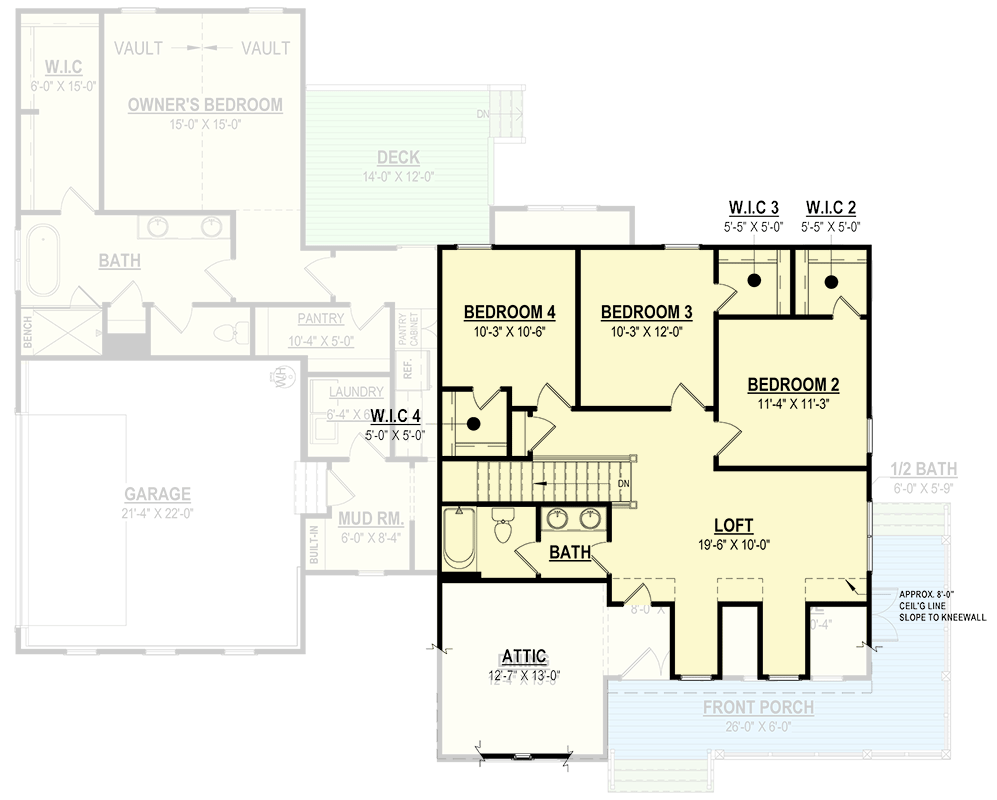

4 Bed Modern Farmhouse Plan Under 3000 Square Feet with Home Office - 83656CRW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,963 sq. ft.
  • 1st Floor: 2,036 sq. ft.
  • 2nd Floor: 927 sq. ft.
  • Deck: 168 sq. ft.
  • Porch, Front: 223 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 0"
  • Depth: 57' 0"
  • Max ridge height: 28' 7"

Garage

  • Type: Attached
  • Area: 492 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

4 Bed Modern Farmhouse Plan Under 3000 Square Feet with Home Office

  • 2,963

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,345
  • 5 Sets + PDF $1,695
  • View all purchase option online

About This Plan

  • This 2,963 square foot Modern Farmhouse plan has 4 beds, 2.5 baths and a 492 square foot 2-car garage. The exterior has a blend of board and batten siding, clapboard siding, stone and wood giving it great curb appeal.
  • The openness of the island kitchen brings family and friends together, while a formal dining room provides a space for intimate meals.
  • Retreat to the rear deck on warm summer days which is accessible from the kitchen.
  • The home office is perfect for the work-at-home resident and includes access to the wraparound front porch through French doors.
  • The owner's bedroom is conveniently located on the main level, paired with a 5-fixture bath with a large walk-in closet. Upstairs, three bedrooms share a compartmentalized bath and flexible loft space.
  • Related Plan: Get an alternate version with house plan 83616CRW.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,963 sq. ft.
  • 1st Floor: 2,036 sq. ft.
  • 2nd Floor: 927 sq. ft.
  • Deck: 168 sq. ft.
  • Porch, Front: 223 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 0"
  • Depth: 57' 0"
  • Max ridge height: 28' 7"

Garage

  • Type: Attached
  • Area: 492 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
