Plan 623037DJ

4-Bed Modern Farmhouse Plan with a Split Bedroom Layout and a Vaulted Great Room

Name: Plan 623037DJ: 4-Bed Modern Farmhouse Plan with a Split Bedroom Layout and a Vaulted Great Room
Brand: Architectural Designs
SKU: 623037DJ
Price: 1227.53 USD
Availability: InStock

Heated S.F.

2,483

Beds

Baths

2.5

Stories

Cars

Tour

Floor Plan

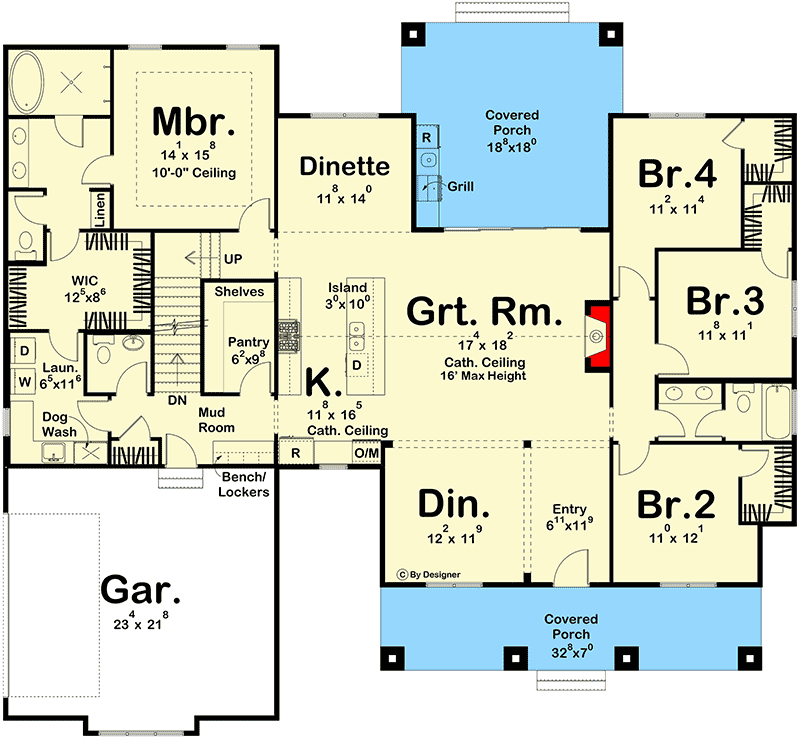

Main Level

2nd Floor

Plan Details

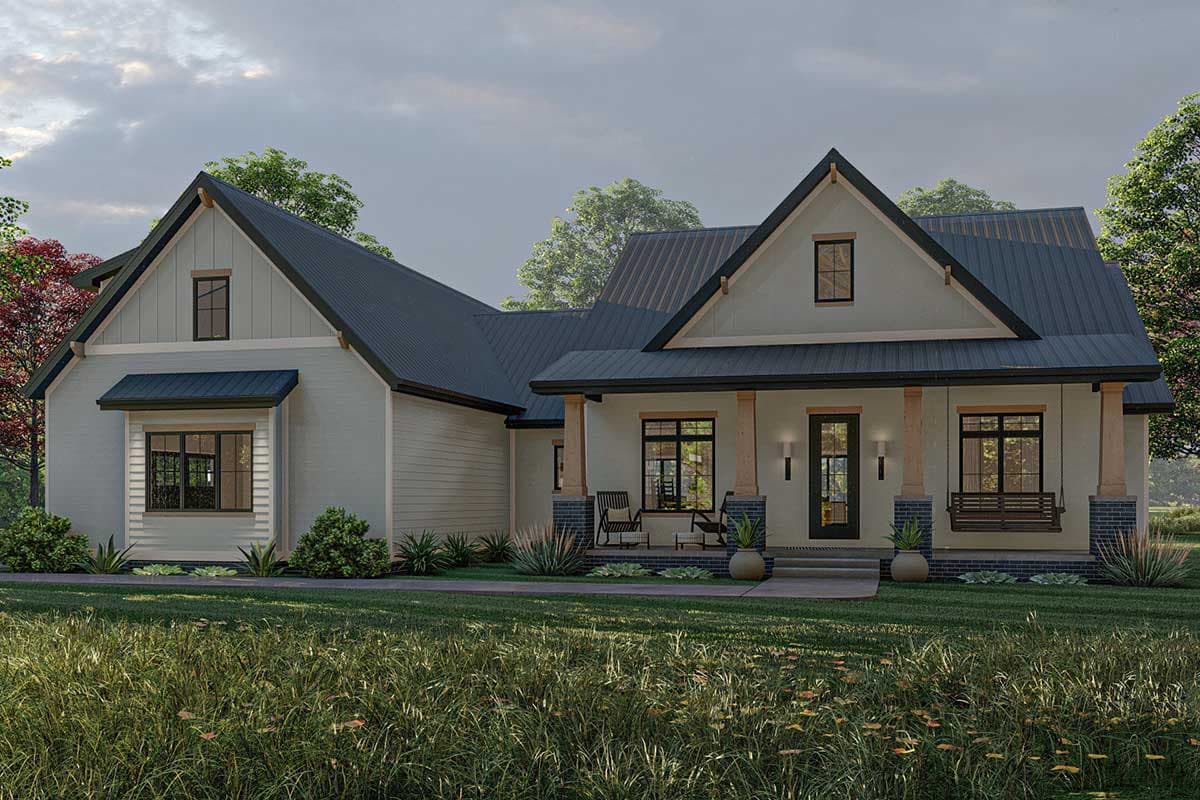

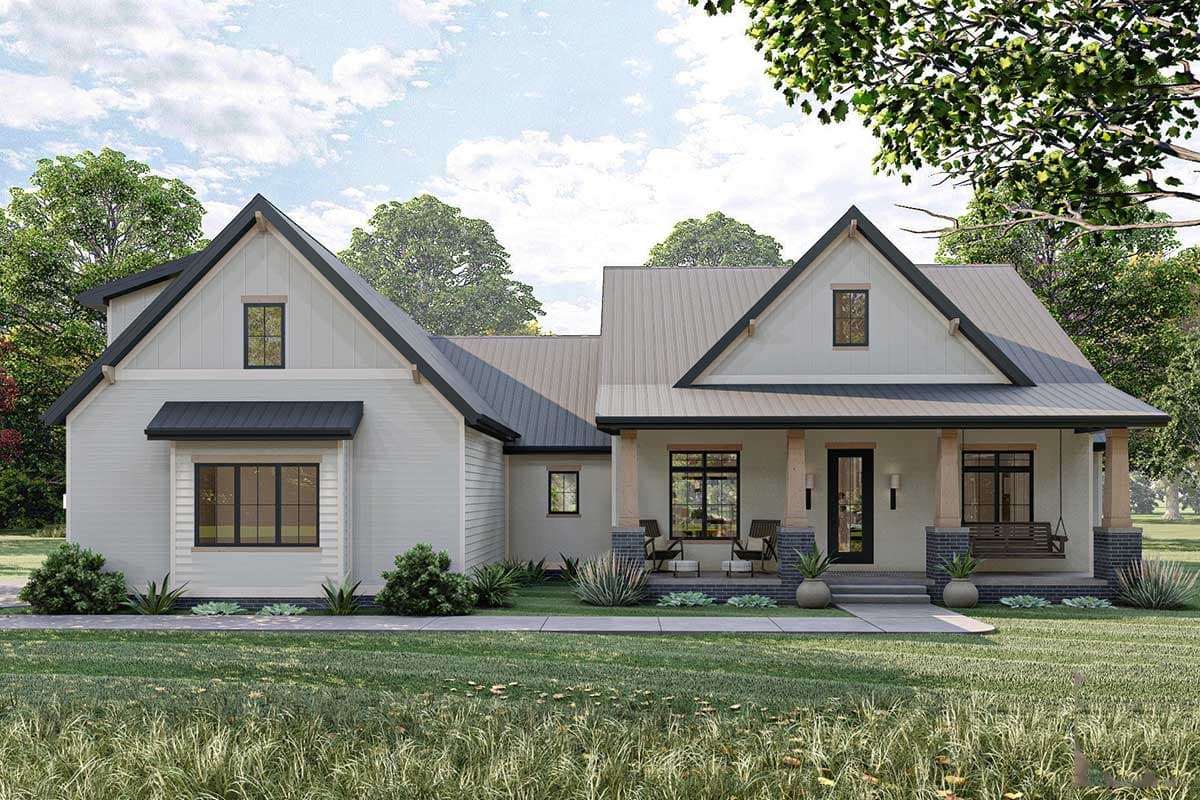

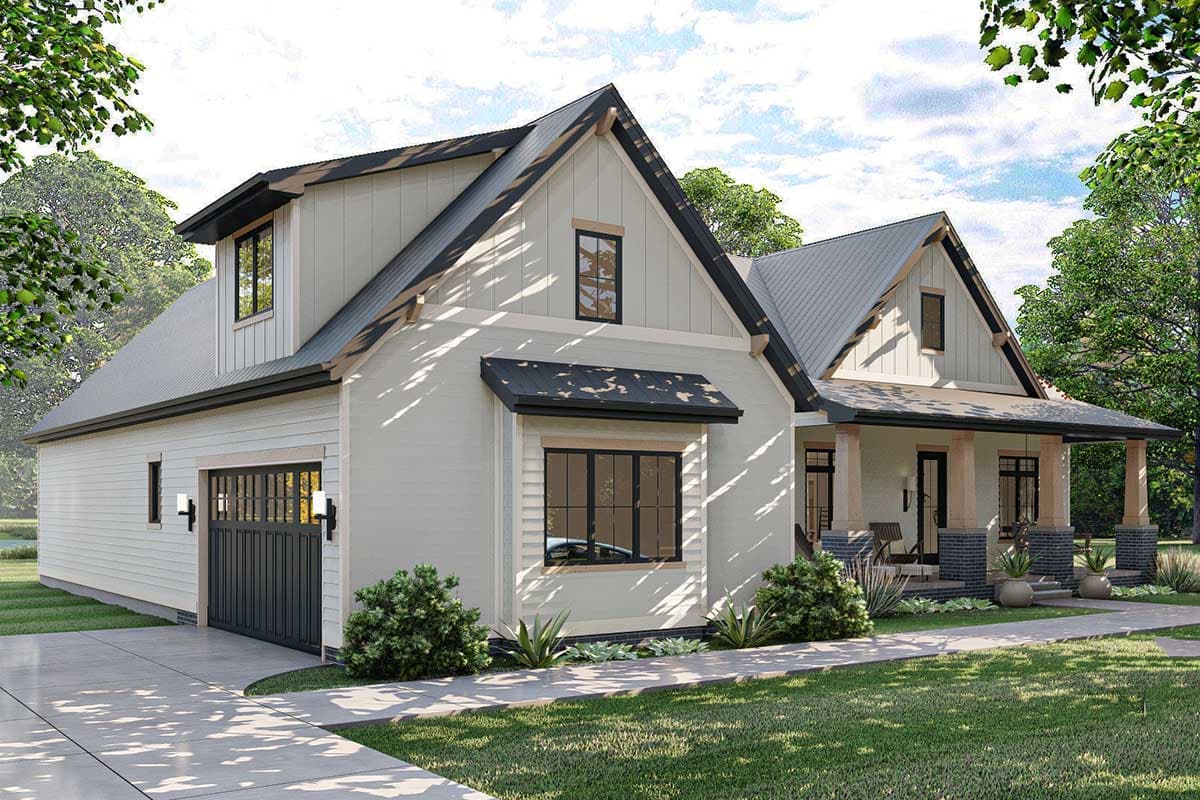

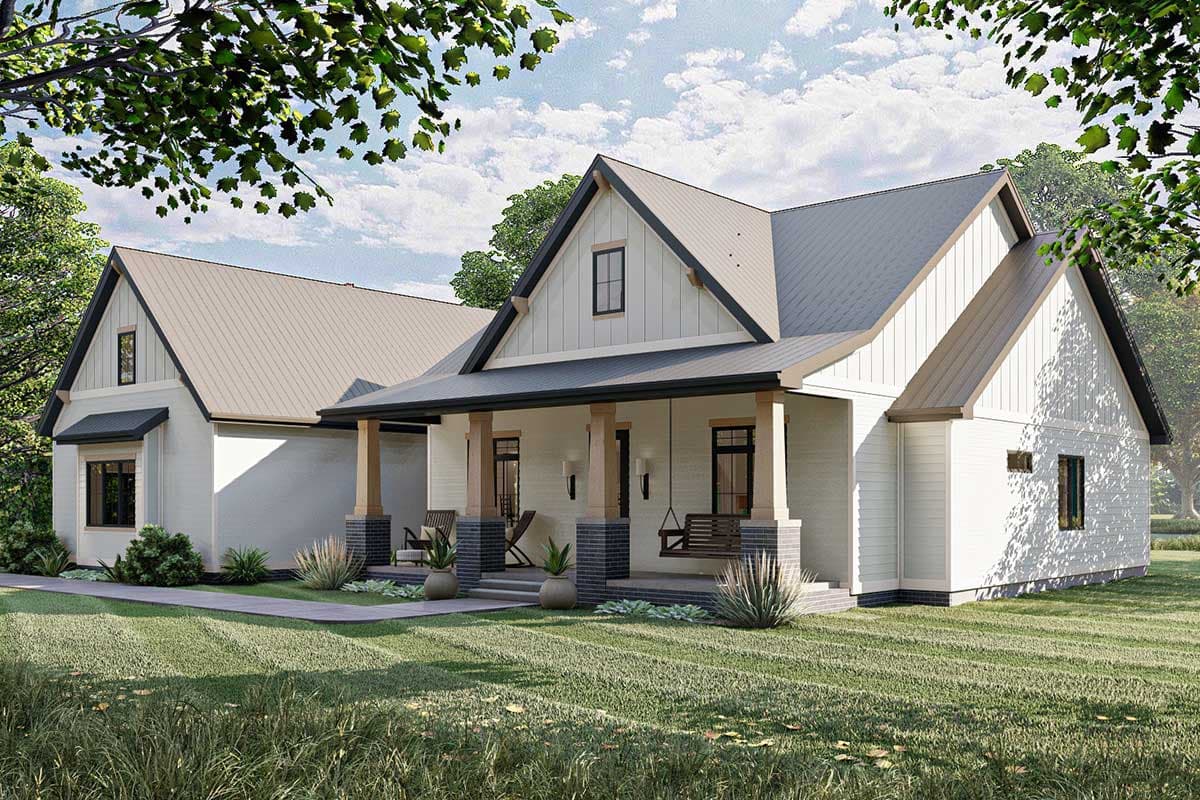

This beautiful 4-bed modern farmhouse-style house plan has an exterior that combines wood accents, a metal roof, and board and batten siding creating a home that will fit in just about any neighborhood. A large front covered porch (32'8" by 7') invites guests into the home.

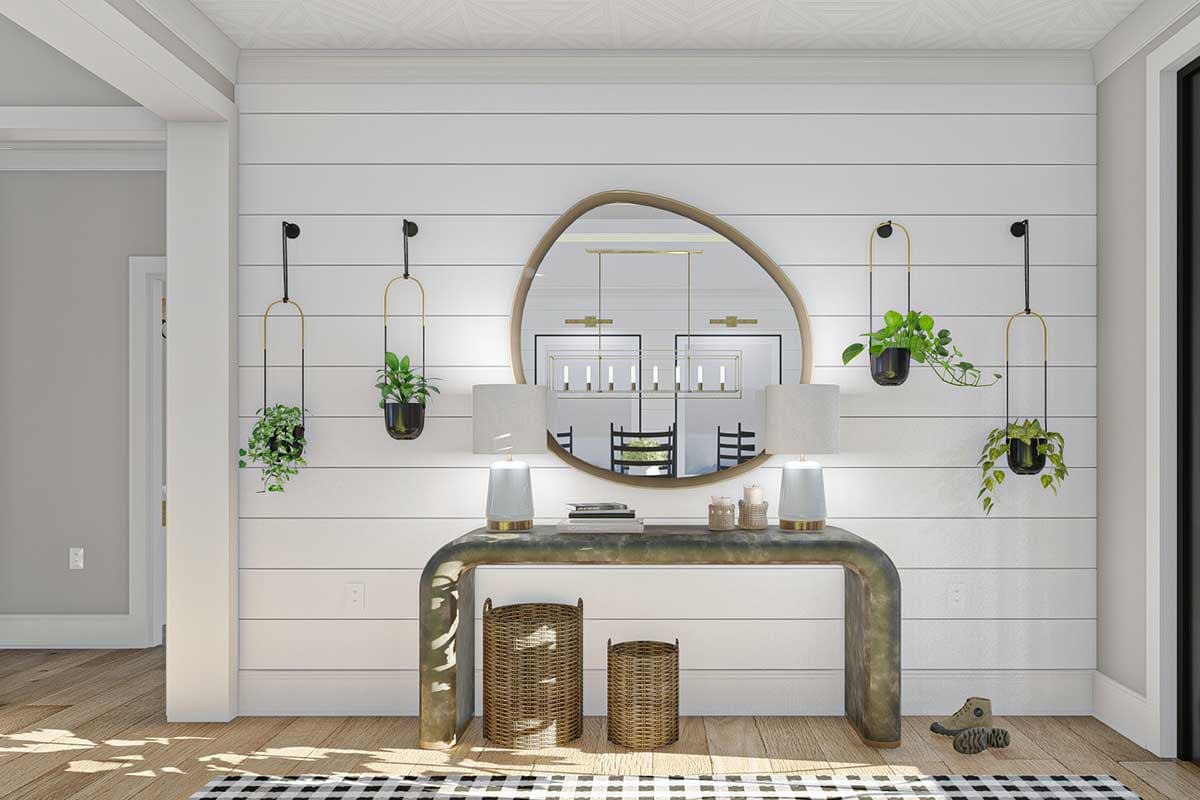

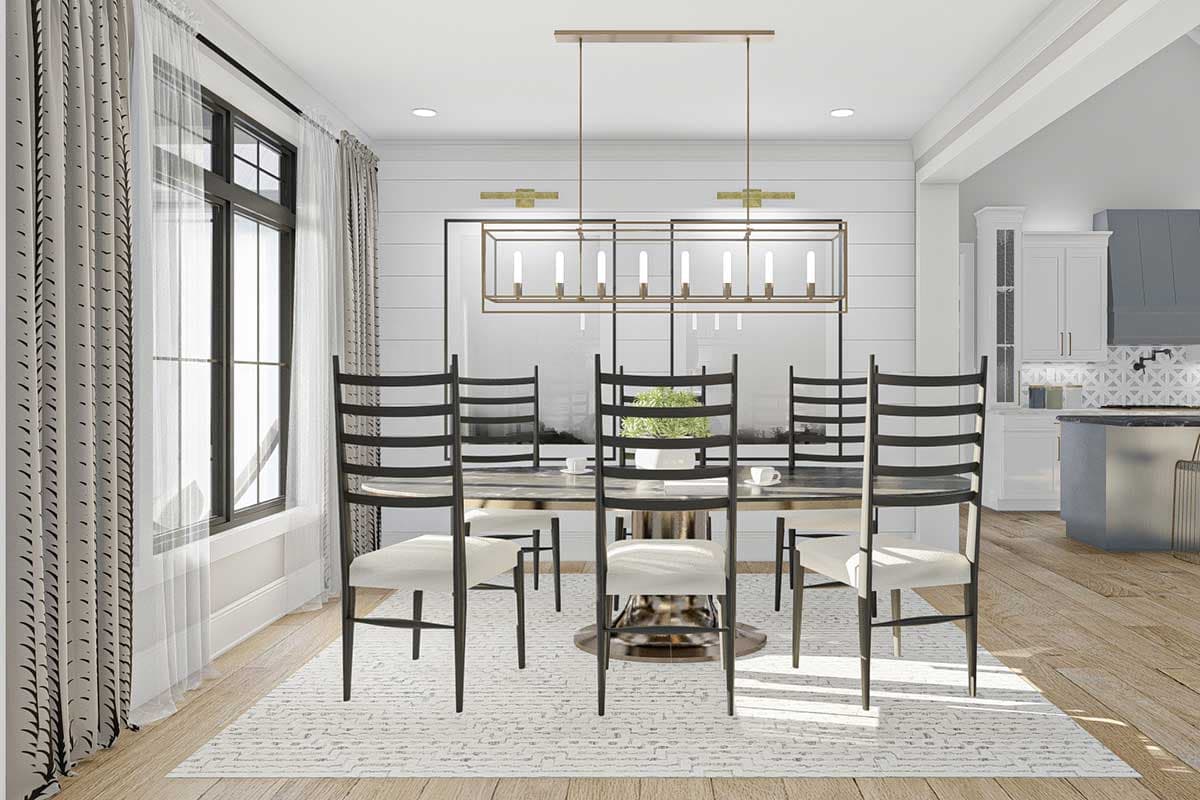

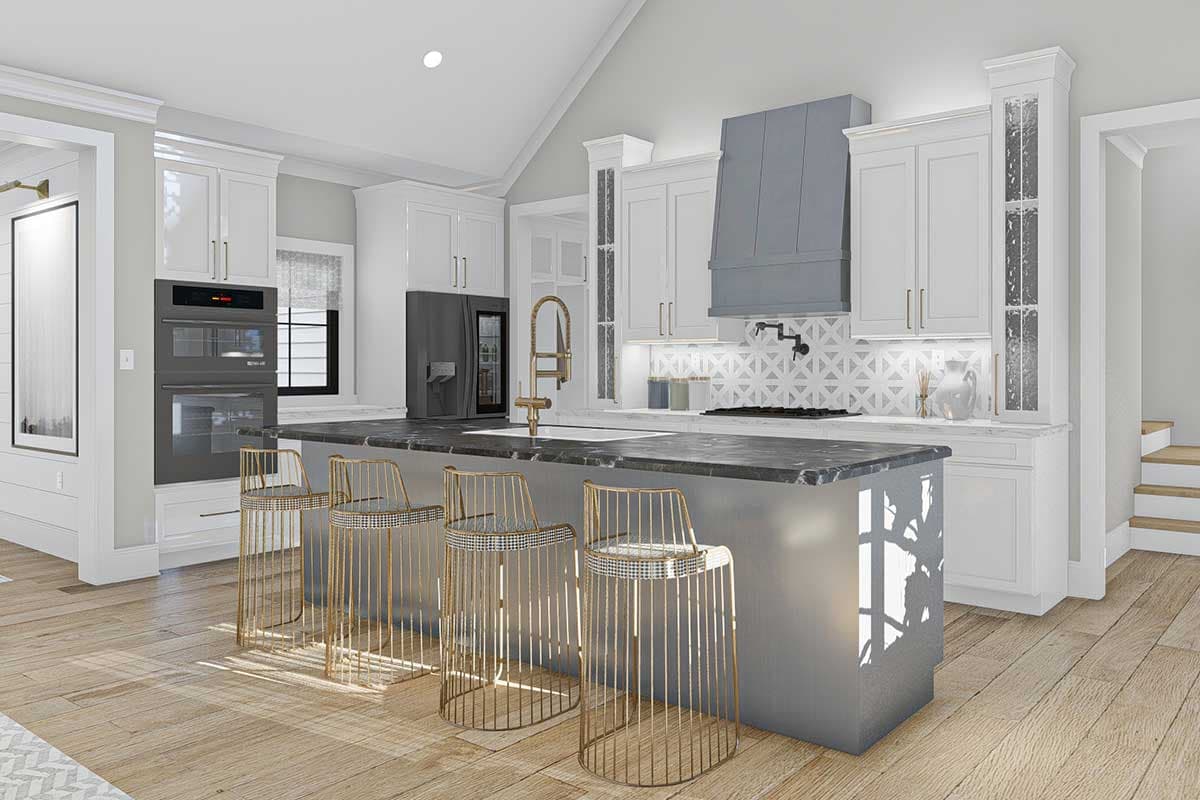

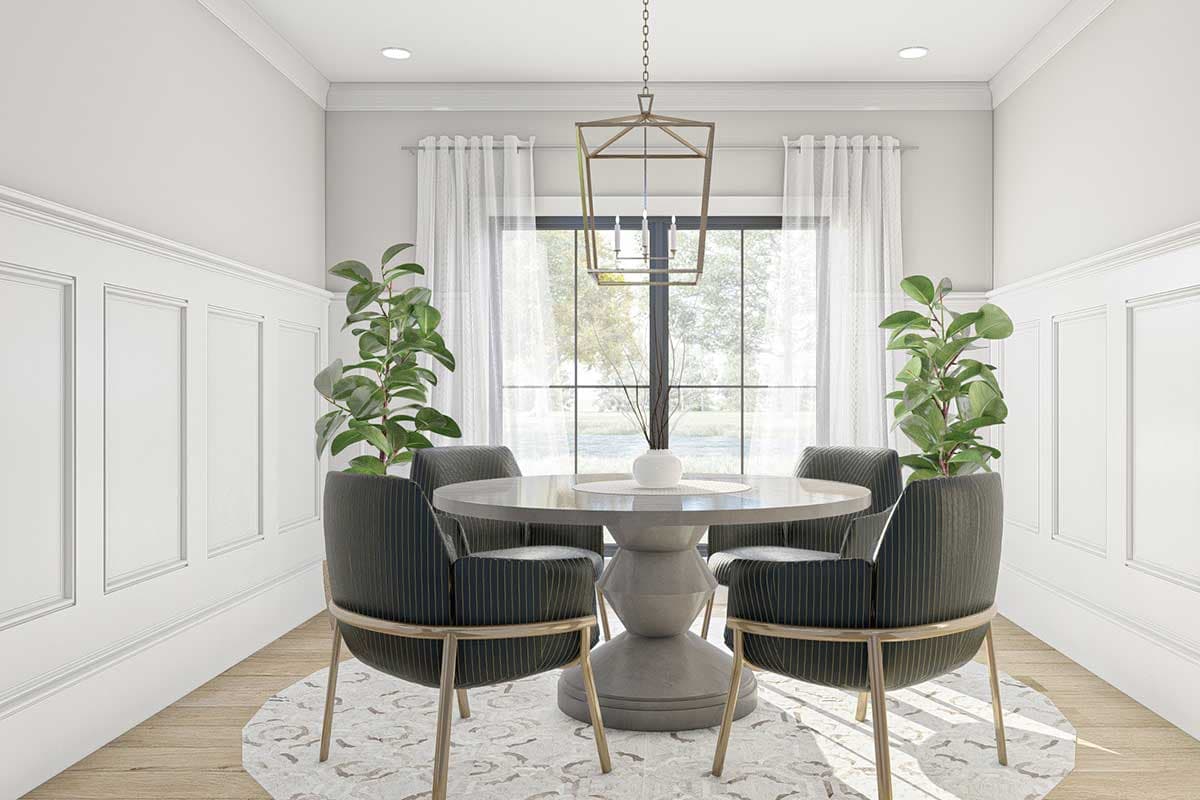

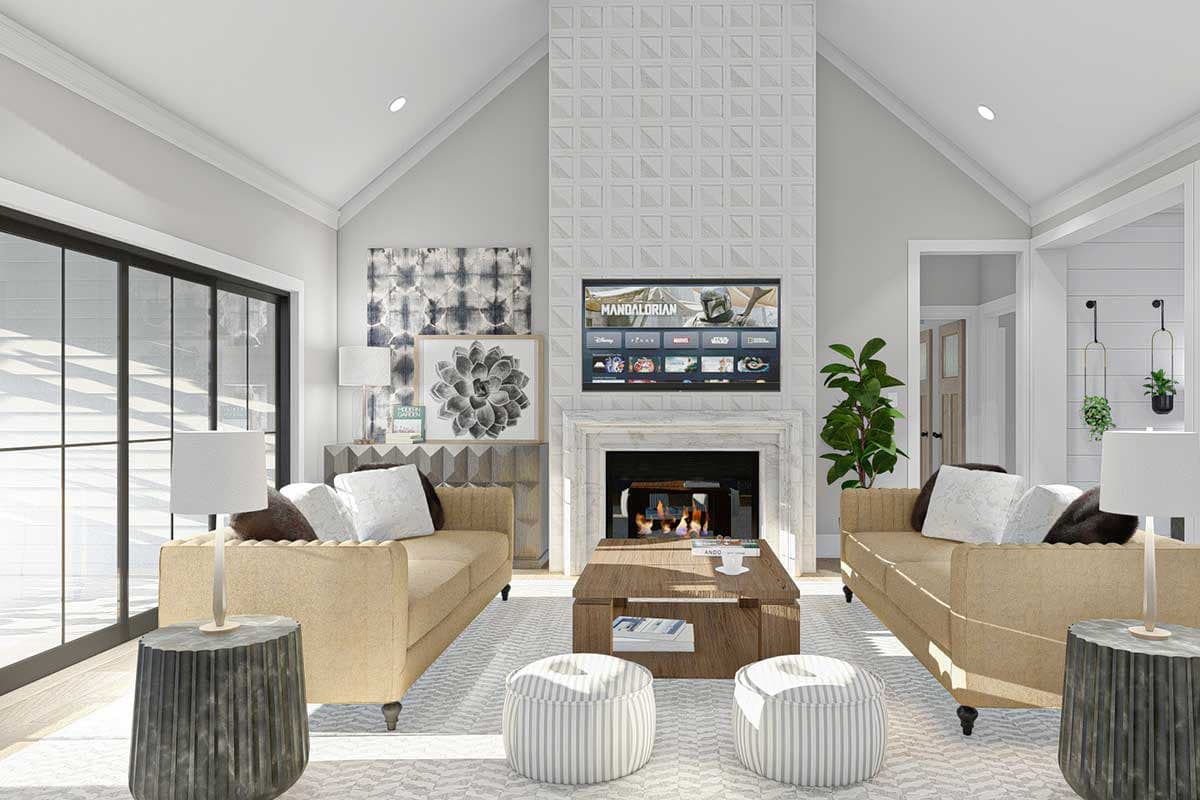

Just inside the entry, you'll see the formal dining room that is perfect for large family meals. The great room lies under a 16'-high cathedral ceiling and opens to the rear covered porch through a large sliding glass door. The kitchen includes a large island 3' by 10' island and a massive 6'2" by 9'8" walk-in pantry. A dinette can be found towards the rear of the home, off the kitchen.

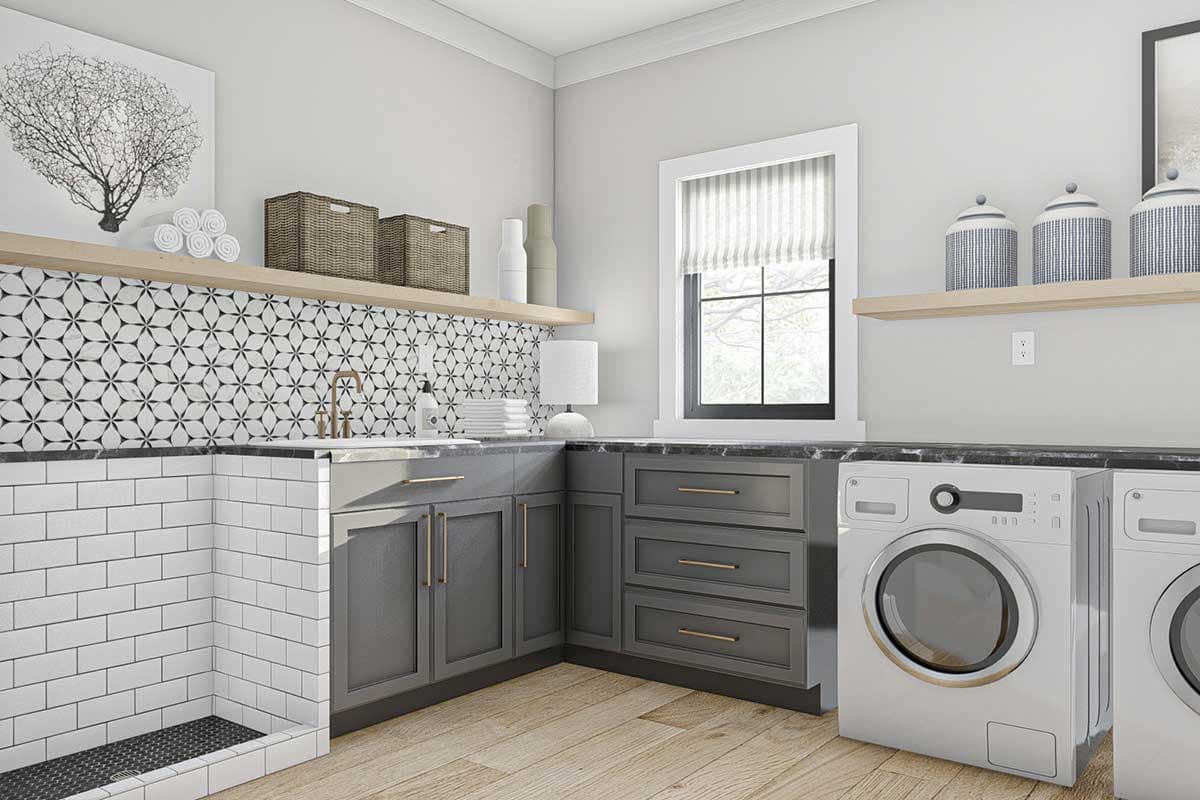

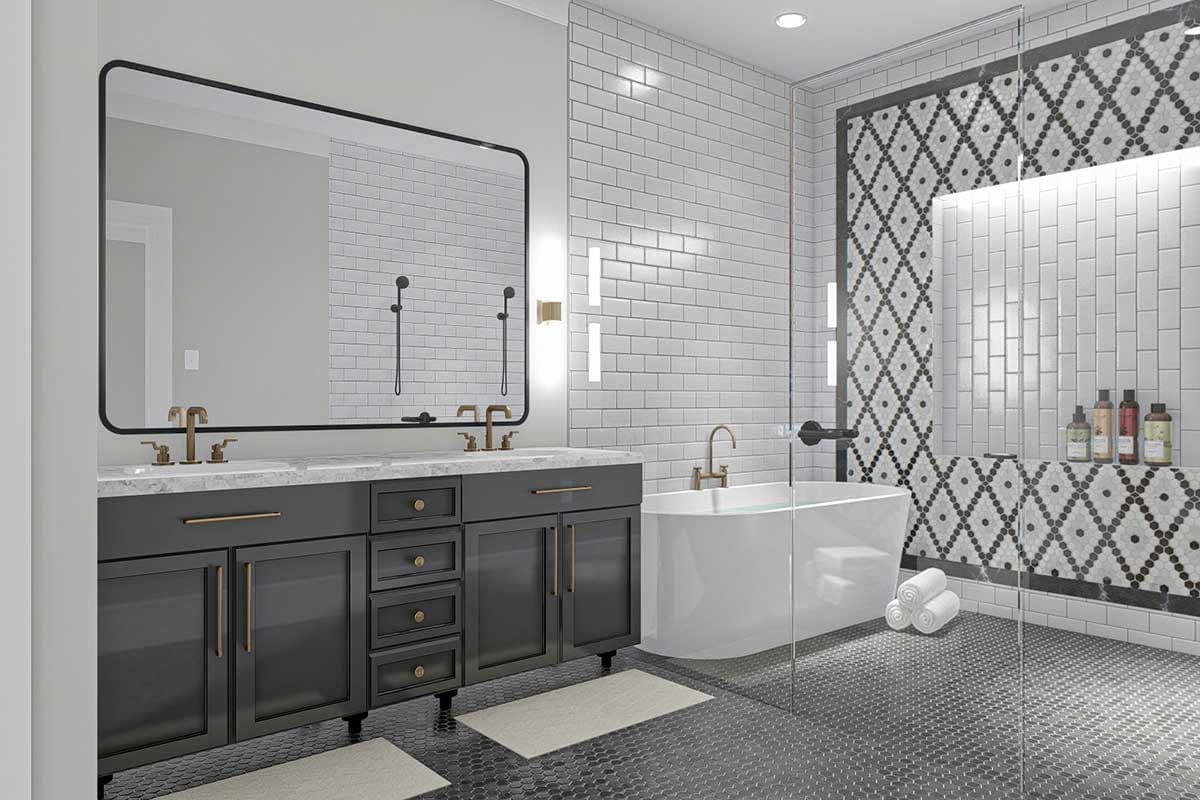

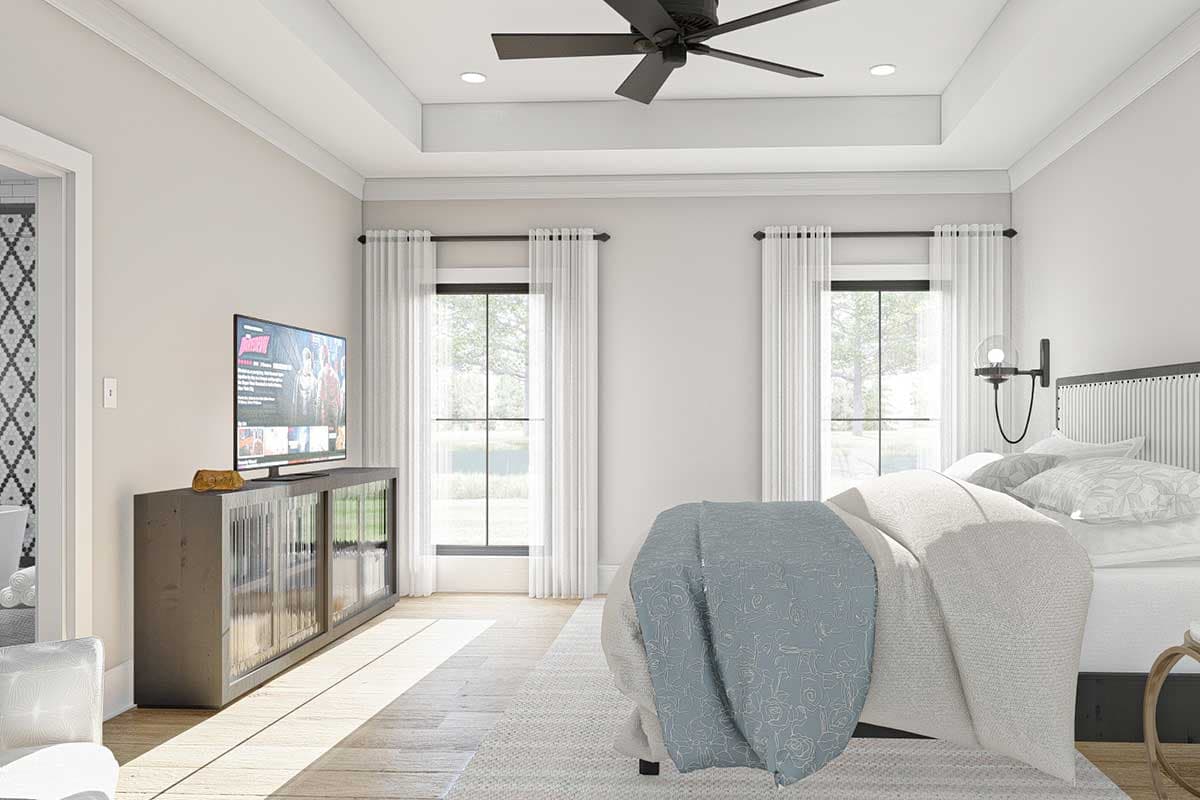

Tucked away on the left side of the home, you'll find the stunning master suite. The master bedroom lies under a trayed ceiling. The master bathroom includes a wet room, dual vanity, and a large walk-in closet with access to the laundry room. The laundry room includes an amazing dog wash area.

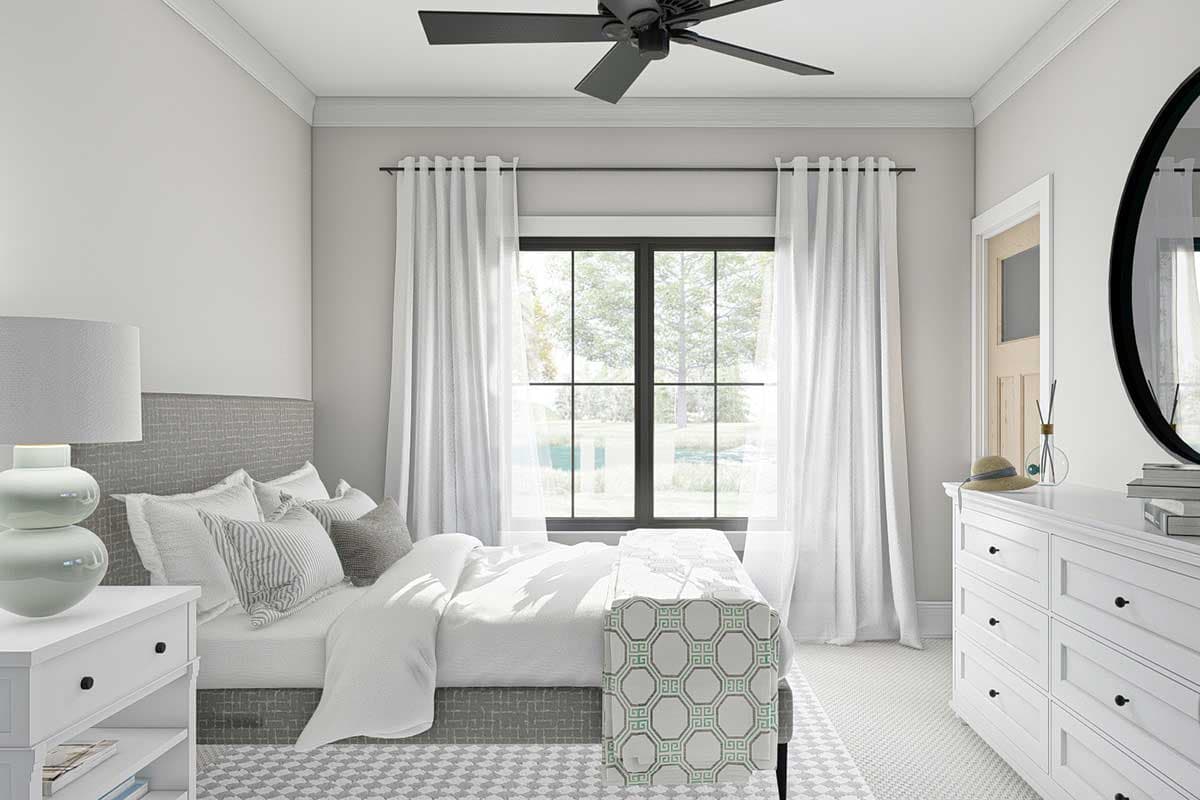

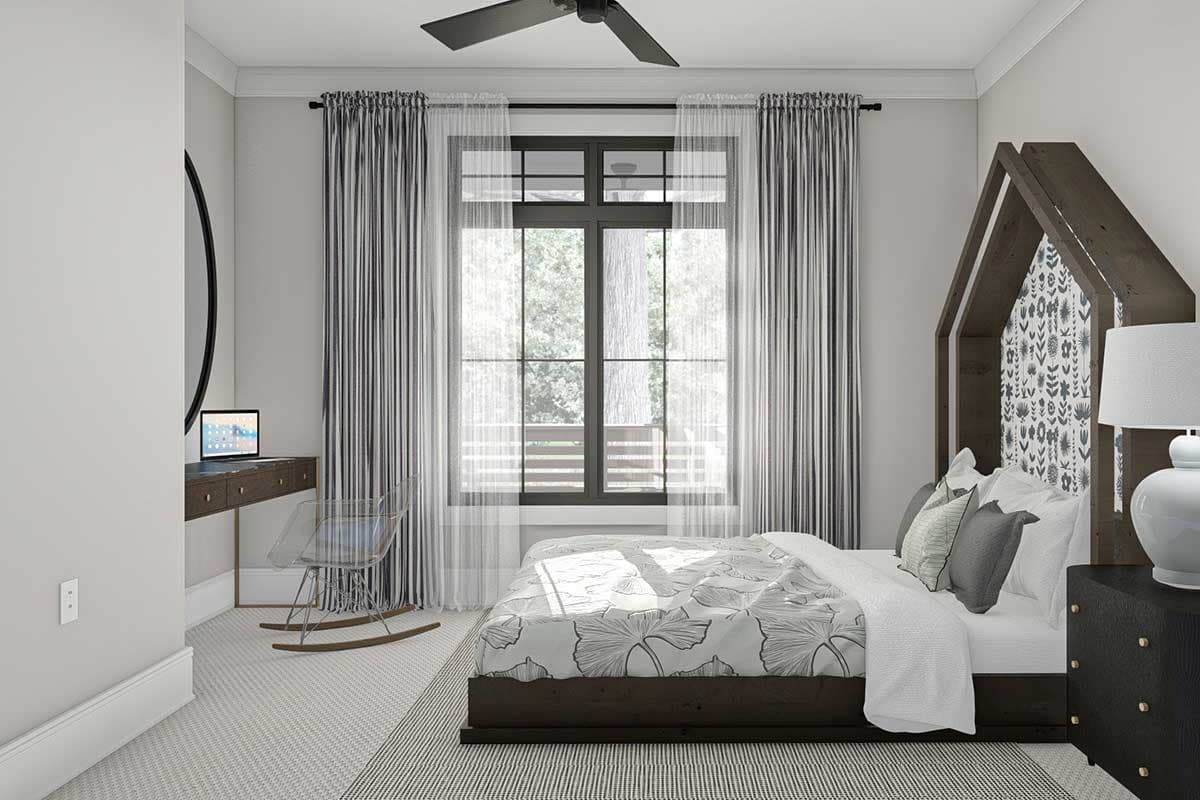

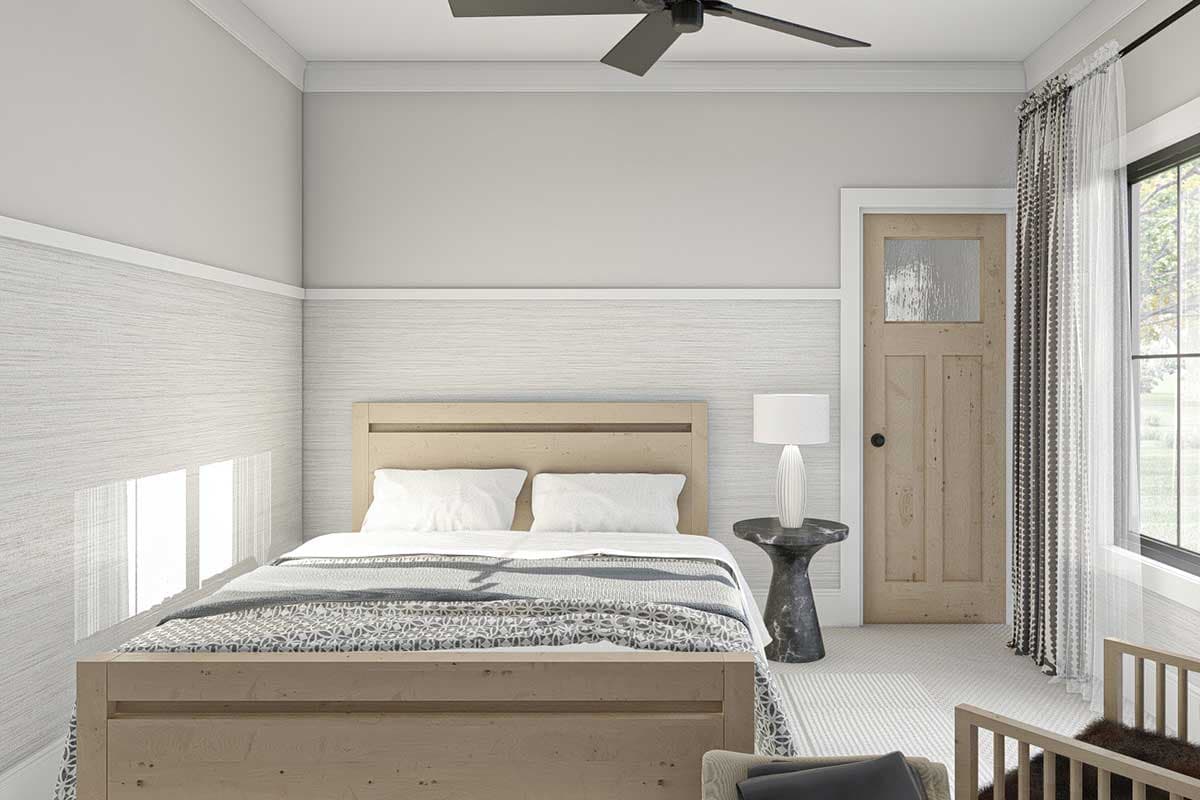

The right side of the home includes 3 additional bedrooms that each have their own walk-in closet. The bedrooms share a conveniently located hall bathroom.

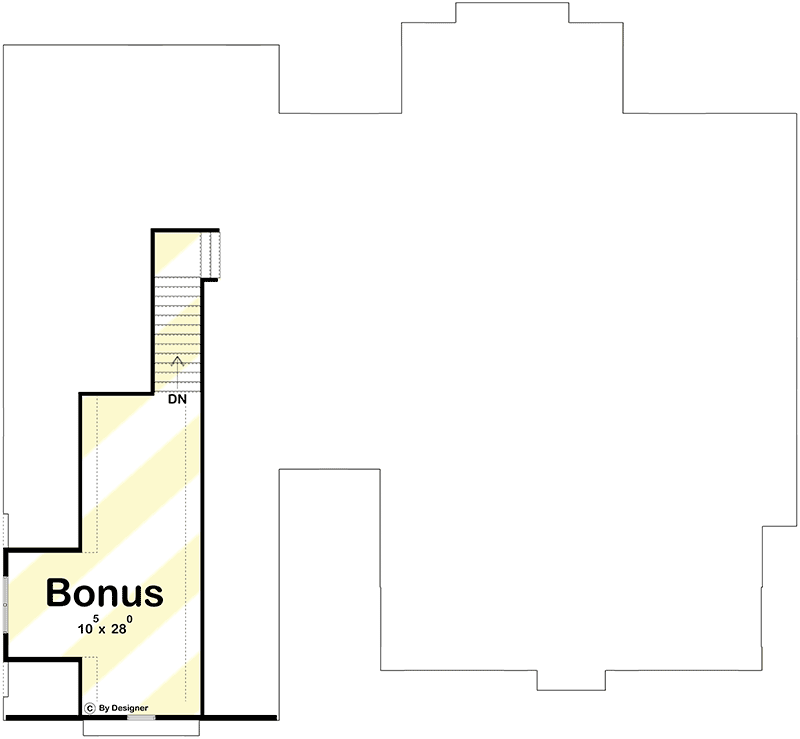

An optional bonus room adds 379 square feet and is a perfect place for a home office or playroom.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
