Page 1 Cover Sheet with abbreviations, rendering, sheet index
Page 2 Foundation plan and details

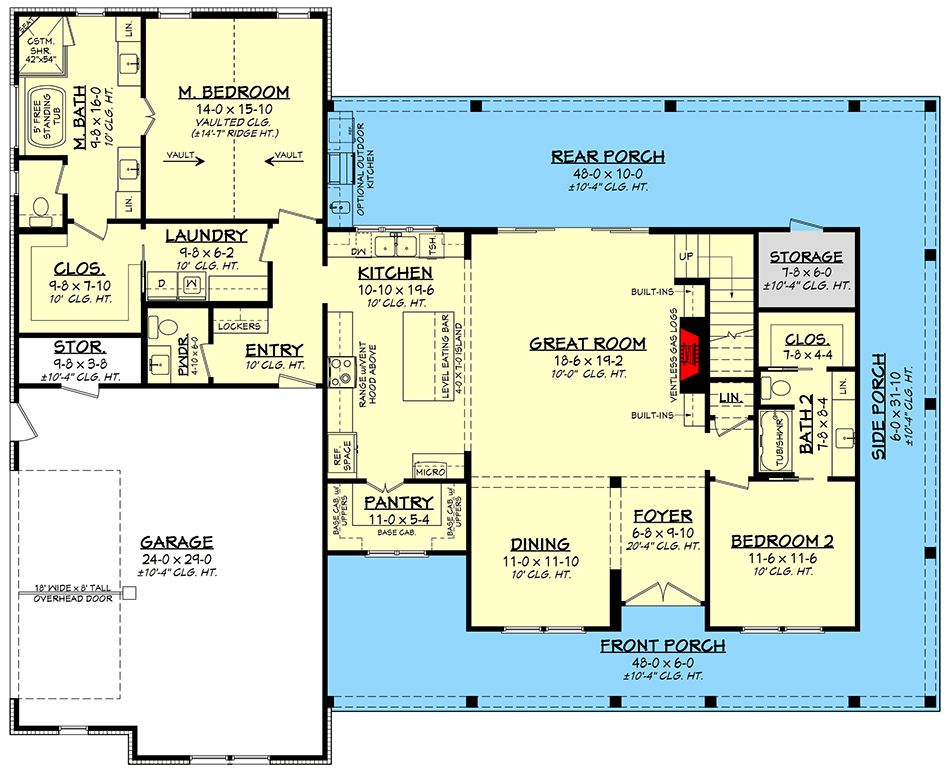

Page 3 Detailed first floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

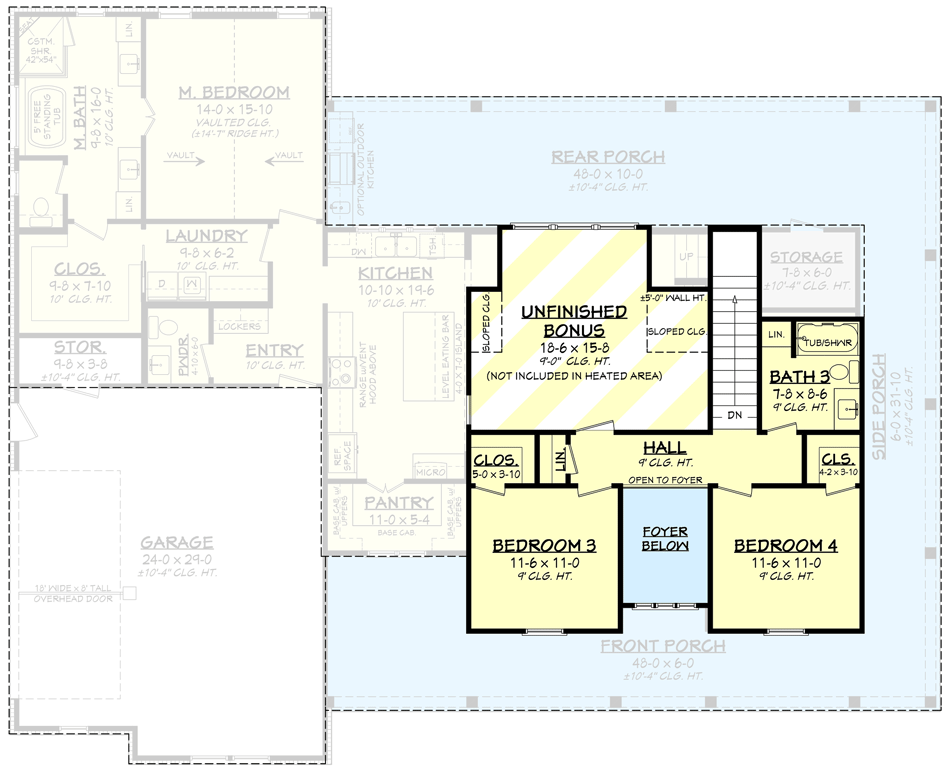

Page 4 Detailed second floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

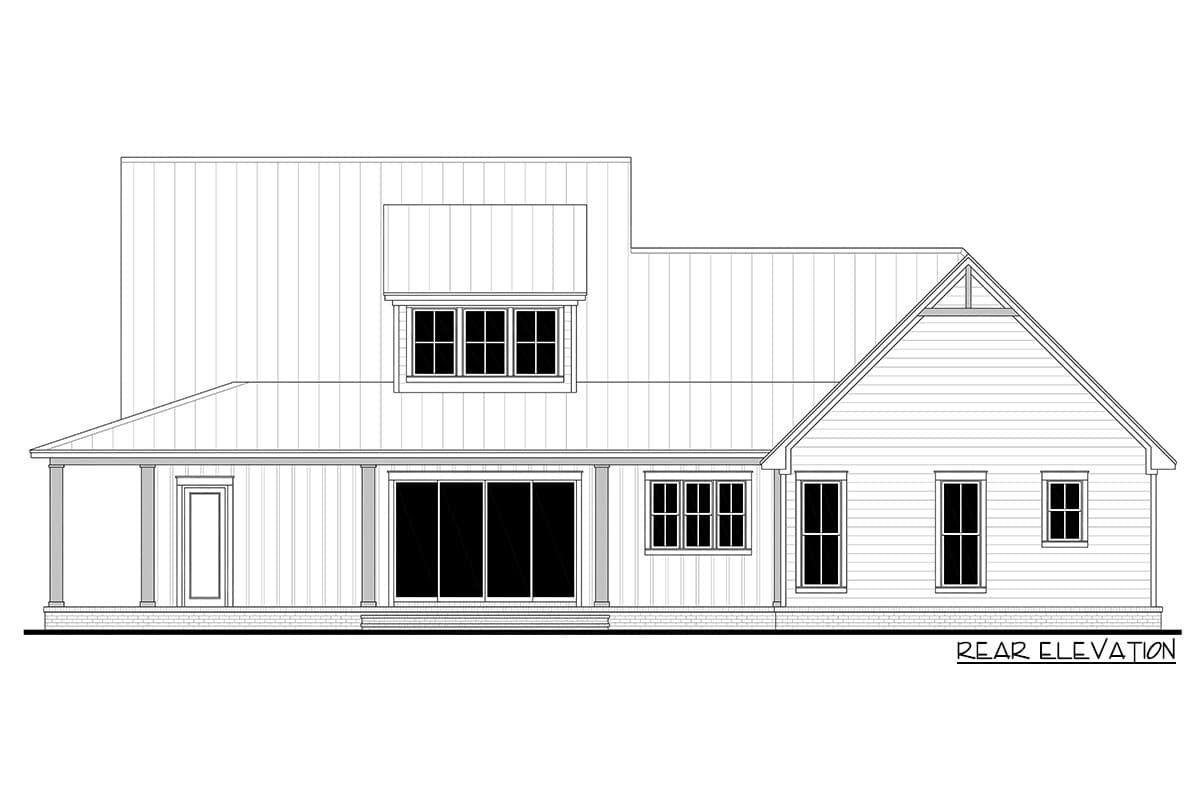

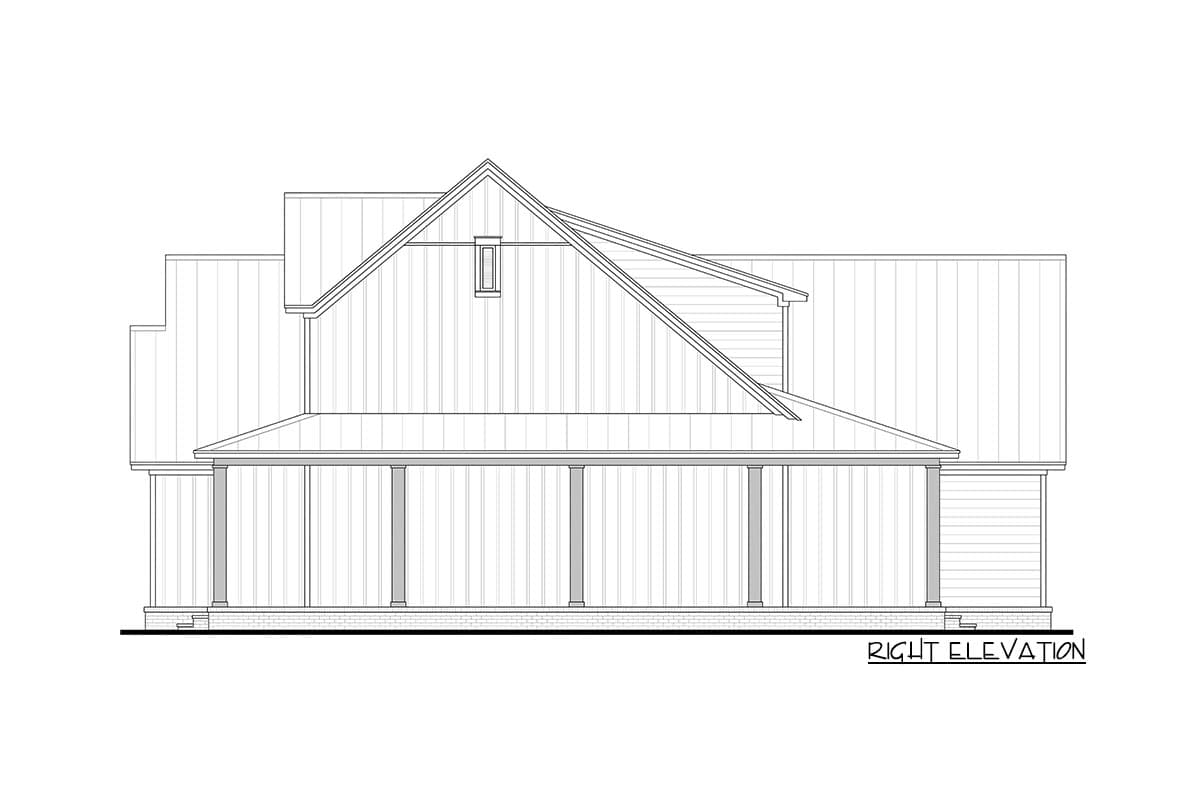

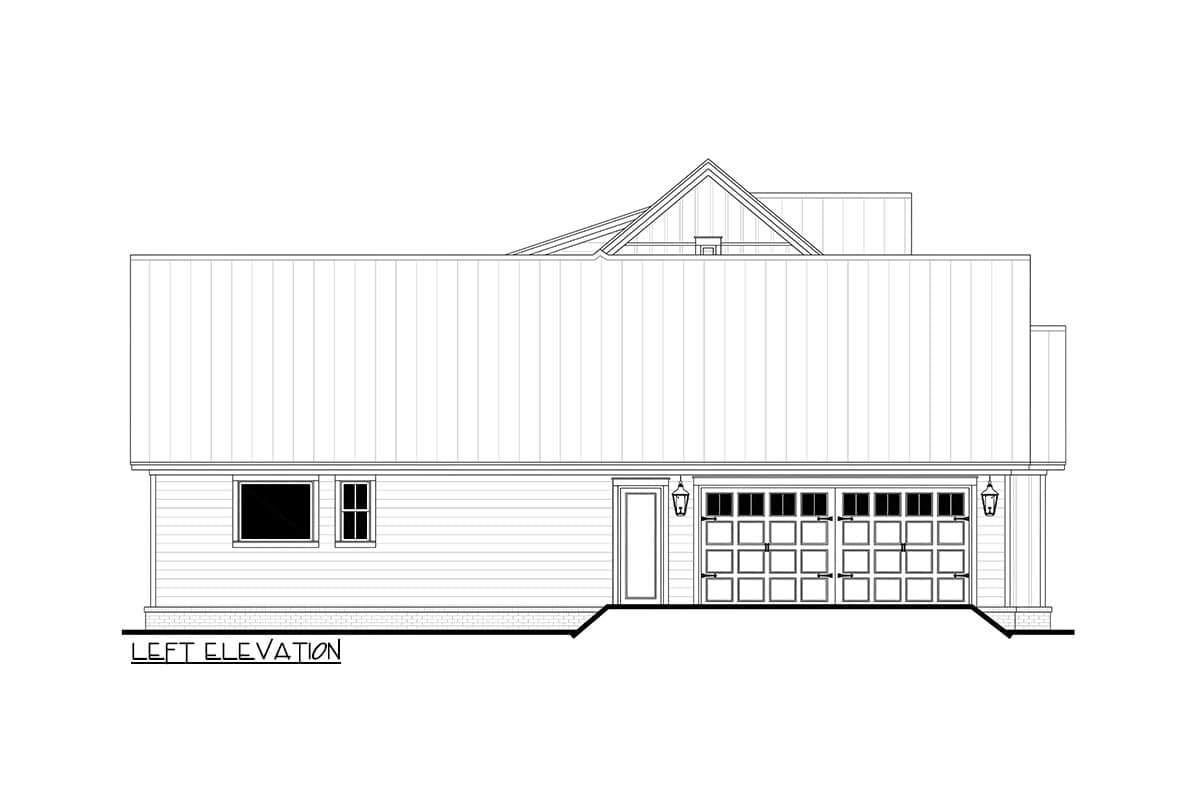

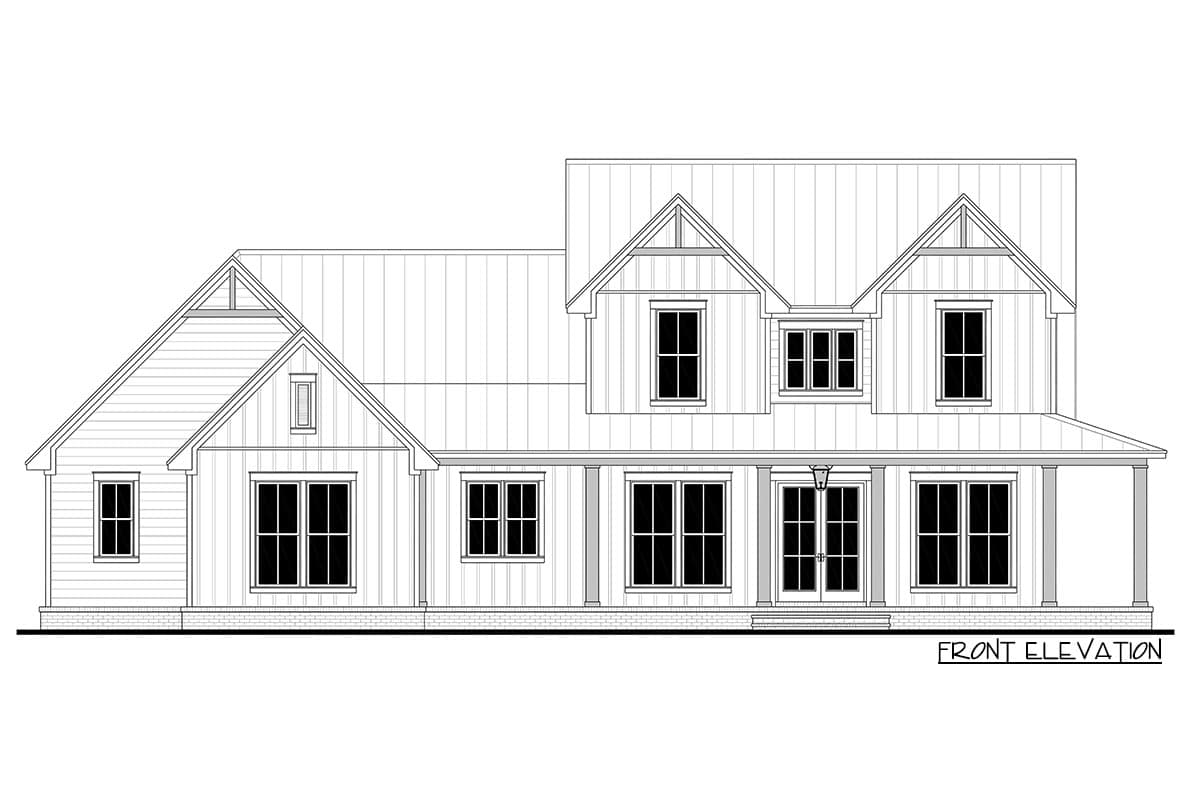

Page 5 Exterior views with additional notes and details
Page 6 Exterior views with additional notes and details
Page 7 Cross Sections & kitchen cabinet views
Page 8 Roof plan and span charts with additional notes
Page 9 First floor electrical plan with notes and legend
Page 10 Second floor electrical plan with notes and legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
These items are NOT included:
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
