Plan 22686DR

4-Bed Modern House Plan with 3 Lower Level Bedrooms - 1710 Sq Ft

Heated S.F.
1,710
Beds
4
Baths
2.5
Stories
1

Floor Plan

Plan 22686DR

Main Level
Main Level
Basement
Basement

Plan 22686DR

M-F 9am-5pm EST |

1-203-761-8500

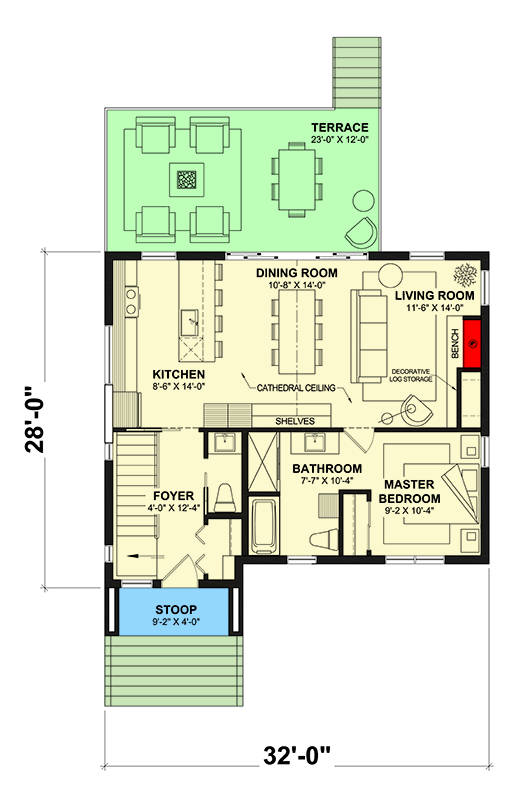

Main Level

Plan 22686DR: 4-Bed Modern House Plan with 3 Lower Level Bedrooms - 1710 Sq Ft - Floor Plan - Main Level - Mid Century Modern, Modern

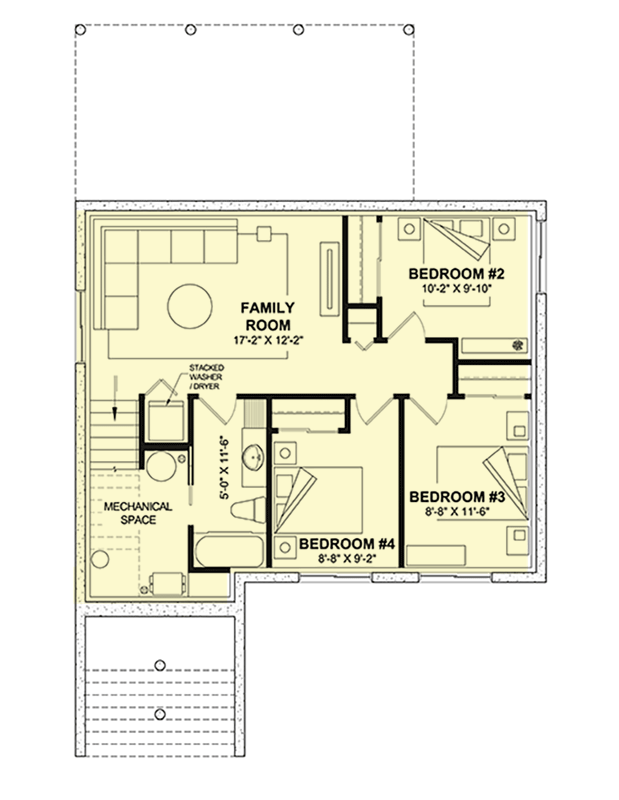

Basement

Plan 22686DR: 4-Bed Modern House Plan with 3 Lower Level Bedrooms - 1710 Sq Ft - Floor Plan - Basement - Mid Century Modern, Modern

Plan Details

  • This one-story modern house plan with finished lower level gives you 4 beds, 2.5 baths and 1,710 square feet of heated living space. The master suite is on the main floor and the kids' beds are in the lower level along with laundry for your convenience.

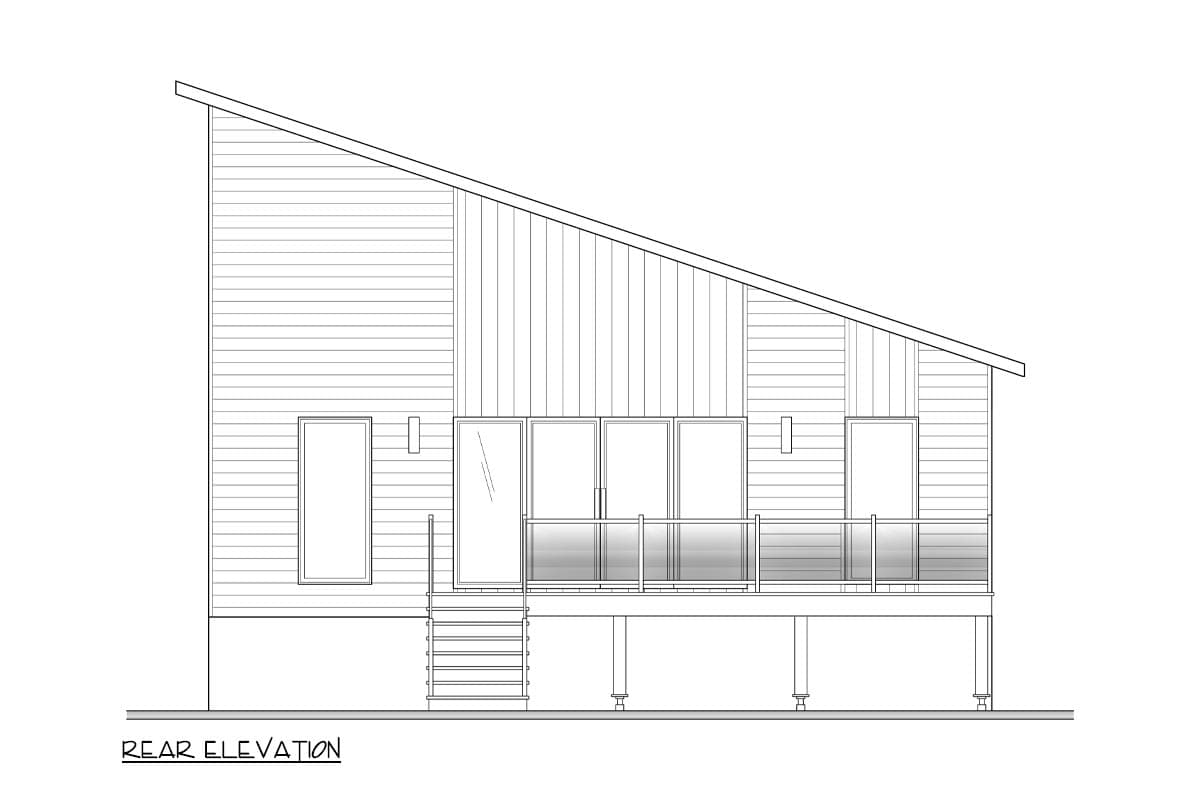

  • The kitchen, vaulted dining room and living room with fireplace are open to each other and oriented with views to the back. Sliding doors in the dining room open to the terrace in back, giving you the best of indoor-outdoor living.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,710 sq. ft.

1st Floor

855 sq. ft.

2nd Floor

855 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

28' 0"

Max Ridge Height

21' 10"

Ceiling Heights

Lower Level

8'

First Floor

8'

Room

Ceiling Type

Height

Kitchen

10' 0''

Living Room

10' 0''

Dining Room

Vaulted

13' 3''

Architectural Style

Mid Century Modern

Modern

Special Features

Laundry - Lower Level

Master Suite - 1st Floor
