4 Bed Mountain Craftsman Beauty

Plan 54210HU

  • 3,691

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

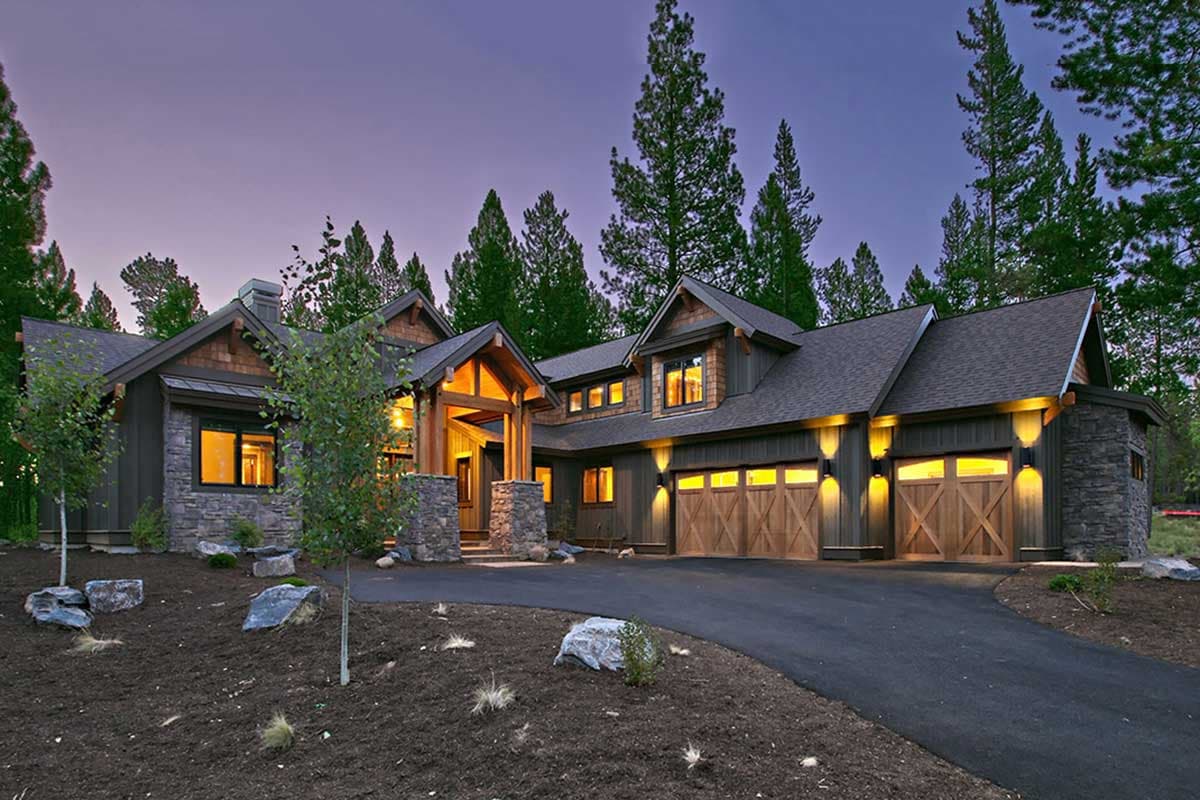

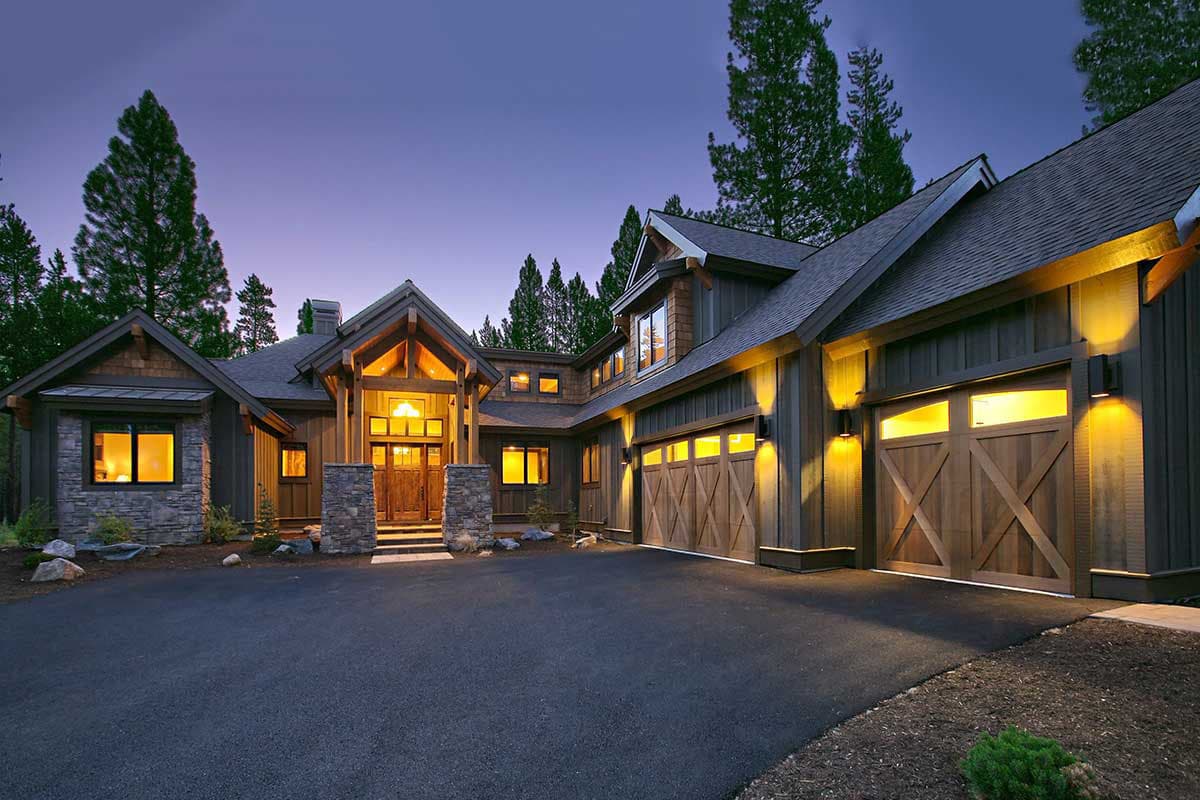

  • This 4 bed Mountain Craftsman home plan has a rugged exterior with beefy timbers and an attractive combination of wood and stone. The vaulted covered entry is flanked by two stone bases with four timbers each supporting the roof.
  • The vaulted great room greets you when you step inside. It has incredible views to the back and is open to the kitchen. A fireplace and built-ins line the left wall.
  • The master is on the main floor and has access to a private patio. The walk-in closet is large and there is a spa tub and walk-in shower. Two bedrooms across the home plus a third one upstairs completes the sleeping spaces.
  • The upstairs bonus room is figured into the total living area and makes a great play or media room.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

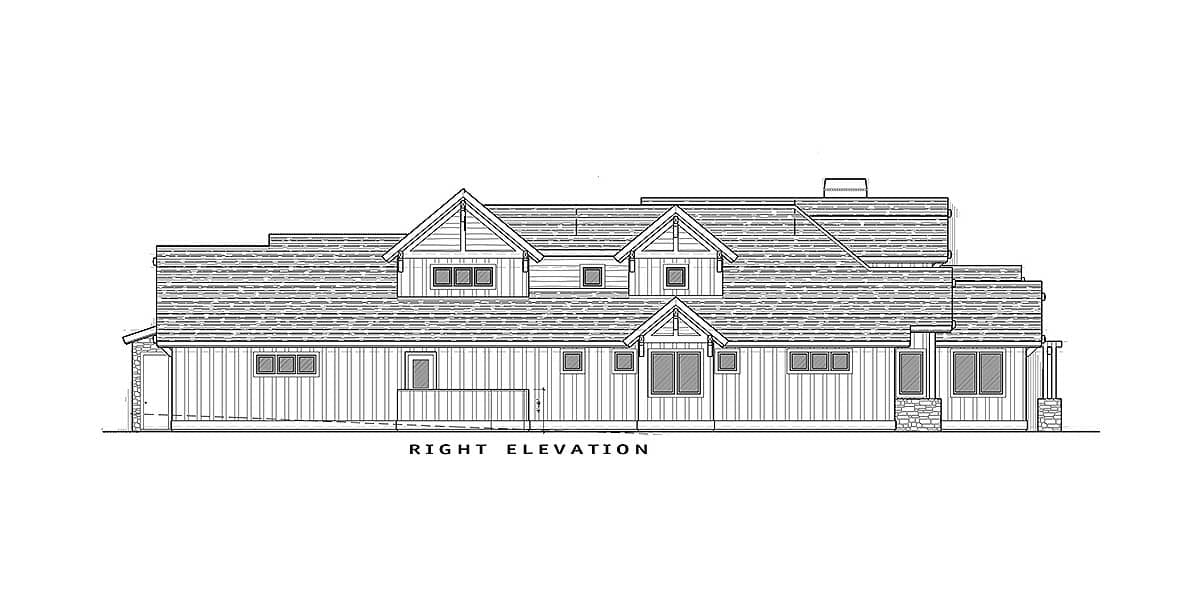

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

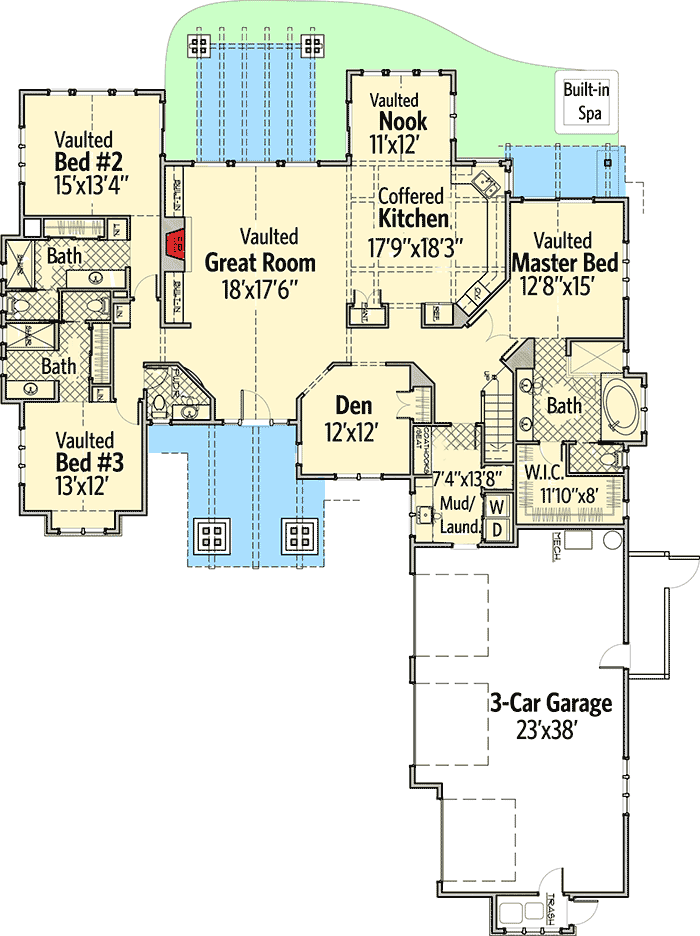

4 Bed Mountain Craftsman Beauty - 54210HU floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

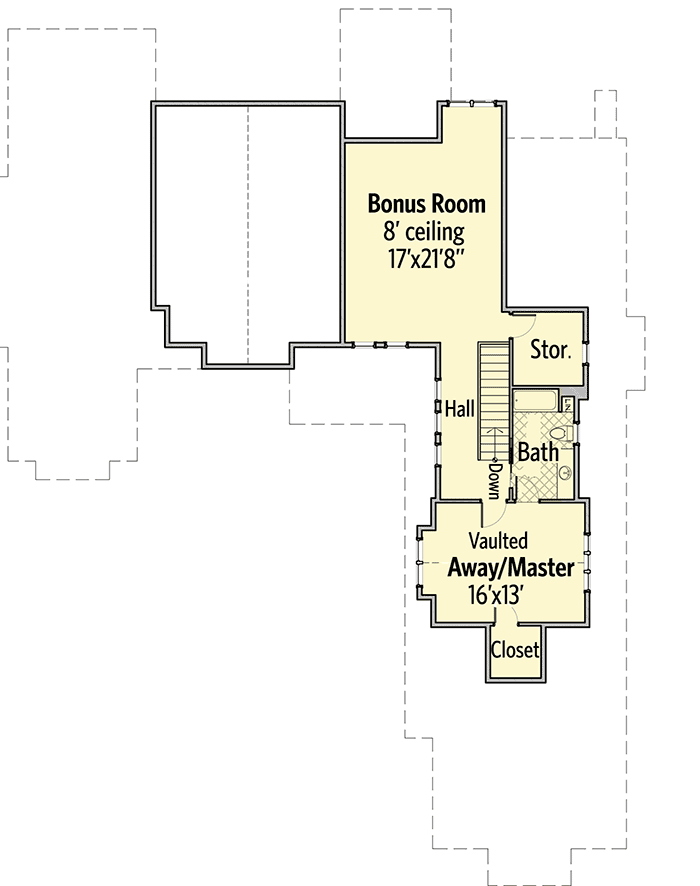

4 Bed Mountain Craftsman Beauty - 54210HU floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,691 sq. ft.
  • 1st Floor: 2,720 sq. ft.
  • 2nd Floor: 971 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 71' 0"
  • Depth: 99' 0"

Garage

  • Type: Attached
  • Area: 948 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12

Architectural Style

Special features

Plan Collections

4 Bed Mountain Craftsman Beauty

  • 3,691

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • 5 Sets $2,095
  • 8 Sets $2,195
  • CAD + PDF - Single-Build $2,895
  • View all purchase option online

About This Plan

  • This 4 bed Mountain Craftsman home plan has a rugged exterior with beefy timbers and an attractive combination of wood and stone. The vaulted covered entry is flanked by two stone bases with four timbers each supporting the roof.
  • The vaulted great room greets you when you step inside. It has incredible views to the back and is open to the kitchen. A fireplace and built-ins line the left wall.
  • The master is on the main floor and has access to a private patio. The walk-in closet is large and there is a spa tub and walk-in shower. Two bedrooms across the home plus a third one upstairs completes the sleeping spaces.
  • The upstairs bonus room is figured into the total living area and makes a great play or media room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,691 sq. ft.
  • 1st Floor: 2,720 sq. ft.
  • 2nd Floor: 971 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 71' 0"
  • Depth: 99' 0"

Garage

  • Type: Attached
  • Area: 948 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
Plan 54210HU
View this and more for this plan by visiting www.architechtecturaldesigns.com/54210HU
|
Need Help? 800-854-7852
|
Plan 54210HU
