Plan 51911HZ
4-bed New American Farmhouse with Open Concept Design
Heated S.F.
2,658
Beds
4-5
Baths
3.5 - 4.5
Stories
1
Cars
2
Flyer
What's Included
Plan Details
  • This New American farmhouse has a board and batten exterior and gives you 4 bedrooms and 3.5 baths including an optional bonus room over the 2-car garage.
  • The large great room is open to the dining and kitchen that’s equipped with an eat-at bar (3'8" by 9') and walk-in pantry (5'10" by 7'8").
  • The main suite is equipped with a spacious bathroom with separate vanities and toilet room. You'll enjoy access to the laundry room directly from the suite.
  • On the guest side of the house the 3 bedrooms are designed to allow for a mother-in-law suite with a private bathroom. Beds 2 and 3 share a Jack and Jill bath.

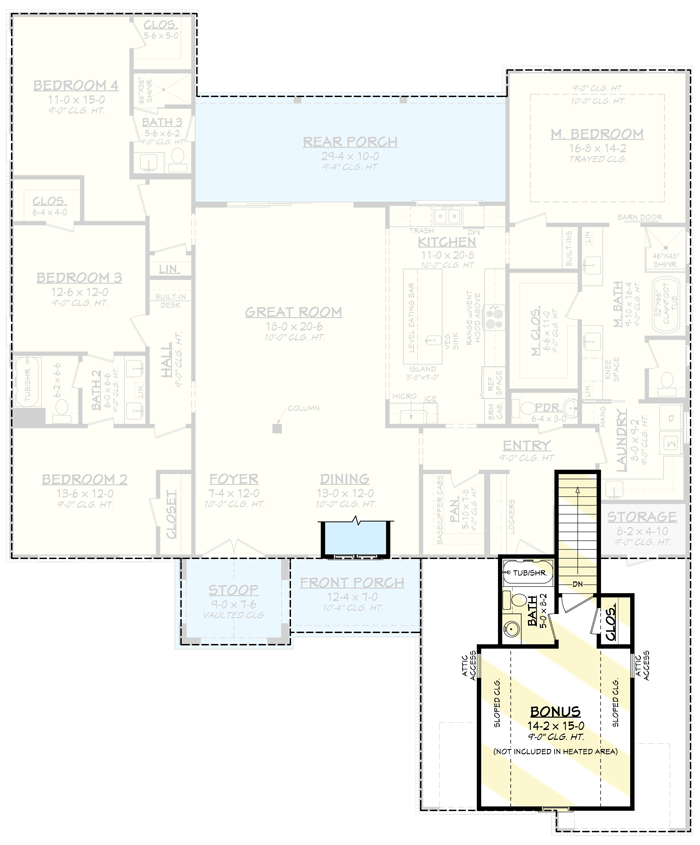

  • Stairs by the garage entry take you up to 314 square feet of expansion. With a bathroom, this could easily be used as a fifth bedroom.
What's Included
This house plan gives you the following details:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details

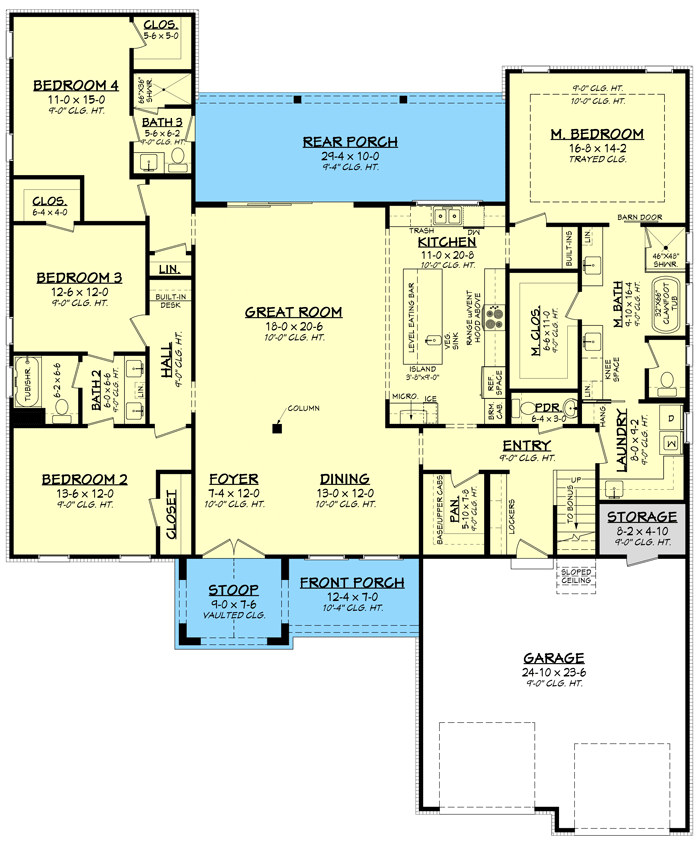

Page 3  Detailed main floor and bonus floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

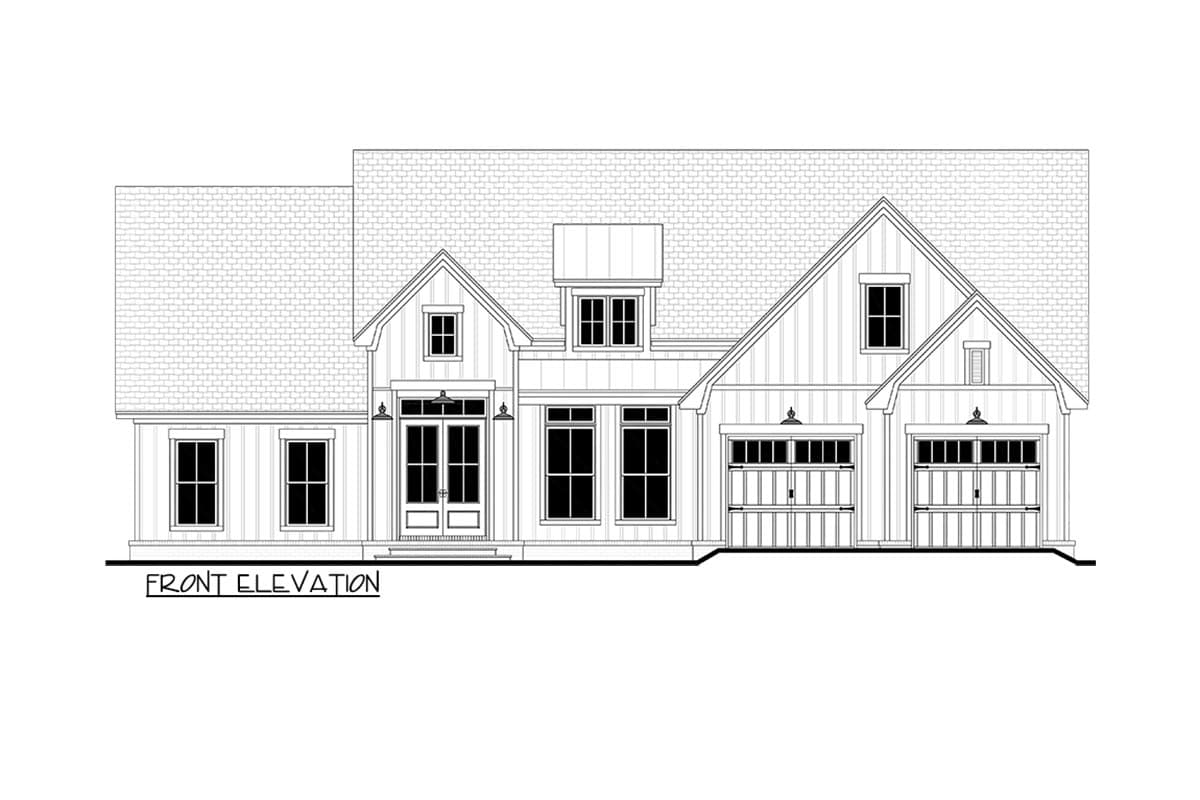

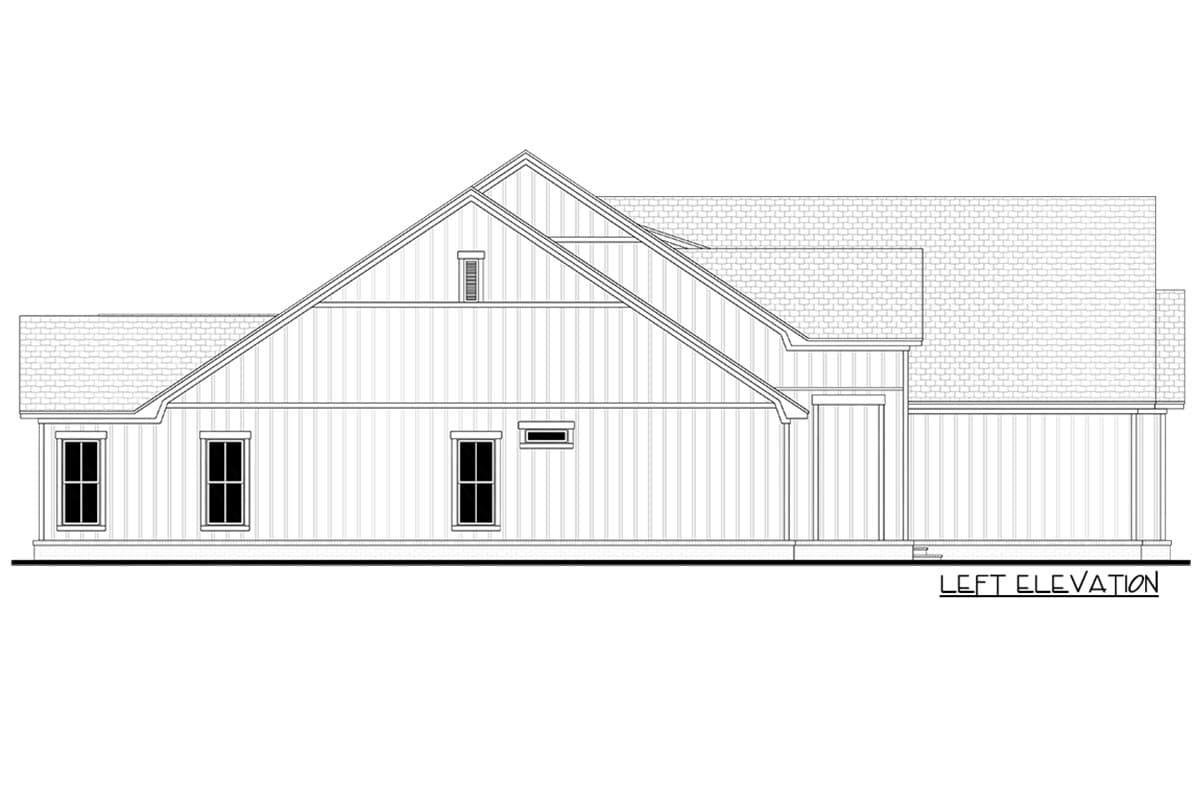

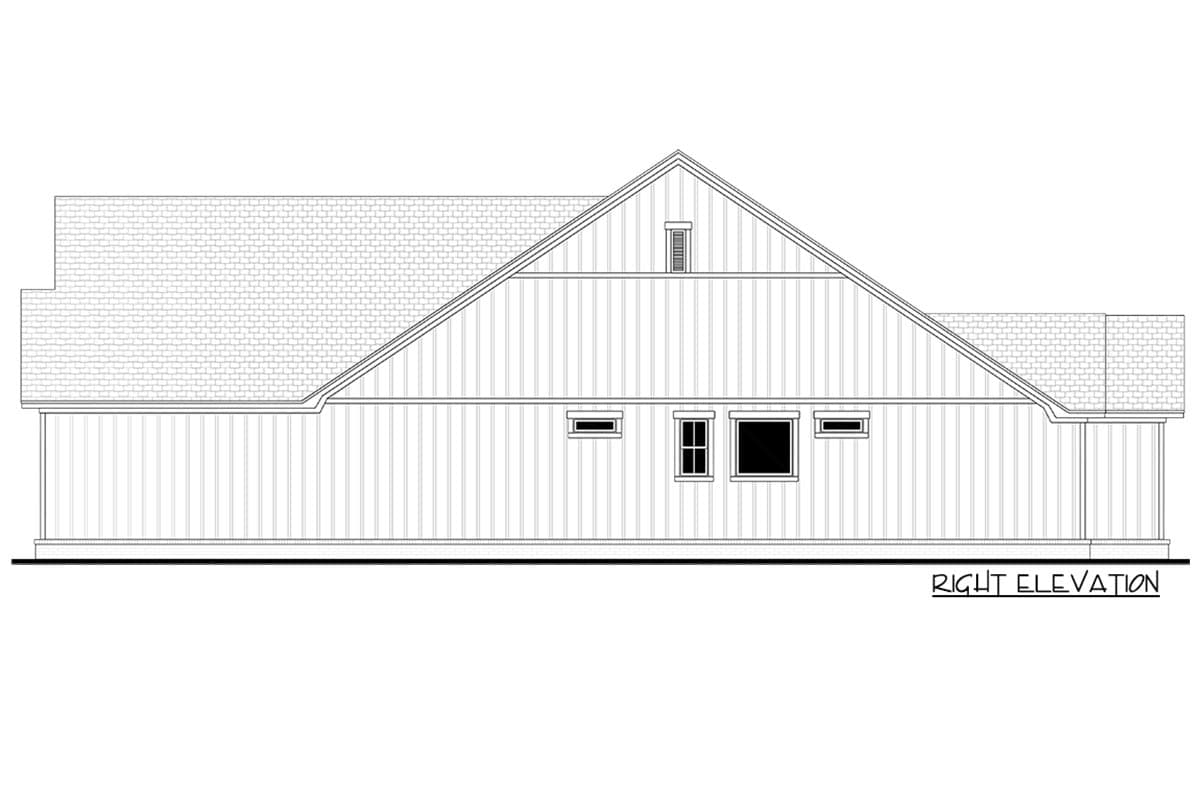

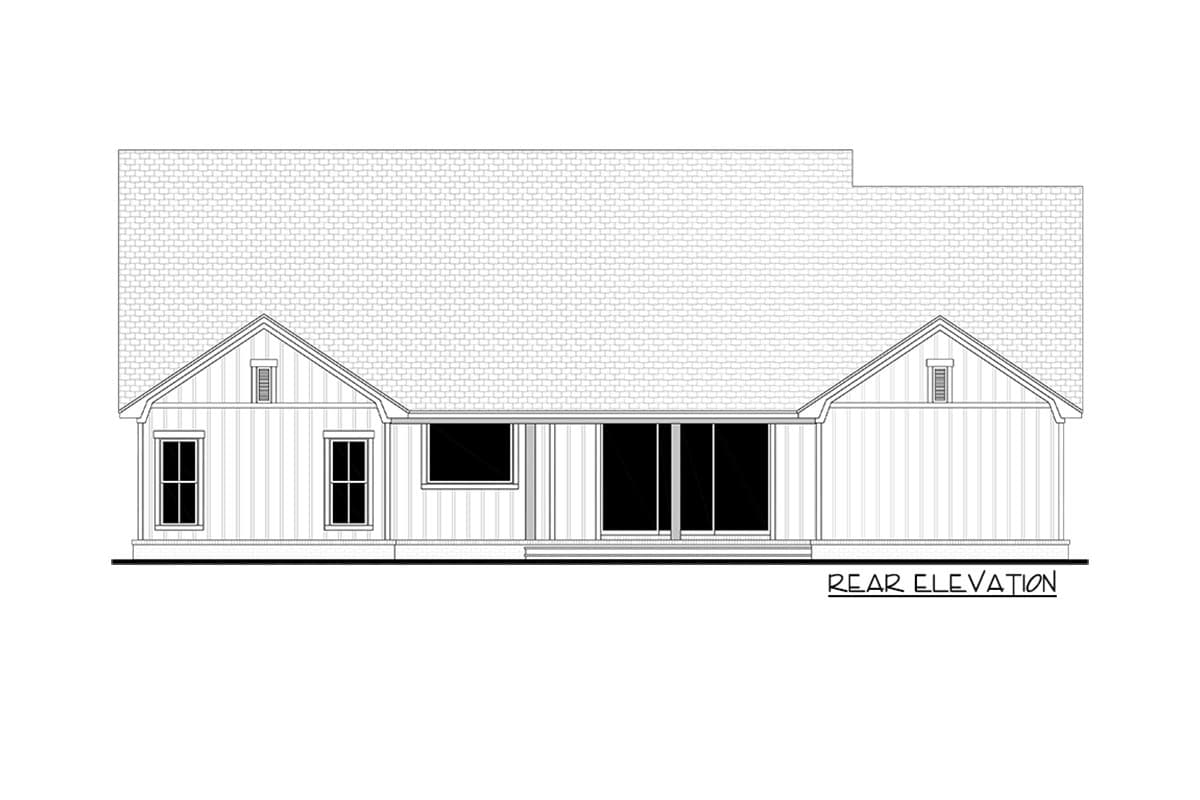

Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plans
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-bed New American Farmhouse with Open Concept Design

  • 2,658

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

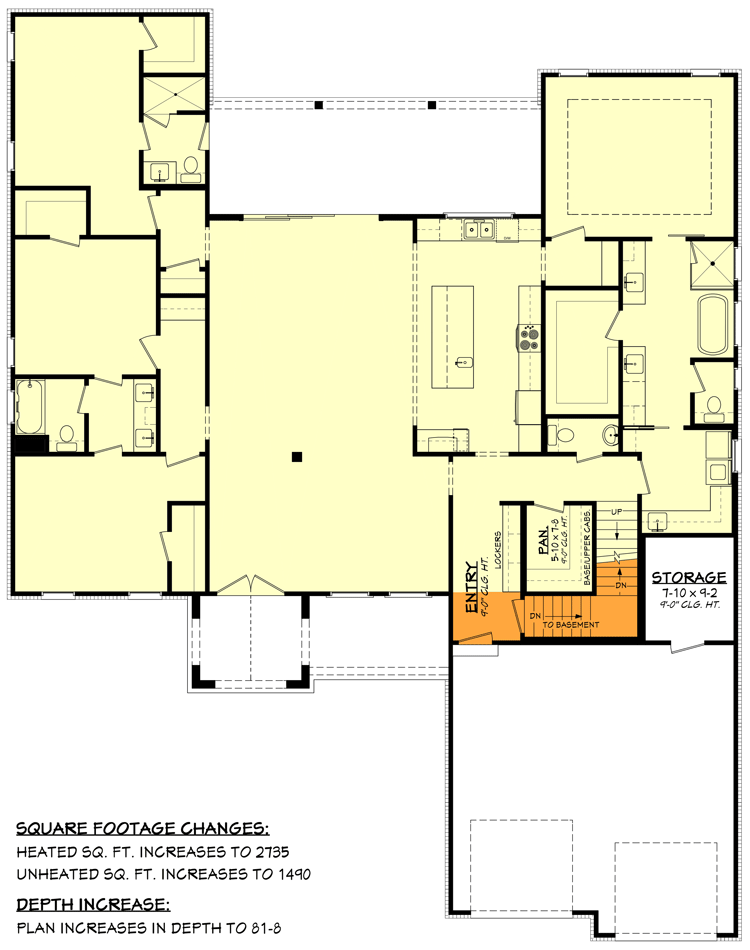

  • Basement version

Plan Details

Square Footage Breakdown

  • Total: 2,658 sq. ft.
  • 1st Floor: 2,658 sq. ft.

Dimensions

  • Width: 64' 2"
  • Depth: 77' 4"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 633 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 4 On 12; 12 on 12
  • Framing Type: Stick
