Plan 580013DFT 4-Bed New American Home Plan with 3rd Floor Eagles Nest

4,261 4 3.5 2-3 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed New American Home Plan with 3rd Floor Eagles Nest

Plan 580013DFT

  • 4,261

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2-3

    Stories

  • 3

    Cars

  • Craftsman details adorn the facade of this 4-bedroom New American home plan, complete with a spiral staircase that guides you to a unique "eagles nest" on the 3rd floor.
  • The open great room is filled with natural light and connects with the kitchen and dining area, allowing family and friends to gather. Retreat to the generous rear patio to enjoy the outdoors.
  • Five seats at the kitchen island provide a space for sous chefs, homework, or casual meals, and a large pantry provides additional storage.
  • The master suite is conveniently located on the main level, along with a den off the entryway and a guest suite.
  • Upstairs, two family bedrooms share a 4-fixture bathroom and a bonus room offers access to a rear balcony.

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

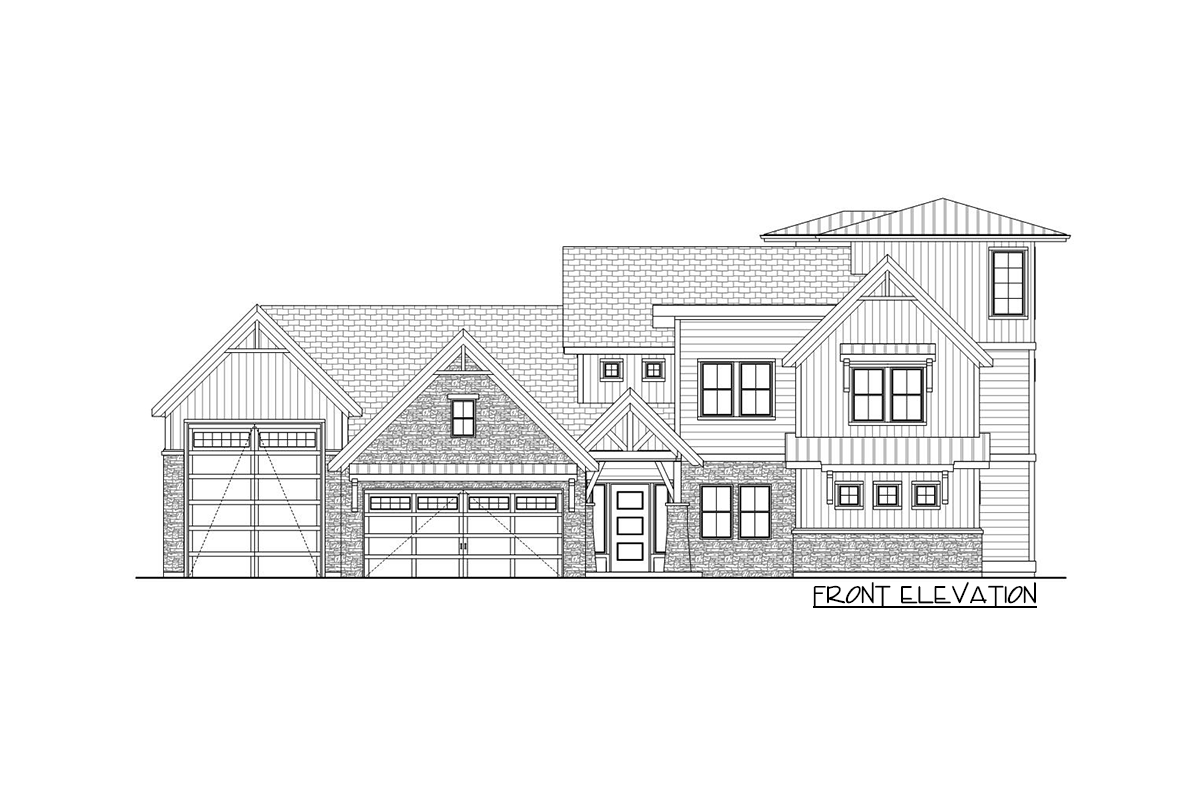

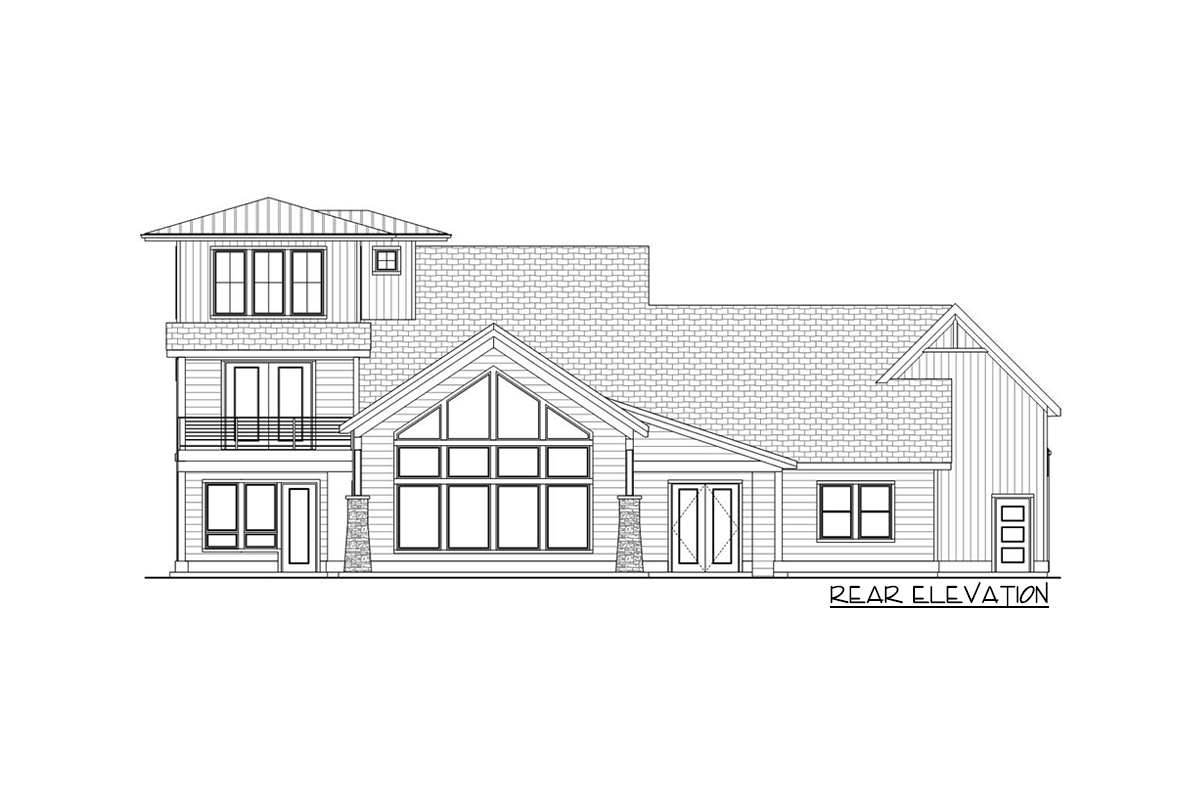

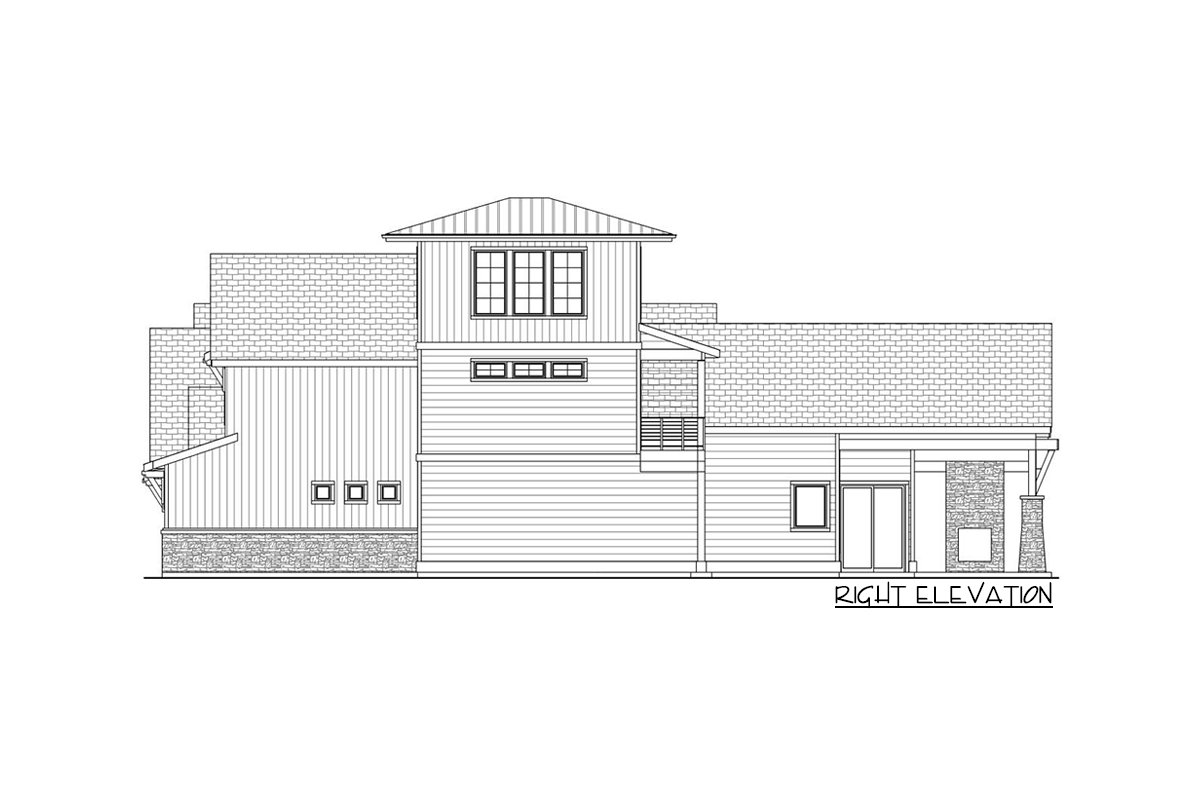

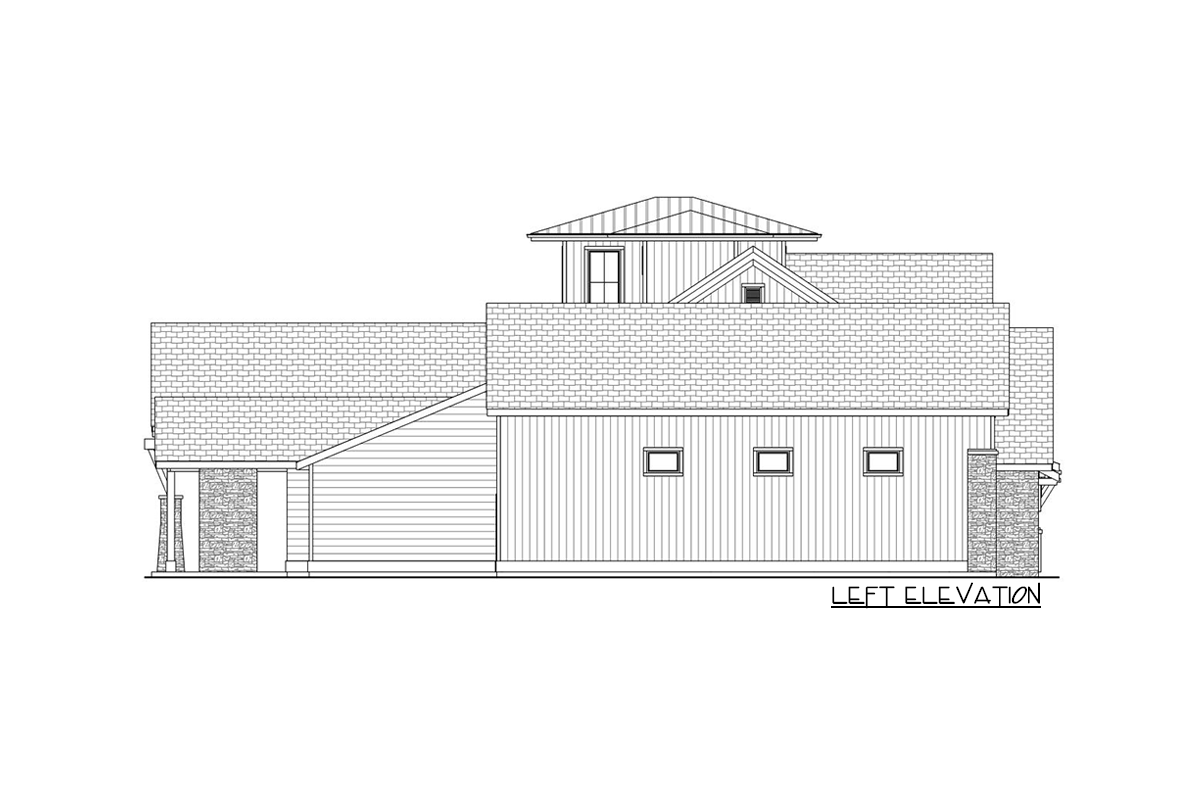

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

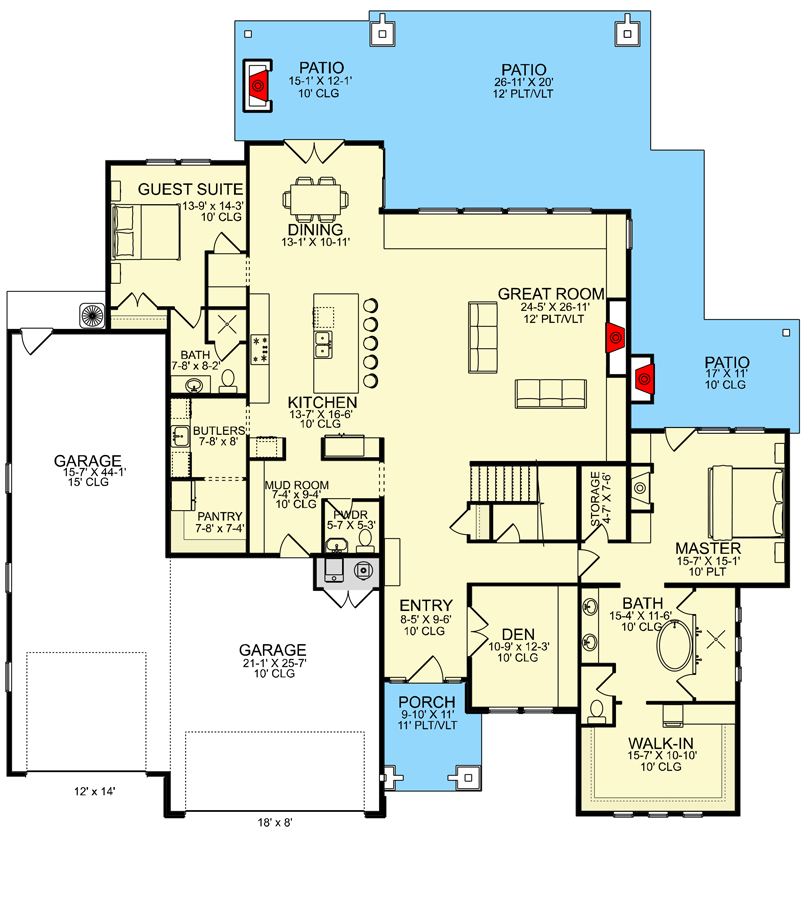

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed New American Home Plan with 3rd Floor Eagles Nest - 580013DFT floor plan - Main Level

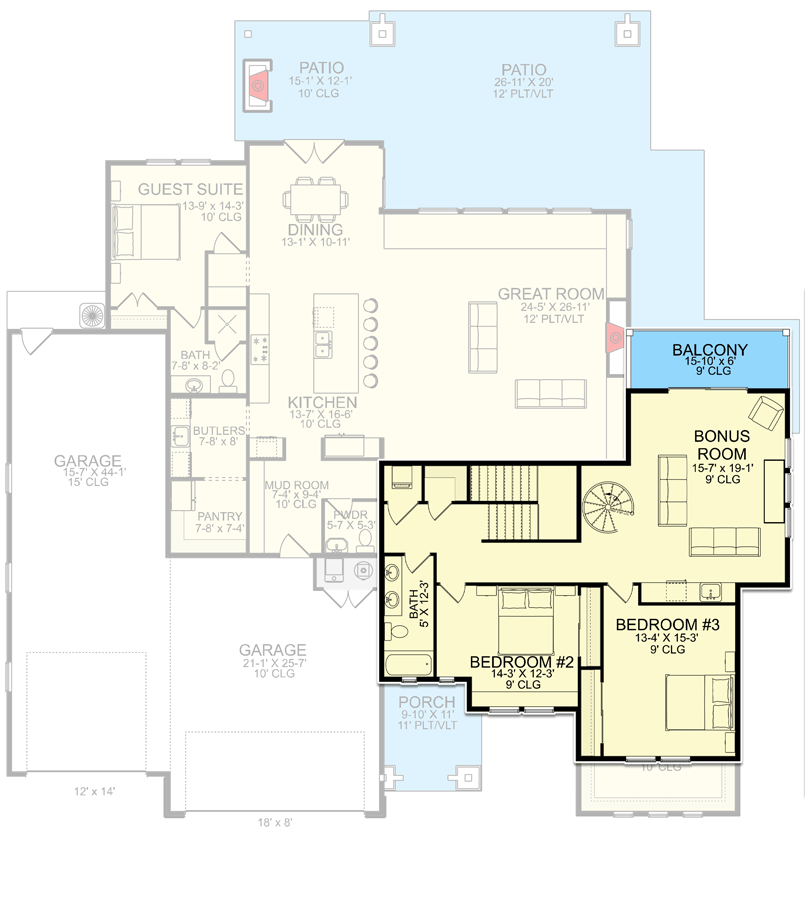

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed New American Home Plan with 3rd Floor Eagles Nest - 580013DFT floor plan - 2nd Floor

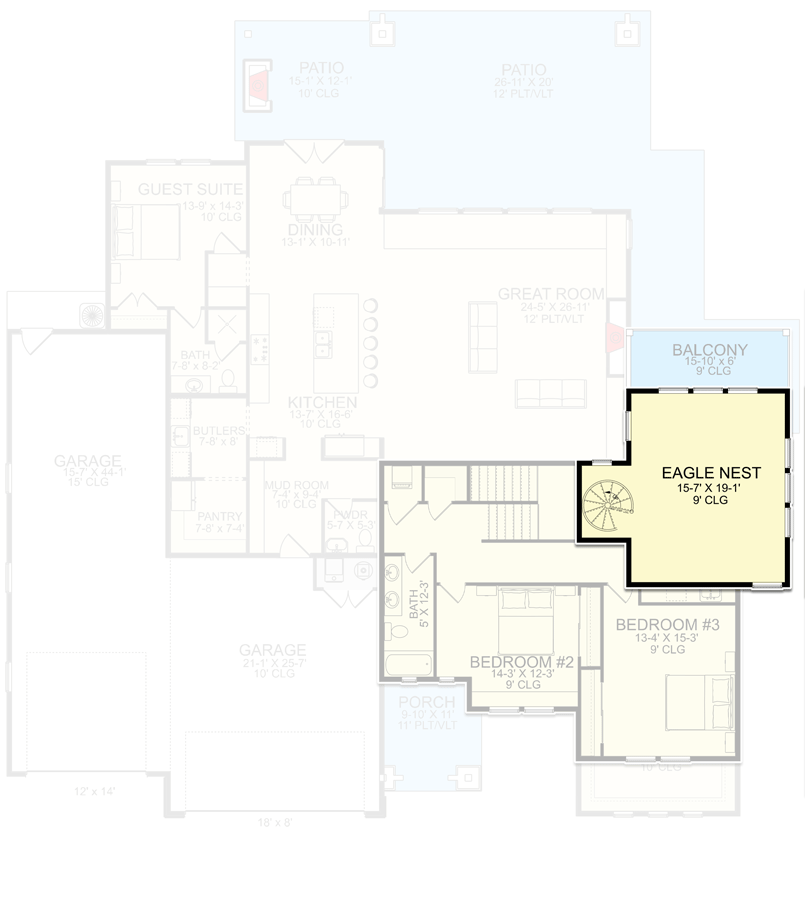

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed New American Home Plan with 3rd Floor Eagles Nest - 580013DFT floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,261 sq. ft.
  • 1st Floor: 2,819 sq. ft.
  • 2nd Floor: 1,072 sq. ft.
  • 3rd Floor: 370 sq. ft.
  • Covered Patio: 762 sq. ft.
  • Porch, Front: 87 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 11"
  • Depth: 79' 1"

Garage

  • Type: RV Garage, Attached
  • Area: 1284 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

4-Bed New American Home Plan with 3rd Floor Eagles Nest

  • 4,261

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2-3

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,250
  • CAD + PDF - Single Build $3,375
  • View all purchase option online

About This Plan

  • Craftsman details adorn the facade of this 4-bedroom New American home plan, complete with a spiral staircase that guides you to a unique "eagles nest" on the 3rd floor.
  • The open great room is filled with natural light and connects with the kitchen and dining area, allowing family and friends to gather. Retreat to the generous rear patio to enjoy the outdoors.
  • Five seats at the kitchen island provide a space for sous chefs, homework, or casual meals, and a large pantry provides additional storage.
  • The master suite is conveniently located on the main level, along with a den off the entryway and a guest suite.
  • Upstairs, two family bedrooms share a 4-fixture bathroom and a bonus room offers access to a rear balcony.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,261 sq. ft.
  • 1st Floor: 2,819 sq. ft.
  • 2nd Floor: 1,072 sq. ft.
  • 3rd Floor: 370 sq. ft.
  • Covered Patio: 762 sq. ft.
  • Porch, Front: 87 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 11"
  • Depth: 79' 1"

Garage

  • Type: RV Garage, Attached
  • Area: 1284 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
