Plan 42694DB
4-Bed New American Home Plan with Main-level Master Suite
Heated S.F.
2,437
Beds
4
Baths
4
Stories
2
Cars
2
Photos
What's Included
Plan Details

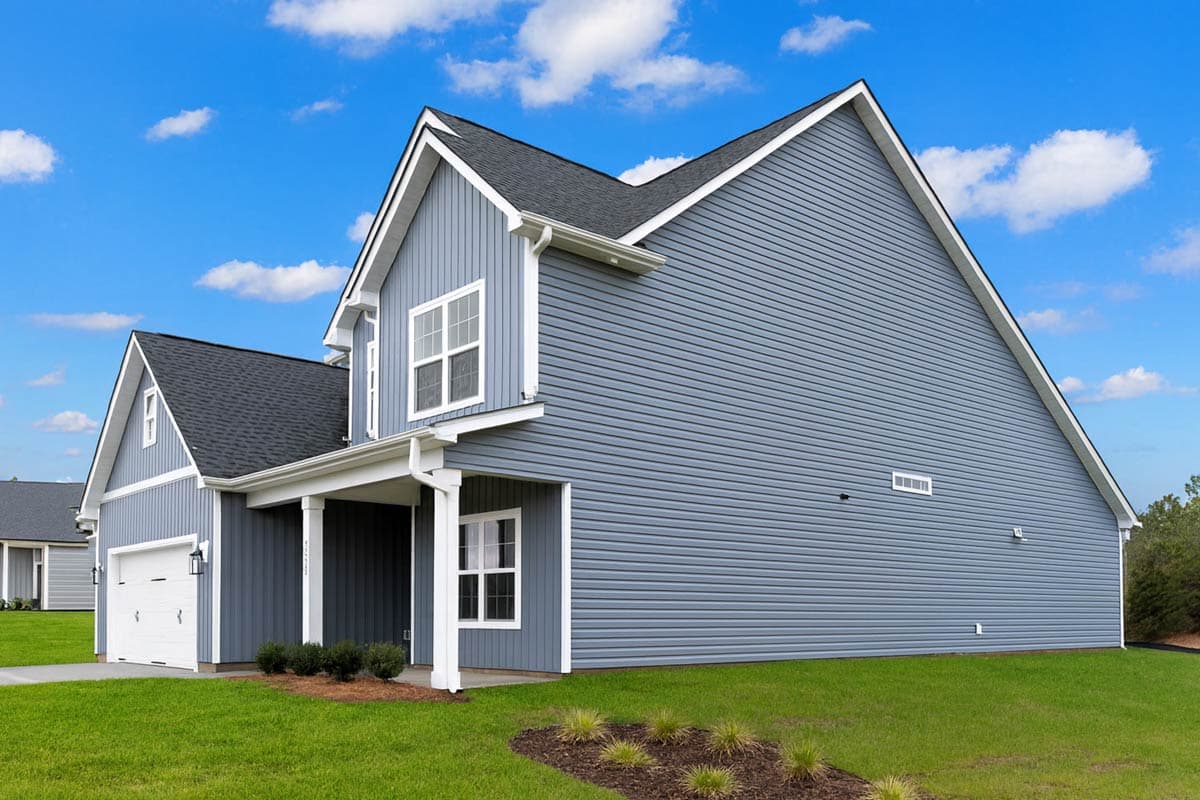

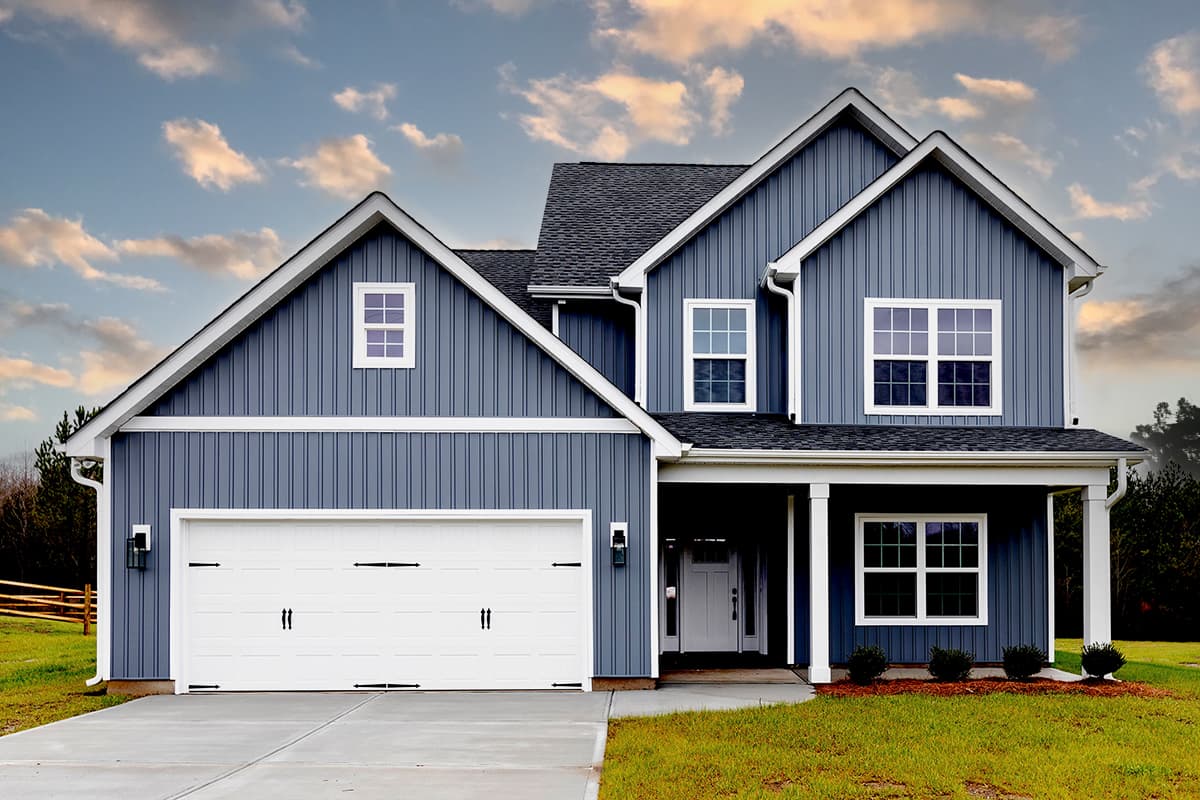

  • Lined with board and batten siding, this 4-bedroom New American home plan features the master suite on the main level, along with a flex room just off the foyer.
  • The family room and dine-in kitchen are open to one another, warmed by a corner fireplace, with plenty of natural lighting filtering through the rear windows.
  • L-shaped cabinets and countertops support the central island and a corner pantry boosts storage space for dried foods.
  • Additional space in the double garage lends a place for storage or a hobby shop, and a drop zone just inside provides a communal space for shoes and outdoor gear.
  • A loft greets you at the top of the stairs, surrounded by three bedrooms; one includes a full bath, and two share the hall bathroom.
What's Included
  • General Notes

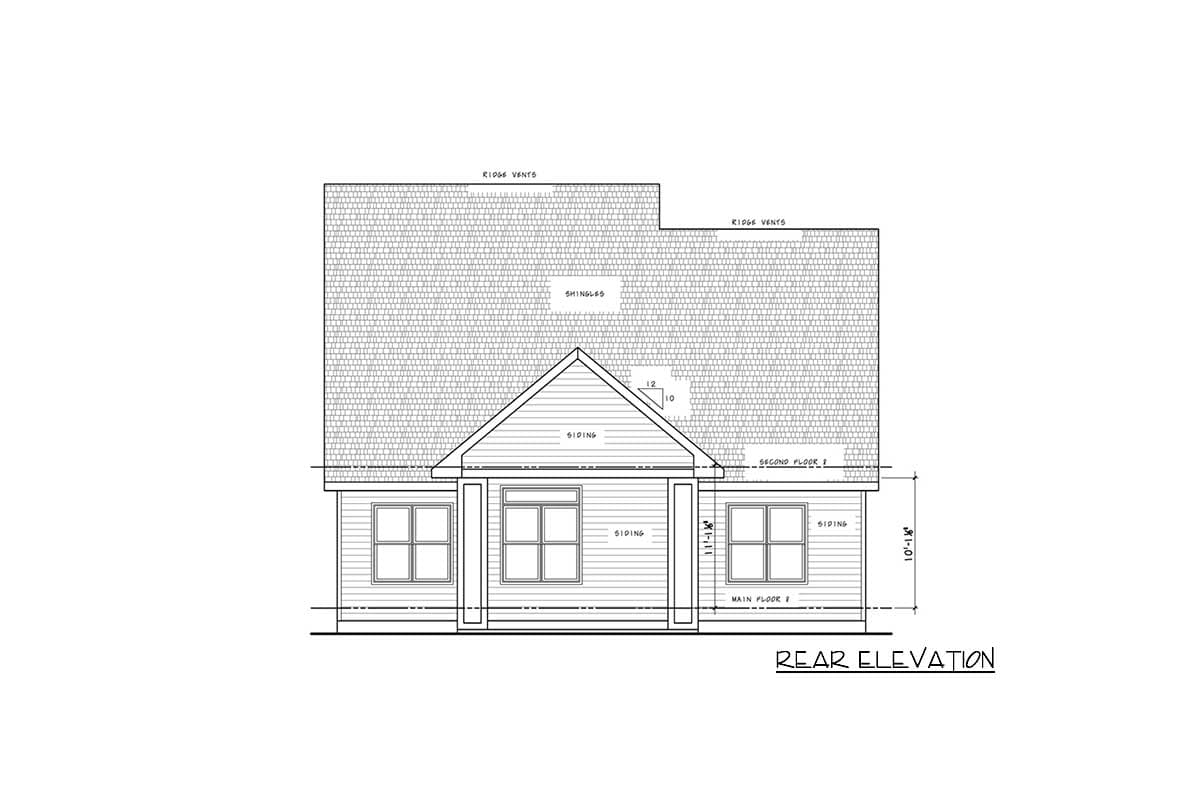

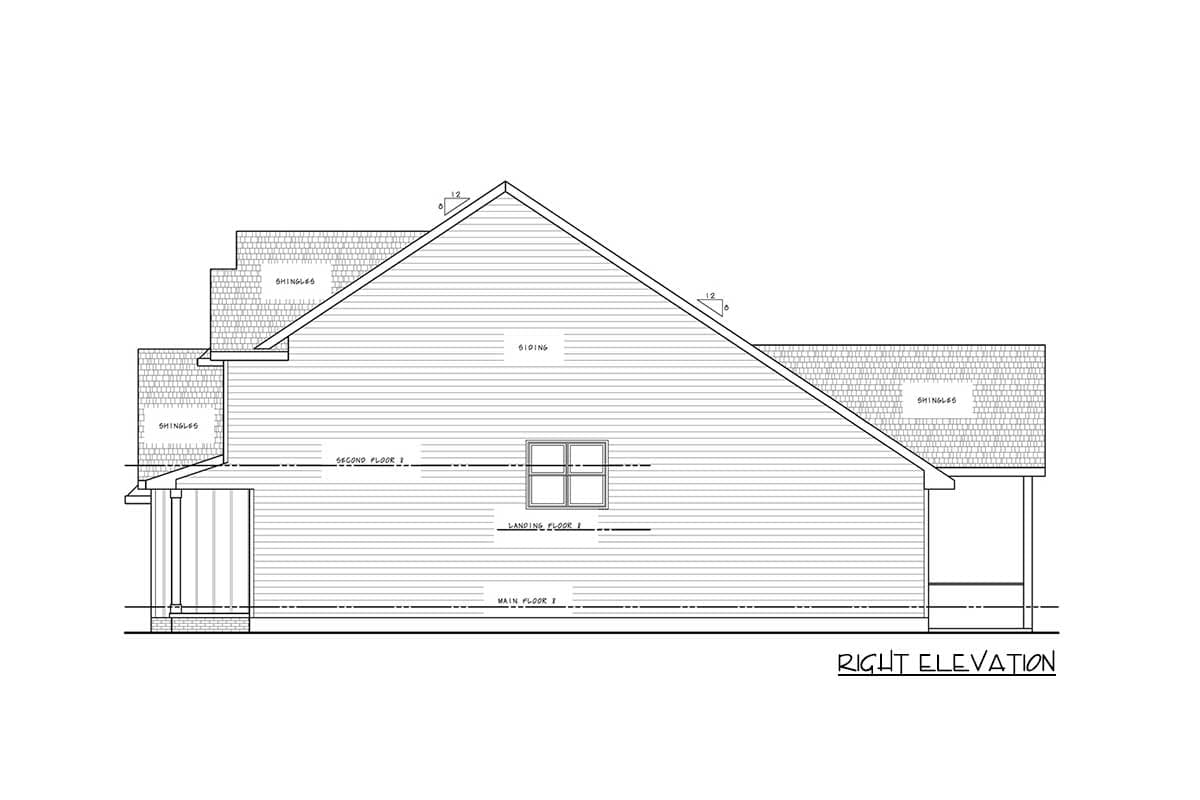

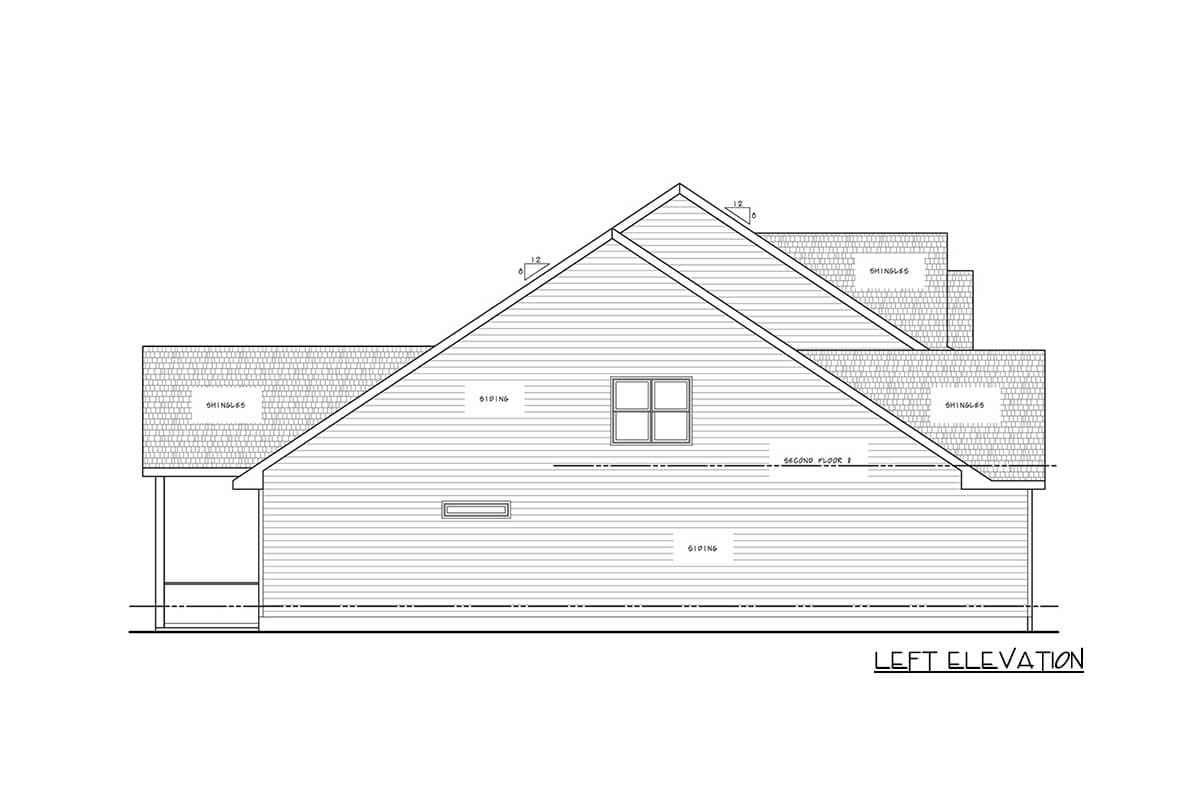

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section

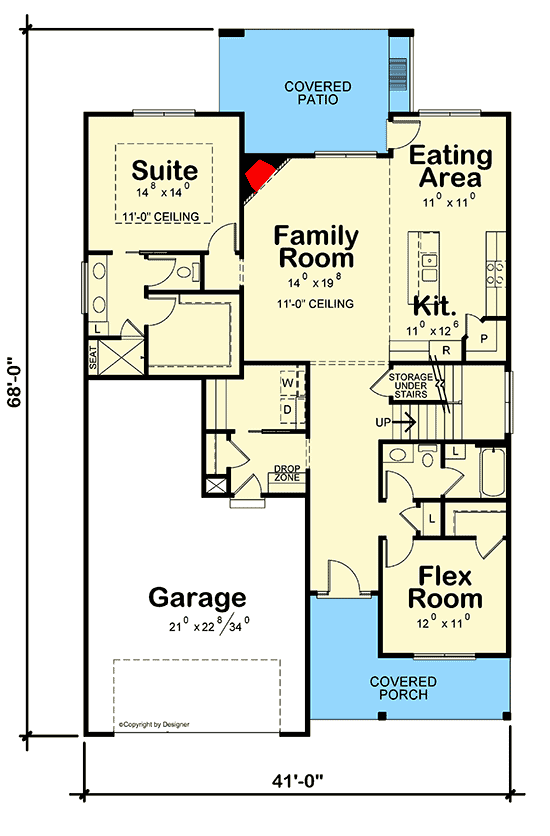

  • Main Level Floor Plan

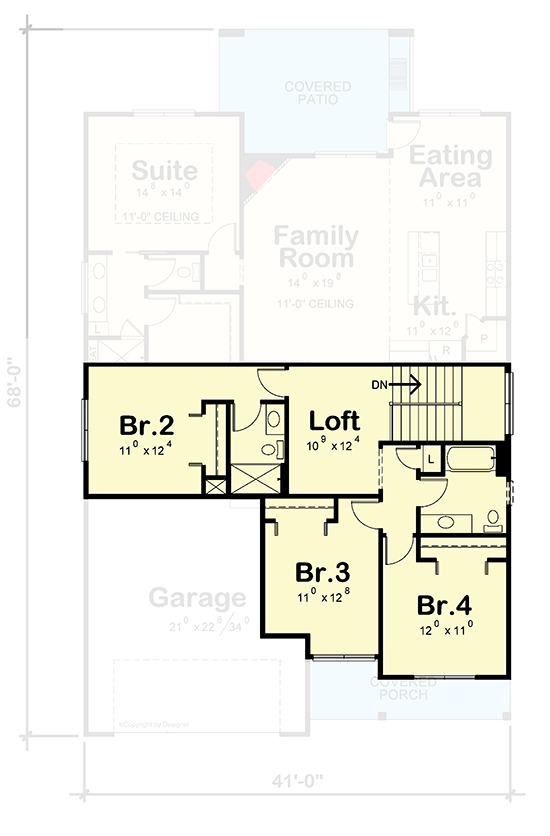

  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed New American Home Plan with Main-level Master Suite

  • 2,437

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,437 sq. ft.
  • 1st Floor: 1,594 sq. ft.
  • 2nd Floor: 843 sq. ft.

Dimensions

  • Width: 41' 0"
  • Depth: 68' 0"
  • Max ridge height: 34' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 625 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
