4 Bed New American House Plan with 3-Car Garage - 3357 Sq Ft

Heated S.F.
3,357
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 770516JME

Main Level
Main Level
2nd Floor
2nd Floor

Plan 770516JME

M-F 9am-5pm EST |

1-203-761-8500

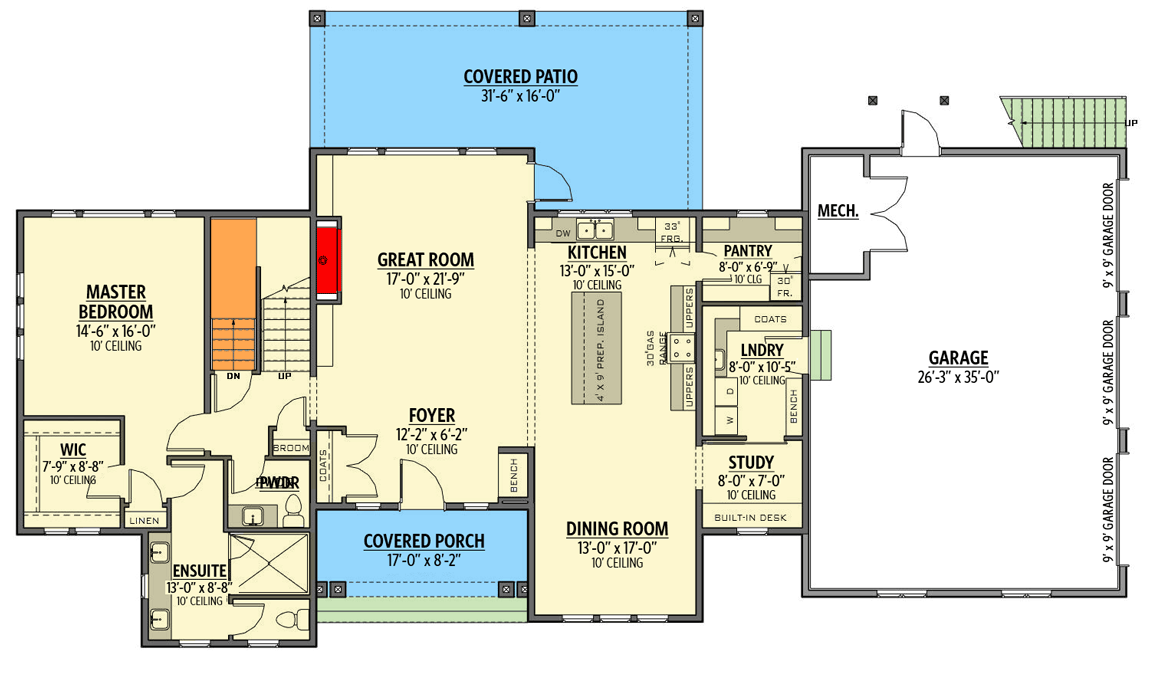

Main Level

Plan 770516JME: 4 Bed New American House Plan with 3-Car Garage - 3357 Sq Ft - Floor Plan - Main Level - Craftsman, New American, Northwest, Shingle, Traditional, Transitional

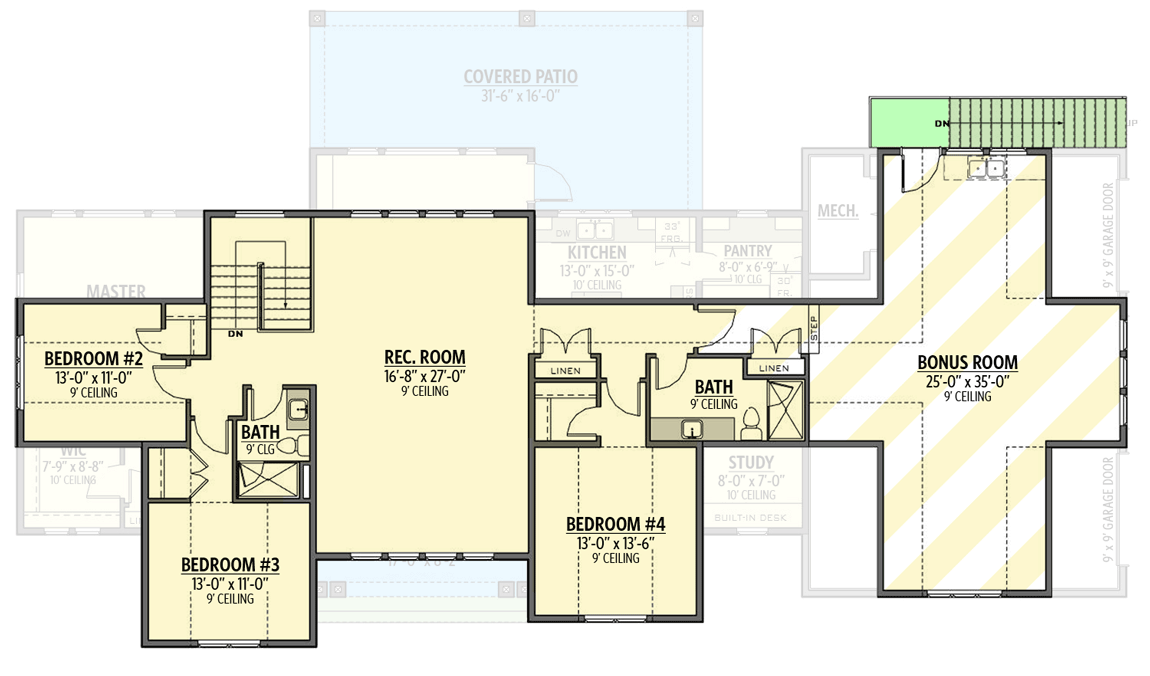

2nd Floor

Plan 770516JME: 4 Bed New American House Plan with 3-Car Garage - 3357 Sq Ft - Floor Plan - 2nd Floor - Craftsman, New American, Northwest, Shingle, Traditional, Transitional

Plan Details

  • This 4 bed, 3.5 bath New American house plan gives you 3357 square feet of heated living and has a 3-car side-entry garage (936 square feet) which accesses the home by an amazing laundry/mud room.
  • A large shed dormer above the 8'2"-deep front entry porch let light into the home while adding to the curb appeal. The exterior has a mix of stone, shingle and board and batten siding.
  • The great room with fireplace has access to the rear covered patio and is open to the kitchen with 4' by 9' island and the dining room. A study and a walk-in pantry are placed to either side of the laundry room.
  • The master suite - the only bedroom on the main floor- has a roomy walk-in closet and an ensuite bathroom with two vanities and a huge walk-in shower. Upstairs, a rec room is located between the three bedrooms and there is bonus expansion above the garage.

What's Included

  • Cover sheet
  • Foundation plan
  • Floor plans
  • Floor joist layout
  • Roof truss layout
  • Sections
  • Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required.
  • Electrical (lighting) plan
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,357 sq. ft.

1st Floor

1,918 sq. ft.

2nd Floor

1,439 sq. ft.

Bonus

642 sq. ft.

Porch, Front

119 sq. ft.

Covered Patio

414 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

89' 0"

Depth

51' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

936 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Northwest

Shingle

Traditional

Transitional

Special Features

Flex Room

Game/Rec Room

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,357 sq. ft.

1st Floor

1,918 sq. ft.

2nd Floor

1,439 sq. ft.

Bonus

642 sq. ft.

Porch, Front

119 sq. ft.

Covered Patio

414 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

89' 0"

Depth

51' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

936 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Northwest

Shingle

Traditional

Transitional

Special Features

Flex Room

Game/Rec Room

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Canadian House Plans
