Plan 280125JWD 4-Bed New American House Plan with Bonus above Garage

4-Bed New American House Plan with Bonus above Garage

Plan 280125JWD

  • 3,031

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Metal roof accents lend a fresh modern vibe to the exterior of this 4-bedroom, New American house plan. The protruding 3-car garage boasts a 365 square foot bonus room (included in the total living area) overhead which hosts the fourth bedroom - for a total of 513 square feet on the second level.
  • To the right of the formal entry, you will find a quiet living room, along with a family bedroom neighboring a full bath.
  • The great room is straight ahead, capped by a vaulted ceiling, with doors leading to the covered patio on either side of a double-sided fireplace.
  • The adjoining dining area and kitchen complete the open concept floor plan while creating a central gathering space for all to enjoy. The cook in the home is sure to appreciate this kitchen with its ample workspace, walk-in pantry, and multi-use island.
  • The master bedroom has a unique feature: above the tub, there is a 4' by 5' opening with two small barn doors. Open them, and you can sit in the tub and watch the TV in the master bedroom. French doors that grant access to the rear porch, along with a 5-fixture ensuite and walk-in closet.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

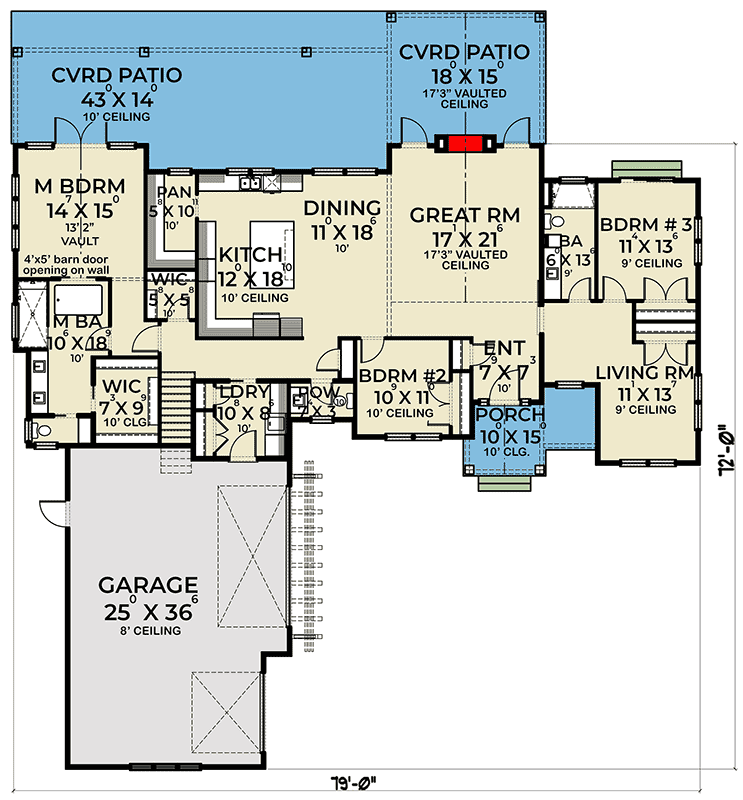

4-Bed New American House Plan with Bonus above Garage - 280125JWD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

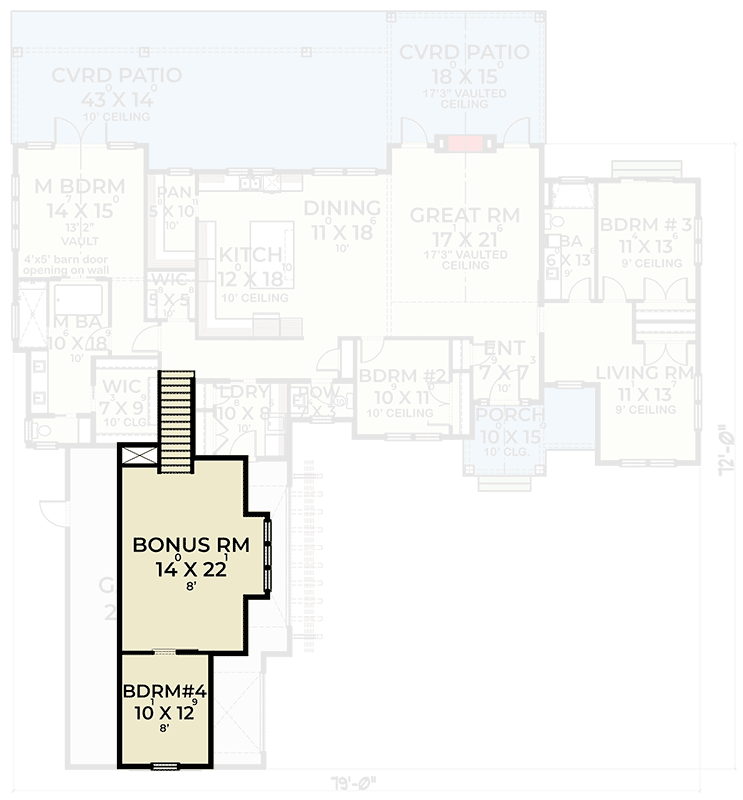

4-Bed New American House Plan with Bonus above Garage - 280125JWD floor plan - 2nd Floor

Plan details

4-Bed New American House Plan with Bonus above Garage

  • 3,031

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $1,275
  • PDF - Single-Build $2,150
  • 5 Sets + PDF $2,300
  • CAD - Single-Build $2,650
  • View all purchase option online

About This Plan

  • Metal roof accents lend a fresh modern vibe to the exterior of this 4-bedroom, New American house plan. The protruding 3-car garage boasts a 365 square foot bonus room (included in the total living area) overhead which hosts the fourth bedroom - for a total of 513 square feet on the second level.
  • To the right of the formal entry, you will find a quiet living room, along with a family bedroom neighboring a full bath.
  • The great room is straight ahead, capped by a vaulted ceiling, with doors leading to the covered patio on either side of a double-sided fireplace.
  • The adjoining dining area and kitchen complete the open concept floor plan while creating a central gathering space for all to enjoy. The cook in the home is sure to appreciate this kitchen with its ample workspace, walk-in pantry, and multi-use island.
  • The master bedroom has a unique feature: above the tub, there is a 4' by 5' opening with two small barn doors. Open them, and you can sit in the tub and watch the TV in the master bedroom. French doors that grant access to the rear porch, along with a 5-fixture ensuite and walk-in closet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,031 sq. ft.
  • 1st Floor: 2,518 sq. ft.
  • 2nd Floor: 513 sq. ft.
  • Covered Patio: 826 sq. ft.
  • Bonus: 365 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 72' 0"
  • Max ridge height: 25' 7"

Garage

  • Type: Attached
  • Area: 906 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
