4-Bed New American House Plan with Bonus Room Flexibility

Plan 710339BTZ

  • 2,911

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 4-bed New American house plan has an attractive exterior combining brick and board-and-batten siding. Steep pitches, dormers and a welcoming front porch with timber columns and brackets give it great curb appeal.
  • The kitchen anchors the main floor and opens into the large living room with its beamed ceiling and warming fireplace and the dining room and stairwell.  This area of the home is light filled from the front and rear with wide window groupings.
  • The master suite is fully featured with a spa bath and separate closets and convenient access to the laundry center. A secondary bedroom and bath are located on the floor, the perfect guest suite or space for aging relatives.
  • Outdoor living is easily enjoyed with a nice deck and covered porch and outdoor fireplace.
  • The upper level contains two additional bedrooms, bathrooms and a huge bonus room. The bonus room gives you can be left unfinished or you can finish it and get 492 square feet of additional living space.

The plans include the following:

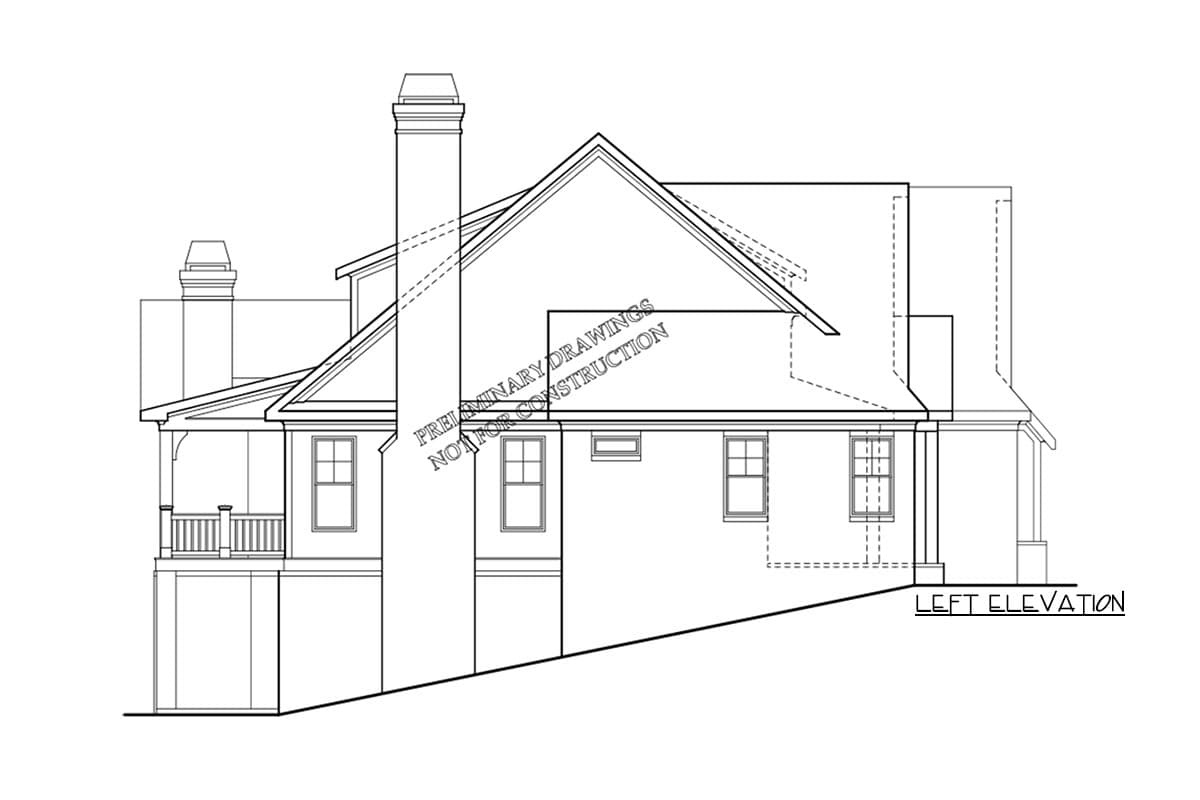

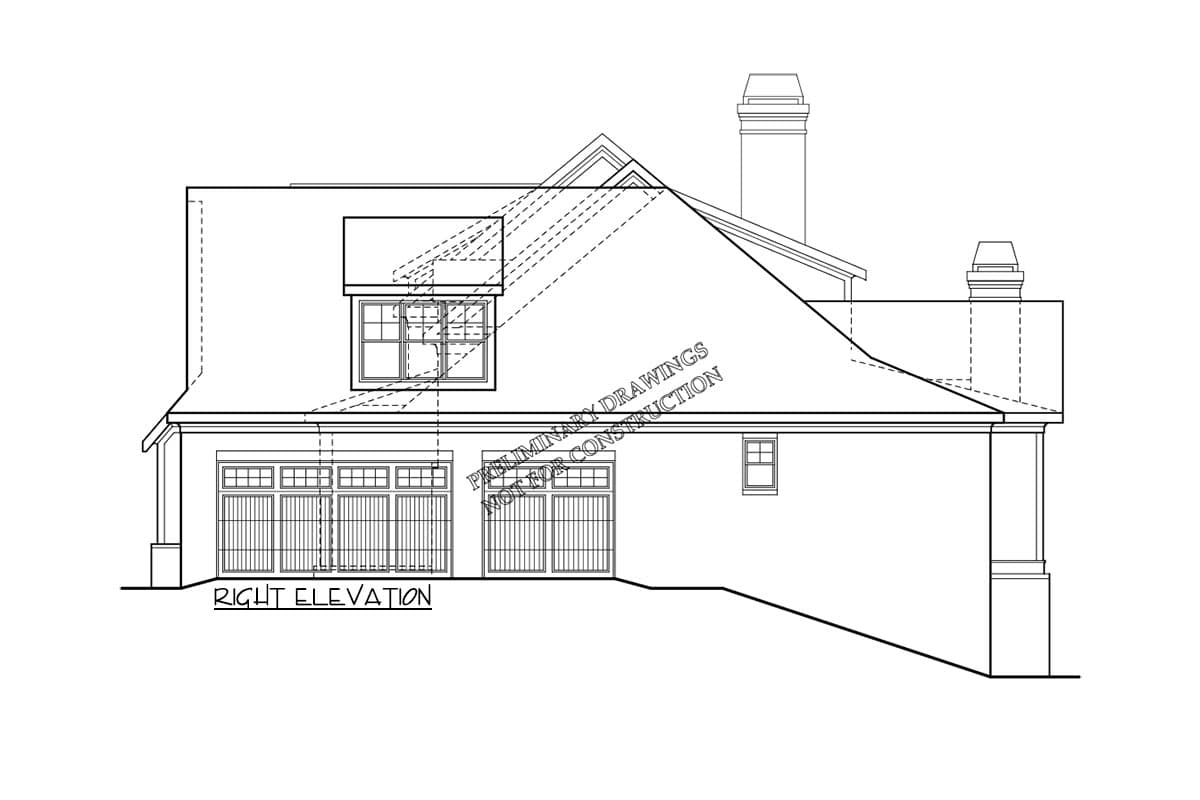

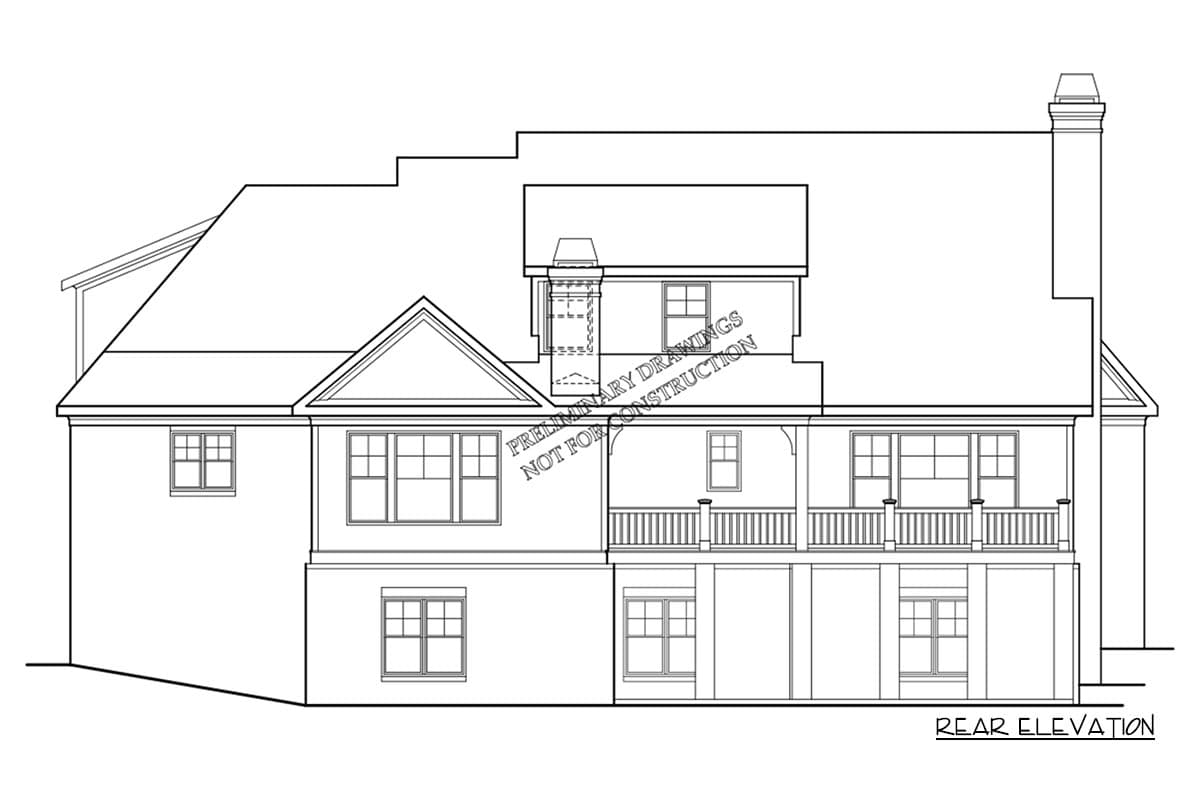

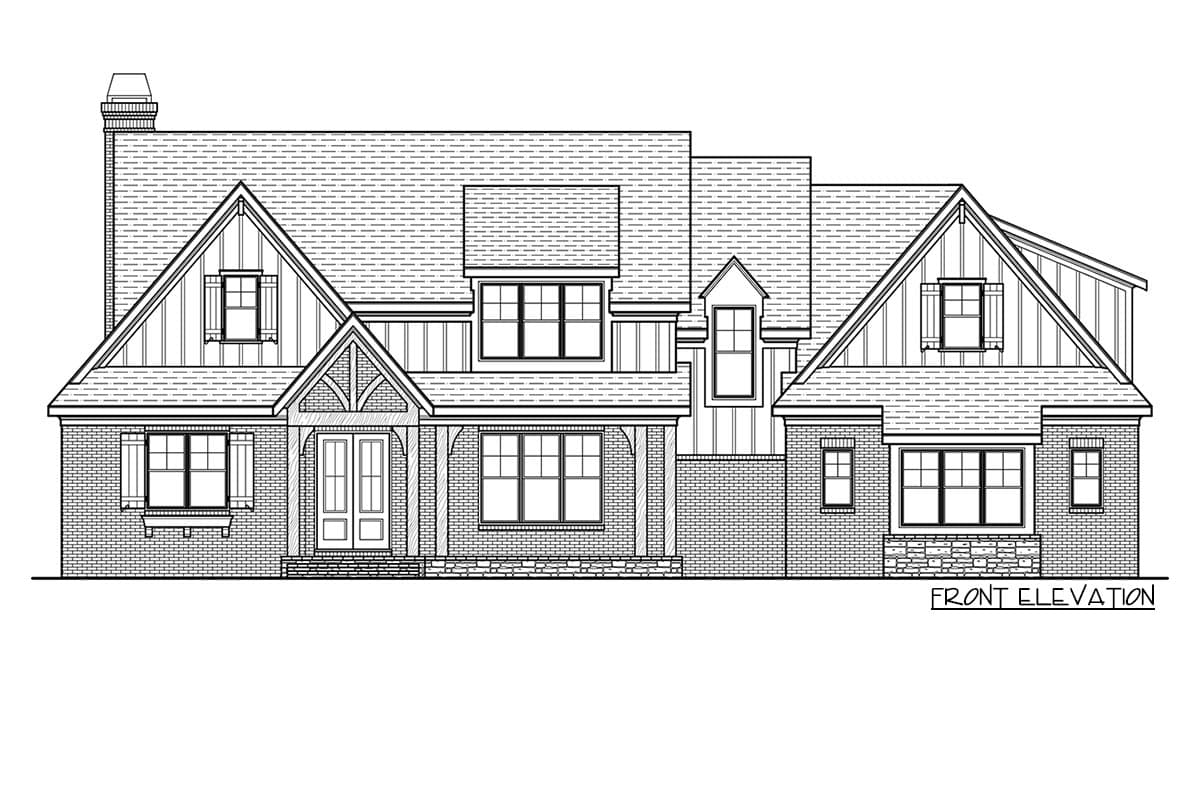

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

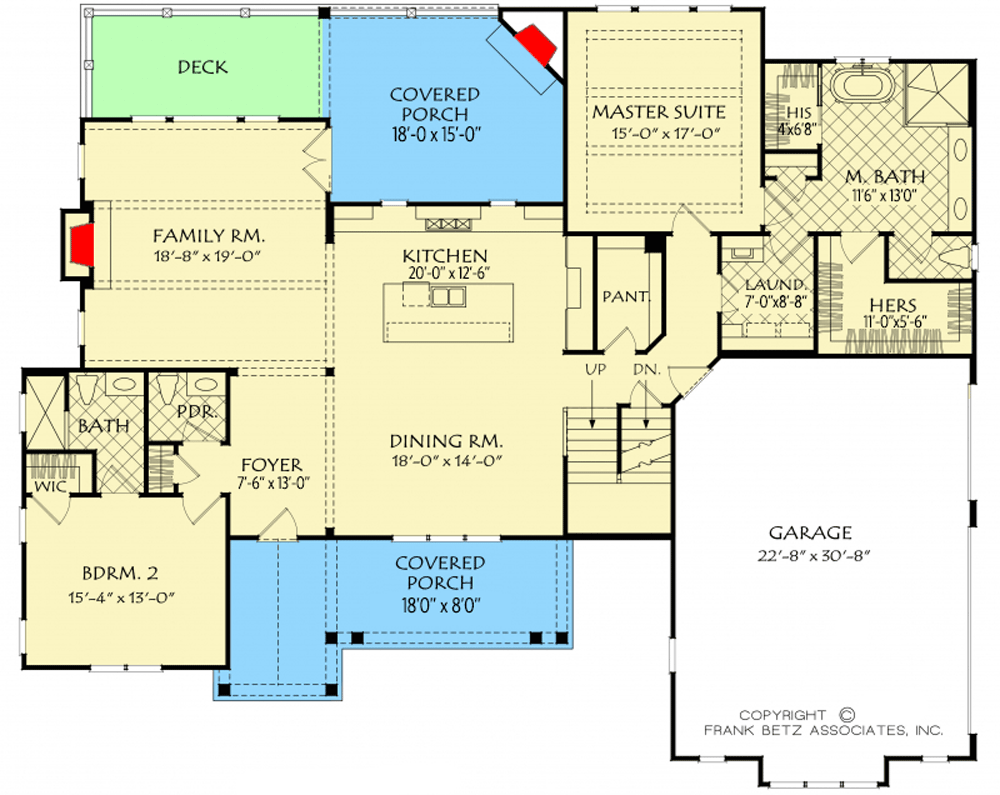

4-Bed New American House Plan with Bonus Room Flexibility - 710339BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

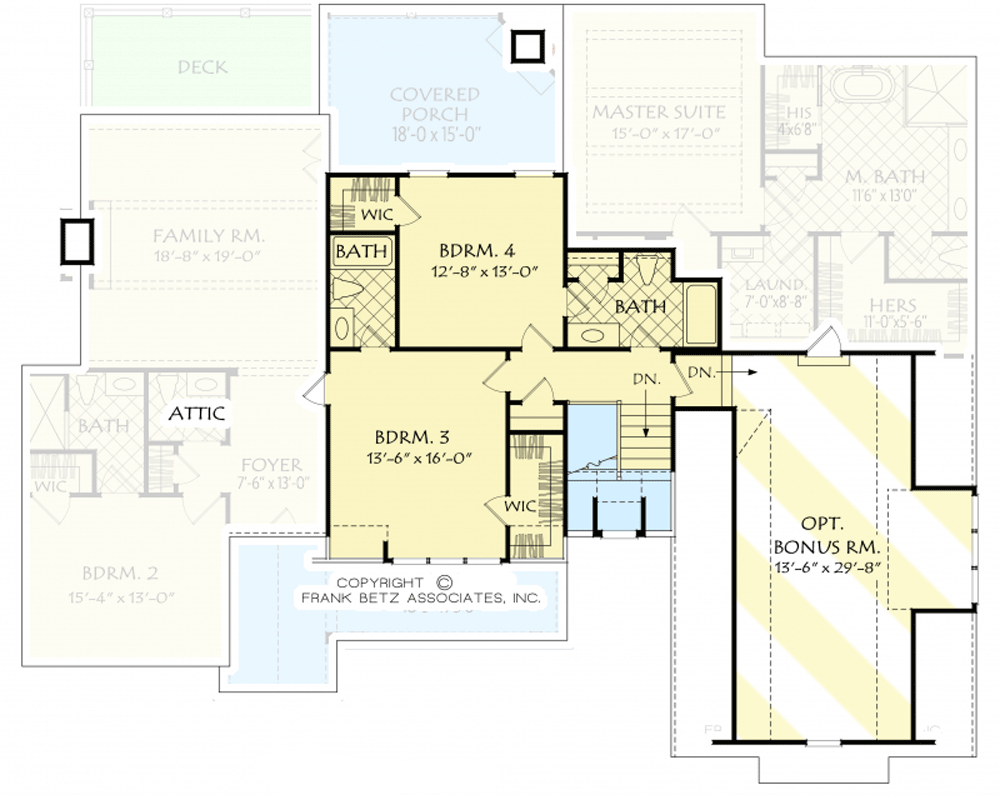

4-Bed New American House Plan with Bonus Room Flexibility - 710339BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,911 sq. ft.
  • 1st Floor: 2,232 sq. ft.
  • 2nd Floor: 679 sq. ft.
  • Bonus: 492 sq. ft.
  • Basement Unfinished: 2,232 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 73' 6"
  • Depth: 60' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 738 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

4-Bed New American House Plan with Bonus Room Flexibility

  • 2,911

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • This 4-bed New American house plan has an attractive exterior combining brick and board-and-batten siding. Steep pitches, dormers and a welcoming front porch with timber columns and brackets give it great curb appeal.
  • The kitchen anchors the main floor and opens into the large living room with its beamed ceiling and warming fireplace and the dining room and stairwell.  This area of the home is light filled from the front and rear with wide window groupings.
  • The master suite is fully featured with a spa bath and separate closets and convenient access to the laundry center. A secondary bedroom and bath are located on the floor, the perfect guest suite or space for aging relatives.
  • Outdoor living is easily enjoyed with a nice deck and covered porch and outdoor fireplace.
  • The upper level contains two additional bedrooms, bathrooms and a huge bonus room. The bonus room gives you can be left unfinished or you can finish it and get 492 square feet of additional living space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,911 sq. ft.
  • 1st Floor: 2,232 sq. ft.
  • 2nd Floor: 679 sq. ft.
  • Bonus: 492 sq. ft.
  • Basement Unfinished: 2,232 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 73' 6"
  • Depth: 60' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 738 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
