4-Bed New American House Plan with Optional Rear Porch - 2264 Sq Ft

Heated S.F.
2,264
Beds
4
Baths
2.5
Stories
2

Floor Plan

Plan 50239PH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 50239PH

M-F 9am-5pm EST |

1-203-761-8500

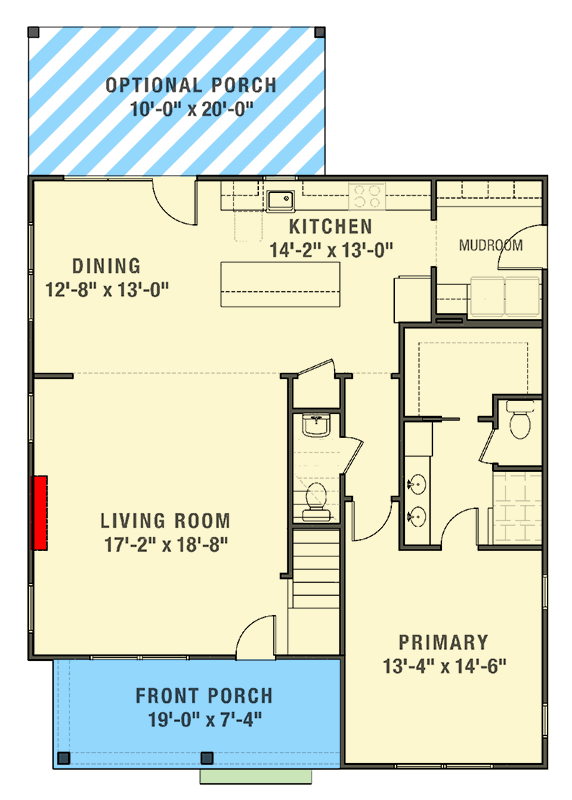

Main Level

Plan 50239PH: 4-Bed New American House Plan with Optional Rear Porch - 2264 Sq Ft - Floor Plan - Main Level - Country, Farmhouse, New American

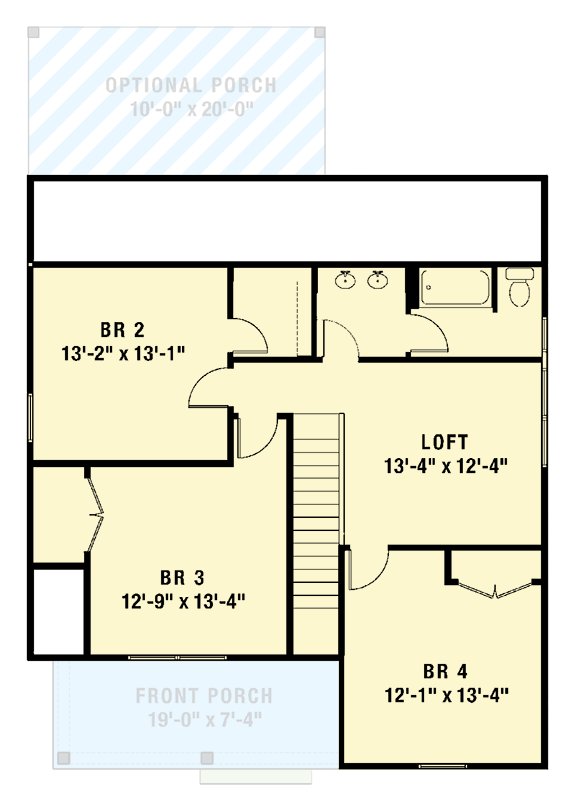

2nd Floor

Plan 50239PH: 4-Bed New American House Plan with Optional Rear Porch - 2264 Sq Ft - Floor Plan - 2nd Floor - Country, Farmhouse, New American

Plan Details

  • This 3 bedroom, 2.5 bathroom Transitional-style house plan features a spacious loft and 2,264 feet of heated living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing Plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,264 sq. ft.

1st Floor

1,246 sq. ft.

2nd Floor

1,018 sq. ft.

Porch, Front

142 sq. ft.

Porch, Rear

200 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

35' 0"

Depth

40' 0"

Max Ridge Height

26' 8"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

New American

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Playroom

Square Footage Breakdown

Total Heated Area

2,264 sq. ft.

1st Floor

1,246 sq. ft.

2nd Floor

1,018 sq. ft.

Porch, Front

142 sq. ft.

Porch, Rear

200 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

35' 0"

Depth

40' 0"

Max Ridge Height

26' 8"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

New American

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Playroom
