4-Bed New American House Plan with Outdoor Kitchen and 2-Car Garage - 2035 Sq Ft

Name: Plan 56493SM: 4-Bed New American House Plan with Outdoor Kitchen and 2-Car Garage - 2035 Sq Ft
Brand: Architectural Designs
SKU: 56493SM
Price: 1295.0 USD
Availability: InStock

Heated S.F.

2,035

Beds

Baths

Stories

Cars

Floor Plan

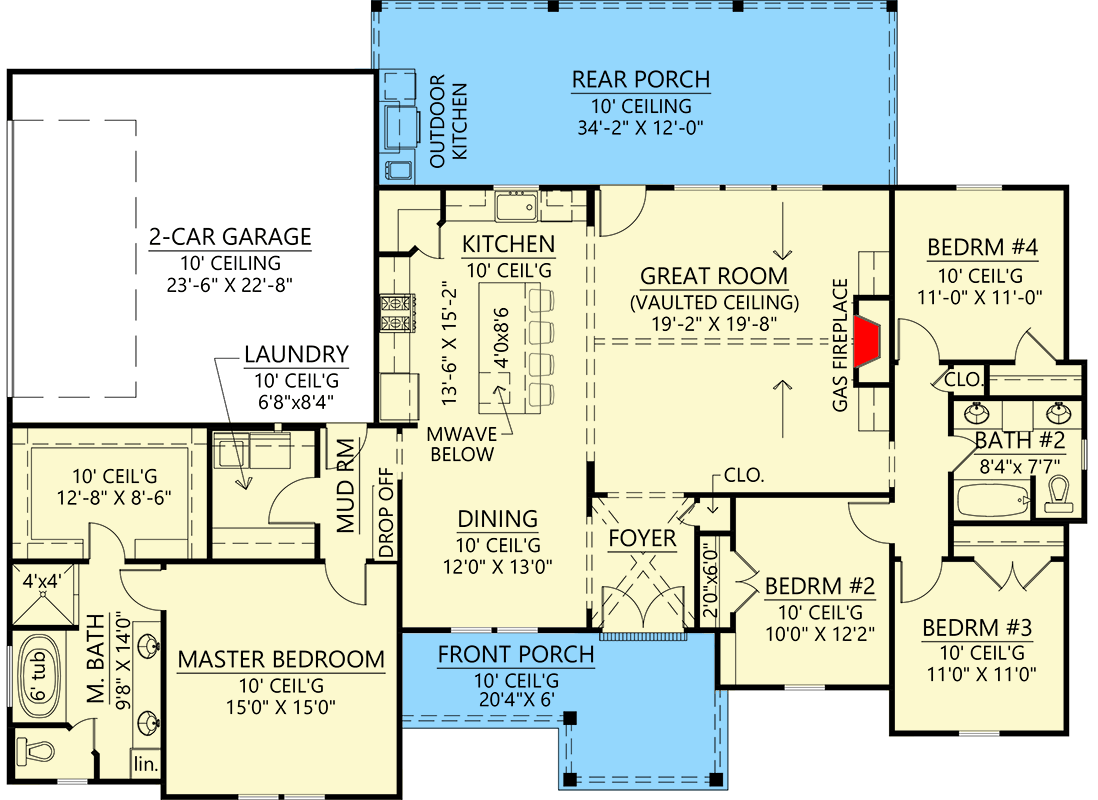

Main Level

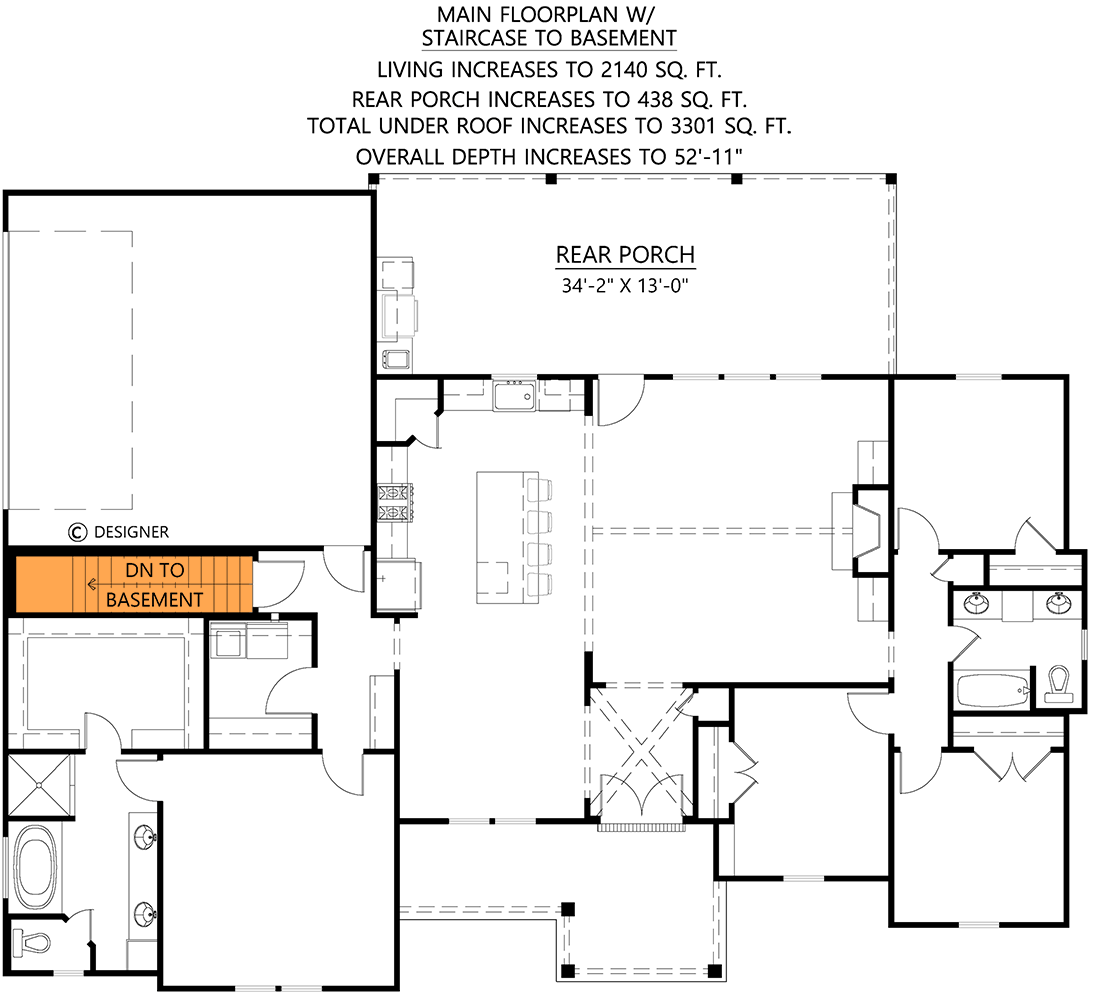

Basement Stairs Location

Plan Details

Board and batten - and an attractive brick trim - give this 4-bed New American one-story house plan great curb appeal. Coming in at just over 2,000 square feet of heated living space, it gives you great livability in an affordable size.
The foyer has an 11' raised ceiling and opens to the vaulted great room with fireplace as well as to the dining room to your left. Step onto the roomy rear porch with an outdoor kitchen. Its size - 34'2" by 12' - makes it usable as an outdoor living room.
A corner pantry and an island with sink, built-in microwave and casual seating - as well as a sink placed under the window - are a few features of the well-thought-out kitchen. Easy access to the garage is another great feature as it makes unloading groceries a breeze.
The master bedroom is located on the left and has a walk-in closet and a five-fixture bathroom that includes dual vanities. Across the home, three bedrooms are clustered around a the second bathroom with two sinks.
Laundry is located by the mudroom with drop-off zone just off the entry from the 2-car garage.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

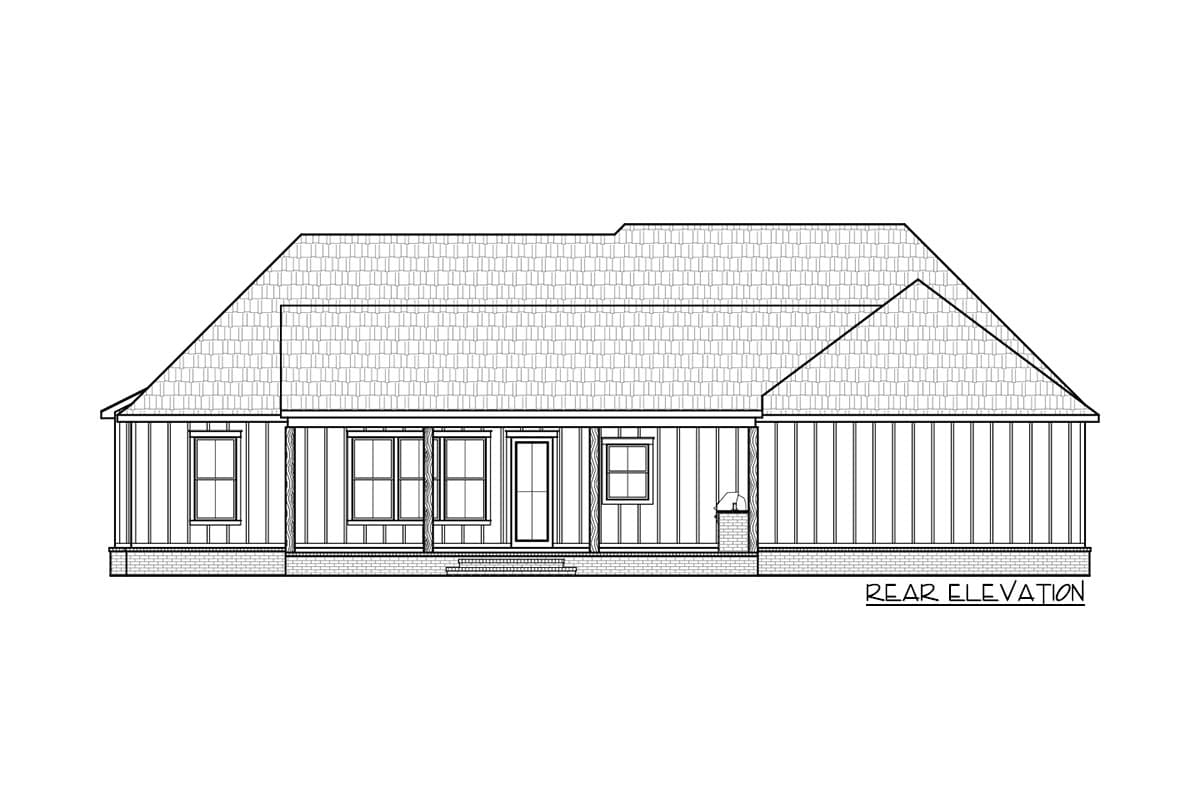

FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
