4-Bed New American House Plan with Two-Story Great Room - 3172 Sq Ft

Heated S.F.
3,172
Beds
4
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 849041PGE

Main Level
Main Level
2nd Floor
2nd Floor
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 849041PGE

M-F 9am-5pm EST |

1-203-761-8500

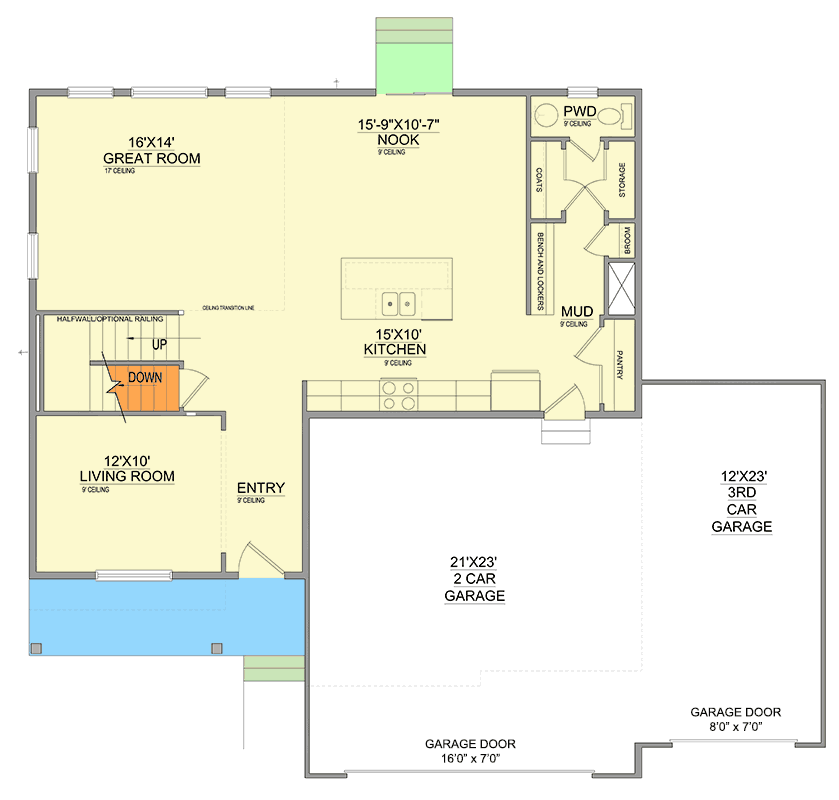

Main Level

Plan 849041PGE: 4-Bed New American House Plan with Two-Story Great Room - 3172 Sq Ft - Floor Plan - Main Level - Country, New American, Traditional

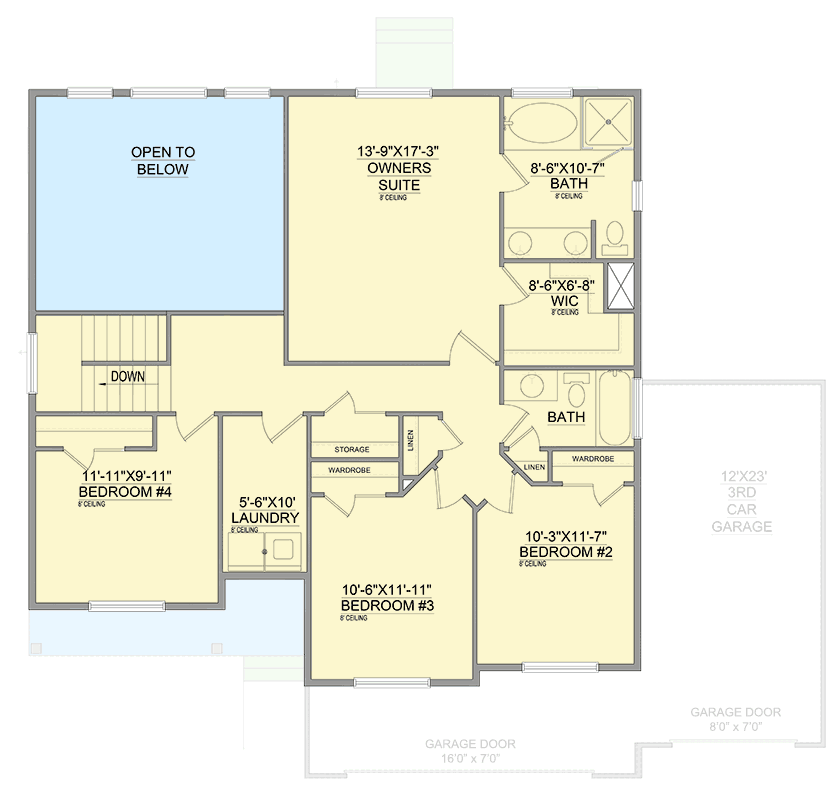

2nd Floor

Plan 849041PGE: 4-Bed New American House Plan with Two-Story Great Room - 3172 Sq Ft - Floor Plan - 2nd Floor - Country, New American, Traditional

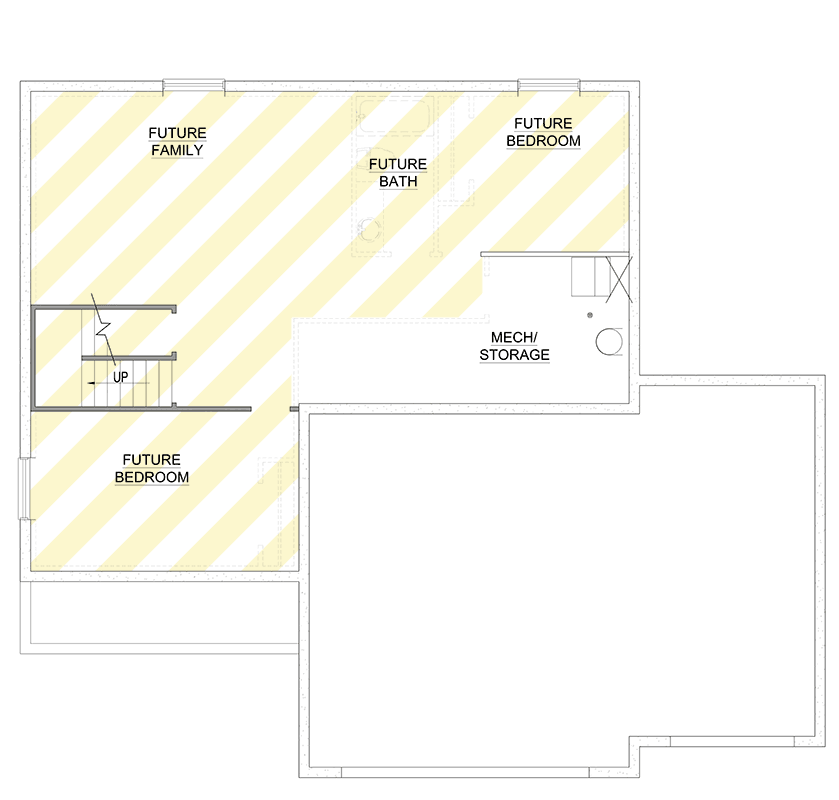

Optionally Finished Lower Level

Plan 849041PGE: 4-Bed New American House Plan with Two-Story Great Room - 3172 Sq Ft - Floor Plan - Optionally Finished Lower Level - Country, New American, Traditional

Plan Details

  • This New American house plan gives you 3,172 square feet of heated living space, 4 beds, 2.5 baths and a 777 sq. ft. 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
