Plan 62754DJ 4-Bed New American House Plan with Upstairs Kids' Space

4-Bed New American House Plan with Upstairs Kids' Space

Plan 62754DJ

  • 2,148

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • A covered front porch and board and batten siding establish a sense of comfort on this 2148 sq. ft., 4-bed house plan. Inside, a few steps bring guests into the great room, with its fireplace, views to the rear and boundary-defining cathedral ceiling. The kitchen and dinette lie open to the great room for comfortable entertaining.
  • The kitchen itself is well-appointed, with an island work station with a snack bar and shelves and a walk-in pantry.  The dinette has access to a covered patio off the rear of the home.  Just off the kitchen, a mud room with bench and lockers accesses the home's 3-car, front-load garage.
  • The master suite resides on the other side of the home and is tucked away for privacy.  Its bath area features his-and-her vanities, a compartmented toilet, and a sizeable walk-in closet.   Bedrooms 2 and 3 are upstairs separated from the master suite for privacy.  Both secondary bedrooms share a central hall bath. There is also a loft that is great for a kids space upstairs.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

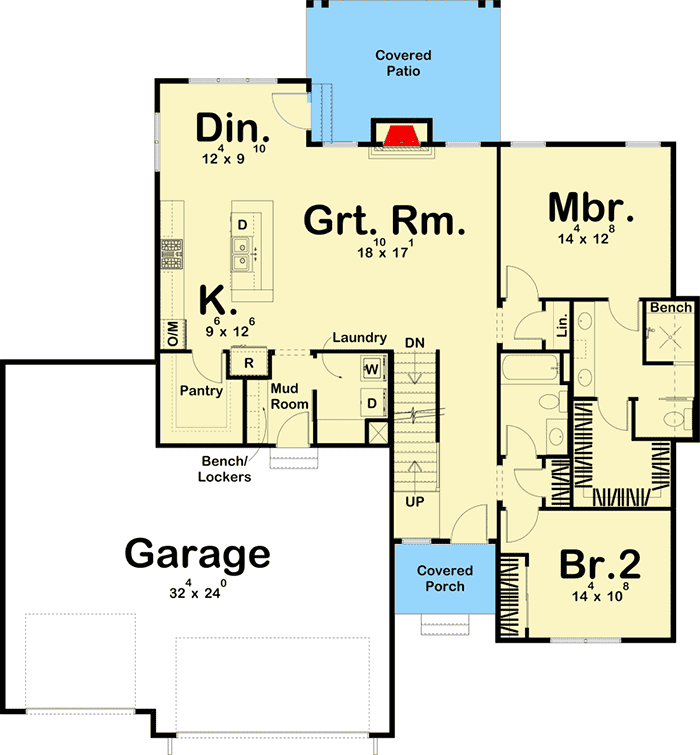

4-Bed New American House Plan with Upstairs Kids' Space - 62754DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

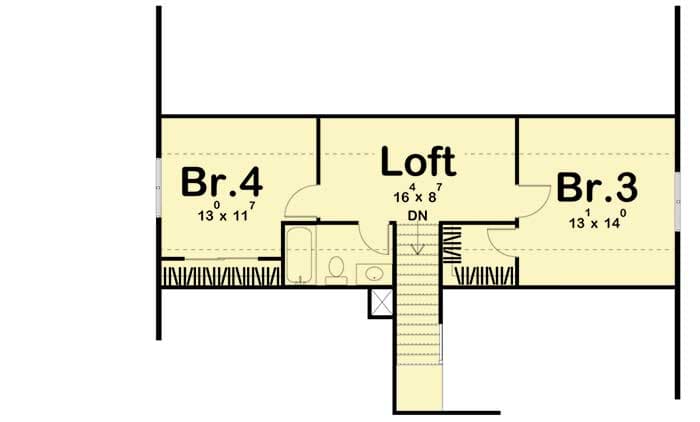

4-Bed New American House Plan with Upstairs Kids' Space - 62754DJ floor plan - 2nd Floor

Plan details

4-Bed New American House Plan with Upstairs Kids' Space

  • 2,148

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,400
  • 5 Sets + PDF $1,650
  • PDF - Unlimited Build $1,900
  • CAD + PDF - Single-Build $1,900
  • CAD - Unlimited Build $2,400
  • View all purchase option online

About This Plan

  • A covered front porch and board and batten siding establish a sense of comfort on this 2148 sq. ft., 4-bed house plan. Inside, a few steps bring guests into the great room, with its fireplace, views to the rear and boundary-defining cathedral ceiling. The kitchen and dinette lie open to the great room for comfortable entertaining.
  • The kitchen itself is well-appointed, with an island work station with a snack bar and shelves and a walk-in pantry.  The dinette has access to a covered patio off the rear of the home.  Just off the kitchen, a mud room with bench and lockers accesses the home's 3-car, front-load garage.
  • The master suite resides on the other side of the home and is tucked away for privacy.  Its bath area features his-and-her vanities, a compartmented toilet, and a sizeable walk-in closet.   Bedrooms 2 and 3 are upstairs separated from the master suite for privacy.  Both secondary bedrooms share a central hall bath. There is also a loft that is great for a kids space upstairs.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,148 sq. ft.
  • 1st Floor: 1,531 sq. ft.
  • 2nd Floor: 617 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 62' 0"

Garage

  • Type: Attached
  • Area: 870 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 9 on 12
