4-Bed New American House Plan with Upstairs Laundry

Pageloader

4-Bed New American House Plan with Upstairs Laundry

Plan 42608DB

  • 2,505

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 4-bedroom, New American house plan, clad in stone, shakes, and horizontal siding, features the shared living spaces on the main level and sleeping rooms upstairs.
  • Once inside, a coat closet resides in the foyer, which opens to a flex room ideal for a piano or second living room. The light-filled, great room opens to the eat-in kitchen, with a large island anchoring the living space.
  • A hidden walk-in pantry is behind cabinet doors, adjacent to a pocket office with a window. The covered deck is accessible from the dining area, providing a great space for a grill and lounge furniture.
  • Upstairs, the best bedroom is reserved for the owner, which includes a massive walk-in closet and 4-fixture en suite with access to the laundry room. Three additional bedrooms share a compartmentalized bath.
  • A spacious mudroom with built-in lockers is located just inside from the 3-car garage, allowing you to keep your personal items and outdoor gear organized.
  • Related Plan: Get a finished basement with a rec room and fifth bedroom with house plan 42609DB

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



4-Bed New American House Plan with Upstairs Laundry

  • 2,505

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $680
  • PDF - single-use $1,035
  • 4 Sets $1,110
  • 5 Sets $1,160
  • 5 Sets PLUS $1,205
  • 8 Sets $1,230
  • PDF - multi-use $1,535
  • CAD $1,811
  • CAD - multi-use $2,311
  • View all purchase option online

About This Plan

  • This 4-bedroom, New American house plan, clad in stone, shakes, and horizontal siding, features the shared living spaces on the main level and sleeping rooms upstairs.
  • Once inside, a coat closet resides in the foyer, which opens to a flex room ideal for a piano or second living room. The light-filled, great room opens to the eat-in kitchen, with a large island anchoring the living space.
  • A hidden walk-in pantry is behind cabinet doors, adjacent to a pocket office with a window. The covered deck is accessible from the dining area, providing a great space for a grill and lounge furniture.
  • Upstairs, the best bedroom is reserved for the owner, which includes a massive walk-in closet and 4-fixture en suite with access to the laundry room. Three additional bedrooms share a compartmentalized bath.
  • A spacious mudroom with built-in lockers is located just inside from the 3-car garage, allowing you to keep your personal items and outdoor gear organized.
  • Related Plan: Get a finished basement with a rec room and fifth bedroom with house plan 42609DB

Floor Plans

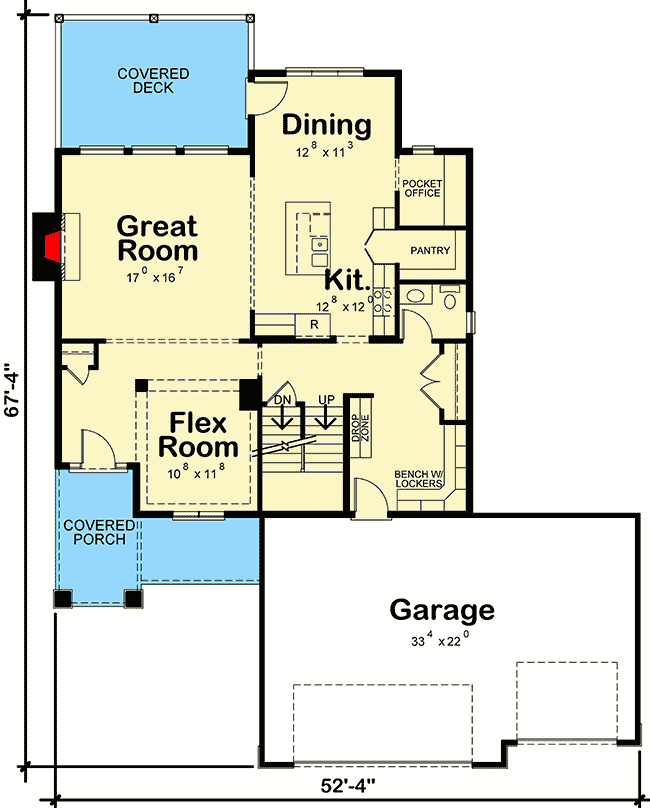

  • Main Level

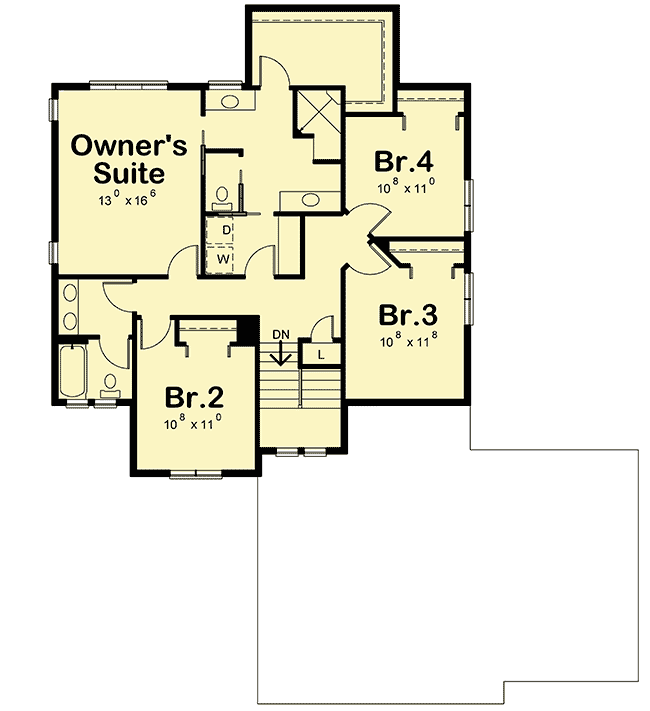

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,505 sq. ft.
  • 1st Floor: 1,297 sq. ft.
  • 2nd Floor: 1,208 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 4"
  • Depth: 67' 4"
  • Max ridge height: 27' 11"

Garage

  • Type: Attached
  • Area: 740 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
