4 Bed New American Masterpiece-of-a-Home-Plan Under 3700 Square Feet

Plan 93138EL

  • 3,655

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Painted brick, vertical siding and attractive gables - plus a shed dormer - combine to give this 4 bed, 3,655 square foot New American masterpiece of a house plan great curb appeal.
  • Exposed beams line the ceiling of the gathering room with and an oversized opening into the kitchen creates a seamless flow between the spaces. Windows fill the rear wall of the adjoining dining room. Both the dining room and gathering room have access to the outdoor living room.
  • A scullery with a prep sink helps when entertaining and a mudroom near the kitchen welcomes family when entering from the 3-car garage.
  • The owner's suite is conveniently located on the main level, next to the laundry room that is accessible directly from the owner's suite.
  • Upstairs you'll find three bedroom suites with walk-in closets, three bathrooms plus large rec room sure to be a hit with the kids.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

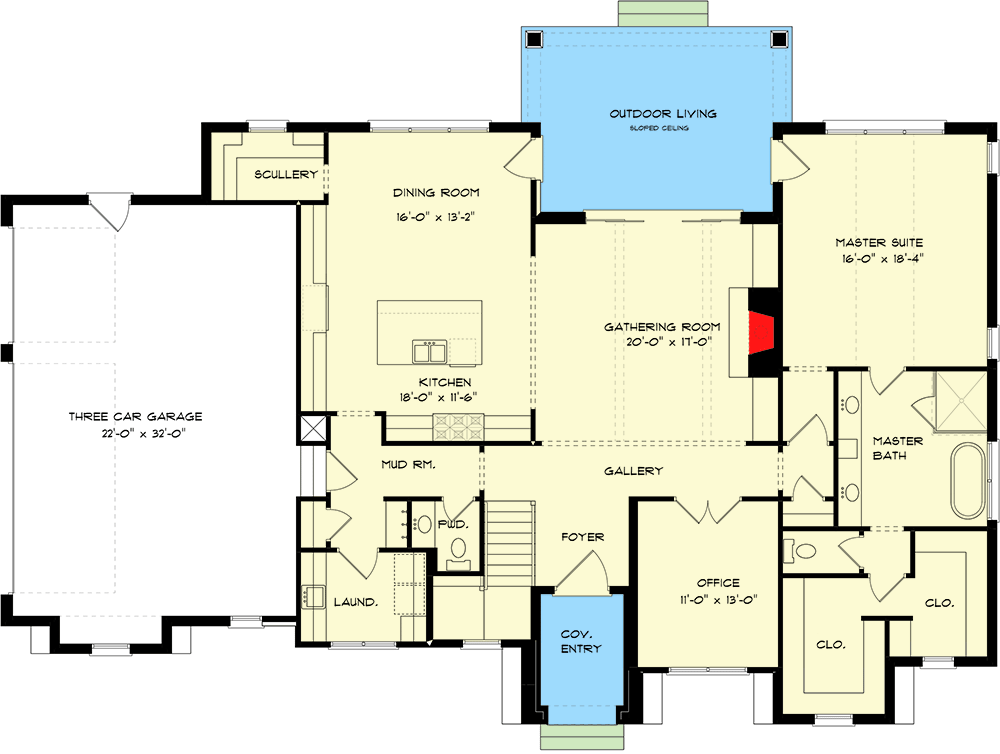

4 Bed New American Masterpiece-of-a-Home-Plan Under 3700 Square Feet - 93138EL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

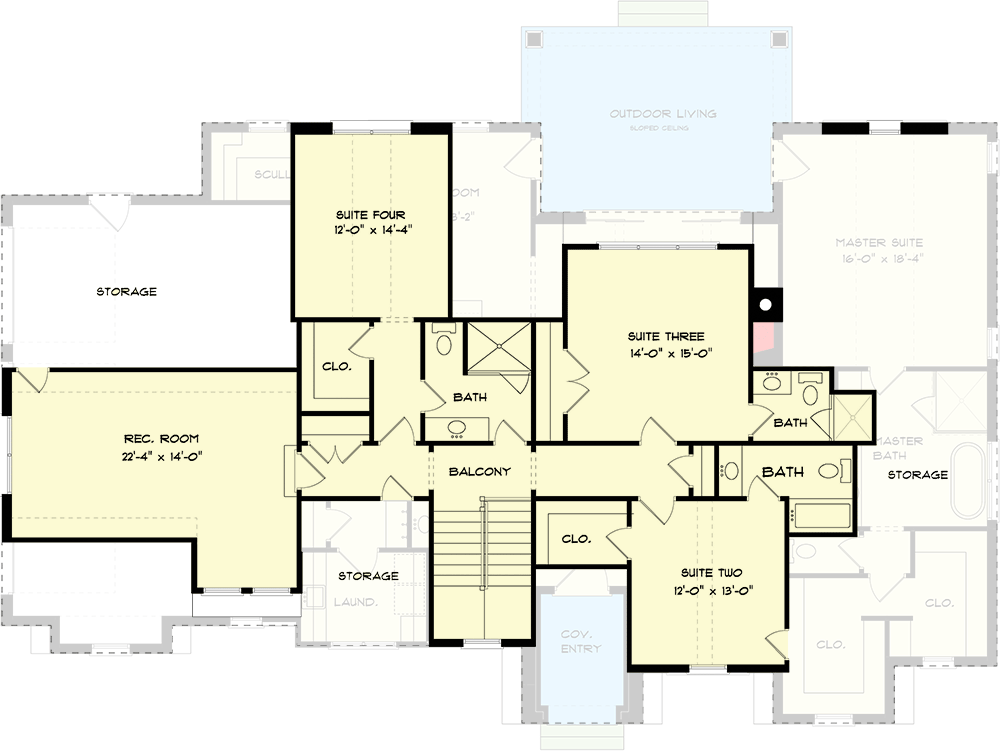

4 Bed New American Masterpiece-of-a-Home-Plan Under 3700 Square Feet - 93138EL floor plan - 2nd Floor

4 Bed New American Masterpiece-of-a-Home-Plan Under 3700 Square Feet

  • 3,655

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,655 sq. ft.
  • 1st Floor: 2,229 sq. ft.
  • 2nd Floor: 1,426 sq. ft.

Dimensions

  • Width: 77' 10"
  • Depth: 58' 6"
  • Max ridge height: 32' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 813 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
